Troy-Bilt C-26 Cart 13 Bushel Dump Front Wheelbarrow

Model: C-26 CART 13 BUSHEL DUMP FRONT

Save
 Part Not Listed?Part Not Listed?
product name

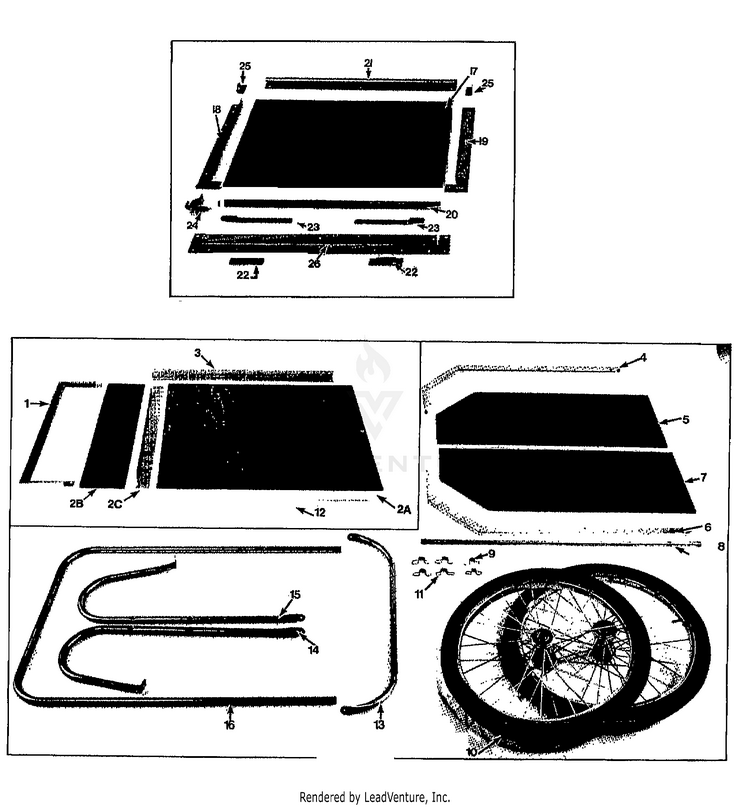

MAIN ASSEMBLY

...
...
1
PROTECTOR-M26 REAR EDGE MTD-03626
...
2A
PANEL-BOTTOM FRT W/TNUTS MTD-03153
...
2B
PANEL-REAR BOTTOM W/TNUTS MTD-03152
...
2C
SUPT-REAR BOTTOM KM26 MTD-03147
...
3
ANGLE-26 SOLID FRONT BOT LT MTD-03057
...
4
PROTECTOR-SIDE LT MTD-03059
...
5
PANEL-03052 LFT KM26 W/NUTS MTD-03149
...
6
PROTECTOR-26 TOP EDGE RT MTD-03058
...
7
PANEL-RT W/TNUTS KM26 MTD-03150
...
8
AXLE-MODEL 26 MTD-03616
...
9
CLAMP-AXLE 20 & 26 MTD-03203
...
10
WHEEL&TIRE-COMP. M26 MTD-03870
...
10
TUBE-(ONLY) M26 MTD-03886
...
10
TIRE (ONLY) M26 DIA TREAD MTD-03876
...
10
BEARINGS-WHEEL 20&26 MTD-03956
...
11
WHEEL-RIM & BEARING MTD-03906
...
11
CLAMP-HANDLE KM26 MTD-03145
...
12
ANGLE-BOTM 26 SOLID FRONT RT MTD-03055
...
13
N/A MTD-NA
...
14
BRACE-CROSS KM26 MTD-03143
...
15
STAND-RIGHT HAND KM26 MTD-03141
...
16
STAND-LEFT HAND KM26 MTD-03142
...
16
HANDLE-KM26 MTD-03144
...
17
PANEL-FRNT DOOR W/T NUTS MTD-03151
...
18
SUPT-SIDE 26 SWING FRONT LT MTD-03067
...
19
SUPT-SIDE 26 SWING FRONT RT MTD-03068
...
20
EDGE-BOT 26 SWING FRONT MTD-03063
...
21
EDGE-TOP 26 SWING FRONT MTD-03064
...
22
PLATE-LATCH 20&26 SWING FRONT MTD-03073
...
23
LATCH-20&26 SWING FRONT MTD-03074
...
24
ASSM-20&26 PLUNGER MTD-03069
...
25
HINGE-20&26 SWING FRONT MTD-03072
...
26
SUPT-BOT 26 SWING FRONT MTD-03065
...
?27
SCR-PH 1/4-20 X .5 MTD-03208
...
?28
BOLT-1/4 X 5/8 PAN HD MTD-03209
...
?29
BOLT-SLPH 1/4-20 X.875-ZP MTD-9675
...
?30
BOLT-1/4 X 1 PAN HD MTD-03213
...
?31
BOLT-SLPH 1/4-20X1.125ZP MTD-9676
...
?32
BOLT-SLPH-1/4-20X1 3/8 ZP MTD-9850
...
?33
SCR-HH 5/16-18X.5 GD5 YEL MTD-9550
...
?34
NUT-LK 1/4-20 MTD-03207
...
?35
NUT-H/LK 5/16-18 NYLOCK MTD-9846
...
?36
NUT-HT/LK 1/4-20X.375 MTD-03205
...
?37
SPACER-20&26 SWING FRONT MTD-03075
...
?38
BUSHING-.31X.188X.38 MTD-9427
...
?39
SCR-WOOD RHS M8X.75 ZP MTD-9667
...
?40
PIVOT-HINGE M26 R/D MTD-03658
...
?41
CASE FEET MTD-03617
...
?42
PIN-COTTER 3/32 X 1 1/4 MTD-03204
...
xx
HDW PKG-26 SWING FRONT MTD-03077
...
xx
KIT-HDW CART M26 T/B MTD-11052
...
...
...
