Troy-Bilt C-20 Cart 5 Bushel Dump Front Wheelbarrow

Model: C-20 CART 5 BUSHEL DUMP FRONT

Save
 Part Not Listed?Part Not Listed?
product name

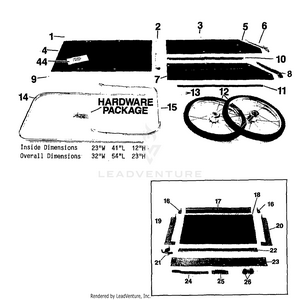

MAIN ASSEMBLY

...
...
1
ANGLE-BOTTOM 20 SOLID FRONT LT MTD-03085
...
2
PROTECTOR-REAR MTD-03160
...
3
HANDLE SLEEVE-LEFT MTD-03162
...
4
PANEL-BOTTOM W/TNUTS MTD-03169
...
5
PANEL-LT W/T-NUTS MTD-03167
...
6
PROTECTOR-LEFT MTD-03165
...
7
PANEL-RT W/TNUTS @ DEPL MTD-03166
...
8
PROTECTOR-RIGHT MTD-03164
...
9
ANGLE-BOTTOM 20 SOLID FRONT RT MTD-03084
...
10
HANDLE SLEEVE-RIGHT MTD-03163
...
11
AXLE-MODEL 20 MTD-03316
...
12
ASSM-WHEEL M20 CART MTD-03566
...
13
CLAMP-AXLE 20 & 26 MTD-03203
...
14
HANDLE MTD-03158
...
15
STAND-M20 SF/DF MTD-03159
...
16
HINGE-20&26 SWING FRONT MTD-03072
...
17
EDGE TOP MTD-03161
...
18
PANEL-FRONT DOOR W/TNUTS MTD-03168
...
19
SUPT-20 SWING FRONT SIDE LT MTD-03098
...
20
SUPT-20 SWING FRONT SIDE RT MTD-03097
...
21
ASSM-20&26 PLUNGER MTD-03069
...
22
EDGE-BOTTOM M20 MTD-03095
...
23
SUPT-BOTTOM 20 SWING FRONT MTD-03094
...
24
LATCH-20&26 SWING FRONT MTD-03074
...
25
PLATE-LATCH 20&26 SWING FRONT MTD-03073
...
26
CASE FEET MTD-03617
...
?27
SCR-PH 1/4-20 X .5 MTD-03208
...
?28
BOLT-1/4 X 5/8 PAN HD MTD-03209
...
?29
BOLT-SLPH 1/4-20 X.875-ZP MTD-9675
...
?30
BOLT-1/4 X 1 PAN HD MTD-03213
...
?31
BOLT-SLPH 1/4-20X1.125ZP MTD-9676
...
?32
BOLT-SLPH-1/4-20X1 3/8 ZP MTD-9850
...
?33
SCR-HH 5/16-18X.5 GD5 YEL MTD-9550
...
?34
SPACER-20&26 SWING FRONT MTD-03075
...
?35
NUT-LK 1/4-20 MTD-03207
...
?36
NUT-H/LK 5/16-18 NYLOCK MTD-9846
...
?37
SCR-PHS M6X.5 ZP MTD-03214
...
?38
SCR-WOOD RHS M8X.75 ZP MTD-9667
...
?39
PIN-COTTER 3/32 X 1 1/4 MTD-03204
...
?40
BUSHING-.31X.188X.38 MTD-9427
...
?41
PIVOT-HINGE M26 R/D MTD-03658
...
?42
NUT-HT/LK 1/4-20X.375 MTD-03205
...
?43
CLAMP-AXLE 20 & 26 MTD-03203
...
44
LIT-TEMPLATE M20 CART MTD-SHP-66
...
...
...
