Troy-Bilt 26M Cart 13 Bushel Dump Front Wheelbarrow

Model: 26M CART 13 BUSHEL DUMP FRONT

Save
 Part Not Listed?Part Not Listed?
product name

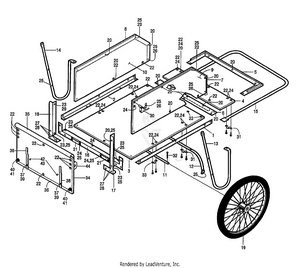

MAIN ASSEMBLY

...
...
1
ANGLE-26 SOLID FRONT BOT LT MTD-03057
...
2
ANGLE-BOTM 26 SOLID FRONT RT MTD-03055
...
3
PANEL-BOTTOM FRT W/TNUTS MTD-03153
...
4
PANEL-REAR BOTTOM W/TNUTS MTD-03152
...
5
PROTECTOR-M26 REAR EDGE MTD-03626
...
6
SUPT-REAR BOTTOM KM26 MTD-03147
...
7
PROTECTOR-SIDE LT MTD-03059
...
8
PROTECTOR-26 TOP EDGE RT MTD-03058
...
9
PANEL-03052 LFT KM26 W/NUTS MTD-03149
...
10
PANEL-RH W/TNUTS M26 MTD-1902083
...
11
AXLE-MODEL 26 MTD-03616
...
12
BRACE-CROSS M26 MTD-03766
...
13
STAND-M26(LEG) LEFT MTD-03747
...
14
STAND-M26 (LEG) RIGHT MTD-03757
...
15
M26 HANDLE-ALL MODELS MTD-03606
...
16
SUPT-BOT 26 SWING FRONT MTD-03065
...
17
SUPT-SIDE 26 SWING FRONT LT MTD-03067
...
18
SUPT-SIDE 26 SWING FRONT RT MTD-03068
...
19
WHEEL&TIRE-COMP. M26 MTD-03870
...
20
SCR-PH 1/4-20 X .5 MTD-03208
...
21
PLATE-LATCH 20&26 SWING FRONT MTD-03073
...
22
NUT-HT/LK 1/4-20X.375 MTD-03205
...
23
BOLT-1/4 X 1 PAN HD MTD-03213
...
24
BOLT-1/4 X 5/8 PAN HD MTD-03209
...
25
NUT-LK 1/4-20 MTD-03207
...
26
BOLT-SLPH 1/4-20 X.875-ZP MTD-9675
...
27
SCR-HH 5/16-18X.5 GD5 YEL MTD-9550
...
28
NUT-H/LK 5/16-18 NYLOCK MTD-92016
...
29
PIVOT-HINGE M26 R/D MTD-03658
...
30
ASSM-20&26 PLUNGER MTD-03069
...
31
BRKT-AXLE MTG MTD-03202
...
32
PIN-COTTER 3/32 X 1 1/4 MTD-03204
...
33
CLAMP-AXLE 20 & 26 MTD-03203
...
34
PANEL-FRNT DOOR W/T NUTS MTD-03151
...
35
EDGE-TOP 26 SWING FRONT MTD-03064
...
36
EDGE-BOT 26 SWING FRONT MTD-03063
...
37
BOLT-SLPH 1/4-20X1.125ZP MTD-9676
...
38
LATCH-20&26 SWING FRONT MTD-03074
...
39
SPACER-20&26 SWING FRONT MTD-03075
...
40
BOLT-1/4 X 1 1/4 PAN HD MTD-03211
...
41
CASE FEET MTD-03617
...
42
BUSHING-.31X.188X.38 MTD-9427
...
43
SCR-WOOD RHS M8X.75 ZP MTD-9667
...
xx
KIT-HDW BY-STEPS M26 CART MTD-1902014
...
44
UNKNOWN MTD-NA
...
...
...
