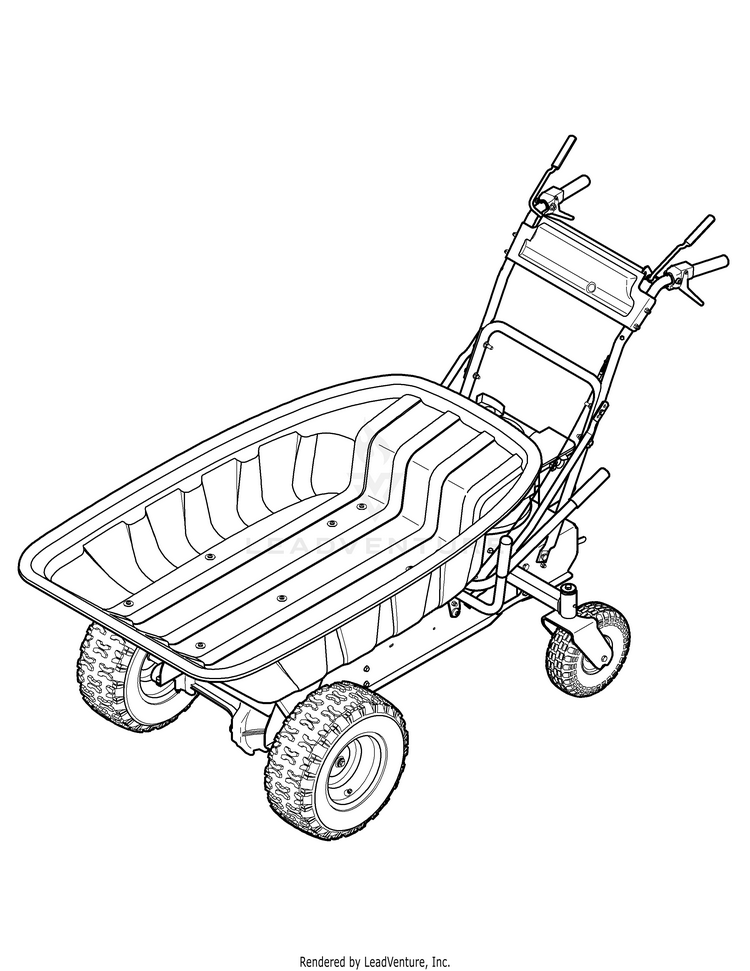

Troy-Bilt 24A-7400066 Pack Horse, Wheelbarrow (2009)

Model: 24A-7400066 Wheelbarrow (2009)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Air Filter MTD-BS-491588S
...
xx
Pre Air Filter MTD-BS-493537S
...
xx
Fuel Filter MTD-BS-298090S
...
xx
Forward Cable MTD-946-04592
...
xx
Reverse Cable MTD-946-04595
...
xx
Brake Release Cable MTD-946-04598
...
xx
Belt MTD-954-04165
...
xx
Shift Handle Grip MTD-720-04008
...
xx
Grip MTD-720-0274
...
xx
Bed MTD-931-06908
...
xx
Rear Wheels MTD-634-04584
...
xx
Front Wheels MTD-634-04135-0911

Bed,Frame & Rear Wheels

...
...
1
Brake Bail Assembly MTD-681-04154-0637
...
2
Screw, 1/4-20 x 0.750 MTD-710-0924
...
3
Hex Head Screw, 5/16-18 x 2.25 MTD-710-0395
...
4
Hex Head Screw, 1/4-20 x 1.50 MTD-710-0606
...
5
Hex Head Screw, 5/16-18 x 1.75 MTD-710-3180
...
6
Flangelock Nut, 5/16-18 MTD-712-04063
...
7
Flangelock Nut, 1/4-20 MTD-712-04064
...
8
Flangelock Nut, 3/8-16 MTD-712-04065
...
9
Cap Lock Nut, 1/4-20 MTD-712-0442
...
10
Reverse Handle Grip MTD-720-0270A
...
11
Grip, 1.0 ID x 5.0 LG MTD-720-0274
...
12
Cable Tie, 7.5 LG, Push Mount MTD-926-0154
...
13
Cable Tie, 8.5 LG MTD-726-0317
...
14
Damper Pad MTD-735-04182
...
15
L-Wash. 3/8" I.D. MTD-736-0169
...
16
Spacer, .375 x .625 x 4.05 MTD-750-05255
...
17
Thrust Bearing Needle, 1.00 x 1.562 MTD-741-3083
...
18
Shoulder Screw, .435 x .178, 5/16 x .56 MTD-738-0140
...
19
Socket Head Screw, 5/16-18 x .375 MTD-738-04402
...
20
Forward Cable MTD-946-04592
...
21
Reverse Cable MTD-946-04595
...
22
Brake Release Cable MTD-946-04598
...
23
Lower Handle MTD-749-04330-0637
...
24
Upper Handle, LH MTD-749-04331-0637
...
25
Upper Handle, RH MTD-749-04332-0637
...
26
Handle Adjuster Brace Tube MTD-749-04333-0637
...
27
Handle Panel MTD-781-04360-0638
...
28
Cable Mounting Bracket, LH MTD-781-04373-0637
...
29
Retainer Bracket, RH MTD-786-0098-0637
...
30
Pivot Bed Bracket Assembly MTD-681-04133-0638
...
31
Bed Handle Assembly MTD-681-04155-0638
...
32
Lock Bracket Assembly MTD-681-04158-0638
...
33
Screw, 5/16-18 x 1.00 MTD-710-1669
...
34
Clevis Pin, .500 x 2.00 MTD-711-05217
...
35
Click Pin MTD-714-0145
...
36
Rivet, .125 DIA x .625 MTD-728-04041
...
37
Bed MTD-931-06908
...
38
Extension Spring, .60 OD x 6.44 LG MTD-732-04579
...
39
Bumper Pad MTD-735-04172
...
40
Rubber Pad MTD-735-04173
...
41
Flat Washer,.510 x 1.00 MTD-736-0326
...
42
Washer, Flat, .344 x 1.00 x .063 MTD-736-3078
...
43
Shoulder Screw, .625 x .145, 3/8-16 MTD-738-04012C
...
44
Screw, Shoulder, .31x .75, 1/4-20 MTD-738-3141
...
45
Transmission Support Bracket MTD-781-04335-0638
...
46
Front Axle Assembly MTD-681-04146-0638
...
47
Hex Head Screw, 3/8-16 x 3.00 MTD-710-0521
...
48
Screw, 5/16-18 x 0.625 MTD-710-0604A
...
49
Shoulder Bolt, 3/8-16 x .625 x 2.515 MTD-738-04216A
...
50
Flange Bearing MTD-741-0353
...
51
Spacer Tube, .385 x .625 x 2.250 MTD-750-05156
...
52
Frame MTD-781-04329-0638
...
53
Pivot Mount Bracket MTD-781-04348-0638
...
54
Frame Brace Bracket MTD-781-04379-0638
...
55
Wheel Assembly, 10.0 x 3.5 MTD-634-04584
...
56
10" Wheel Caster Assembly MTD-681-04165-0638
...
57
Hex Head Screw, 3/8-16 x 5.00 MTD-710-0615A
...
58
Hex Head Screw, 3/8-24 x 1.25 MTD-710-0879
...
59
Flange, Bearing, 1.00 ID x 1.246 OD MTD-731-05500
...
60
Washer, Flat, 1.03 x 1.62 x .03 MTD-936-0163
...
61
Washer, Flat, .385 x 1.5 x .075 MTD-736-0234
...
62
Drive Lube Fitting,3/16 MTD-937-3000
...
63
Washer, Flat, .28 x .74 x .063 MTD-736-0173
...
64
Nut, Jamlock, 3/8-16 MTD-712-0266A
...
65
Flat Washer, .375 x .738 x .063 MTD-736-0185
...
66
Bed Frame Assembly MTD-681-04174-0638

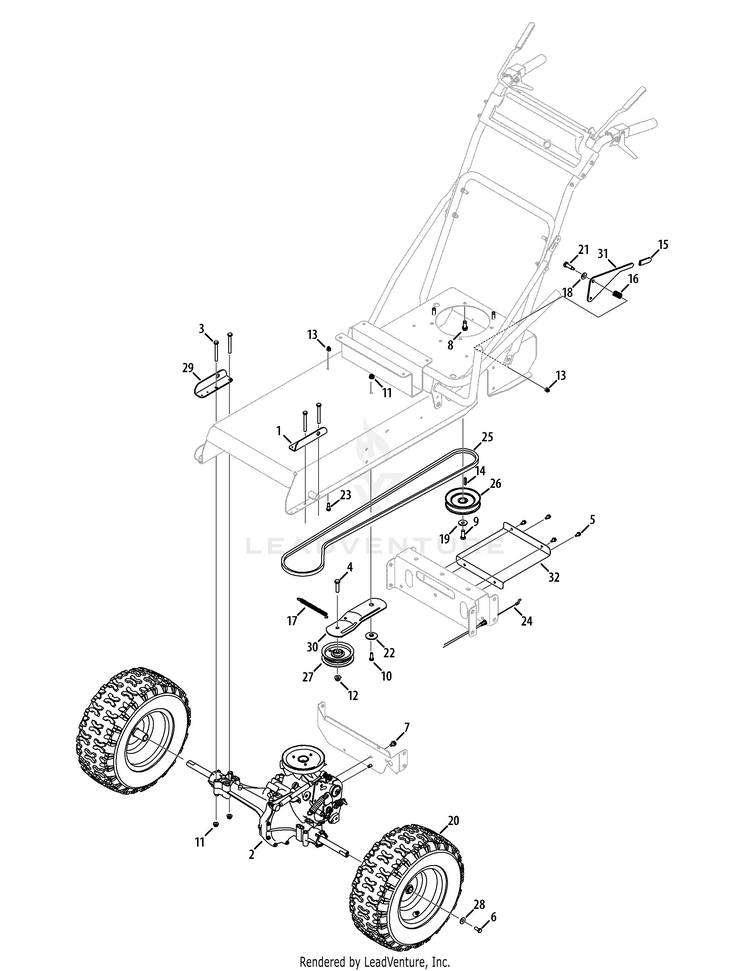

Drive Assembly

...
...
1
Support Bracket, LH MTD-781-04380-0638
...
2
Transmission Assembly w/ Damper MTD-918-04845
...
2
Cylinder, Damper MTD-727-04291
...
2
Spring, .75 OD X 3.240 MTD-732-04293
...
3
Hex Head Screw, ....-18 x 2.75 MTD-710-0176
...
4
Hex Head Screw, 3..-16 x 1.50 MTD-710-0520
...
5
Screw, .-20 x 0.500 MTD-710-0599
...
6
Hex Head Screw, ....-24 x .750 MTD-710-0627
...
7
Screw, ....-18 x 0.500 MTD-710-0607
...
8
Screw, 3..-16 x 1.000 MTD-710-0654A
...
9
Hex Head Screw, 3..-24 x 1.00 MTD-710-1039
...
10
Hex Head Screw, ....-18 x .875 MTD-710-3038
...
11
Flangelock Nut, ....-18 MTD-712-04063
...
12
Flangelock Nut, 3..-16 MTD-712-04065
...
13
Cap Lock Nut, 1/4-20 MTD-712-0442
...
14
Square Key, 3... x 1.00 MTD-914-0105
...
15
Shift Handle Grip MTD-720-04008
...
16
Compression Spring, .39 x .60 x .88 MTD-732-0193
...
17
Extension Spring, .55 DIA x 6.25 LG MTD-732-04639
...
18
Washer, Flat, .385 x .87 x .06 MTD-936-0267
...
19
Bell Washer, .396 x 1.14 x .095 MTD-736-0452
...
20
X-Trac Wheel, Complete, 16 x 6.5 x 8 MTD-634-04135-0911
...
21
Screw, Shield, .374 DIA. x 1.05 LG. MTD-738-04125
...
22
Spacer, Shoulder, .5000 x .1475 MTD-738-04166
...
23
Screw, Shoulder, .-20 x .31 x .50 MTD-738-04395
...
24
Transmission Cable MTD-946-04623
...
25
V-Belt, 4L x 78 LG POLY MTD-954-04165
...
26
Engine Pulley MTD-756-04378
...
27
Idler Pulley, 3.50 DIA. MTD-756-0627D
...
28
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
29
Support Bracket, RH MTD-781-04347-0638
...
30
Idler Bracket MTD-781-04349-0637
...
31
Transmission Release Bracket MTD-781-04376-0637
...
32
Pulley Guard MTD-781-04377-0638
