Troy-Bilt 20M Cart 5 Bushel Dump Front Wheelbarrow

Model: 20M CART 5 BUSHEL DUMP FRONT

Save
 Part Not Listed?Part Not Listed?
product name

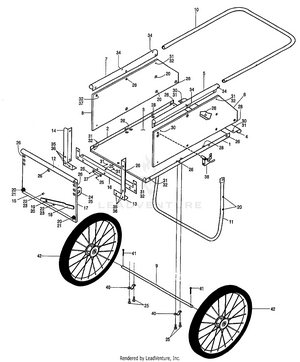

MAIN ASSEMBLY

...
...
1
ANGLE-BOTTOM 20 SOLID FRONT LT MTD-03085
...
2
ANGLE-BOTTOM 20 SOLID FRONT RT MTD-03084
...
3
PANEL-BOTTOM W/TNUTS MTD-03169
...
4
PROTECTOR-REAR M20 MTD-03364
...
5
SLEEVE-20 HANDLE LT MTD-03088
...
6
PANEL-LFT W/TNUTS M20 MTD-03171
...
7
SLEEVE-20 HANDLE RT MTD-03087
...
8
PANEL-RH W/TNUTS M20 MTD-1902081
...
9
AXLE-MODEL 20 MTD-03316
...
10
MISC 20 HANDLE MTD-03306
...
11
STAND-M20 SF/DF MTD-03437
...
12
PROTECTOR-20 TOP EDGE MTD-03091
...
13
SUPT-20 SWING FRONT SIDE LT MTD-03098
...
14
SUPT-20 SWING FRONT SIDE RT MTD-03097
...
15
EDGE-BOTTOM M20 MTD-03095
...
16
SUPT-BOTTOM 20 SWING FRONT MTD-03094
...
17
PANEL-FRONT DOOR W/TNUTS MTD-03168
...
18
LATCH-20&26 SWING FRONT MTD-03074
...
19
SPACER-20&26 SWING FRONT MTD-03075
...
20
BOLT-1/4 X 1 1/4 PAN HD MTD-03211
...
21
CASE FEET MTD-03617
...
22
BUSHING-.31X.188X.38 MTD-9427
...
23
SCR-WOOD RHS M8X.75 ZP MTD-9667
...
24
HINGE-20&26 SWING FRONT MTD-03072
...
25
BOLT-1/4 X 5/8 PAN HD MTD-03209
...
26
SCR-PH 1/4-20 X .5 MTD-03208
...
27
PLATE-LATCH 20&26 SWING FRONT MTD-03073
...
28
NUT-HT/LK 1/4-20X.375 MTD-03205
...
29
N/A MTD-NA
...
30
BOLT-SLPH 1/4-20 X.875-ZP MTD-9675
...
31
NUT-LK 1/4-20 MTD-03207
...
32
BOLT-1/4 X 1 PAN HD MTD-03213
...
33
N/A MTD-NA
...
34
SCR-PHS M6X.5 ZP MTD-03214
...
35
SCR-HH 5/16-18X.5 GD5 YEL MTD-9550
...
36
NUT-H/LK 5/16-18 NYLOCK MTD-92016
...
37
PIVOT-HINGE M26 R/D MTD-03658
...
38
ASSM-20&26 PLUNGER MTD-03069
...
39
N/A MTD-NA
...
40
CLAMP-AXLE 20 & 26 MTD-03203
...
41
PIN-COTTER 3/32 X 1 1/4 MTD-03204
...
42
WHEELS-T/B M20 CART BOX 2 MTD-52202
...
...
...
