Troy-Bilt 16 Cart 2 Bushel Dump Wheelbarrow

Model: 16 CART 2 BUSHEL DUMP

Save
 Part Not Listed?Part Not Listed?
product name

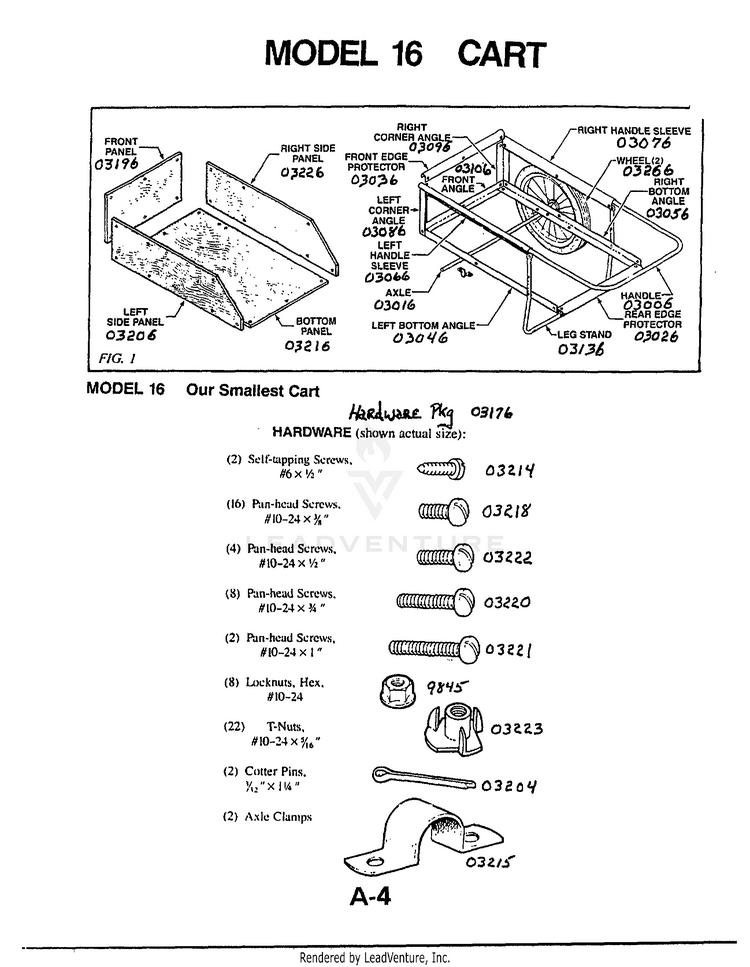

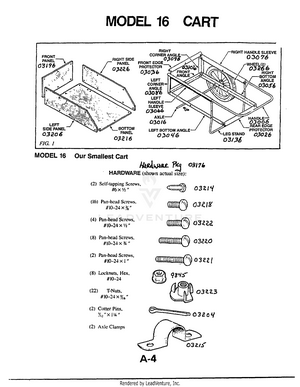

HARDWARE PACKAGE

...
...
03096
ANGLE-CORNER 16 RIGHT MTD-03096
...
03076
SLEEVE-16 HANDLE RIGHT MTD-03076
...
03196
PANEL-WOOD 16 FRONT END MTD-03196
...
03226
PANEL-M16 SIDEWOOD RIGHT MTD-03226
...
03036
PROTECTOR-16 FRONT EDGE 23 MTD-03036
...
03106
ANGLE-M16 FRONT MTD-03106
...
03266
ASSM-WHEEL M16 CART MTD-03266
...
03086
ANGLE-CORNER LEFT 16 MTD-03086
...
03056
ANGLE-16 BOTTOM RIGHT MTD-03056
...
03066
SLEEVE-16 HANDLE LEFT MTD-03066
...
03016
AXLE-16 MTD-03016
...
03006
HANDLE-16 MTD-03006
...
03206
PANEL-WOOD 16 SIDE LEFT MTD-03206
...
03216
PANEL-M16 BOTTOM WOOD MTD-03216
...
03046
ANGLE-16 BOTTOM LEFT MTD-03046
...
03136
STAND-M16 MTD-03136
...
03026
PROTECTOR-16 REAR EDGE MTD-03026
...
03176
HDW PKG-16 KIT MTD-03176
...
03214
SCR-PHS M6X.5 ZP MTD-03214
...
03218
SCR-PHS M10-24X.375 ZP MTD-03218
...
03222
BOLT-3/16 X 1/2 PAN HD MTD-03222
...
03220
SCR-PHS M10-24X.75 ZP MTD-03220
...
03221
SCR-PHS M10-24X1.0 ZP MTD-03221
...
9845
NUT-H/LK M10-24 NYLOCK MTD-9845
...
03223
NUT-HT/LK M10-24X.312 MTD-03223
...
03204
PIN-COTTER 3/32 X 1 1/4 MTD-03204
...
03215
CLAMP-AXLE M16 MTD-03215

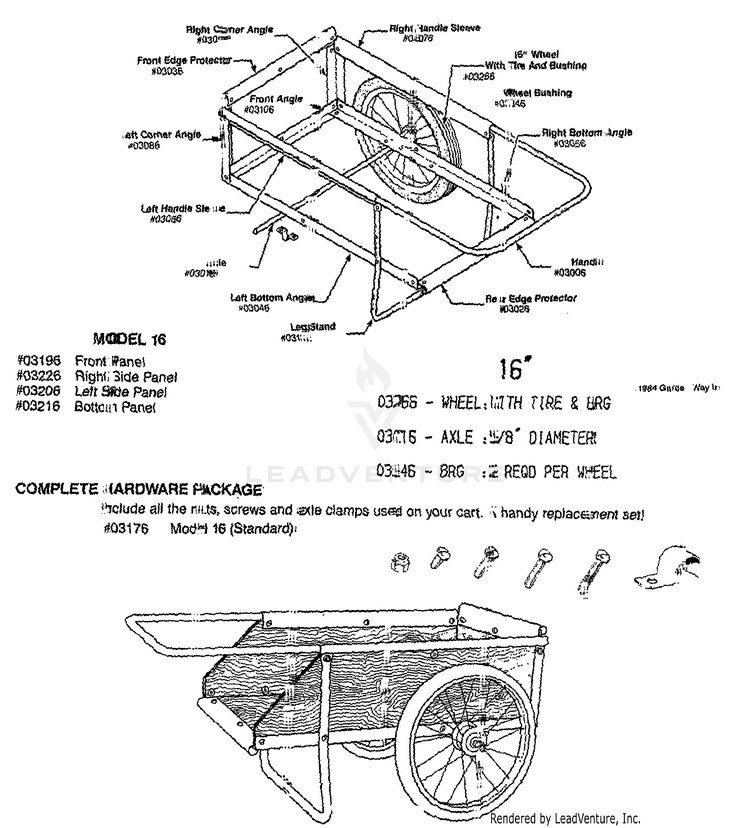

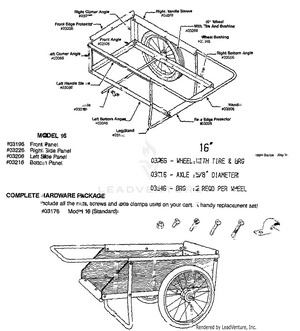

MAIN ASSEMBLY

...
...
xx
ANGLE-CORNER 16 RIGHT MTD-03096
...
xx
SLEEVE-16 HANDLE RIGHT MTD-03076
...
xx
PROTECTOR-16 FRONT EDGE 23 MTD-03036
...
xx
ASSM-WHEEL M16 CART MTD-03266
...
xx
ANGLE-M16 FRONT MTD-03106
...
xx
ANGLE-16 BOTTOM LEFT MTD-03046
...
xx
ANGLE-CORNER LEFT 16 MTD-03086
...
xx
ANGLE-16 BOTTOM RIGHT MTD-03056
...
xx
SLEEVE-16 HANDLE LEFT MTD-03066
...
xx
AXLE-16 MTD-03016
...
xx
HANDLE-16 MTD-03006
...
xx
ANGLE-16 BOTTOM LEFT MTD-03046
...
xx
PROTECTOR-16 REAR EDGE MTD-03026
...
xx
STAND-M16 MTD-03136
...
xx
PANEL-WOOD 16 FRONT END MTD-03196
...
xx
PANEL-M16 SIDEWOOD RIGHT MTD-03226
...
xx
PANEL-WOOD 16 SIDE LEFT MTD-03206
...
xx
PANEL-M16 BOTTOM WOOD MTD-03216
...
xx
BEARINGS-M16 WHEEL MTD-03946
...
xx
HDW PKG-16 KIT MTD-03176
...
...
...
