Troy-Bilt 11445 E-Z SPIN (Garden WAY) Composter Composter

Model: 11445 E-Z SPIN (GARDEN WAY) COMPOSTER

Save
 Part Not Listed?Part Not Listed?
product name

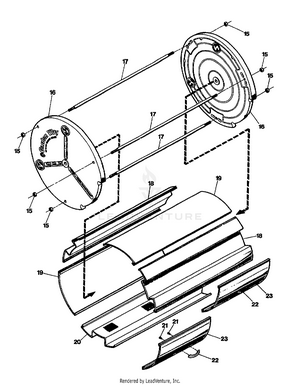

DRUM

...
...
15
NUT-H/LK 1/2-13 COMMON HARDWARE SHOULD BE AVAILABLE LOCALLY; AS WELL AS BEING AVAILABLE FROM MFG. MTD-9804
...
16
CAP-END W/SCREEN T/B MTD-10913
...
17
Spring Lever w/Knob MTD-14082
...
18
PANEL-CONTOURED EXTRUDED MTD-10938
...
19
PANEL-CURVED EXTRUDED MTD-10935
...
20
Spring Lever w/Knob MTD-14082
...
21
BOLT-3/16 X 1/2 PAN HD COMMON HARDWARE SHOULD BE AVAILABLE LOCALLY; AS WELL AS BEING AVAILABLE FROM MFG. MTD-03222
...
22
HANDLE-PULL MTD-10920
...
23
DOOR PANEL W/HOLES MTD-10933

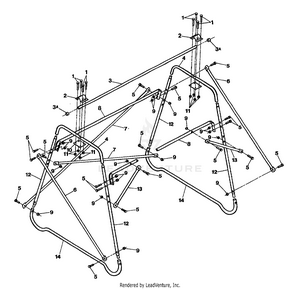

FRAME

...
...
1
SCR-HH 1/4-20X1.5 G5ZP COMMON HARDWARE SHOULD BE AVAILABLE LOCALLY; AS WELL AS BEING AVAILABLE FROM MFG. MTD-9664
...
2
PLATE-FORMED RETAINING MTD-10926
...
3
TUBE-CENTER MTD-10921
...
3A
BUSHING-1.0X.78X.25 MTD-10919
...
4
BLADE:22:TORO ATOMIC 104-8497 MTD-742-04135-4046
...
5
SCR-HH 5/16-18X1.5 G5 ZP COMMON HARDWARE SHOULD BE AVAILABLE LOCALLY; AS WELL AS BEING AVAILABLE FROM MFG. MTD-9758
...
6
COMP SIDE DIAG BR MTD-10922
...
7
BRACE-REAR DIAGONAL MTD-11441
...
8
TUBE-CROSSOVER MTD-11442
...
9
NUT-H/LK 5/16-18 COMMON HARDWARE SHOULD BE AVAILABLE LOCALLY; AS WELL AS BEING AVAILABLE FROM MFG. MTD-9808
...
10
PLATE-FLAT RETAINING MTD-10925
...
11
NUT-LK 1/4-20 COMMON HARDWARE SHOULD BE AVAILABLE LOCALLY; AS WELL AS BEING AVAILABLE FROM MFG. MTD-9811
...
12
TUBE-SWAGED (LEGS) MTD-10927
...
13
BRACE-FRONT DIAGONAL MTD-10924
...
14
TUBE-BASE MTD-10930
...
...
...
