Troy-Bilt 11356 Sprayer I (25Gal 3hp) (S/N W001000-W001383) Sprayer

Model: 11356 SPRAYER I (S/N W001000-W001383)

Save
 Part Not Listed?Part Not Listed?
product name

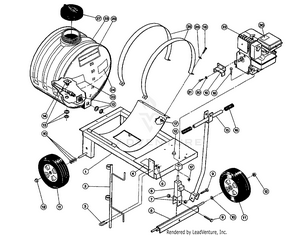

MAIN ASSEMBLY

...
...
1
ASSM-UNDERCARRIAGE MTD-W2140400R
...
2
ASSM-GUN/HOSE STAND MTD-W2115300R
...
3
BOLT-U 1/4X1X3/4 SPRAYER MTD-W0280041016
...
4
DECAL-SAVE MTD-W2045148
...
5
NUT-HEX 1/4-20 ZP MTD-9800
...
6
ASSM-AXLE PIVOT FRONT MTD-W2005103R
...
7
NUT-LOCK MTD-W0310010P
...
8
ASSM-FRONT AXLE SPRAYER MTD-W2005100R
...
9
SCR-HH 5/8-11X2.25 G5 ZP MTD-W02051022
...
10
WASHER-1.75X.625X.11 MTD-9943
...
11
ASSM-TIRE/WHEEL 11592 MTD-WSPW204
...
12
NUT-PUSH 5/8 MTD-WPW625019
...
13
ASSM-BULK HEAD W21254002 MTD-W21254002
...
14
AGITATOR-JET W33710019 MTD-W33710019
...
15
ASSM-TOW HANDLE W/O GRIPS MTD-W2135150R
...
16
HANDLEGRIP-25 GAL SPRAYER MTD-W21351503
...
17
NUT-HFLK 5/16-18 ZP MTD-9848
...
18
SCREW - HEX HEAD S MTD-690-900-0040
...
19
COVER-DRIVESHAFT SPRAYER MTD-W2015400R
...
20
WASHER-LK .312 ZP MTD-9912
...
21
SCR-GRD 5 W02050502FP MTD-W02050502FP
...
22
ENGINE, 3HP BRIGGS & STRATTON #80232 MTD-NA
...
23
DECAL-DANGER AVOID W2045146 MTD-W2045146
...
24
DECAL-ENG SPEED W2045149 MTD-W2045149
...
25
WASHER-FLAT 5/16 SAE MTD-9902
...
26
STRAP-TANK SECURING MTD-W2125401R
...
27
CAP-TANK W21254503 MTD-W21254503
...
28
ASSM-TANK 25 GAL W/DECALS MTD-W21254001W
...
29
DECAL-LOGO 25 GAL SPRAYER MTD-W2045145
...
30
Bolt MTD-791-182414

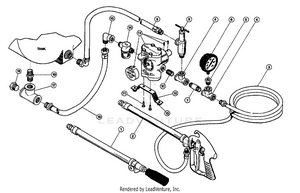

PUMP, HOSE ASSEMBLY

...
...
xx
DISCS-SPRAY PKG WSDP1 MTD-1981081
...
1
GUN-TWIST SPRAY W143BR1/2 MTD-W143BR12
...
2
GRIP-PISTOL W43H6BR SPRAY GUN MTD-W43H6BR
...
3
HOSE-3/8 X 25' W2075660 MTD-W207525
...
4
TEE-1/2" PIPE W20983014 MTD-W20983014
...
5
PIPE-BUSHING REDUCING MTD-W209810242
...
6
GAUGE-GLYCERINE PRESS WLFS220 MTD-WLFS220
...
7
NIPPLE-PIPE 50X2 GALVANIZED MTD-W209810142
...
8
VALVE PRESS. MTD-W681512300G
...
9
HOSE-RETURN LINE W2075603 MTD-W2075603
...
10
NIPPLE-1/2" CLOSE W20981014 MTD-W20981014
...
11
PUMP-TWIN PISTON MTD-W5330CHK
...
12
ARM-TRQ 25G SPRAY W28200028 MTD-W28200028
...
13
BUMPER-RUBBER TORQUE ARM MTD-W14000003
...
14
STRAINER W33500079 MTD-W33500079
...
15
ELBOW-1/2" STREET WSE12 MTD-WSE12
...
16
HOSE-17" SUCTION W2075661 MTD-W2075606
...
17
TEE-3/4 PIPE NYL WTT34 MTD-WTT34
...
18
PLUG-3/4" PLASTIC WF3400 MTD-WF3400
...
19
NIPPLE-3/4 CLOSE WM1400 MTD-WM3400
...
...
...
