TM6000x50NA Murray - String Trimmer (2006)

Model: TM6000x50NA

Save
 Part Not Listed?Part Not Listed?
product name

Cutting Head Assembly

...
...
1
NUT, CNTR LCK, 3/8-16 BS-703893
...
2
Bolt BS-025X11MA
...
3
Housing, Trimmer BS-740150E701MA
...
4
Screw BS-26X256MA
...
5
Assembly, Idler BS-740232MA
...
6
BOLT-SHD.38-16X.499D BS-009X48MA
...
7
Spring BS-712403MA
...
8
Assembly, Spacer BS-740292MA
...
9
Nut BS-15X119MA
...
10
WASHER, FLAT BS-710083MA
...
11
Pulley, Cutting Head BS-740171MA
...
12
Spacer BS-740173MA
...
13
BELT, TRIMMER 711933 BS-7701014MA
...
14
PULLEY, IDLER, V, 1.88 BS-740244MA
...
15
Pulley, Engine BS-740179MA
...
16
PULLEY.3L IDLER NYL.B BS-740183MA
...
17
Lockwasher BS-018X31MA
...
18
BOLT,HEX.37 24X1.00 Z BS-001X20MA
...
19
Screw BS-26X235MA
...
20
ASSY, SHIELD& EDGE GR BS-740205MA
...
22
Shield, Trimmer BS-740206MA
...
23
Screw BS-26X294MA
...
24
Assembly, Jackshaft Housing BS-1001049MA
...
25
Jackshaft BS-740300MA
...
26
Wrap, Upper Weed BS-740163MA
...
27
Screw BS-712126MA
...
29
Assembly, Cutting Disc BS-770037MA
...
30
Screw, Set BS-712127MA
...
31
Line, Trimmer 0.155 X 21.25 BS-740165MA
...
33
Guide Assembly, Metal Height BS-740299MA

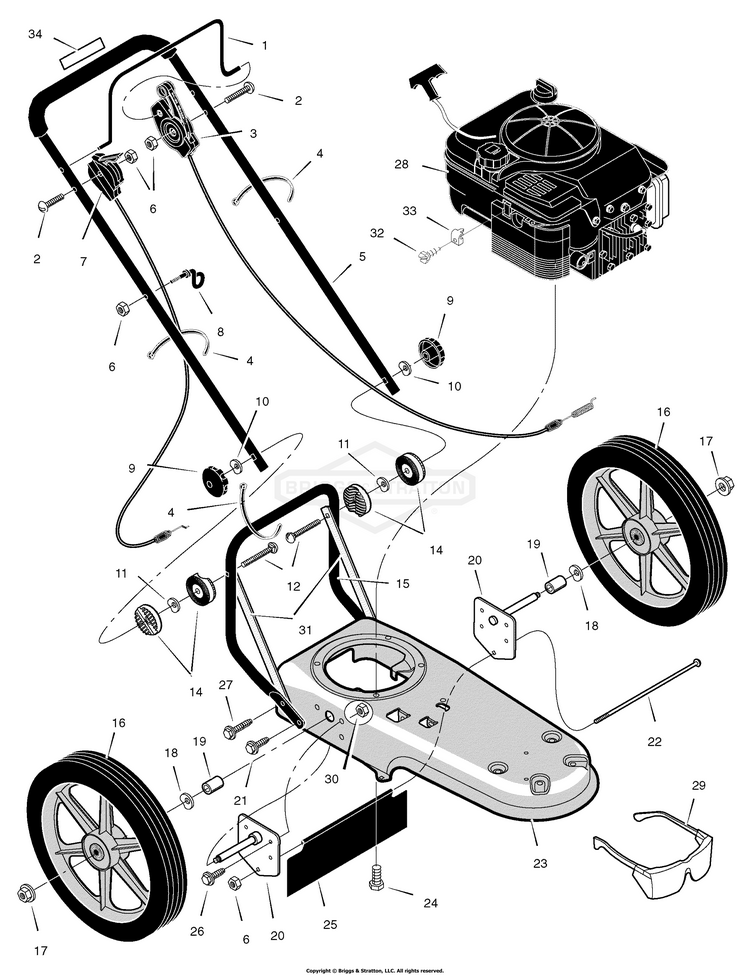

Housing Assembly

...
...
1
Lever, Stop BS-740198E701MA
...
2
Bolt BS-323035MA
...
3
Cable, Control Latching BS-740193MA
...
4
TIE,STRAP-REMOVABLE BS-071372MA
...
5
Handle BS-740196E701MA
...
6
NUT, 1/4-20, NYLOCK BS-703232
...
7
Control, Throttle BS-1601039MA
...
8
Guide, Rope BS-672510MA
...
9
Knob, Handle BS-740202MA
...
10
Washer BS-783000MA
...
11
Washer, Spring BS-711936MA
...
12
Bolt BS-711937MA
...
14
Pivot, Handle BS-740301MA
...
15
Handle, Lower BS-740195E701MA
...
16
Wheel & Tire BS-740185MA
...
17
NUT, CNTR LCK, 3/8-16 BS-703893
...
18
WASHER,SPRING .52X.99 BS-0020X3MA
...
19
Spacer BS-740190MA
...
20
Assembly, Axle & Bracket BS-740188MA
...
21
Screw BS-26X274MA
...
22
Bolt, Carriage BS-711935MA
...
23
Frame, Trimmer BS-740150E701MA
...
24
Bolt BS-0025X6MA
...
25
Shield, Trailing BS-740192MA
...
26
CAPSCREW,5/16-18X.625 BS-703822
...
27
Screw BS-26X267MA
...
29
Protection, Eye BS-711890MA
...
30
NUT, HEX FLNG,5/16-18 BS-704067
...
31
Strap, Vibration Trim BS-1601040MA
...
32
Screw BS-26X268MA
...
33
CLAMP, Casing BS-690798
...
34
Decal, CE Handle BS-712409MA
...
-
Instruction Book & Parts List BS-MS--3619MA
...
...
...
