TM4000x51A Murray - String Trimmer (2001)

Model: TM4000x51A

Save
 Part Not Listed?Part Not Listed?
product name

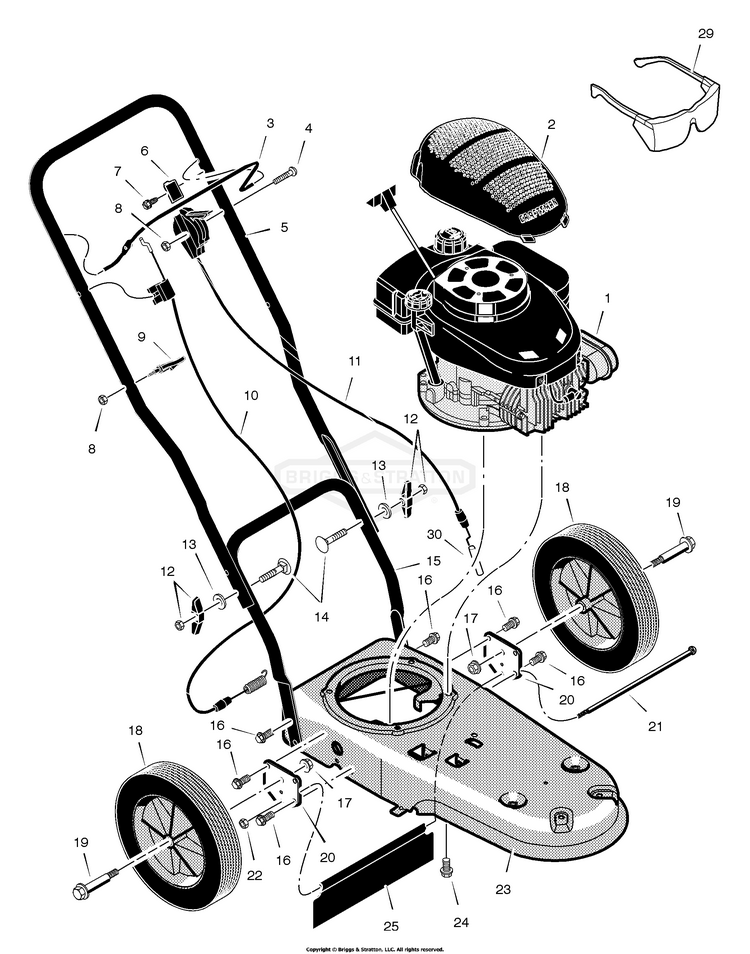

Mower Housing Assembly

...
...
2
Shroud, Engine BS-1601001MA
...
3
Lever, Control BS-740198-860
...
4
Bolt BS-323035MA
...
5
Handle, Upper BS-740196
...
6
Bracket, Stop BS-1601013
...
7
Screw BS-710269
...
8
NUT, 1/4-20, NYLOCK BS-703232
...
9
Guide, Rope BS-672510MA
...
10
Cable, Drive BS-740193MA
...
11
Control, Throttle BS-740194
...
12
Knob BS-740202
...
13
Washer BS-783000MA
...
14
Bolt, Carriage BS-711937MA
...
15
Handle, Lower BS-740285MA
...
16
Bolt BS-26X274MA
...
17
Nut BS-015X85
...
18
Wheel & Tire BS-740278
...
19
Bolt, Axle BS-713018
...
20
Bracket, Wheel BS-740280
...
21
Rod, Rear Guard Bolt BS-711935
...
22
NUT, 1/4-20, NYLOCK BS-703232
...
23
Frame, Trimmer BS-740260-860
...
24
Bolt BS-710265
...
25
Guard, Rear BS-740282
...
29
Glasses, Safety BS-711890
...
30
Spacer, Sleeve BS-712491
...
--
Book, Instruction BS-F-010200M

Trimmer Head Assembly

...
...
1
Frame, Trimmer BS-740260-860
...
2
Bolt, Engine BS-025X11MA
...
3
NUT, CNTR LCK, 3/8-16 BS-703893
...
4
Spacer Assembly, Jackshaft BS-740292MA
...
5
Bracket, Idler Asembly BS-740232
...
6
Spring BS-712403MA
...
7
Bolt, Shoulder BS-710200
...
8
PULLEY.3L IDLER NYL.B BS-740183MA
...
9
PULLEY, IDLER, V, 1.88 BS-740244MA
...
10
Nut BS-15X119
...
11
Washer BS-710083
...
12
Pulley, Cutting Head BS-740266
...
13
Belt BS-740259MA
...
14
Pulley, Drive BS-740179MA
...
15
Washer BS-712147
...
16
Bolt BS-712146
...
17
Shield, Trimmer BS-740262MA
...
18
Bolt BS-710269
...
19
Spacer BS-740173
...
20
Housing, Jackshaft BS-1001049
...
21
Jackshaft BS-740264MA
...
22
Shield, Weed BS-740267MA
...
23
Line, 0.130" x 16.75 (24 pack) BS-7701012MA
...
24
Head, Cutting BS-740271E276
...
25
Guide, Height BS-740268MA
...
26
Spacer BS-1601027
...
27
WASHER BS-703332
...
29
Bolt BS-01X179
...
...
...
