product name

Samsung UN43J5200AFXZA-AD01

Model: UN43J5200AFXZA-AD01

Save Part Not Listed?
product name

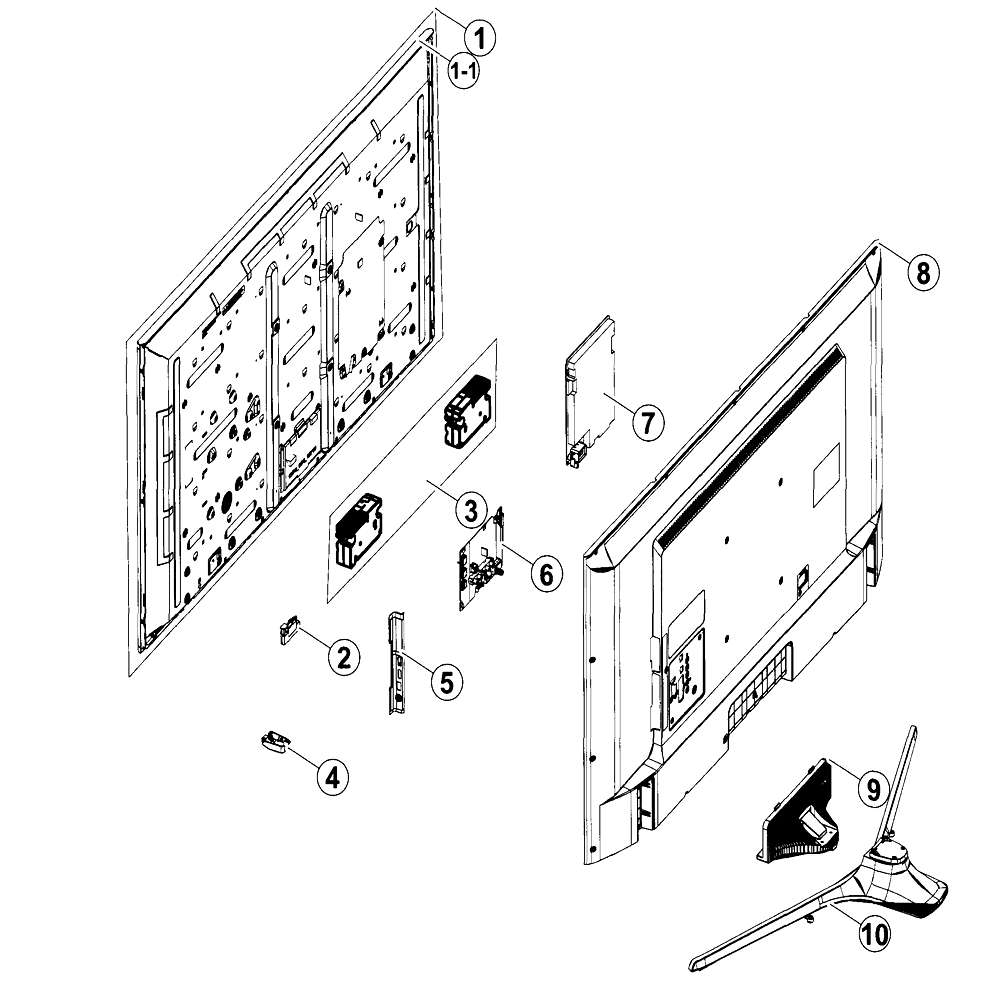

Main Asy

...
...
1-1
Fr Cabinet SAM-BN96-37144A
...
1
Lcd Panel SAM-BN95-02333A
...
2
Network-Wi-Fi Module; Wdf710q,wswlm400a00 SAM-BN59-01196C
...
3
Assy Speaker P; 6ohm,4pin,10w,mega3 SAM-BN96-30337C
...
4
Assy Board P; Ua43j5200awxhc_Function_Ass SAM-BN96-36076H
...
6
Main Pcb SAM-BN94-09536L
...
7
Dc Vss-Led Tv Pd Bd; L48msf_Fdy,l48msf_Fd SAM-BN44-00852A
...
8
Rear Cover SAM-BN96-38077G
...
9
Assembly Guide P-Stand SAM-BN96-35223A
...
10
Base Stand SAM-BN96-35224W
Schematic Image Zoomed
