Samsung HMX-W300YN/XAA-0001

Model: HMX-W300YN/XAA-0001

Save Part Not Listed?
product name

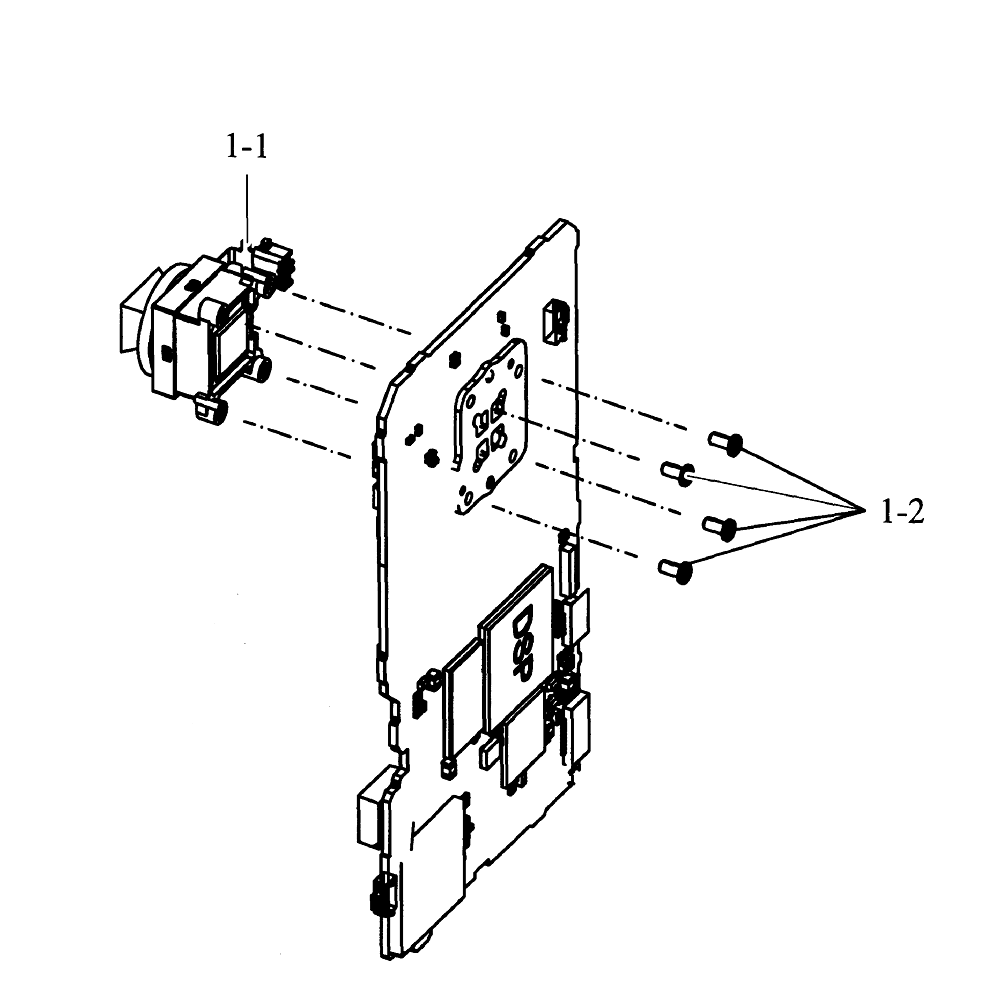

Main Pcb

...
...
1-1
Assy Lens SAM-AD97-22057A
...
1-2
Screw-Tapt SAM-6003-001630

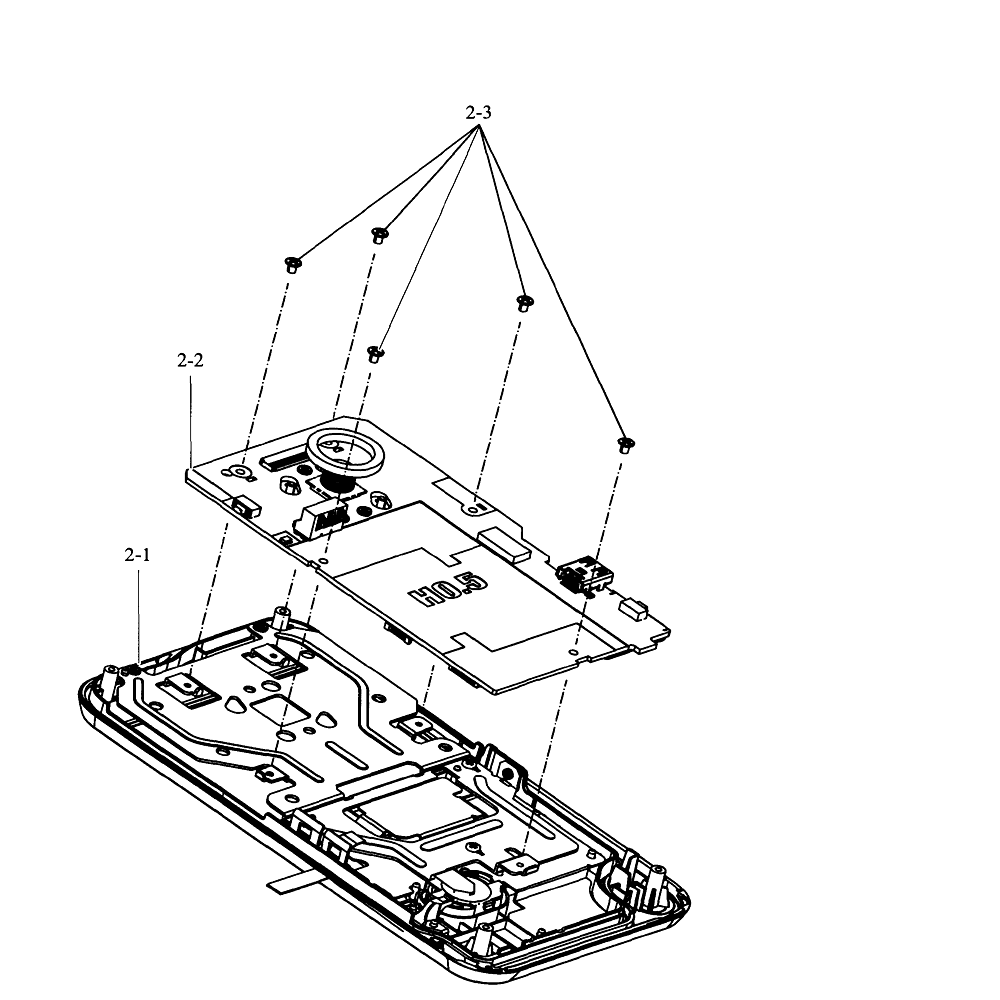

Chassis 1

...
...
2-1
Assembly SAM-AD97-22046A
...
2-2
Pcb Main SAM-AD92-01859A
...
2-3
Screw Mach SAM-6001-002165

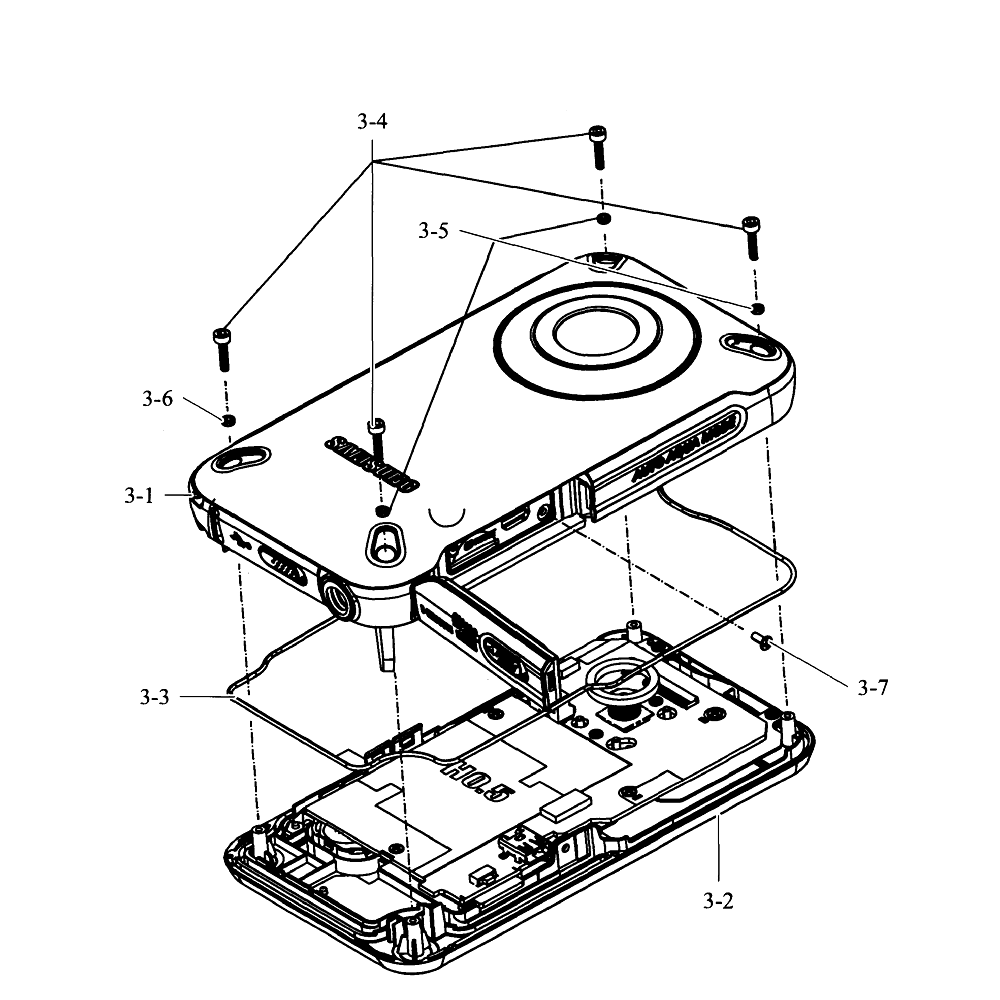

Chassis 2

...
...
3-5
Rubber-Gas SAM-AD67-02436A
...
3-7
Screw-Mach SAM-6001-002640
...
3-6
Rubber-Gas SAM-AD67-02436A
...
3-4
Hex Screw SAM-6009-001824
...
3-3
Rubber-Gas SAM-AD67-02435A
...
3-2
Assembly SAM-AD97-22046A
...
3-1
Assembly SAM-AD97-22045B

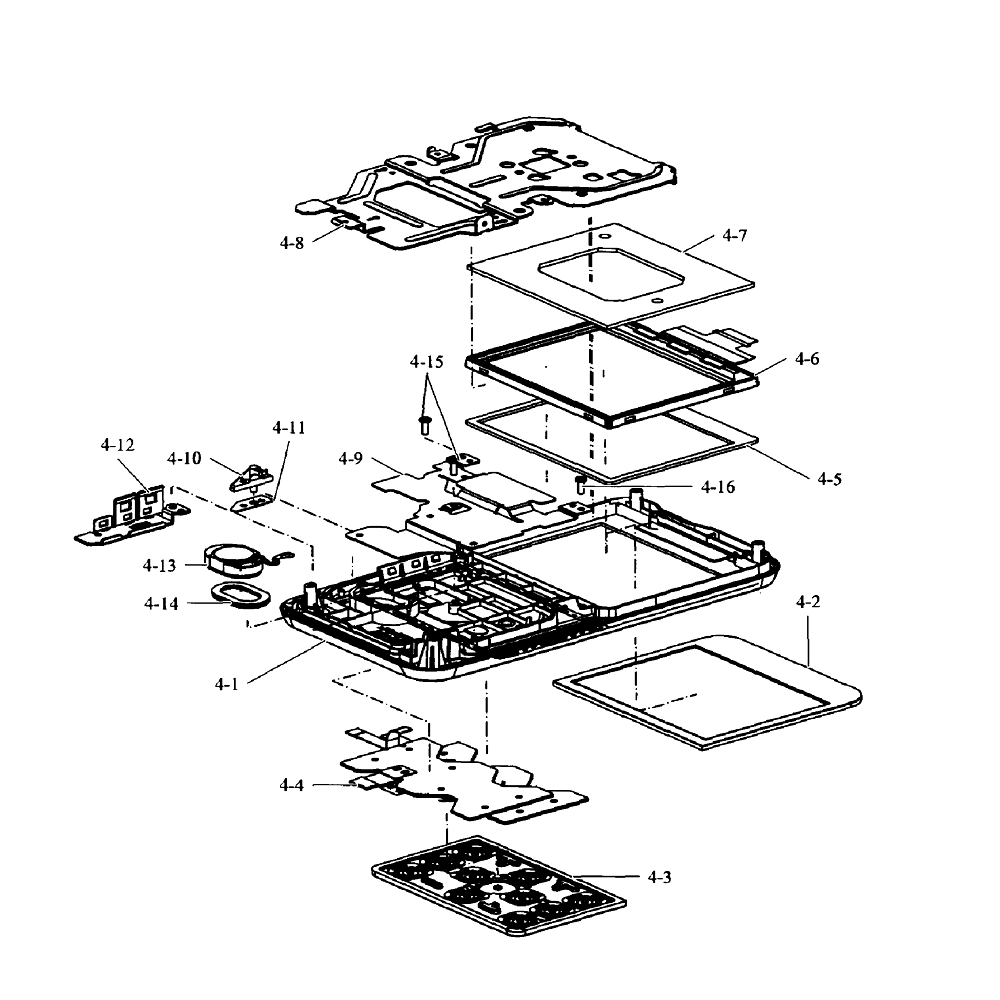

Rear Assy

...
...
4-12
Bracket-Re SAM-AD61-05636A
...
4-16
Screw-Tapt SAM-6003-001630
...
4-15
Screw-Tapt SAM-6003-001630
...
4-14
Sheet Speaker SAM-AD63-06746A
...
4-13
Camcorder Speaker SAM-3001-002714
...
4-11
Sheet-Indi SAM-AD63-06813A
...
4-10
Indicator SAM-AD64-03643A
...
4-9
Plate SAM-AD61-05635A
...
4-7
Cushion-Lc SAM-AD63-06971A
...
4-6
Cam Lcd-Pane SAM-AD07-00146A
...
4-5
Lcd Pad SAM-AD69-03658A
...
4-4
Fpc-Key SAM-AD41-01866A
...
4-3
Keypad SAM-AD64-03636A
...
4-2
Window Lcd SAM-AD64-03633A
...
4-1
Case Rear SAM-AD61-05623A
...
4-8
Bracket-Fr SAM-AD61-05634A

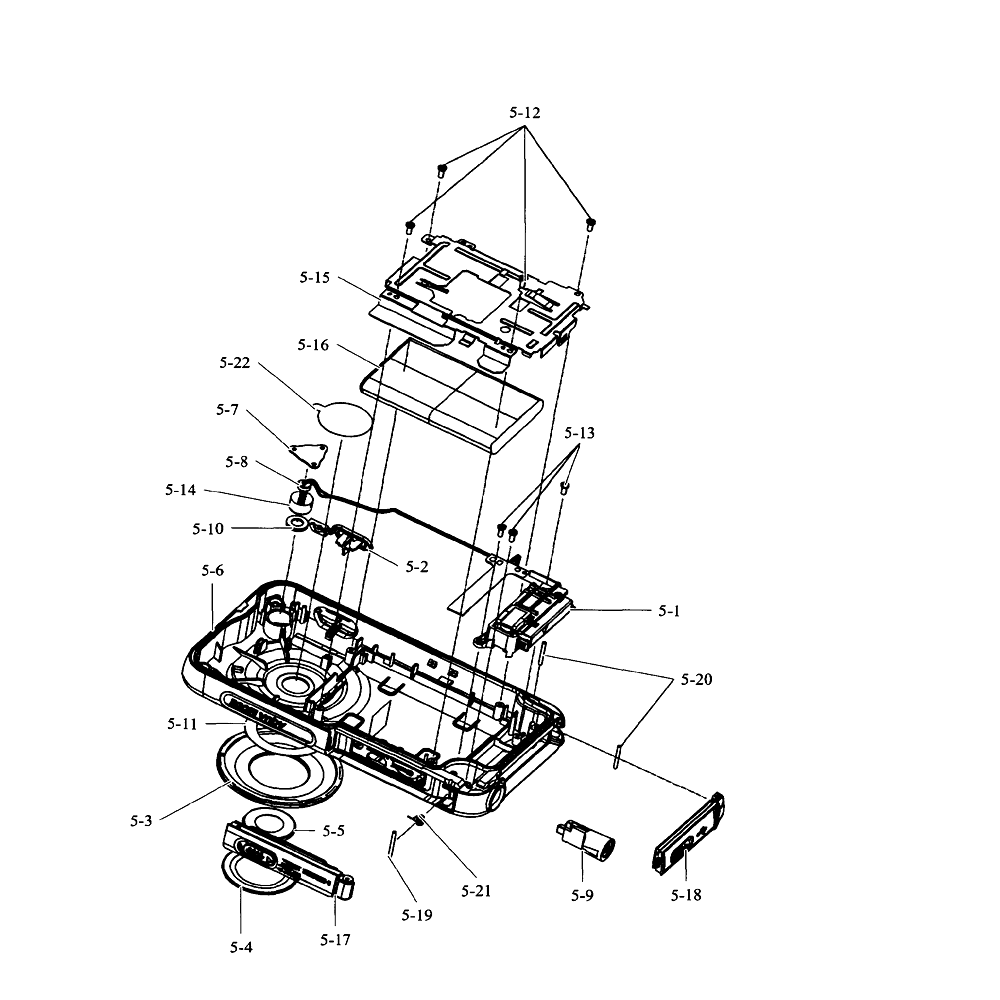

Front Assy

...
...
5-12
Screw-Tapt SAM-6003-001630
...
5-22
Sheet-Prot SAM-AD63-06931A
...
5-13
Screw-Tapt SAM-6003-001630
...
5-14
Microphone SAM-AD67-02456A
...
5-15
Bracket-Ho SAM-AD61-05633A
...
5-16
Battery-Pk SAM-AD43-00190A
...
5-17
Door-Hdmi SAM-AD97-22049B
...
5-18
Usb Door SAM-AD97-22048B
...
5-19
Shaft Door SAM-AD66-01027A
...
5-20
Shaft Door SAM-AD66-01019A
...
5-21
Spring-Jac SAM-AD61-05027A
...
5-11
Sheet Cover SAM-AD63-06842A
...
5-10
Microphone Sheet SAM-AD63-06220A
...
5-9
Holder-Tri SAM-AD61-05738A
...
5-8
Mic-Conden SAM-3003-001190
...
5-7
Sheet Cover SAM-AD63-06770A
...
5-6
Case-Front SAM-AD61-05622B
...
5-5
Window Lens SAM-AD64-03637A
...
5-4
Hood Cover SAM-AD63-06766A
...
5-3
Cover SAM-AD63-06749A
...
5-2
Button-Pwr SAM-AD64-03644A
...
5-1
Usb Assembly SAM-AD97-22047A
