Samsung DW80M9550UG/AA_0000

Model: DW80M9550UG/AA_0000

Save Part Not Listed?
product name

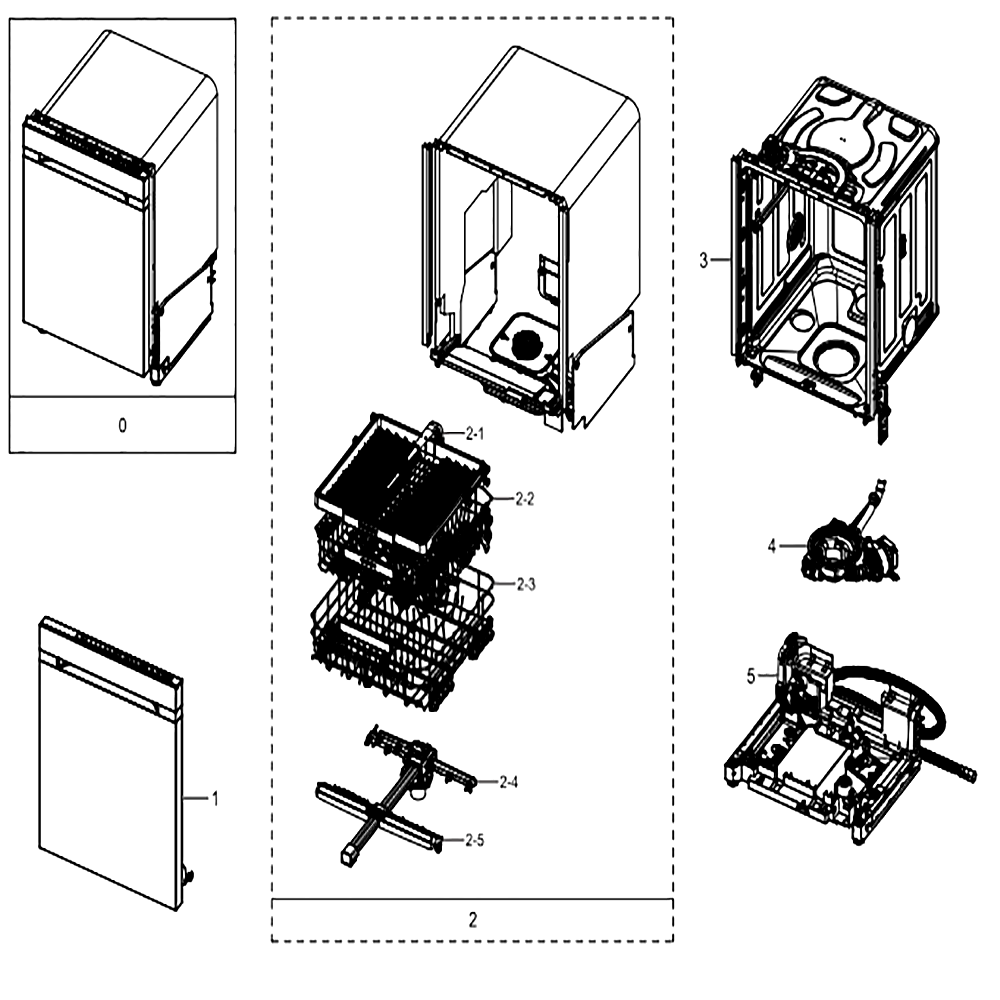

Main

...
...
1
Assy Door; Dw9900m,pocket Light,black Sts SAM-DD97-00525B
...
2-1
Assy Duct; Dw9900m,common SAM-DD93-01014A
...
2-2
Assy Basket Middle; Dw9900m,premium SAM-DD97-00504B
...
2-3
Assy Basket Lower; Dw9900m,premium SAM-DD97-00505B
...
2-4
Assy Motion; Dw9900m,common SAM-DD97-00484A
...
2-5
Assy Vane; Dw9900m,premium SAM-DD97-00501B
...
2
Assy Case Parts; Dw80m9550ug/aa SAM-DD90-00600A
...
3
Assy Tub; Dw9900m,common,no-3rd SAM-DD97-00526A
...
4

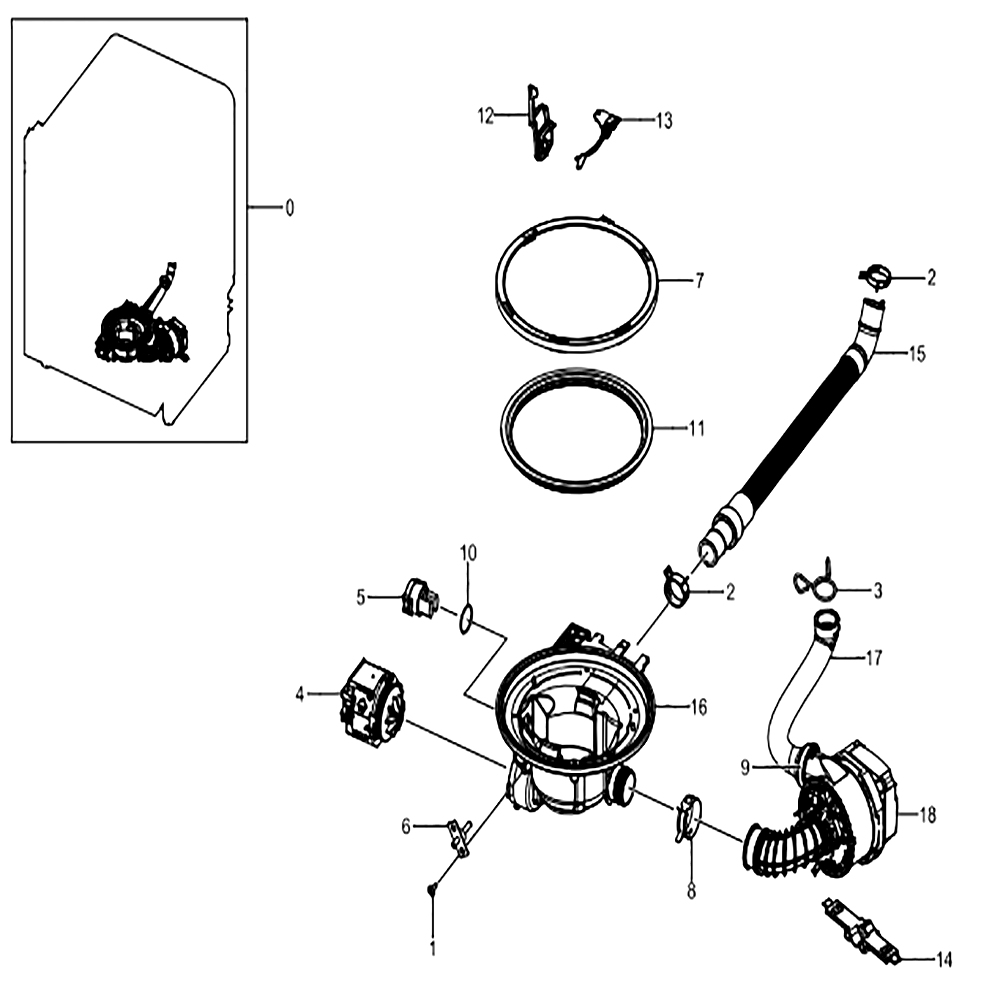

Assy Sump Parts; Dw9900m,common SAM-DD90-00597A
...
5

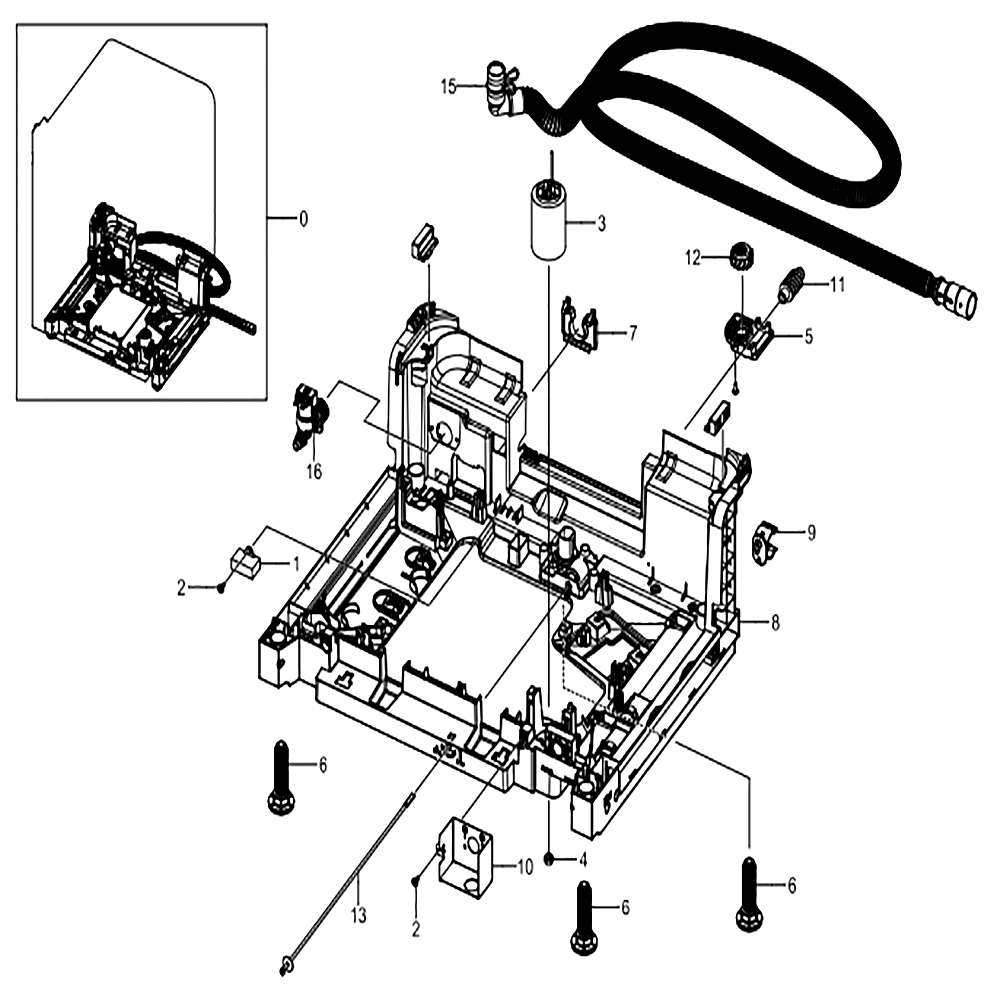

Assy Base; Dw9900m,common SAM-DD97-00518A

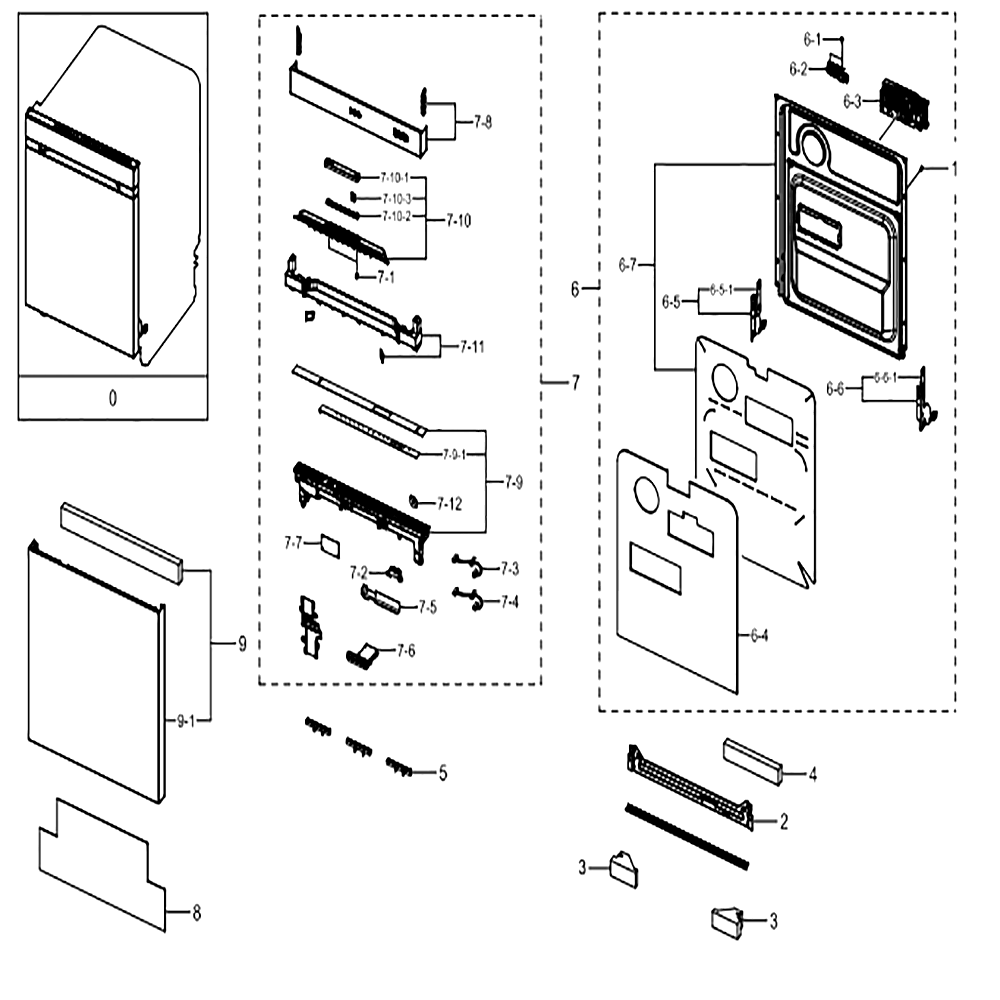

Assy Door

...
...
0
Assy Door; Dw9900m,pocket Light,black Sts SAM-DD97-00525B
...
1
Screw-Special; Special Fh,torx,m4,l16,sts SAM-6009-001777
...
2
Bracket Door Inner; Dw9000h,gi-Sgcc,t1.0 SAM-DD61-00510A
...
3
Cushion Duct-Left; Dw9900h,pu Foam,t25,bl SAM-DD63-00221B
...
4
Cushion Door; Dw9900m,eps,t25,w50,l250 SAM-DD63-00321A
...
5
Handle Pin; Dw9900m,abs,gp-35,inox Gray SAM-DD64-00188A
...
6-1
Screw-Special; Special Fh,torx,m4,l16,sts SAM-6009-001777
...
6-2
Switch Door; Dc12v,0.01 SAM-DD34-00007A
...
6-3
Dispenser-Slide; Gala-E,ac 110/240v,50/60 SAM-DD59-01002A
...
6-4
Absorber-Door; Dw9900m,felt,t40,light War SAM-DD63-00224B
...
6-5-1
Hinge-Left; Dw9900h,po-Sphc,t3.0,coating SAM-DD61-00463A
...
6-5
Assy Hinge-Left; Dw9900h,common,po-Sphc,c SAM-DD97-00251A
...
6-6-1
Hinge-Right; Dw9900h,po-Sphc,t3.0,coating SAM-DD61-00464A
...
6-6
Assy Hinge-Right; Dw9900h,common,po-Sphc, SAM-DD97-00252A
...
6-7
Assy Door Inner; Dw9900m,bu,common,sub SAM-DD97-00491A
...
6
Assy Door Inner; Dw9900m,bu,common SAM-DD97-00490A
...
7-1
Screw-Special; Special Fh,torx,m4,l16,sts SAM-6009-001777
...
7-2
Led Display; 8s,4d,dw9900m,ibl,connector SAM-DD07-00017B
...
7-3
Wire Harness-Sub; Ul1569,20,dw9500m,assy SAM-DD39-00013E
...
7-4
Wire Harness-Sub; Ul1569,20,dw9550m,assy SAM-DD39-00013F
...
7-5
Protector; Dw9900h,pet,t0.2,- SAM-DD63-00261A
...
7-6
Cover Wire; Dw9900m,pp,black,bk0001,pp-Co SAM-DD63-00315A
...
7-7
Assy Module; Display_Control,dw9900m,opti SAM-DD92-00058B
...
7-8
Assy Cover Front; Dw9900m,guide Front,sts SAM-DD97-00407F
...
7-9-1
Assy Module; Touch,dw9900m,yes SAM-DD92-00056A
...
7-9
Assy Panel Control; Dw9900m,bu,black Stss SAM-DD97-00493D
...
7-10-1
Holder Display Pcb; Dw9900h,abs,da White, SAM-DD61-00493A
...
7-10-2
Window Display; Dw9900h,pc,-,3022ir,-,5g SAM-DD64-00153A
...
7-10-3
Assy Module; Dw80h9930us,dw9900ha,pocket SAM-DD92-00044A
...
7-10
Assy Window Panel; Dw9900m,pocket Light SAM-DD97-00494A
...
7-11
Handle Door; Dw9900m,abs,gp-35,inox Gray, SAM-DD64-00182D
...
7-12
Assy Buzzer; E-Oven,kpr-G3020-450,450mm,2 SAM-DE96-00686B
...
7
Assy Panel Box; Dw9900m,pocket Light,blac SAM-DD97-00530B
...
8
Rubber Skirt; Dw9900m,epdm,black,t1.5 SAM-DD67-00104B
...
9-1
Door Outer; Dw9900h,sts430,t0.6,black Cav SAM-DD64-00146D
...
9
Assy Door-Outer; Dw9900m,common,black Sts SAM-DD97-00489B

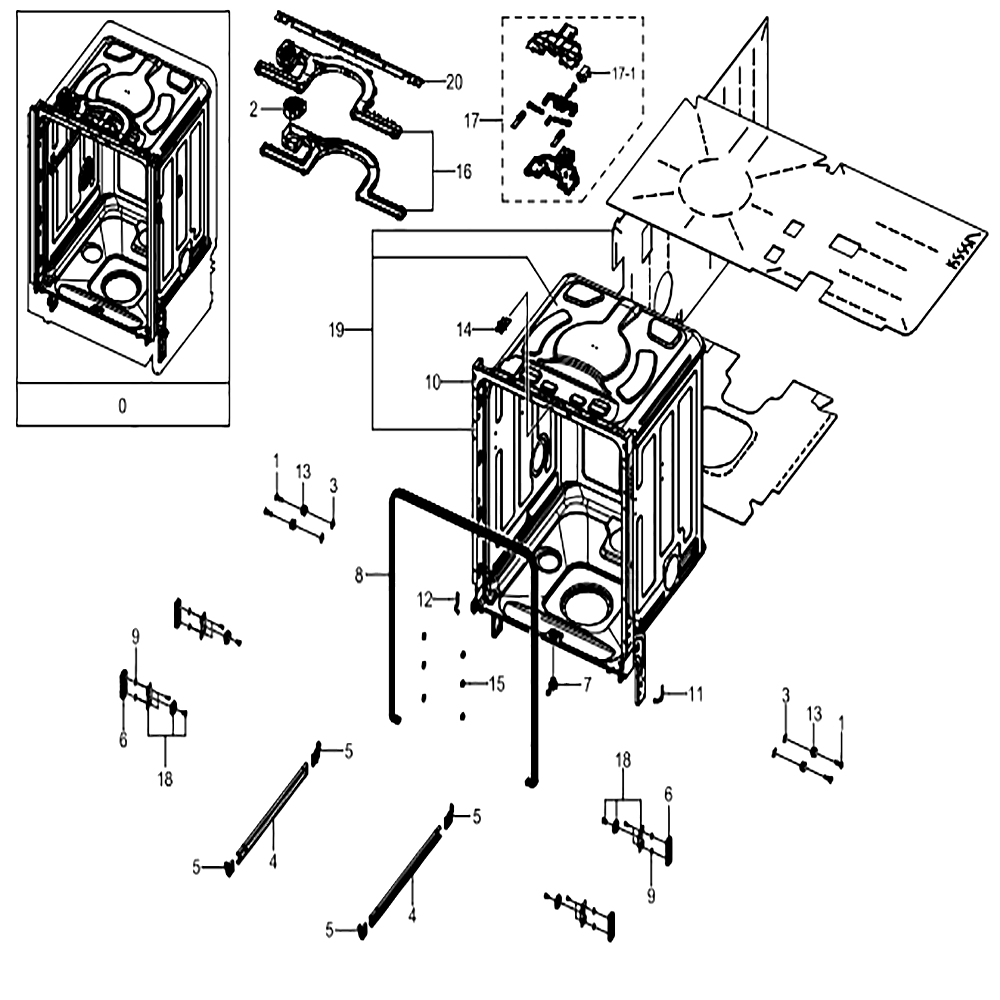

Assy Tub

...
...
0
Assy Tub; Dw9900m,common,no-3rd SAM-DD97-00526A
...
1
Bolt-Hex; M6,l24(11),zpc(wht),swrch18a,- SAM-6011-001641
...
2
Motor Bldc Fan; Bub0612mj,4400,12v,0.17a, SAM-DD31-00024A
...
3
Holder Bolt; Gala-E,mswr-Swrm,m6 3.0t SAM-DD61-00185A
...
4
Bracket Rail-Mid; Dw8000j,sts304,t0.8,pol SAM-DD61-00329B
...
5
Holder-Rail Middle Front; Gala-E,common,p SAM-DD61-00355A
...
6
Holder-Bracket Rail; Dw9000h,dw8000j,pom, SAM-DD61-00400A
...
7
Fixer Rubber; Dw9900h,epdm,black SAM-DD61-00453A
...
8
Seal Tub Packing; Dw9900h,tpv,-,-,8211-35 SAM-DD62-00097B
...
9
Seal-Bracker Rail; Dmt800/dmt400,epdm,bla SAM-DD62-00109A
...
10
Cover Front; Sts304,t0.4,-,- SAM-DD63-00215B
...
11
Cover Tub Edge-Right; Dw9900h,pp,black,pp SAM-DD63-00225A
...
12
Cover Tub Edge-Left; Dw9900h,pp,black,pp- SAM-DD63-00238A
...
13
Roller Hinge; Gala-E,pom,natural,f20-03,n SAM-DD66-00020A
...
14
Lever Door; Dw9900h,zndc,-,-,- SAM-DD66-00133A
...
15
Cap Door Guide; Gala-E,pom,f20-03,light W SAM-DD67-00074A
...
16
Assy Condenser; Dw9900m,common SAM-DD93-01015A
...
17-1
Actuator Thermal; Gala-E,pom,push Type,ac SAM-DD66-00089A
...
17
Assy Cover Door Switch; Dw9000h SAM-DD97-00256A
...
18
Assy Roller; Dw9900m,common SAM-DD97-00387B
...
19
Assy Tub Sub; Dw9900m,common,no-3rd SAM-DD97-00527A
...
20
Guide Air Flow; Dw9900m,pp,ht62,light War SAM-DD61-00570A

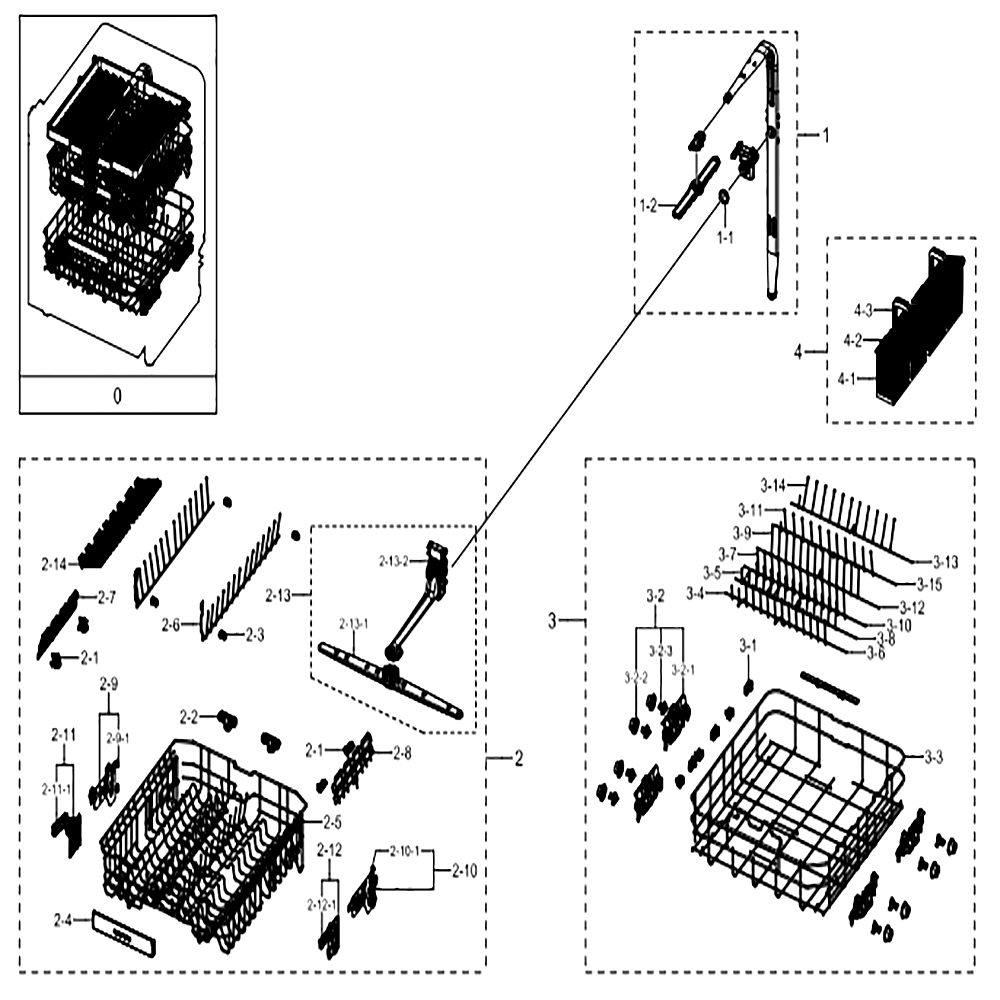

Assy Case Assy Basket & Duct

...
...
1-1
Seal Holder Duct-Middle; Dw9900m,epdm,bla SAM-DD62-00145A
...
1-2
Assy Rotor Upper; Dw9900m,common SAM-DD97-00509A
...
1
Assy Duct; Dw9900m,common SAM-DD93-01014A
...
2-1
Holder-Support Cup; Dmt800,pom,w26,l31,gr SAM-DD61-00274A
...
2-2
Holder Tine; Dw9900h,pom,-,light Warm Gra SAM-DD61-00469A
...
2-3
Holder Tine-Up; Dw9900,pom,-,light Warm G SAM-DD61-00473A
...
2-4
Handle Basket; Dw9900m,premium,pp,mt43,da SAM-DD64-00176C
...
2-5
Basket Middle; Dw9900m,mswr,t5,anylongray SAM-DD67-00131A
...
2-6
Wire-Support Cup; Dw9900m,mswr,t5,anylong SAM-DD67-00134A
...
2-7
Wire Folding-Left; Dw9900m,mswr,t4 SAM-DD67-00147A
...
2-8
Wire Folding-Right; Dw9900m,mswr,t4 SAM-DD67-00148A
...
2-9-1
Supt Bracket; Dw9900h,pom,-,-,f20-03,ligh SAM-DD61-00474A
...
2-9
Assy Bracket Adjuster-Left; Dw9900m,c-Rai SAM-DD97-00355C
...
2-10-1
Supt Bracket; Dw9900h,pom,-,-,f20-03,ligh SAM-DD61-00474A
...
2-10
Assy Bracket Adjuster-Right; Dw9900m,c-Ra SAM-DD97-00356C
...
2-11-1
Support Lever; Dw9900m,pom,f20-03,ntr,dar SAM-DD61-00589A
...
2-11
Assy Basket Adjuster L; Dw9900m,common SAM-DD97-00510A
...
2-12-1
Support Lever; Dw9900m,pom,f20-03,natural SAM-DD61-00590A
...
2-12
Assy Basket Adjuster R; Dw9900m,common SAM-DD97-00511A
...
2-13-1
Assy Rotor Middle Duct; Dw9900m,common SAM-DD97-00512A
...
2-13-2
Assy Duct Middle; Dw9900m,common SAM-DD97-00513A
...
2-13
Assy Rotor Middle; Dw9900m,common SAM-DD97-00514A
...
2-14
Basket 3rd-Station; Dw9900m,pp,light Warm SAM-DD61-00581A
...
2
Assy Basket Middle; Dw9900m,premium SAM-DD97-00504B
...
3-1
Holder Tine-Low; Dw9900h,pom,vitality Ora SAM-DD61-00472A
...
3-2-1
Guide Roller-Low; Dw9900m,pp,mt43,light W SAM-DD61-00580A
...
3-2-2
Roller-Basket Lower; Gala-E,pp,light Warm SAM-DD66-00076A
...
3-2-3
Shaft Roller-Low; Dw9900m,pom,light Warm SAM-DD66-00181A
...
3-2
Assy Roller-Low; Dw9900m,common SAM-DD97-00507A
...
3-3
Basket Lower; Dw9900m,mswr,-,t5,anylongra SAM-DD67-00130B
...
3-4
Wire Folding-Front Left Front; Dw9900m,ms SAM-DD67-00135A
...
3-5
Wire Folding-Front Left Rear; Dw9900m,msw SAM-DD67-00136A
...
3-6
Wire Folding-Front Right Front; Dw9900m,m SAM-DD67-00137A
...
3-7
Wire Folding-Middle Left Front; Dw9900m,m SAM-DD67-00138A
...
3-8
Wire Folding-Front Right Rear; Dw9900m,ms SAM-DD67-00139A
...
3-9
Wire Folding-Middle Left Rear; Dw9900m,ms SAM-DD67-00140A
...
3-10
Wire Folding-Middle Right Front; Dw9900m, SAM-DD67-00141A
...
3-11
Wire Folding-Rear Left Front; Dw9900m,msw SAM-DD67-00142A
...
3-12
Wire Folding-Middle Right Rear; Dw9900m,m SAM-DD67-00143A
...
3-13
Wire Folding-Rear Right Rear; Dw9900m,msw SAM-DD67-00144A
...
3-14
Wire Folding-Rear Left Rear; Dw9900m,mswr SAM-DD67-00145A
...
3-15
Wire Folding-Rear Right Front; Dw9900m,ms SAM-DD67-00146A
...
3
Assy Basket Lower; Dw9900m,premium SAM-DD97-00505B
...
4-1
Basket Cutlery Main; Dw9900h,pp,-,light W SAM-DD61-00520A
...
4-2
Cover Cutlery; Dw9900h,pp,-,-,dark Navy B SAM-DD63-00273A
...
4-3
Handle Cutlery; Dw9900h,pp,-,mt43,-,dark SAM-DD64-00162A
...
4
Assy Basket-Cutlery; Dw9900h,dw9900h SAM-DD97-00250A

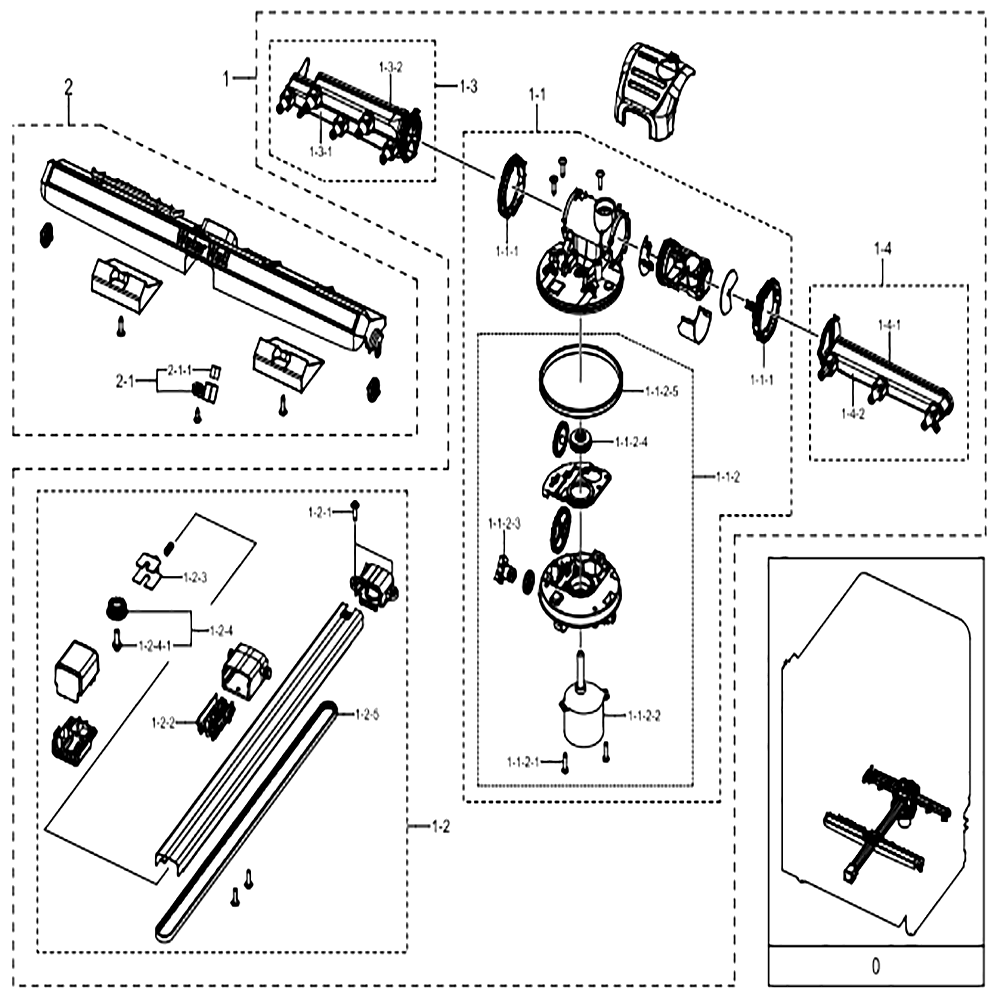

Assy Case Assy Motion

...
...
1-1-1
Nozzle Connector; Dw9900m,pom,light Warm SAM-DD62-00153A
...
1-1-2-1
Screw-Taptype; Ph,+,b,m4,l16,pass,sts304 SAM-6003-001284
...
1-1-2-2
Motor Geared; Srm-36hr,30,4kgfcm,20.15,12 SAM-DD31-00013B
...
1-1-2-3
Sensor-Vane; Dw80h9000,5vdc,hall Ic Type SAM-DD32-00011A
...
1-1-2-4
Seal-Oil SAM-DD62-00053A
...
1-1-2-5
Seal-Distributer SAM-DD62-00054A
...
1-1-2
Assy Cover Nozzle; Dw9900m,common SAM-DD97-00506A
...
1-1
Assy Guide Water; Dw9900m,common SAM-DD97-00496A
...
1-2-1
Screw-Tapping SAM-6002-000444
...
1-2-2
Holder Belt; Dw9900h,pom,natural,f20-03,n SAM-DD61-00441A
...
1-2-3
Bracket Idler; Dw9900h,stainless-Sts304,t SAM-DD61-00443A
...
1-2-4-1
Guide Pin; Dw9900h,sts304,-,-,-,t2.8 SAM-DD61-00462A
...
1-2-4
Pulley Motor-Low; Dw9900h,pom,natural,f20 SAM-DD66-00105A
...
1-2-5
Belt V-Timing; Tpe,-,-,-,natural SAM-DD66-00144A
...
1-2
Assy Rail; Dw9900m,common SAM-DD97-00500A
...
1-3-1
Nozzle-Up Left; Dw9900m,pp,light Warm Gra SAM-DD62-00150A
...
1-3-2
Nozzle-Low Left; Dw9900m,pp,vitality Oran SAM-DD62-00152A
...
1-3
Assy Nozzle-Left; Dw9900m,common SAM-DD97-00502A
...
1-4-1
Nozzle-Low Right; Dw9900m,pp,vitality Ora SAM-DD62-00147A
...
1-4-2
Nozzle-Up Right; Dw9900m,pp,light Warm Gr SAM-DD62-00151A
...
1-4
Assy Nozzle-Right; Dw9900m,common SAM-DD97-00503A
...
1
Assy Motion; Dw9900m,common SAM-DD97-00484A
...
2-1-1
Magnet R.s SAM-DC61-03184A
...
2-1
Assy Plastic Supportor; Dw9000h SAM-DD97-00395A
...
2
Assy Vane; Dw9900m,premium SAM-DD97-00501B

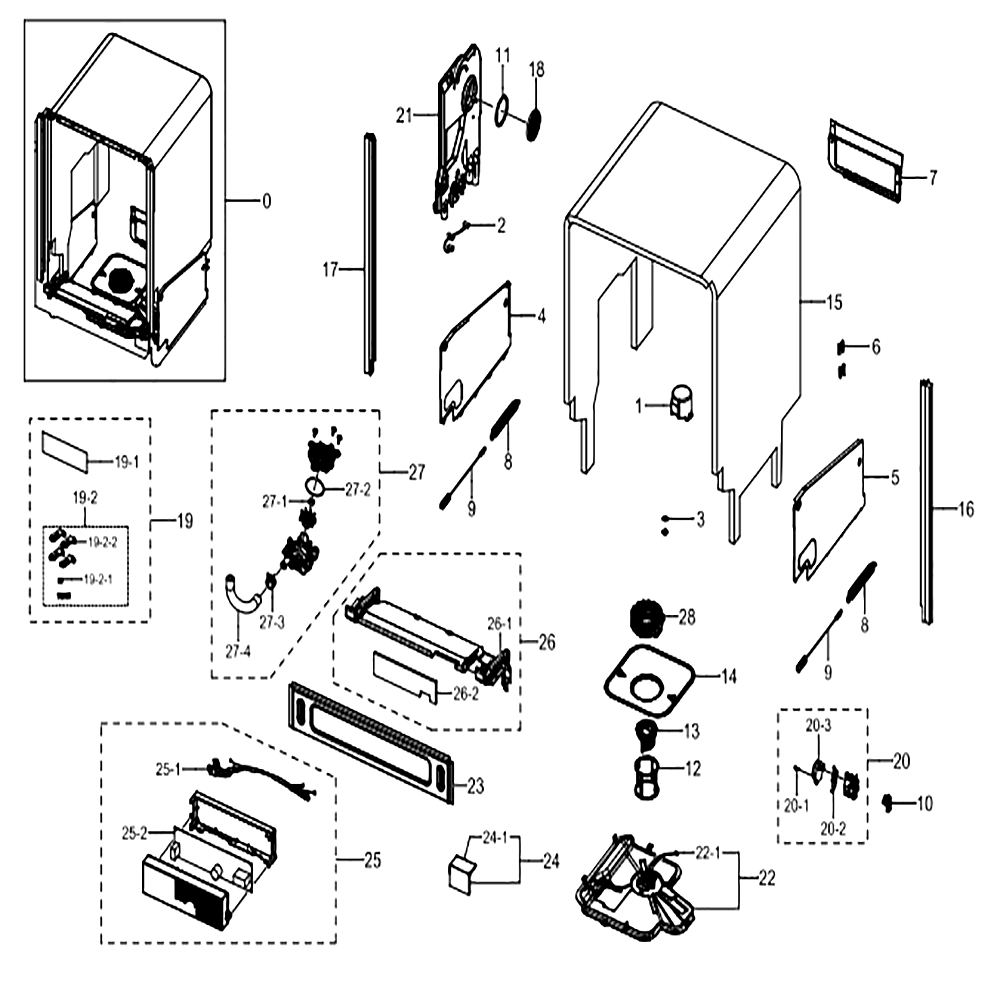

Assy Case Etc

...
...
0
Assy Case Parts; Dw80m9550ug/aa SAM-DD90-00600A
...
1
Cover-Filter; Wa456drhdwd,hips,t1.5,natur SAM-DC63-01432A
...
2
Wire Harness-Sub; Ul1569,20,dw9900m,assy SAM-DD39-00013D
...
3
Bracket Spring; Dw9900h,gi-Sgcc,t2.0,- SAM-DD61-00450A
...
4
Housing-Left; Dw9900h,gi-Sgcc,t0.35 SAM-DD61-00451A
...
5
Housing-Right; Dw9900h,gi-Sgcc,t0.35 SAM-DD61-00452A
...
6
Guide Hinge; Dw9900h,pom,f20-03,natural SAM-DD61-00483A
...
7
Plate Back; Dw9900m,pp,black,pp-Copo, Rm6 SAM-DD61-00490B
...
8
Spring Etc Door; Dw9900h,hswr-Swrh,72a SAM-DD61-00489A
...
9
Holder Rope Door; Dw9900h,pom,-,natural,- SAM-DD61-00546A
...
10
Bracket-Low Right; Dw9900m,pom,natural,nc SAM-DD61-00576A
...
11
Gasket-Brake SAM-DD63-00072A
...
12
Filter Micro; Dw9900m,pp,light Warm Gray, SAM-DD63-00304A
...
13
Filter Coarse; Dw9900m,pp,light Warm Gray SAM-DD63-00305A
...
14
Filter Fine; Dw9900m,sts304,t0.3 SAM-DD63-00306A
...
15
Absorber-Top; Dw9900m,felt,20,light Warm SAM-DD63-00317A
...
16
Trim-Right; Dw9900m,pp,ep649n,black,tpv SAM-DD64-00151B
...
17
Trim-Left; Dw9900m,pp,ep649n,black,tpv SAM-DD64-00152B
...
18
Cap Case Brake; Gala-E,common,pp,-,hb,tb5 SAM-DD67-00073A
...
19-1
Cover Sheet; Built-In,al Sheet,-,-,-,w100 SAM-DD63-00214A
...
19-2-1
Screw-Special; Special Fh,torx,m4,l16,sts SAM-6009-001777
...
19-2-2
Bracket Install; Dw9900h,gi-Sgcc,t0.8,- SAM-DD61-00465A
...
19-2
Assy Accessory; Dw9900m,common SAM-DD98-01051C
...
19
Assy Accessory Parts; Dw9900m,/aa SAM-DD90-00610A
...
20-1
Screw-Taptype; Ph,+,b,m4,l16,pass,sts304 SAM-6003-001284
...
20-2
Switch-Micro; 125/250v,0.1a,60gf,spst-No SAM-DD34-00006A
...
20-3
Motor Ac Drive; M2cd29zr89-H,8,120v,60hz, SAM-DE31-10095B
...
20
Assy Motor-Holder; Dw9900m,common SAM-DD93-01016A
...
21
Assy Case Brake; Dw9900m,common SAM-DD94-01091G
...
22-1
Wire Harness-Leakage; Gala-E,common,ul156 SAM-DD39-00001A
...
22
Assy Cover Base; Dw9900m,common SAM-DD97-00199B
...
23
Cover Plinth; Dw9900h,gi-Sgcc,t0.4,empire SAM-DD63-00254A
...
24-1
Cover Power-Up; Dw9900h,gi-Sgcc,t0.8,-,- SAM-DD63-00253A
...
24
Assy Housing Upper; Dw9900h,common SAM-DD97-00236A
...
25-1
Wire Harness-Main; Ul1569,20,dw9550m,assy SAM-DD39-00012G
...
25-2
Assy Pcb Main; Main,dw9900m,328x88,y,120v SAM-DD92-00059A
...
25
Assy Cover Pcb; Dw9900m,no-Wifi SAM-DD97-00498B
...
26-1
Guide Frame Front; Dw9900m,pp,rm60,black SAM-DD61-00596A
...
26-2
Absorber-Frame; Dw9900m,felt,t10,light Wa SAM-DD63-00320A
...
26
Assy Frame Front; Dw9900m,premium SAM-DD97-00499B
...
27-1
Magnet; Dw9900m,ferrite SAM-DD61-00597A
...
27-2
Seal Rubber; Dw9900m,epdm,black SAM-DD62-00139A
...
27-3
Clamper Hose; Gala-E,sk5,dacro Coat SAM-DD65-00001N
...
27-4
Hose Water; Dw9900m,epdm,65,black SAM-DD67-00129A
...
27
Assy Guide Water-Sub; Dw9900m,common,flow SAM-DD97-00519A
...
28
Holder Filter; Dw9900m,pp,light Warm Gray SAM-DD61-00574A

Assy Base

...
...
0
Assy Base; Dw9900m,common SAM-DD97-00518A
...
1
C-Motor Run-Box; 0.68,-25to+85,450v,5,3 SAM-2504-000009
...
2
Screw-Tapping SAM-6002-000231
...
3
Filter Emi; 15mh,53x70,12a,ac 250v,can,-2 SAM-DD29-00008A
...
4
Nut Hex; Sm10c SAM-DC60-50153A
...
5
Case-Gear SAM-DD61-00281A
...
6
Foot Free Standing; Gala-E,pa,black SAM-DD61-00331B
...
7
Holder Hose; Dw9000h,pp,black,copo SAM-DD61-00518B
...
8
Plate Base; Dw9900m,pp,black,bk0001,rm60b SAM-DD61-00577A
...
9
Holder Hose-Outlet; Dw9900m,pp,black,rm60 SAM-DD61-00598A
...
10
Cover Power-Low; Dw9900h,gi-Sgcc,t0.8,-,- SAM-DD63-00252A
...
11
Gear-Worm SAM-DD66-00052A
...
12
Gear-Helical SAM-DD66-00053A
...
13
Shaft Rod Adjuster Foot; Dw9900m,swrch10a SAM-DD66-00122B
...
15
Assy Hose Drain; All Model,pp+eva,(light/ SAM-DD97-00403A
...
16
Valve Water; Ac110-127v,add Rubber Seal,i SAM-DD33-01002A

Assy Sump

...
...
0
Assy Sump Parts; Dw9900m,common SAM-DD90-00597A
...
1
Screw-Tapping SAM-6002-000231
...
2
Clamper Hose; Sk5,white SAM-DC61-00219M
...
3
Clip Ring; Hswr SAM-DC65-60125B
...
4
Motor Bldc Pump; 120v/230v,drain Bldc Pum SAM-DD31-00016A
...
5
Sensor-Turbidity; Gala-E,5,5,vcc (+5vdc), SAM-DD32-00008A
...
6
Thermistor; Gala-E,r50= 17.59 K,-20 SAM-DD32-00009A
...
7
Bracket Tub; Dw9000h,pp,black,copo SAM-DD61-00534B
...
8
Bracket Hose; Dw9900m,gi-Sgcc,t0.8,id 38. SAM-DD61-00583A
...
9
Bracket Hose; Dw9900m,gi-Sgcc,t0.8,id 39. SAM-DD61-00584A
...
10
Seal Soil Sensor; Gala-E,epdm SAM-DD62-00106A
...
11
Seal Sump; Dw9900h,epdm,black,v0,65 SAM-DD62-00130A
...
12
Cover Drain Pump; Dw9900m,pp,light Warm G SAM-DD63-00307A
...
13
Cover Circulation Pump; Dw9900m,pp,light SAM-DD63-00308A
...
14
Damper Bldc Pump; Dw9900h,epdm,45,black SAM-DD66-00114A
...
15
Hose Drain-In; Dw9900h,pp,t2.5,light Gray SAM-DD67-00115A
...
16
Sump; Dw9900m,pp,light Warm Gray,gy0214,h SAM-DD67-00125A
...
17
Hose Pump-Out; Dw9900m,epdm,black SAM-DD67-00128A
...
18
Assy Motor Bldc; Dw9900m,common SAM-DD93-01013A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
