Samsung DVG55M9600W/A3_0000

Model: DVG55M9600W/A3_0000

Save Part Not Listed?
product name

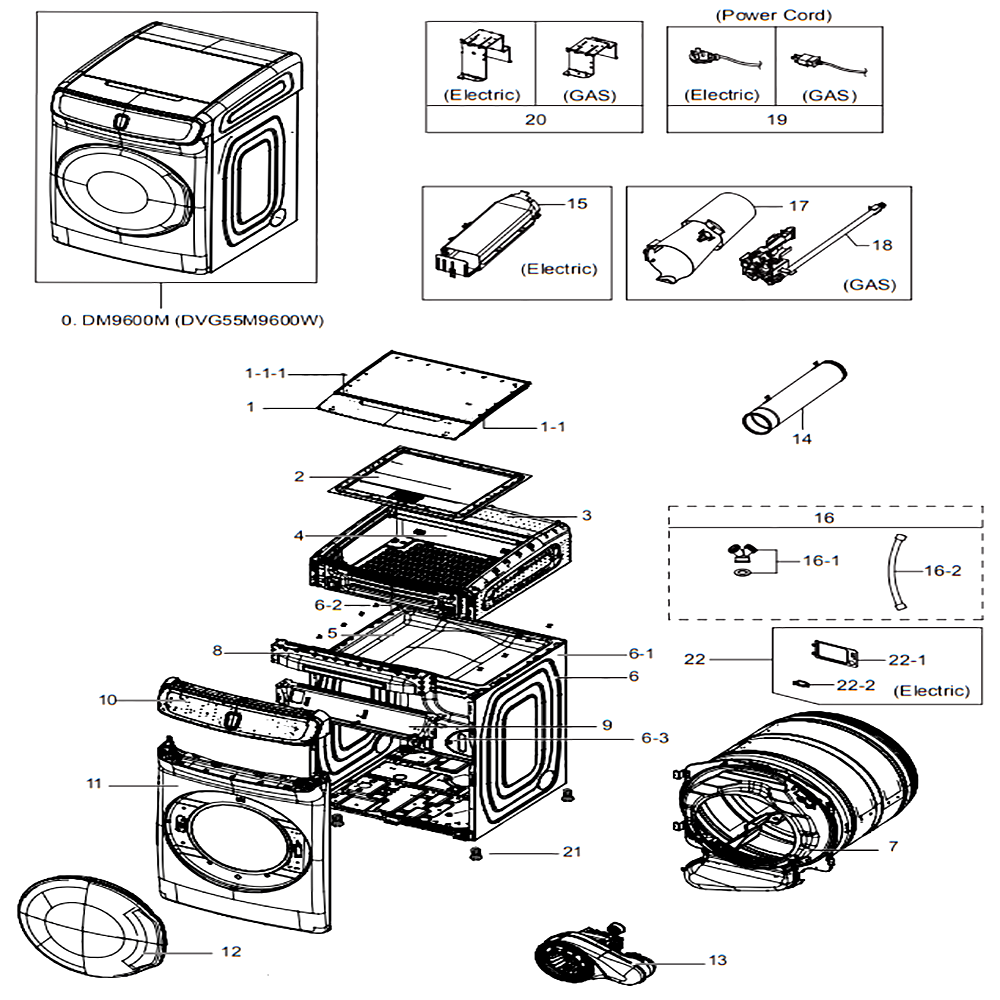

Main

...
...
0
Assy-Clothes Dryer SAM-DVG55M9600W/A3
...
1-1-1
Magnet R.s SAM-DC66-90008C
...
1-1
Door Lid Cover-Up SAM-DC64-03529B
...
1
Assy Lid T.c SAM-DC97-20014B
...
2
Assy Die Rack Dry SAM-DC93-00670B
...
3
Assy Frame SAM-DC97-20115B
...
4
Assy Basket SAM-DC97-20012B
...
5
Plate-Top SAM-DC61-04367A
...
6-1
Assy Frame SAM-DC97-20009D
...
6-2
Guide Cover Top SAM-DC61-03400A
...
6-3
Guide-Cover Top SAM-DC61-03133A
...
6
Assy Frame Case Parts SAM-DC90-24106D
...
7
Assy Drum Wrapper SAM-DC97-14849A
...
8
Assy Frame Plate-Up SAM-DC97-20013A
...
9
Assy Frame Plate SAM-DC97-20005A
...
10
Assy Panel Control SAM-DC97-20093D
...
11
Assy Frame Front SAM-DC97-20011A
...
12
Assy Door SAM-DC97-19984A
...
13
Assembly Motor SAM-DC93-00101N
...
14
Assembly Duct Exhaust SAM-DC97-07519G
...
15
Assy Duct Heater SAM-DC93-00671A
...
16-1
Assembly Connector SAM-DC97-15103A
...
16-2
Assembly Hose Connector SAM-DC97-15249A
...
16
Assy Accessory SAM-DC98-02087B
...
20
Bracket Duct SAM-DC61-03755A

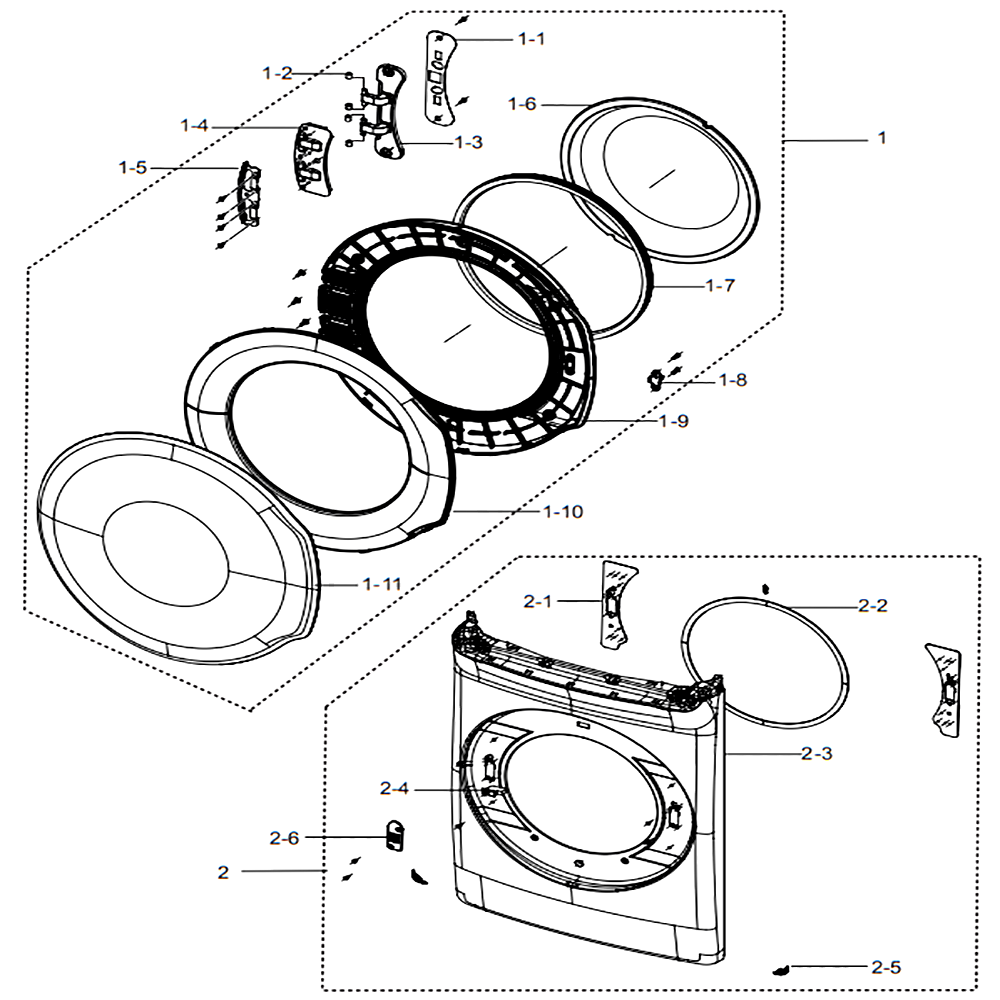

Assy Frame Front & Door

...
...
1-1
Cover Hinge SAM-DC63-01202A
...
1-2
Guide-Hinge SAM-DC61-00891A
...
1-3
Hinge Door SAM-DC61-04382A
...
1-4
Support Hinge SAM-DC61-04154A
...
1-5
Guide Holder Glass SAM-DC61-04381A
...
1-6
Door Glass SAM-DC64-02637A
...
1-7
Seal-Door SAM-DC62-00262A
...
1-8
Lever Door SAM-DC66-00814A
...
1-9
Holder Glass SAM-DC61-04380A
...
1-10
Cover Glass SAM-DC63-02050A
...
1-11
Cover Door SAM-DC63-02051A
...
1
Assy Door SAM-DC97-19984A
...
2-1
Bracket Hinge SAM-DC61-02626A
...
2-2
Absorber Sponge SAM-DC63-10001C
...
2-3
Frame Front SAM-DC61-04361A
...
2-4
Door-S/w SAM-DC64-00828B
...
2-5
Cover Front SAM-DC63-00959A
...
2-6
Assembly Holder Lever SAM-DC97-18057C
...
2
Assy Frame Front SAM-DC97-20011B

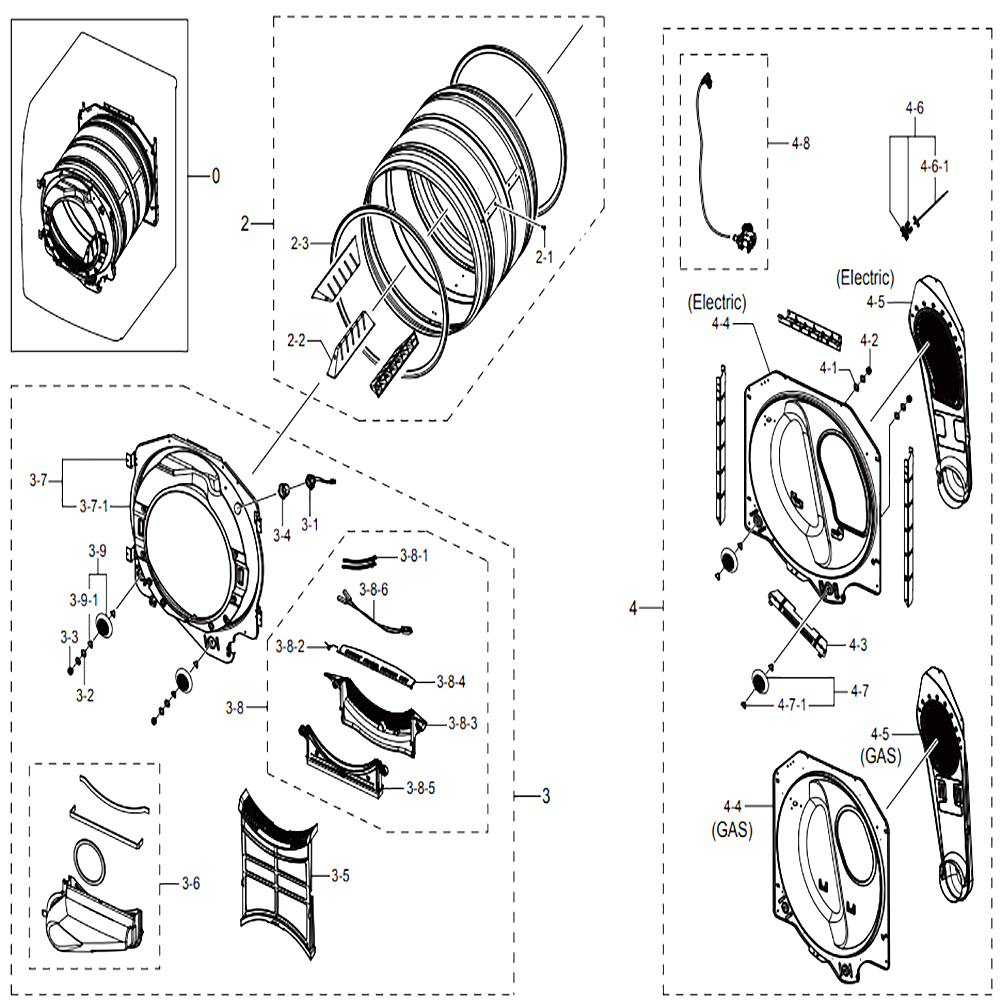

Assy Drum

...
...
2-1
Screw-Tapping SAM-6002-000215
...
2-2
Drum Lifter SAM-DC66-00511A
...
2-3
Assembly Gasket Pad SAM-DC97-07618A
...
2
Assy Drum Wrapper SAM-DC97-14849A
...
3-1
Lamp SAM-DC47-00027F
...
3-2
Fastener-Plain SAM-DC60-00103A
...
3-3
Nut-Hex SAM-DC60-50145A
...
3-4
Fixer-Lamp SAM-DC61-02281A
...
3-5
Case Filter SAM-DC61-02595A
...
3-6
Assembly Duct Outlet SAM-DC93-00187A
...
3-7-1
Drum Front SAM-DC66-00596B
...
3-7
Assembly S.drum Front SAM-DC97-15983B
...
3-8-1
Plate-Sensor SAM-DC61-02627A
...
3-8-2
Spring Etc Filter SAM-DC61-02740A
...
3-8-3
Cover Filter (b) SAM-DC63-01139A
...
3-8-4
Cover Filter(u) SAM-DC63-01140A
...
3-8-5
Cover Filter(f) SAM-DC63-01143A
...
3-8-6
Assembly Wire Harness SAM-DC96-00766A
...
3-8
Assembly Cover Filter SAM-DC97-16160A
...
3-9-1
Holder-Shaft SAM-DC61-01228A
...
3-9
Assy Plastic Supportor SAM-DC97-16782B
...
3
Assy Drum Front SAM-DC97-15984C
...
4-1
Fastener-Plain SAM-DC60-00103A
...
4-2
Nut-Hex SAM-DC60-50145A
...
4-3
Bracket-Drum Back SAM-DC61-02826A
...
4-4
Drum Back SAM-DC66-00411D
...
4-5
Assy Duct Air SAM-DC97-07521F
...
4-6-1
Housing-Thermistor SAM-DC61-03396A
...
4-6
Assy Thermistor SAM-DC93-00329A
...
4-7-1
Holder-Shaft SAM-DC61-01228A
...
4-7
Assembly Roller SAM-DC97-16782A
...
4-8
Assy Steam Kit SAM-DC97-16919B
...
4
Assy Drum Back SAM-DC97-15001G

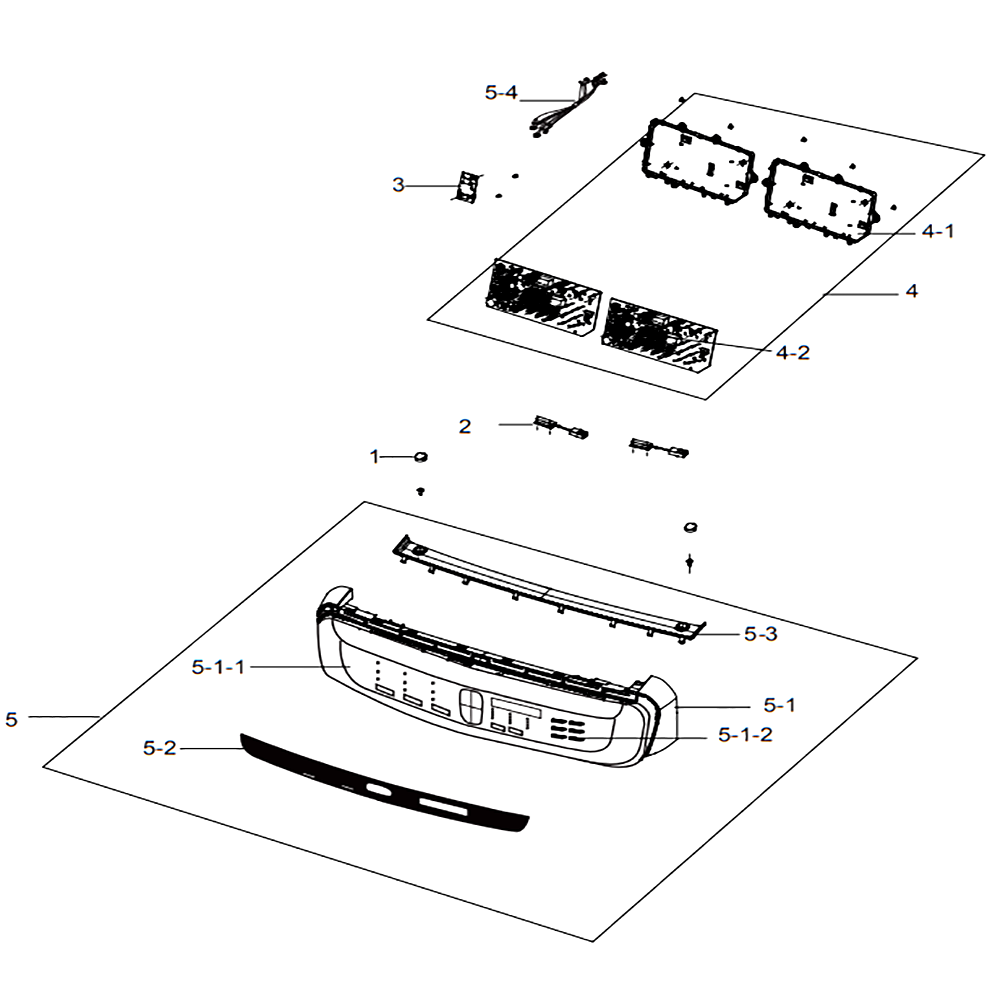

Assy Panel Control

...
...
1
Cap Screw SAM-DC67-00657C
...
2
Switch Reed SAM-DC34-00001G
...
4-1
Guide Cover Pcb SAM-DC61-04384A
...
4-2
Assy Pcb Auto SAM-DC94-07534A
...
4-3
Assy Wire Harness SAM-DC93-00402B
...
4
Assy Pcb Display SAM-DC92-01996B
...
5-1-1
Button Push-Function SAM-DC64-03549A
...
5-1-2
Button Push-Option SAM-DC64-03548A
...
5-1
Panel Control SAM-DC64-03533G
...
5-2
Window Panel SAM-DC64-03539G
...
5-3
Cover Panel SAM-DC63-02047B
...
5-4
W-Lan Module SAM-4709-002530
...
5
Assy S.panel Control SAM-DC97-20094D

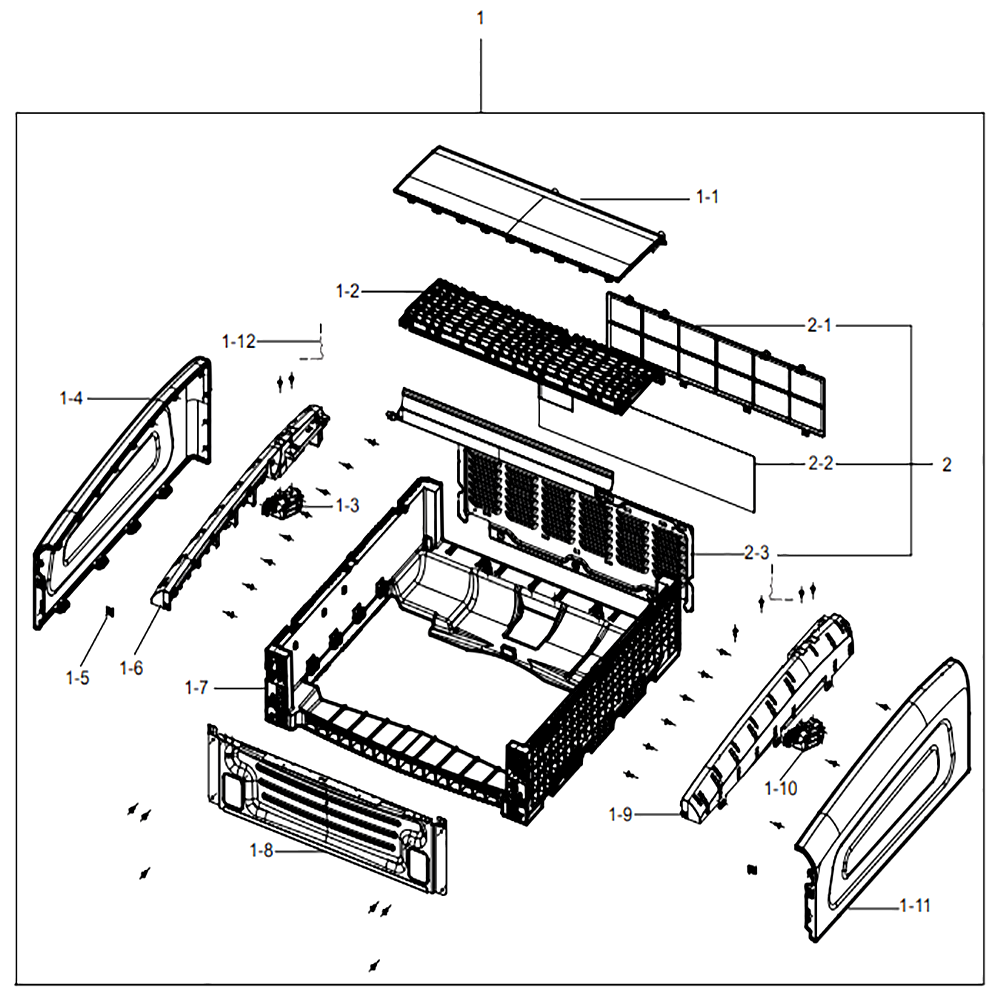

Assy Dual Module

...
...
1-1
Cover T.c SAM-DC63-02046B
...
1-2
Cover Plate SAM-DC63-02057A
...
1-3
Hinge Right SAM-DC61-04460A
...
1-4
Frame Right SAM-DC61-04363B
...
1-5
Bracket Tapping SAM-DD61-00140A
...
1-6
Cover Top-Left SAM-DC63-02044A
...
1-7
Frame Middle SAM-DC61-04373A
...
1-8
Bracket Frame SAM-DC61-04378A
...
1-9
Cover Top-Right SAM-DC63-02045A
...
1-10
Hinge Left SAM-DC61-04459A
...
1-11
Frame Left SAM-DC61-04362B
...
1-12
Guide Pin SAM-DC61-04335A
...
1
Assy Frame SAM-DC97-20115B
...
2-1
Cover Filter SAM-DC63-02082A
...
2-2
Filter Mesh SAM-DC63-01758A
...
2-3
Cover Back SAM-DC63-02040A
...
2
Assy Cover Back SAM-DC97-20015A

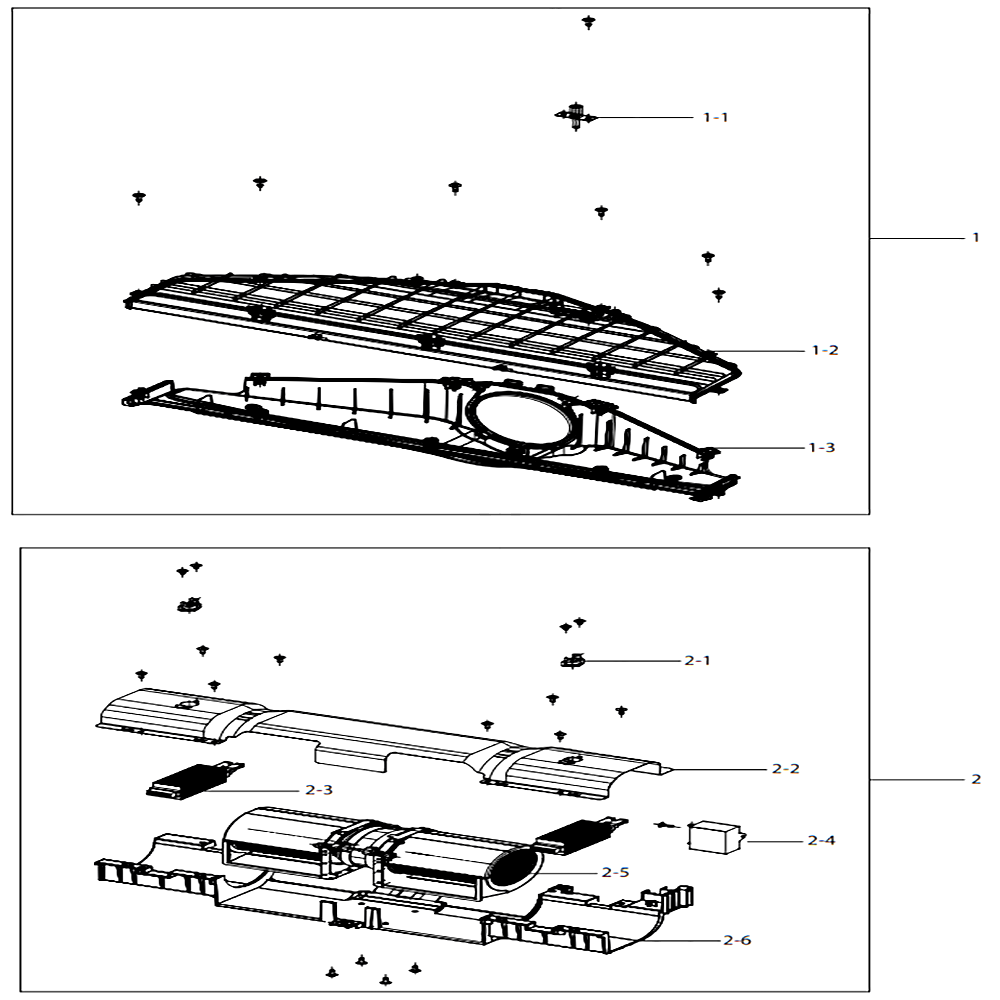

Assy Duct Exhaust & Assy Duct Heater

...
...
1-1
Assembly Thermistor SAM-DC90-10128G
...
1-2
Duct Exhaust-Up SAM-DC67-00898B
...
1-3
Duct Exhaust-Low SAM-DC67-00894B
...
1
Assembly Duct Exhaust SAM-DC97-07519G
...
2-1
Thermostat SAM-DC47-00016A
...
2-2
Cover Motor SAM-DC63-02049A
...
2-3
Heater-Ptc SAM-DC47-00037A
...
2-4
C-Film,lead SAM-2301-001959
...
2-5
Motor Ac Fan SAM-DC31-00185A
...
2-6
Support Motor SAM-DC61-04374A
...
2
Assy Duct Heater SAM-DC93-00671A

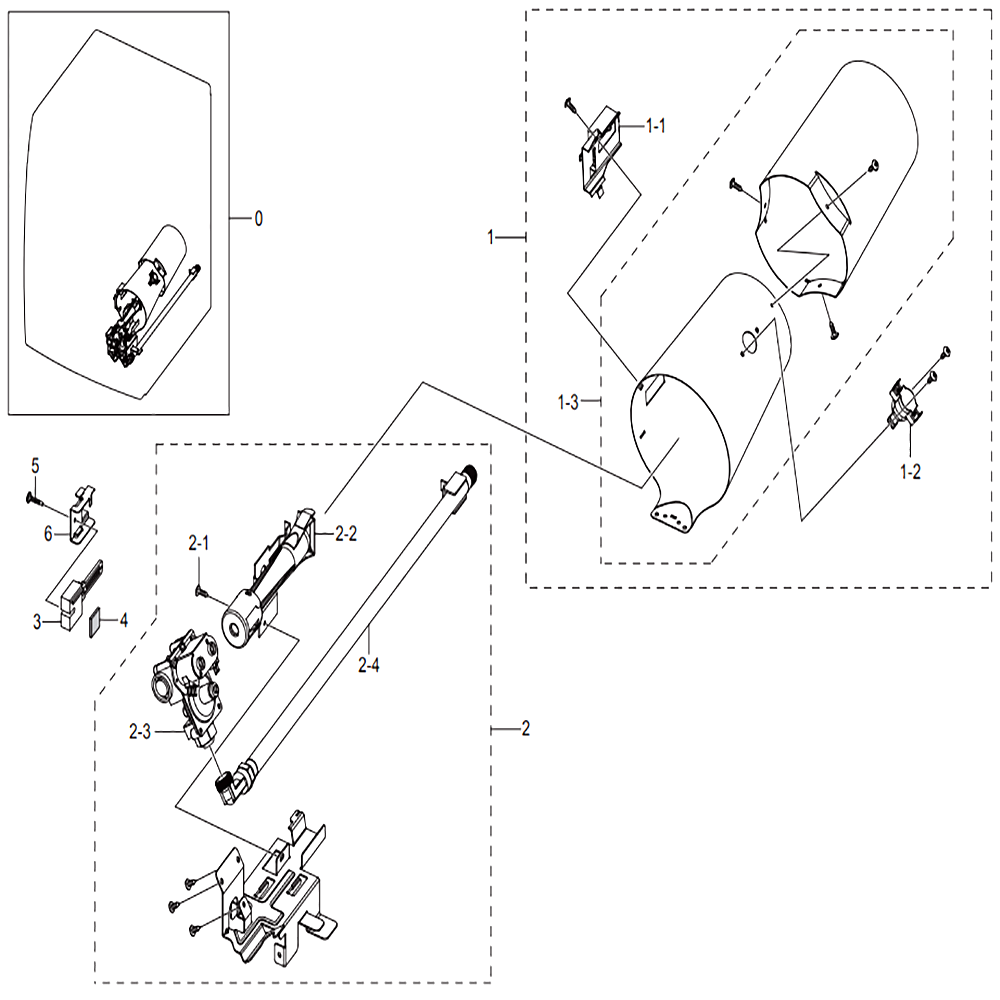

Assy Duct & Burner

...
...
1-1
Sensor-Radiant SAM-DC32-00008A
...
1-2
Thermostat SAM-DC47-00017A
...
1-3
Assy Duct Cone SAM-DC97-07602C
...
1
Assembly Duct Outlet SAM-DC93-00187A
...
2-1
Screw-Hex SAM-6009-001476
...
2-2
Tube-Burner SAM-DC62-00200A
...
2-3
Valve Gas SAM-DC62-00201B
...
2-4
Assembly Pipe SAM-DC99-00507A
...
2
Assy Burner SAM-DC97-14492E
...
3
Heater-Igniter SAM-DC47-00022A
...
4
Absorber-Ignitor SAM-DC63-00623A
...
5
Assembly Screw SAM-DC97-09193A
...
6
Bracket Igniter SAM-DC61-02642A

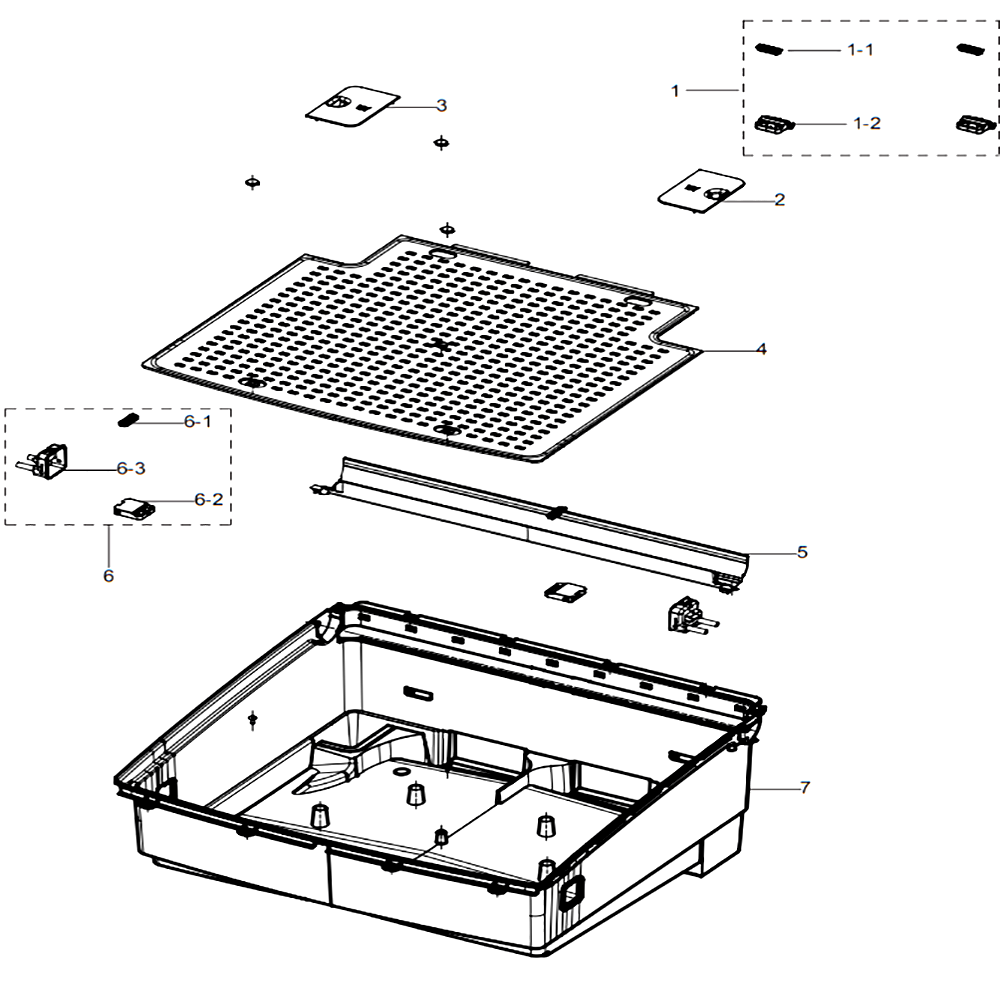

Assy Basket

...
...
0
Assy Basket SAM-DC97-20012B
...
1-1
Seal Air SAM-DC62-00505B
...
1-2
Holder Rack SAM-DC61-04405B
...
1
Assy Holder Rack SAM-DC97-20155B
...
2
Cap Tank Water SAM-DC67-00895A
...
3
Cap Tank Water SAM-DC67-00896A
...
4
Cover Base SAM-DC63-02048A
...
5
Cover Lid SAM-DC63-02089B
...
6-1
Seal Air SAM-DC62-00505B
...
6-2
Holder Rack-Cover SAM-DC61-04403B
...
6-3
Holder Rack-Flip SAM-DC61-04404B
...
6
Assy Holder Rack-Flip SAM-DC97-20156B
...
7-1
Absorber-Top SAM-DC72-00012T
...
7
Case Basket SAM-DC61-04379B

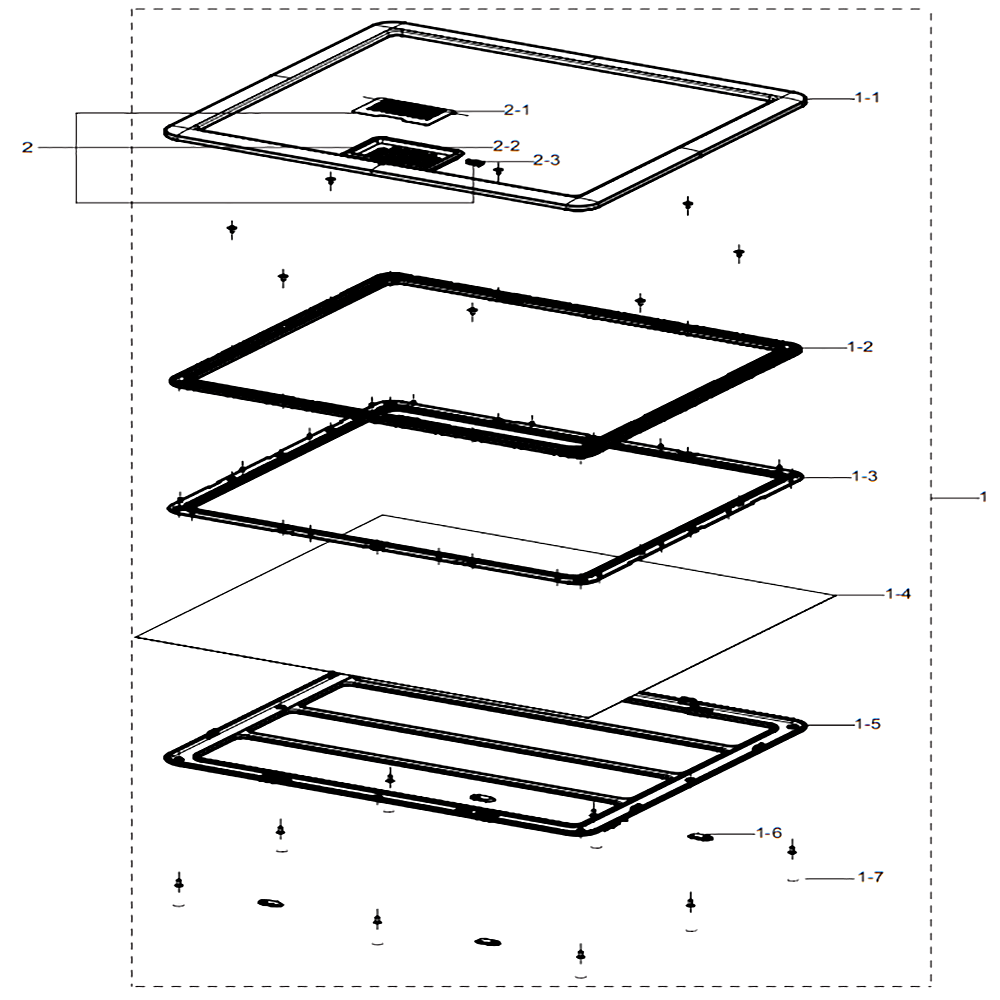

Assy Die Rack Dry & Assy Die Rack-case

...
...
1-1
Die Rack Dry-Cover SAM-DC61-04398B
...
1-2
Die Rack Dry-Up SAM-DC61-04396A
...
1-3
Die Rack Dry-Low SAM-DC61-04397A
...
1-4
Die Rack Dry-Mesh SAM-DC61-04420A
...
1-5
Die Rack Dry-Guide SAM-DC61-04400A
...
1-6
Cushion Lid SAM-DC63-01554B
...
1-7
Inlay SAM-DC64-03570A
...
1
Assy Die Rack Dry SAM-DC93-00670B
...
2-1
Die Rack Dry-Case SAM-DC61-04399A
...
2-2
Die Rack Dry-Basket SAM-DC61-04418A
...
2-3
Cushion Rubber SAM-DC63-02071A
...
2
Assy Die Rack Dry-Case SAM-DC93-00692A

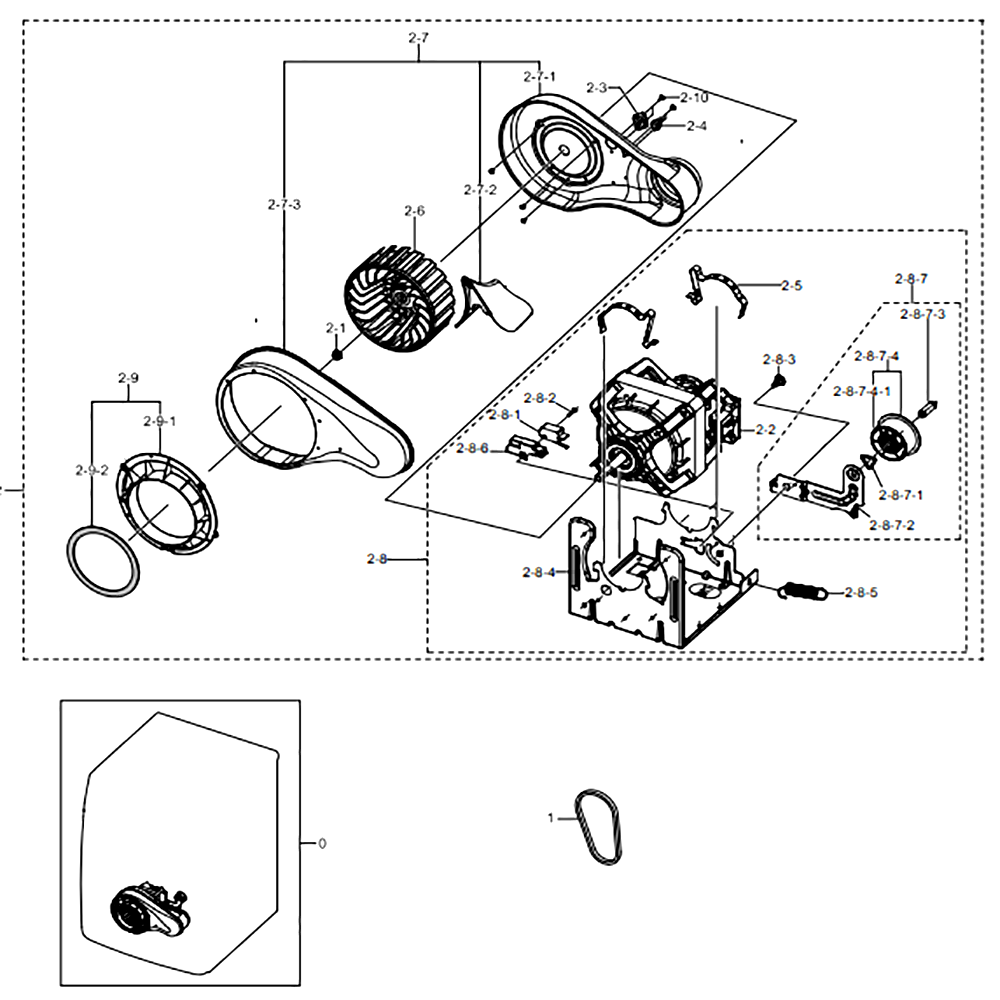

Assy Motor Duct

...
...
0
Assembly Motor Duct SAM-DC90-15188A
...
1
Belt-Timing Gear SAM-6602-001655
...
2-1
Nut-Inch SAM-6021-001201
...
2-2
Motor Ac Drive SAM-DC31-00055G
...
2-3
Thermistor SAM-DC32-00007A
...
2-4
Thermostat SAM-DC47-00016A
...
2-5
Spring Plate SAM-DC61-04225A
...
2-6
Fan SAM-DC67-00180B
...
2-7-1
Guide-Duct Fan SAM-DC61-02348B
...
2-7-2
Guide-Fan SAM-DC61-03364A
...
2-7-3
Cover-Duct Fan SAM-DC63-01026A
...
2-7
Assembly Cover Duct SAM-DC93-00098D
...
2-8-1
Switch-Micro SAM-3405-001118
...
2-8-2
Screw-Tapping SAM-6002-000488
...
2-8-4
Bracket-Motor SAM-DC61-01213A
...
2-8-5
Spring Etc-Tension SAM-DC61-01215B
...
2-8-6
Cover-Switch SAM-DC63-00919A
...
2-8-7-1
Holder-Shaft SAM-DC61-01228A
...
2-8-7-2
Bracket Idler SAM-DC61-01230C
...
2-8-7-3
Shaft Idler SAM-DC66-00902A
...
2-8-7-4-1
Roller-Idler SAM-DC66-00903A
...
2-8-7-4
Assembly Roller SAM-DC97-07509C
...
2-8-7
Assembly Bracket Idler SAM-DC96-00882F
...
2-8
Assy Bracket Motor SAM-DC96-00790G
...
2-9-1
Duct Connector SAM-DC67-00130A
...
2-9-2
Absorber Sponge SAM-DC72-00032E
...
2-9
Assembly Duct Connector SAM-DC97-07895A
...
2-10
Screw-Tapping SAM-6002-000239
...
2
Assembly Motor SAM-DC93-00101N

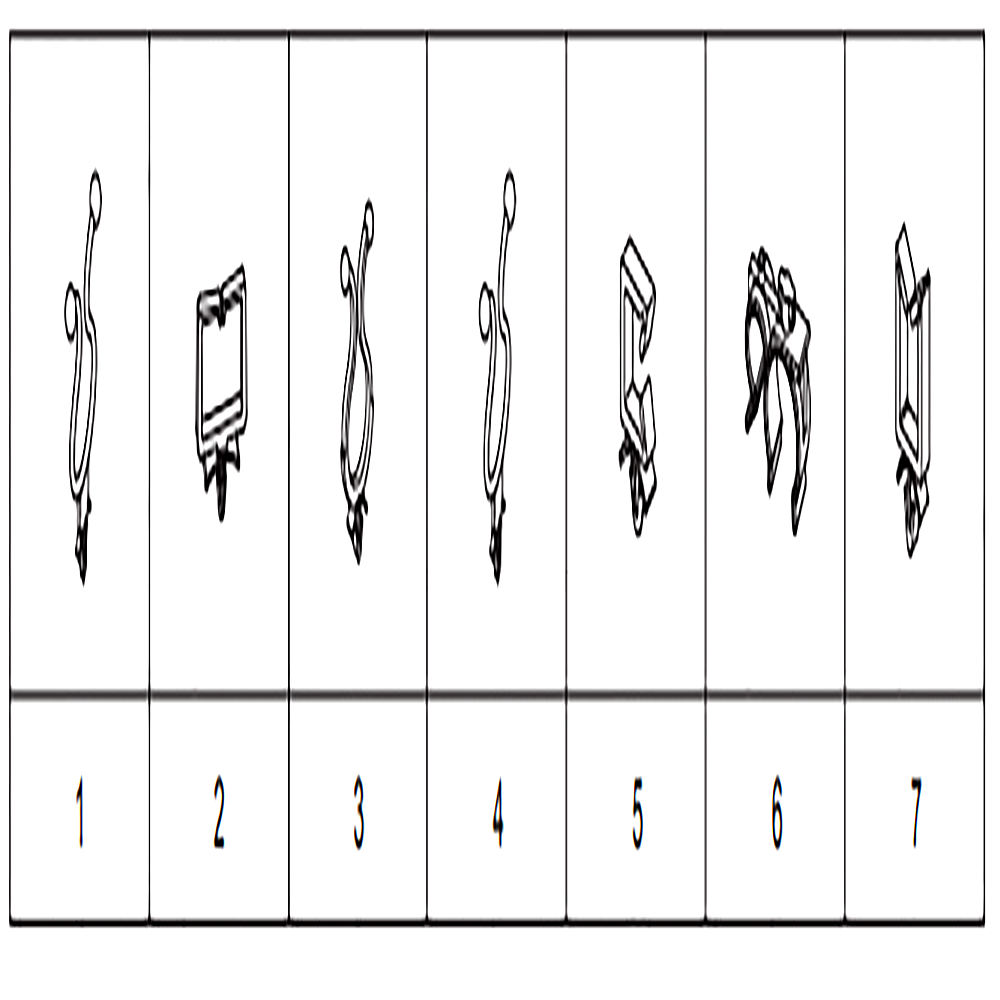

Small Parts

...
...
1
Stand Off SAM-6046-000310
...
2
Holder-Wire SAM-DC61-60074A
...
3
Holder-Wire SAM-DC61-40081A
...
4
Cable Clamp SAM-6502-000127
...
5
Holder-Wire Saddle SAM-DC61-00553C
...
6
Clamper Hose-Fix SAM-DC61-00133A
...
7
Cable Clamp SAM-DC61-00553B
