Samsung DVG52M8650W/A3_0000

Model: DVG52M8650W/A3_0000

Save Part Not Listed?
product name

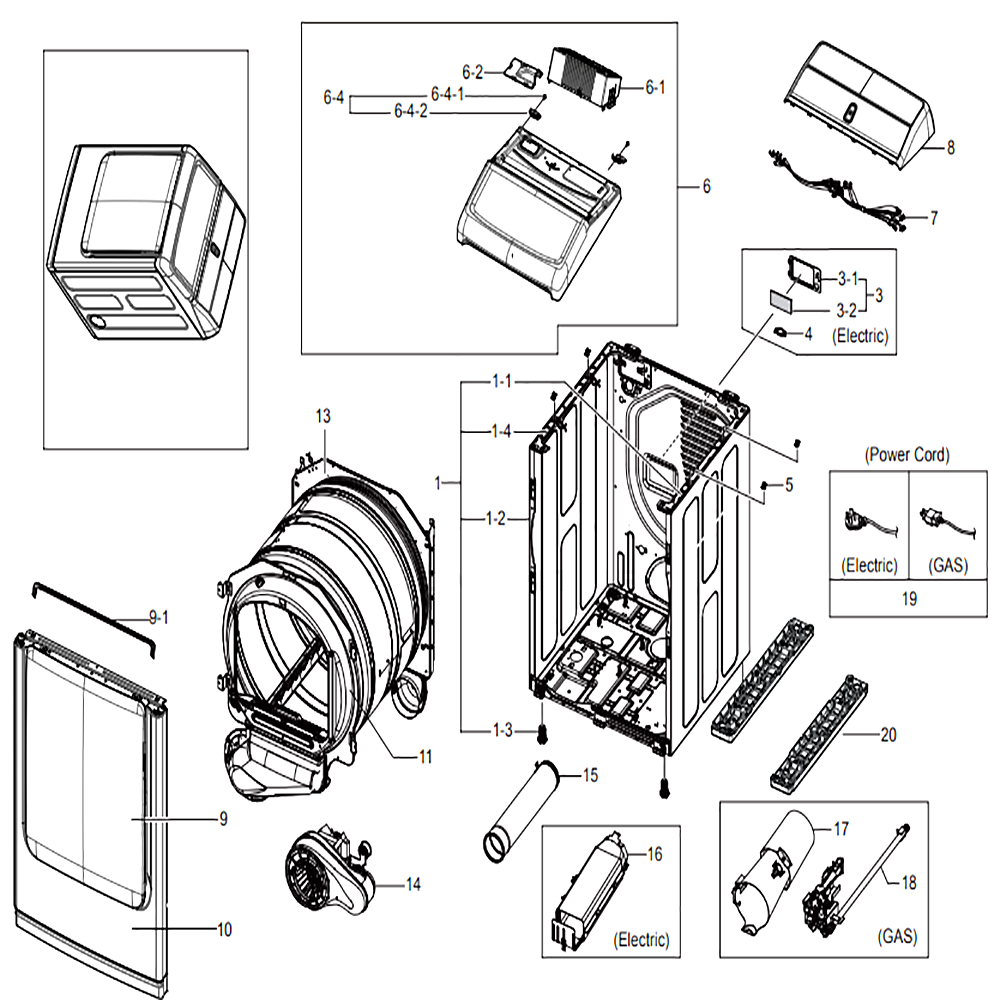

Main

...
...
1-1
Bracket-Spring(r) SAM-DC61-03047A
...
1-2
Frame SAM-DC61-04009D
...
1-3
Leg SAM-DC61-03128A
...
1-4
Assembly Bracket Spring(l) SAM-DC97-16750A
...
1
Assy Frame Case Parts SAM-DC90-24103B
...
5
Guide Cover Top SAM-DC61-03400A
...
6-1
Guide Cover Pcb SAM-DC61-04008A
...
6-2
Cap-Cover Top SAM-DC67-00607A
...
6-3
Assy Pcb Main SAM-DC92-01729M
...
6-4-1
Screw-Tapping SAM-6006-001174
...
6-4-2
Bracket Cover Top SAM-DC61-03134B
...
6-4-3
Cover Top SAM-DC63-01928A
...
6-4
Assy Cover Top SAM-DC97-19247A
...
6
Assy Cover Top SAM-DC90-24133B
...
7
Assy Wire Harness- Main SAM-DC93-00555C
...
8
Assy Panel Control SAM-DC90-24144D
...
9-1
Decoration Cover Door SAM-DC64-03511A
...
9
Assy Door SAM-DC97-20017A
...
10
Drum Lifter SAM-DC97-18551C
...
11
Assy Drum Front SAM-DC97-18962B
...
12
Dv7000h-Steam,etc,-,-,-,-,- SAM-DC97-16812H
...
13
Assy Drum Back SAM-DC97-19083B
...
14
Assy Motor Duct SAM-DC90-20077A
...
15
Assembly Duct Exhaust SAM-DC97-07519G
...
16
Assy Burner SAM-DC97-14492E
...
20
Base Stand SAM-DC61-03981A

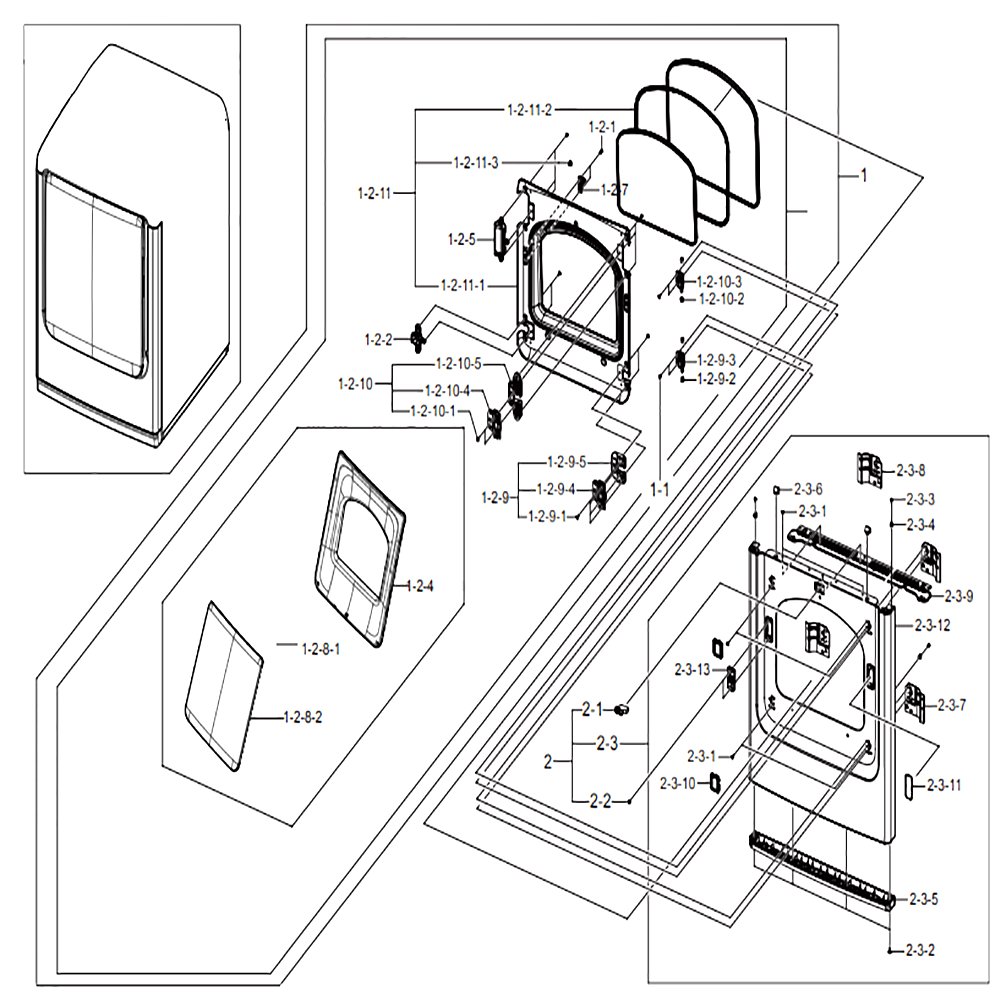

Assy Frame Front & Door

...
...
1-1
Screw-Tapping SAM-6002-000239
...
1-2-1
Screw-Tapping SAM-6002-000445
...
1-2-2
Assy Drum Front SAM-DC61-03324D
...
1-2-3
Seal Door SAM-DC62-00339A
...
1-2-4
Cover Door SAM-DC63-02027A
...
1-2-5
Assy Duct Outlet SAM-DC64-02785D
...
1-2-6
Door Glass SAM-DC64-02789A
...
1-2-7
Lever-Door SAM-DC66-00395A
...
1-2-8-1
Decoration Cover Door SAM-DC64-03511A
...
1-2-8-2
Door Safety SAM-DC64-03510A
...
1-2-8
Assy Cover Door SAM-DC63-01502B
...
1-2-9-1
Screw-Tapping SAM-6002-000520
...
1-2-9-2
Guide-Hinge SAM-DC61-00891A
...
1-2-9-3
Hinge Door SAM-DC61-03322B
...
1-2-9-4
Support Hinge SAM-DC61-03323A
...
1-2-9-5
Holder Hinge SAM-DC61-03332A
...
1-2-9
Assy Hinge Door(l) SAM-DC97-17078B
...
1-2-10-1
Screw-Tapping SAM-6002-000520
...
1-2-10-2
Guide-Hinge SAM-DC61-00891A
...
1-2-10-3
Hinge Door SAM-DC61-03322B
...
1-2-10-4
Support Hinge SAM-DC61-03323A
...
1-2-10-5
Assy-S.drum Front SAM-DC63-01458C
...
1-2-10
Assy Hinge Door SAM-DC97-17079B
...
1-2-11-1
Assy Drum Wrapper SAM-DC61-03331D
...
1-2-11-2
Seal Air SAM-DC62-00344A
...
1-2-11-3
Cushin Door SAM-DC63-01498A
...
1-2-11
Cap-Drum Front SAM-DC97-17080D
...
1
Assy Door SAM-DC97-20017A
...
2-1
Door-S/w SAM-DC64-00828B
...
2-2
Assy Screw SAM-DC97-15847A
...
2-3-1
Screw-Tapping SAM-6002-000239
...
2-3-2
Screw-Tapping SAM-6002-001149
...
2-3-3
Screw-Tapping SAM-6002-001436
...
2-3-4
Guide-Cover Top SAM-DC61-03133A
...
2-3-5
Base SAM-DC61-03980A
...
2-3-6
Fixer-Cover Top SAM-DC61-03174A
...
2-3-7
Bracket Hinge-Right SAM-DC61-03325A
...
2-3-8
Bracket-Hinge(l) SAM-DC61-03326A
...
2-3-9
Bracket Frame-Front SAM-DC61-03328A
...
2-3-10
Cover-Door Hinge SAM-DC63-01456D
...
2-3-11
Cover Holder Lever SAM-DC63-01457E
...
2-3-12
Assy Frame Front(s) SAM-DC97-16953A
...
2-3-13
Assy Holder Lever SAM-DC97-16970B
...
2
Drum Lifter SAM-DC97-18551C

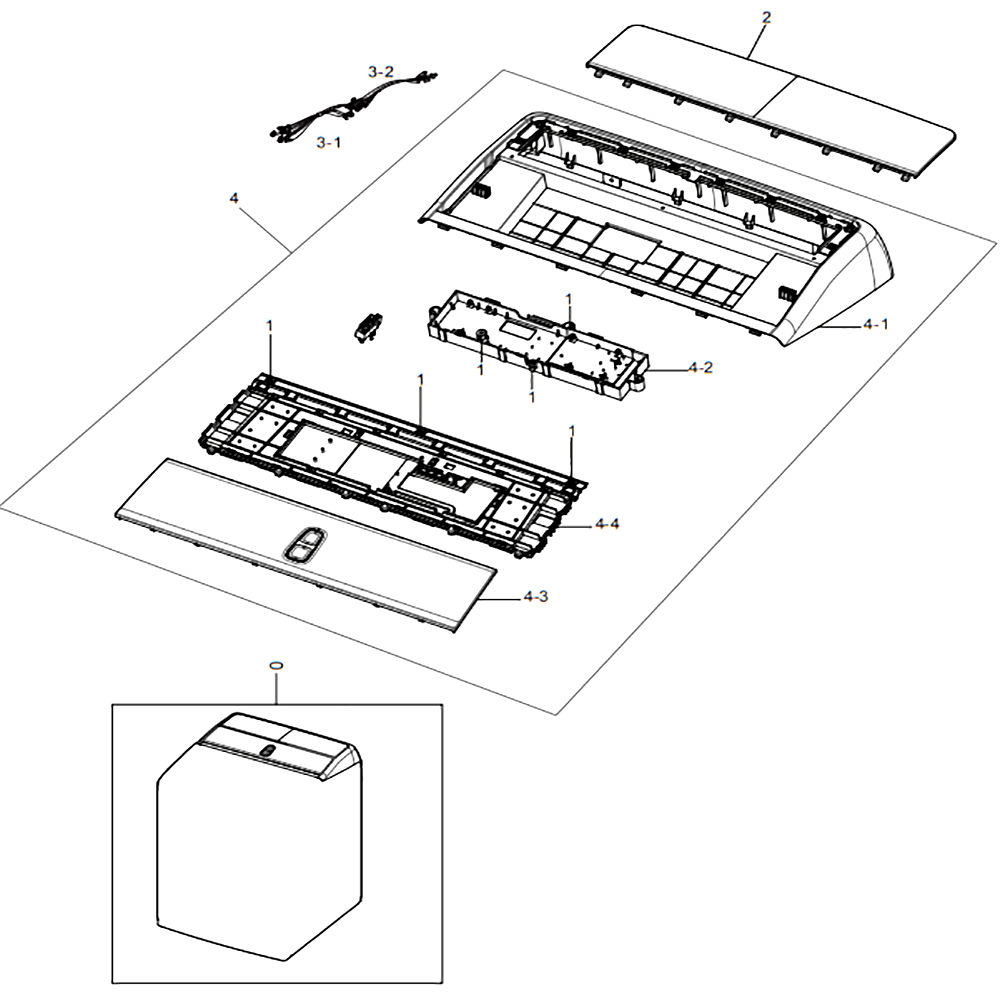

Assy Panel Control

...
...
0
Assy Panel Control SAM-DC90-24144D
...
1
Screw-Tapping SAM-6002-000239
...
2
Cover Panel SAM-DC63-01929Q
...
3-1
Assembly Wire Harness SAM-DC96-00766A
...
3-2
Assy Wire Harness- Main SAM-DC93-00555C
...
4-1
Panel Control SAM-DC64-03378A
...
4-2
Assy Pcb Display SAM-DC92-01862C
...
4-3
Window Panel SAM-DC64-03381D
...
4-4
Button Push SAM-DC64-03382A
...
4
Assy S.panel Control SAM-DC97-20081A

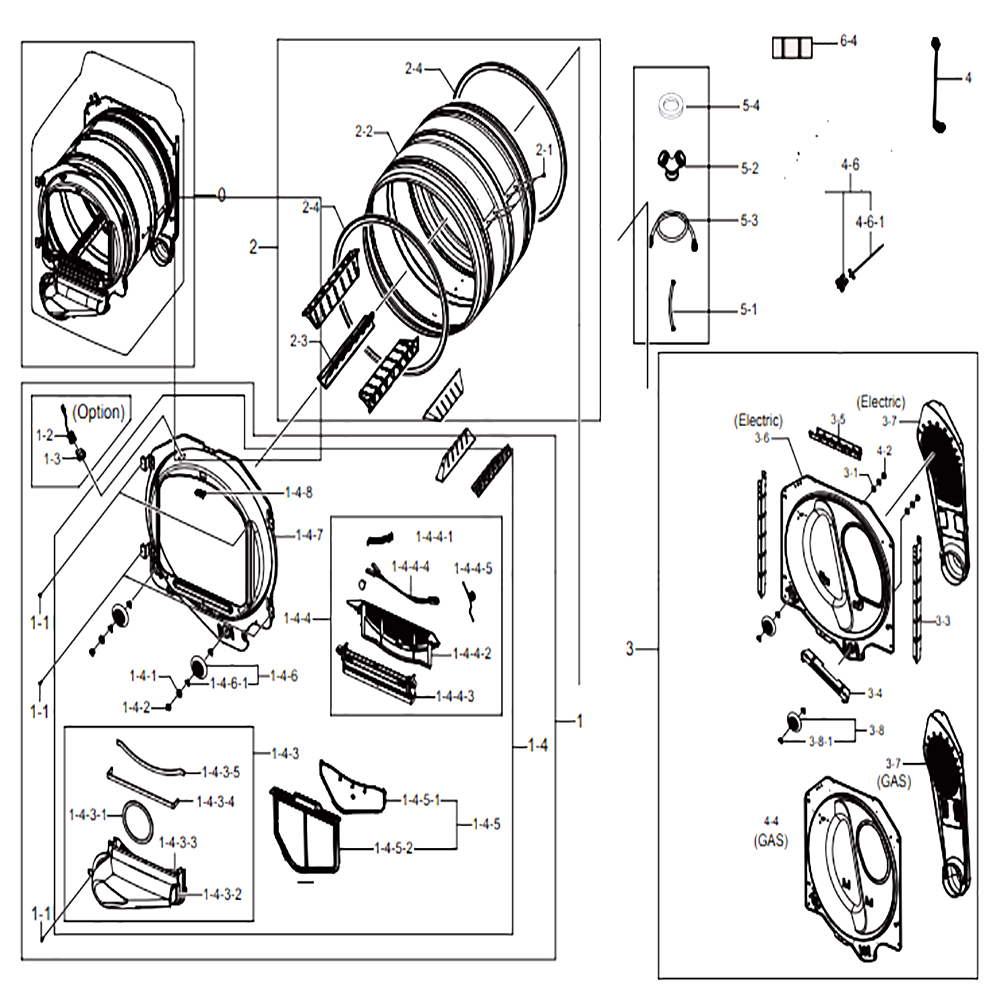

Assy Drum Parts

...
...
1-1
Screw-Tapping SAM-6002-000231
...
1-2
Lamp SAM-DC47-00027F
...
1-3
Fixer-Lamp SAM-DC61-02281A
...
1-4-1
Fastener-Plain SAM-DC60-00103A
...
1-4-2
Nut-Hex SAM-DC60-50145A
...
1-4-3-1
Absorber Sponge SAM-DC63-01548A
...
1-4-3-2
Duct-Outlet(f) SAM-DC67-00127A
...
1-4-3-3
Gi-Sgcc,t0.5 SAM-DC67-00128C
...
1-4-3-4
Absorber Sponge SAM-DC72-00032A
...
1-4-3-5
Absorber Sponge SAM-DC72-00032C
...
1-4-3
Dv3000j,dv40j3000ew/a2 SAM-DC97-07526E
...
1-4-4-1
Plate-Sensor SAM-DC61-02627A
...
1-4-4-2
Cover-Filter(b) SAM-DC63-01319A
...
1-4-4-3
Cover-Filter(f) SAM-DC63-01320A
...
1-4-4-4
Assembly Wire Harness SAM-DC96-00766A
...
1-4-4-5
Spring Etc Filter SAM-DC61-02740A
...
1-4-4
Assy Cover Filter SAM-DC97-16741B
...
1-4-5-1
Case-Filter(u) SAM-DC61-02610A
...
1-4-5-2
Case-Filter SAM-DC61-03048A
...
1-4-5
Assembly Case Filter SAM-DC97-16742A
...
1-4-6-1
Holder-Shaft SAM-DC61-01228A
...
1-4-6
Assy Plastic Supportor SAM-DC97-16782B
...
1-4-7
Assy-S.drum Front SAM-DC97-17081A
...
1-4-8
Cap-Drum Front SAM-DC67-00652A
...
1
Assy Drum Front SAM-DC97-18962B
...
2-1
Screw-Tapping SAM-6002-000215
...
2-2
Egi-Secc,t0.6,neat White SAM-DC66-00405E
...
2-3
Drum-Lifter SAM-DC66-00664A
...
2-4
Assembly Gasket Pad SAM-DC97-07618A
...
2
Dv7000h-Steam,etc,-,-,-,-,- SAM-DC97-16812H
...
3-1
Fastener-Plain SAM-DC60-00103A
...
3-2
Nut-Hex SAM-DC60-50145A
...
3-3
Bracket-Drum Back SAM-DC61-01238A
...
3-4
Bracket-Drum Back SAM-DC61-02826A
...
3-5
Bracket-Drum Back SAM-DC61-03130A
...
3-6
Drum-Back SAM-DC66-00411J
...
3-7
Assy Duct Air SAM-DC97-07521F
...
3-8-1
Holder-Shaft SAM-DC61-01228A
...
3-8
Assy Plastic Supportor SAM-DC97-16782B
...
3-9
Assy Thermistor SAM-DC93-00329A
...
3
Assy Drum Back SAM-DC97-19083B
...
4-6-1
Housing-Thermistor SAM-DC61-03396A
...
4-6
Assembly Connector SAM-DC97-15103A
...
4
Assy Steam Kit SAM-DC97-16919B
...
5-1
Assembly Hose Connector SAM-DC97-15249A
...
5-3
Valve-Water SAM-DC62-30042A
...
5-4
Seal-Water SAM-DC62-40178B
...
6-4
Tape Opp SAM-DC69-90008A

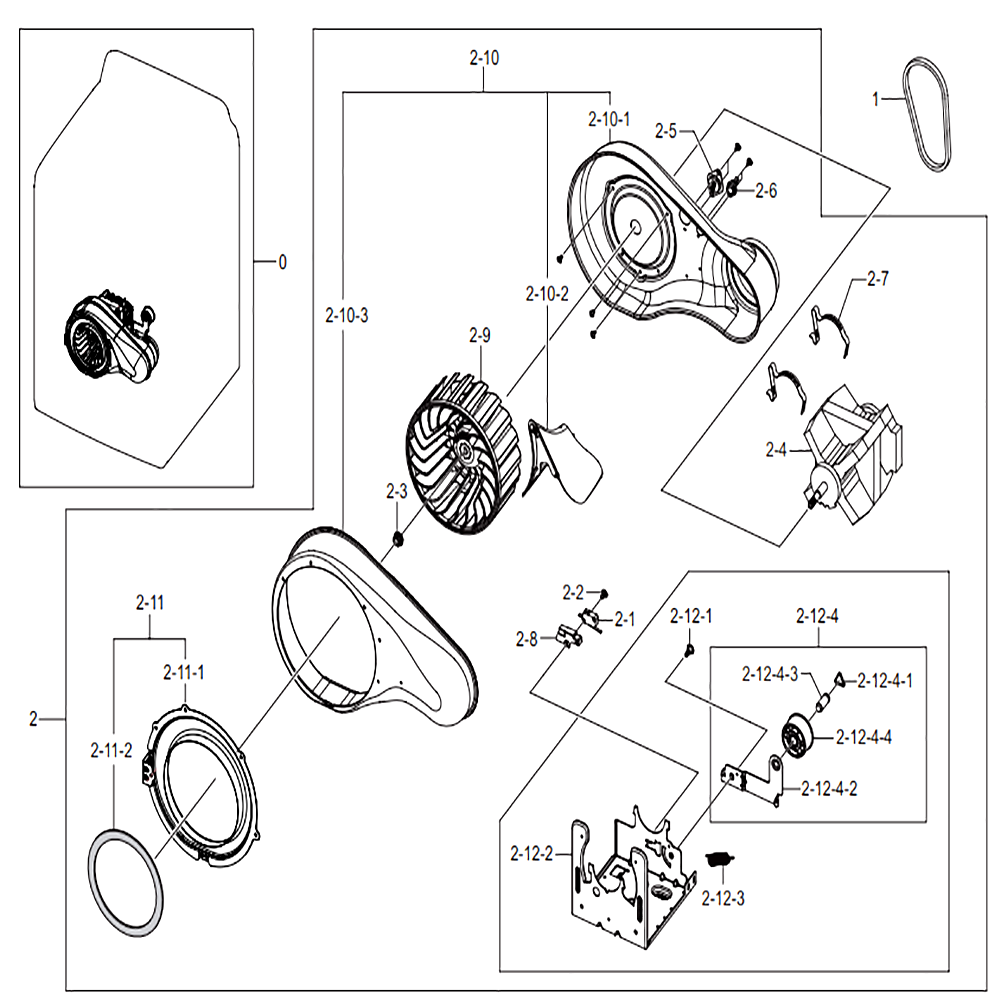

Assy Motor Duct

...
...
0
Assy Motor Duct SAM-DC90-20077A
...
1
Belt-Timing Gear SAM-6602-001655
...
2-1
Switch-Micro SAM-3405-001118
...
2-2
Screw-Tapping SAM-6002-000488
...
2-3
Nut-Inch SAM-6021-001201
...
2-4
Motor Ac Drive SAM-DC31-00055G
...
2-5
Thermistor SAM-DC32-00007A
...
2-6
Thermostat SAM-DC47-00016A
...
2-7
Spring Plate SAM-DC61-04225A
...
2-8
Cover-Switch SAM-DC63-00919A
...
2-9
Fan SAM-DC67-00180B
...
2-10-1
Guide-Duct Fan SAM-DC61-02348B
...
2-10-2
Guide-Fan SAM-DC61-03364A
...
2-10-3
Cover-Duct Fan SAM-DC63-01026A
...
2-10
Assembly Cover Duct SAM-DC93-00098D
...
2-11-1
Duct-Connector SAM-DC67-00586A
...
2-11-2
Absorber Sponge SAM-DC72-00032E
...
2-11
Assembly Duct Connector SAM-DC93-00282A
...
2-12-2
Bracket-Motor SAM-DC61-01213A
...
2-12-3
Spring Etc-Tension SAM-DC61-01215B
...
2-12-4-1
Holder-Shaft SAM-DC61-01228A
...
2-12-4-2
Bracket Idler SAM-DC61-01230C
...
2-12-4-3
Shaft Idler SAM-DC66-00902A
...
2-12-4-4
Assembly Roller SAM-DC97-07509C
...
2-12-4
Assembly Bracket Idler SAM-DC96-00882F
...
2-12
Assy Bracket Motor SAM-DC96-00790G
...
2
Assy Motor SAM-DC93-00101U

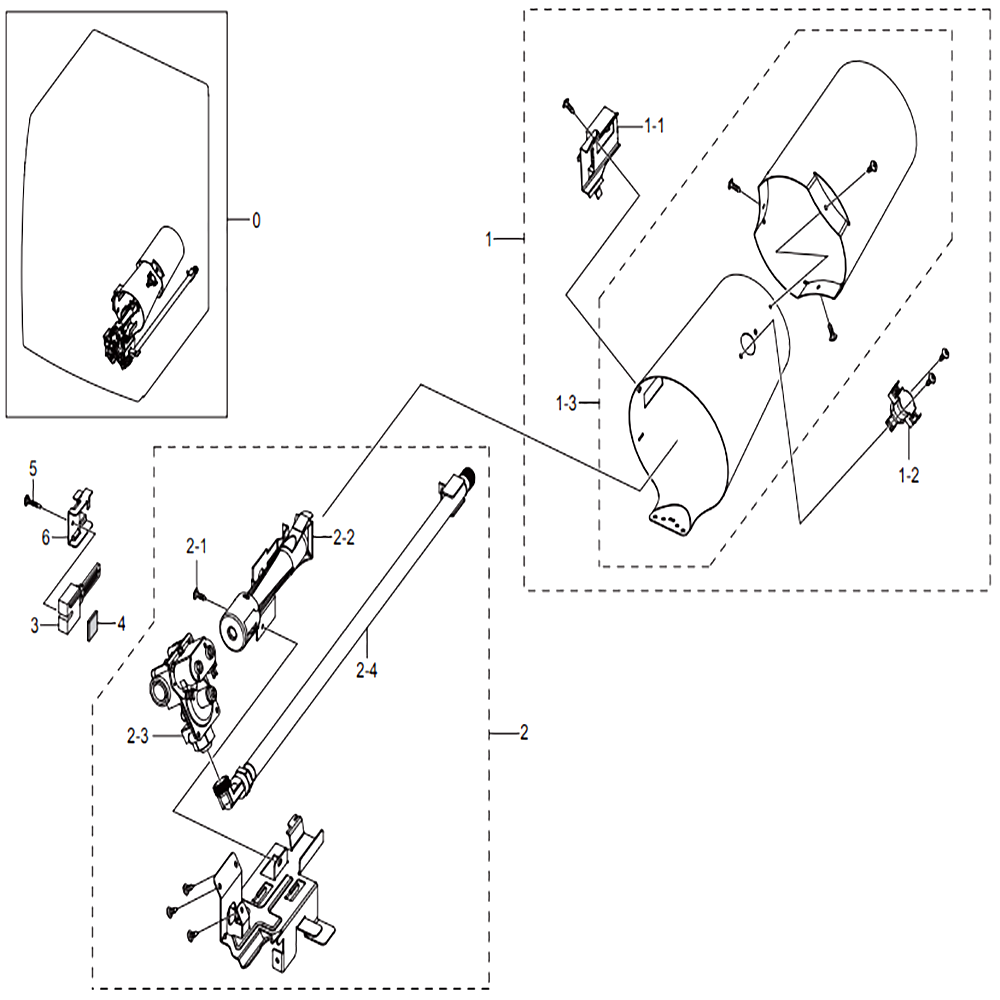

Assy Duct & Burner

...
...
1-1
Sensor-Radiant SAM-DC32-00008A
...
1-2
Thermostat SAM-DC47-00017A
...
1-3
Assy Duct Cone SAM-DC97-07602C
...
1
Assembly Duct SAM-DC97-10720A
...
2-1
Screw-Hex SAM-6009-001476
...
2-2
Tube-Burner SAM-DC62-00200A
...
2-3
Valve Gas SAM-DC62-00201B
...
2-4
Assembly Pipe SAM-DC99-00507A
...
2
Assy Burner SAM-DC97-14492E
...
3
Heater-Igniter SAM-DC47-00022A
...
4
Absorber-Ignitor SAM-DC63-00623A
...
5
Assembly Screw SAM-DC97-09193A
...
6
Bracket Igniter SAM-DC61-02642A

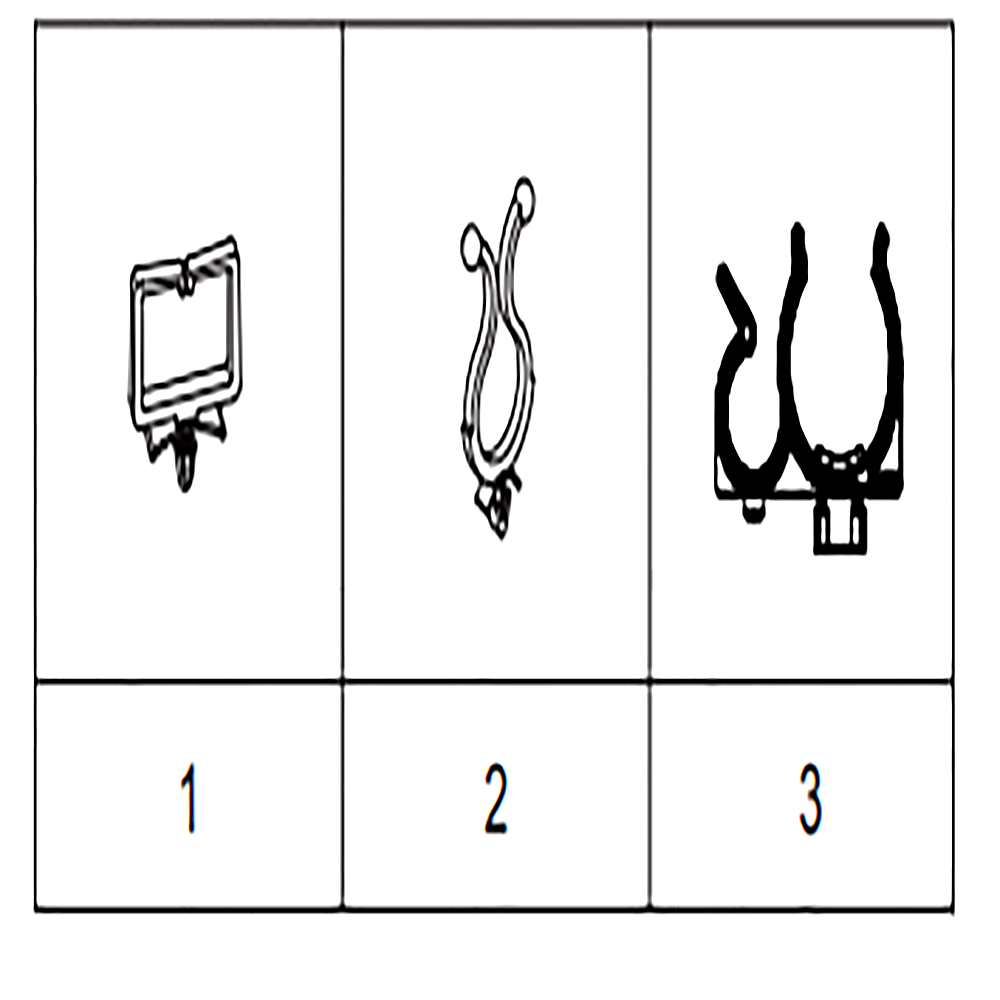

Small Parts

...
...
1
Cable Clamp SAM-DC61-00553B
...
2
Holder-Wire SAM-DC61-40081A
...
3
Clamper Hose-Fix SAM-DC61-00133A
