Poulan Pro PP14542K Tractor

Model: PP14542K Tractor

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

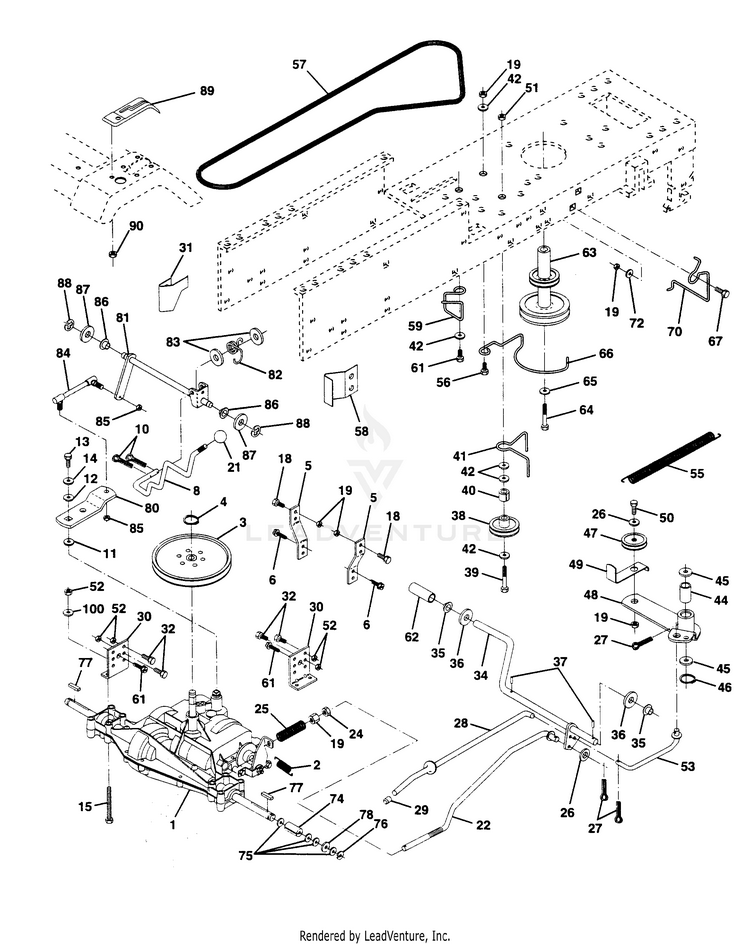

DRIVE

...
...
1
Transaxle 6sp Model No. 4360-79 (AYP part number) PLN-532142603
...
2
Spring Return Brake (AYP part number) PLN-532146682
...
3
Pulley Transaxle 18" tires (AYP part number) PLN-532123666
...
4
Ring Retainer # 5100-62 (AYP part number) PLN-812000028
...
5
Strap Torque 30 Degrees (AYP part number) PLN-532121520
...
6
HCS 5/16C X 3/4 PLN-539976934
...
8
Rod Shifter (AYP part number) PLN-532141003
...
10
Pin Cotter 1/8 X 1 Cad (AYP part number) PLN-876020416
...
11
Washer Plate Shf 388 Sq Hole (AYP part number) PLN-532105701
...
12
Washer 9/32 X 3/4 X 10 Ga (AYP part number) PLN-819151216
...
13
BOLT LT PLN-871040412
...
14
Washer Lock Hvy Helical 1/4 (AYP part number) PLN-810040400
...
15
Bolt Fin Hex 5/16 - 18 UNC x 2.75 (AYP part number) PLN-874780544
...
18
Bolt Fin Hex 3/8-16unc X 1 Gr. 5 (AYP part number) PLN-874780616
...
19
LOCKNUT PLN-873680600
...
21
Knob Duckhead 1/2-13 UNC (AYP part number) PLN-532106933
...
22
Rod Brake Blk Zinc 27 326 (AYP part number) PLN-532130804
...
24
NUT.HEX.3/8-16UNC PLN-873220600
...
25
SPRING, BRAKE ROD PLN-532151332
...
26
Washer 13/32 X 13/16 X 16 Ga (AYP part number) PLN-819131316
...
27
Pin Cotter 1/8 X 3/4 Cad (AYP part number) PLN-876020412
...
28
Rod Brake Parking LT/YT (AYP part number) PLN-532145204
...
29
Cap Brake Parking Black (AYP part number) PLN-532071673
...
30
Bracket Mtg Transaxle (AYP part number) PLN-532130807
...
31
Keeper Belt LH LT 14 Ga (AYP part number) PLN-532127275
...
32
HCS 5/16C X 3/4 PLN-539976934
...
34
Shaft Asm Pedal Foot (AYP part number) PLN-532149001
...
35
Bearing Nylon Blk 629 Id (AYP part number) PLN-532120183
...
36
Washer 21/32 X 1 X 16 Ga (AYP part number) PLN-819211616
...
37
Pin, Roll, 3/16 x 1 (AYP part number) PLN-532001572
...
38
Pulley Idler Flat (AYP part number) PLN-532123674
...
39
Bolt Fin Hex 3/8-16unc X 2-3/4 (AYP part number) PLN-874760644
...
40
Spacer Split 395 X 59 Bzp (AYP part number) PLN-532124965
...
41
Keeper Belt Retainer (AYP part number) PLN-532109070
...
42
WASHER PLN-734117201
...
44
Bearing Nyl 503 X 628 X 1 25 (AYP part number) PLN-532105706
...
45
Washer Hardened (AYP part number) PLN-532110812
...
46
Ring Klip #t5304-50 (AYP part number) PLN-812000039
...
47
Pulley, Idler V Groove (AYP part number) PLN-532139245
...
48
Bellcrank Asm Clutch (AYP part number) PLN-532123789
...
49
Retainer Belt Style Spring (AYP part number) PLN-532123205
...
50
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) PLN-874930624
...
51
Nut Crownlock 3/8-16 Unc PLN-873680600
...
52
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
53
LINK.CLUTCH.7.66.2005 PLN-532199652
...
55
Spring Return Clutch 6 75 (AYP part number) PLN-532105709
...
56
Bolt Fin Hex 3/8-16 UNC x 1-1/4 (AYP part number) PLN-874760620
...
57
BELT, V GROUND DRIVE 95 25 PLN-532138255
...
58
Keeper Belt RH LT Pnt/zinc 16g (AYP part number) PLN-532127274
...
59
KEEPER, BELT CENTER PLN-532169691
...
61
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) PLN-874780612
...
62
PEDAL COVER PLN-532008883
...
63
Engine Pulley (AYP part number) PLN-532140186
...
64
Speed Clip PLN-501606501
...
65
WASHER 7/16 LOCK PLN-539990247
...
66
Keeper Belt Engine LH LT (AYP part number) PLN-532129921
...
67
BOLT PLN-874780616
...
70
Guide Belt Mower Drive RH (AYP part number) PLN-532134683
...
72
Washer 13/32 X 1-1/4 X 12 Ga (AYP part number) PLN-819132012
...
74
Spacer Axle (AYP part number) PLN-532109502
...
75
Washer 25/32 X 1 1/4 X 16 Ga. (AYP part number) PLN-532121749
...
76
E-ring #5133-75 (AYP part number) PLN-812000001
...
77
Key Square 2 0 X 1845/ 1865 (AYP part number) PLN-532123583
...
78
Washer 25/32 X 1-5/8 X 16 Ga. (AYP part number) PLN-532121748
...
80
Arm Shift Transaxle (AYP part number) PLN-532131488
...
81
Shaft Asm. Cross 18" + 42" Deck (AYP part number) PLN-532136932
...
82
Spring Torsion T/A (AYP part number) PLN-532123782
...
83
BUSHING PLN-734117771
...
84
Rod Shift Adj. Tie (AYP part number) PLN-532132182
...
85
NUT.FIN HEX 1/4-28 UNF PLN-873610400
...
86
Bushing Rod Strg. 629/632 Id (AYP part number) PLN-532071208
...
87
Washer 21/32 x 1 - 1/4 x 16 Ga. (AYP part number) PLN-819212016
...
88
Ring Klip #5304 - 62 (AYP part number) PLN-812000008
...
89
Console Shift 6 st LT (AYP part number) PLN-532139964
...
90
Nut Self-thd Wsh-hd 1/4 Zinc (AYP part number) PLN-532124346
...
100
WASHER - 15X7.3X1.6 PLN-734116301
...
...
...
...
...
