Nutone QTREN110FL Exhaust Fan

Model: QTREN110FL

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Nutone QTREN110FL

...
...
xx
Hanger Bars (1 Set) BRO-SQTHB1
...
xx
Night Light 4 Watt BRO-S99271426
...
1
Housing BRO-S97016466
...
2
Duct Connector-4" BRO-S97016449
...
3
Wiring Plate BRO-S98010102
...
4
Sheet Metal Screw 8-18 X .375 BRO-S99170245
...
5
Wire Panel/Harness Assy BRO-S97016585
...
6
Blower Wheel - 8" X 2 3/4", Ccw, Black Plastic BRO-S99020284
...
7
Blower Assembly - See 97020050 BRO-S97017851
...
7
Blower Asy For B/C Version (Lighted) BRO-S97020050
...
7
Blower Assy For A Version See 97020050 BRO-S97017856
...
8
Rubber Mount Isolator (4 Required) BRO-S99100491
...
9
Motor Plate BRO-S97016468
...
10
Washers 8 C .625 (4 Required) BRO-S99250959
...
11
Nut, Hex Lock 8-32 BRO-S99260558
...
12
Grille & Spring A Version Obsolete See 97018274 BRO-S97016612
...
12
Grille Assembly Complete W/Lens Replacement For Discontinued S97016869. BRO-S97018274
...
13
Grille Spring (2 Required) BRO-S99140199
...
14
Lens Version B Rectangle BRO-S99111401
...
14
Lens - Light Bulb Cover Version A Kidney Shape) BRO-S99111310
...
15
18 Watt Fluorescent Tube 2 Pin BRO-S99271311
...
15
Bulb - New Converted Grille Design - Fluorescent, 18 Watt, Gu24 Base - 2 Required BRO-S99271381
...
16
Ballast -6 Pin BRO-S97016618
...
17
Nut BRO-S99260488
...
18
"I" Joist Spacer Block - 2 Required BRO-S97018014

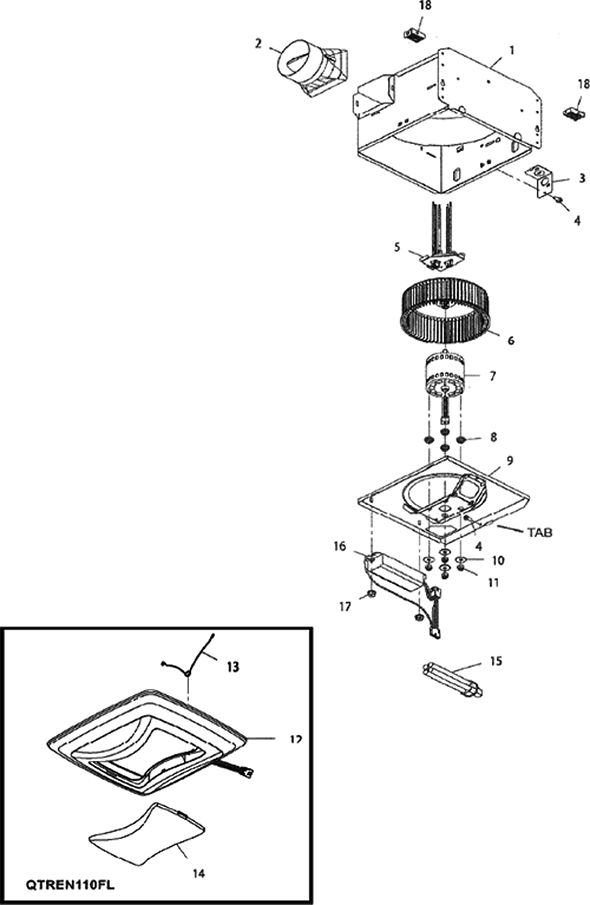

Schematic Image Zoomed
