Nutone 42000 Range Hood

Model: 42000

Save Part Not Listed?
product name

Nutone 42000

...
...
xx
Light Switch - White BRO-98030247
...
xx
2-Speed Motor Switch - White BRO-99030248
...
xx
Nameplate - White BRO-99090881
...
1
Outlet Box Cover BRO-98006621
...
2
8-18 X 3/8 Sheet Metal Screw BRO-99170245
...
3
Bulb Holder With Wires BRO-99270987
...
4
Light Lens BRO-99110437
...
5
Screw/Nut Kit (Include 2 -10-16 X .500 Screws And 2 - 10-16 Sheet Metal Nuts) BRO-97011217
...
6
Fan Blade BRO-99020248
...
7
6-32 Locking Nuts' (2 Required) BRO-99260428
...
8
Motor Mounting Bracket BRO-98005568
...
9
Motor Assembly (Includes Key Nos. 6, 7, & 8) BRO-97012248
...
10
Aluminum Filler BRO-97006931
...
11
Filler Retainer BRO-99420472
...
16
Nameplate - Black BRO-97010709
...
17
2-Speed Motor Switch - Black BRO-99030172
...
18
Light Switch - Black BRO-99030171
...
19
Motor Receptacle With Wires BRO-97005678
...
20
10-32 X 1/2 Green Ground Screw BRO-99150471

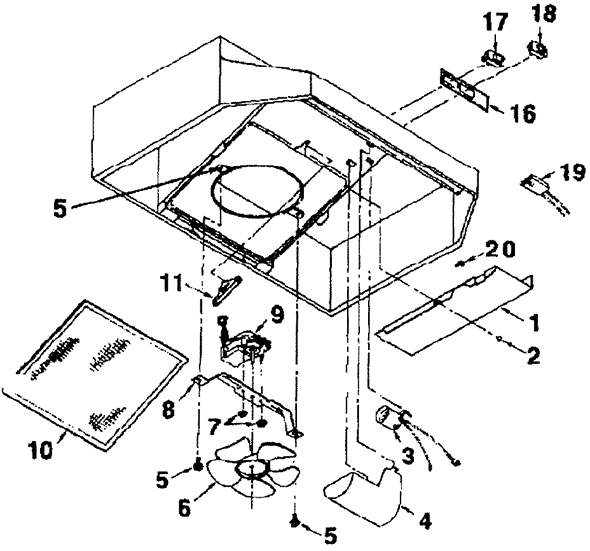

Schematic Image Zoomed
