Maytag MDG16PDBGW (BOM MDG16PDBGW)

Model: MDG16PDBGW (BOM MDG16PDBGW)

Save Part Not Listed?
product name

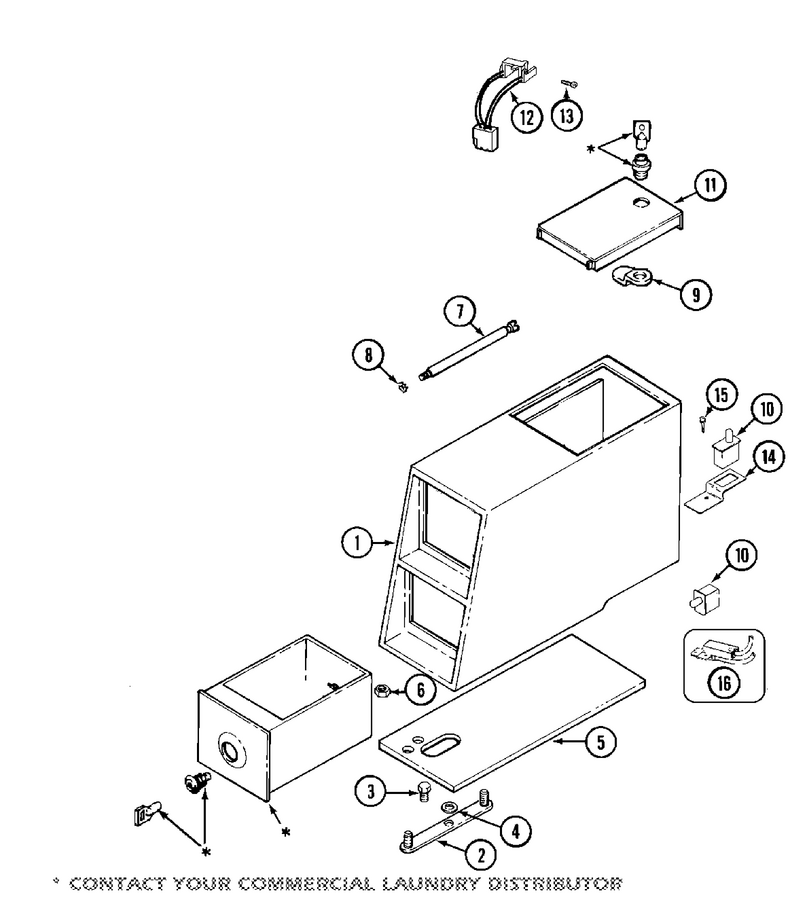

02 - Control Center

...
...
001
Screw WPL-WP90767
...
002
Strap, Mounting WPL-22001810
...
003
Screw WPL-WP489128
...
004
Washer, Strap Screw WPL-910309
...
005
Gasket, Control Center (wht) WPL-22002072
...
006
Nut WPL-WP62739
...
007
Bolt- Lock WPL-WP213035
...
008
Lockwasher, Locking Bolt WPL-910181
...
009
Cam, Locking WPL-22003348
...
010
Switch, Sensor WPL-22002536
...
011
Timer Acce WPL-WP22003679
...
012
Sensor WPL-WPW10247389
...
013
Screw WPL-WP3395530
...
014
Bracket, Switch WPL-22001404
...
015
Screw WPL-WP90767
...
016
Harness, Sensor Switch WPL-22001966

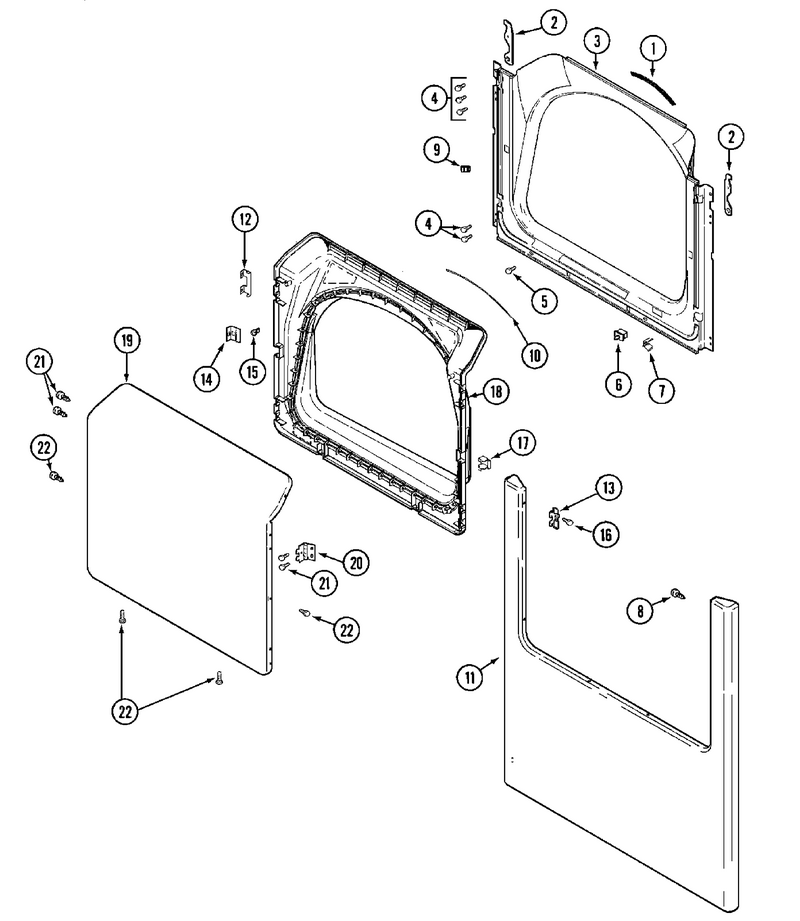

04 - Door

...
...
001
Seal- Shro WPL-WP33001767
...
002
Hook, Security WPL-33002597
...
003
Shroud (wht) WPL-33001954
...
004
Screw WPL-W11573574
...
005
Screw, Shroud & Outlet Duct WPL-33001768
...
006
Switch-Dor WPL-WPW10139323
...
007
Bracket, Hinge WPL-33001760
...
008
Clip, Grounding WPL-22002244
...
009
Door Catch La-1003 WPL-LA-1003
...
010
Seal-Door WPL-WP33002094
...
011
Clip- Lowe WPL-WP22002239
...
012
Clip, Door (double) WPL-22002038
...
013
Cover WPL-WP33001764
...
014
Bracket- S WPL-WP33001793
...
015
Strike- Do WPL-WP33001761
...
016
Screw WPL-WP33001787
...
017
Plug, Inner Door WPL-33001763
...
018
Door, Inner (wht) WPL-33001899
...
019
Door, Outer (wht) WPL-33001904
...
020
Hinge- Doo WPL-WP33001759
...
021
Screw WPL-WP98006631
...
022
Screw WPL-WP22002063

...
...
001
Housing- B WPL-WP33001789
...
002
Duct Assy., Exhaust WPL-33001800
...
003
Ring-Retnr WPL-WP9703438
...
004
Wheel, Blower WPL-33001790
...
005
Clamp WPL-WP312967
...
006
Screw WPL-WP33002917
...
007
Screw WPL-WPY313561
...
008
Thermostat WPL-WP33303391
...
009
Screw WPL-WP489128
...
010
Fuse- Ther WPL-WP33001762
...
011
Screw, Thermal Cut-Off WPL-NLA
...
012
Foot- Rubb WPL-WPY314137
...
013
Cover, Blower Housing WPL-33002711
...
014
Screw WPL-WP1163839
...
015
Motor-Drve WPL-W10197708
...
016
Clip- Moto WPL-WPY015825
...
017
Transformer WPL-33001948
...
018
Clip, Wire Harness WPL-Y310376
...
019
Assembly, Spring & Plug WPL-33002459
...
020
Idler Arm WPL-WP6-3705180
...
021
Washer WPL-WPY312527
...
022
Bearing WPL-WP6-3700340
...
023
Ring-E WPL-WP354987
...
024
Sleeve WPL-WP315772
...
025
Screw WPL-WPY014874
...
026
Support, Motor WPL-33002466
...
027
Screw WPL-WPY313561
...
028
Base Assembly WPL-NLA
...
029
Screw WPL-WP3177991
...
030
Retainer WPL-WP22003298
...
031
Spring, Wire Harness WPL-410490
...
032
Feet-Lvlng WPL-W10176519
...
033
Nut WPL-WP62739

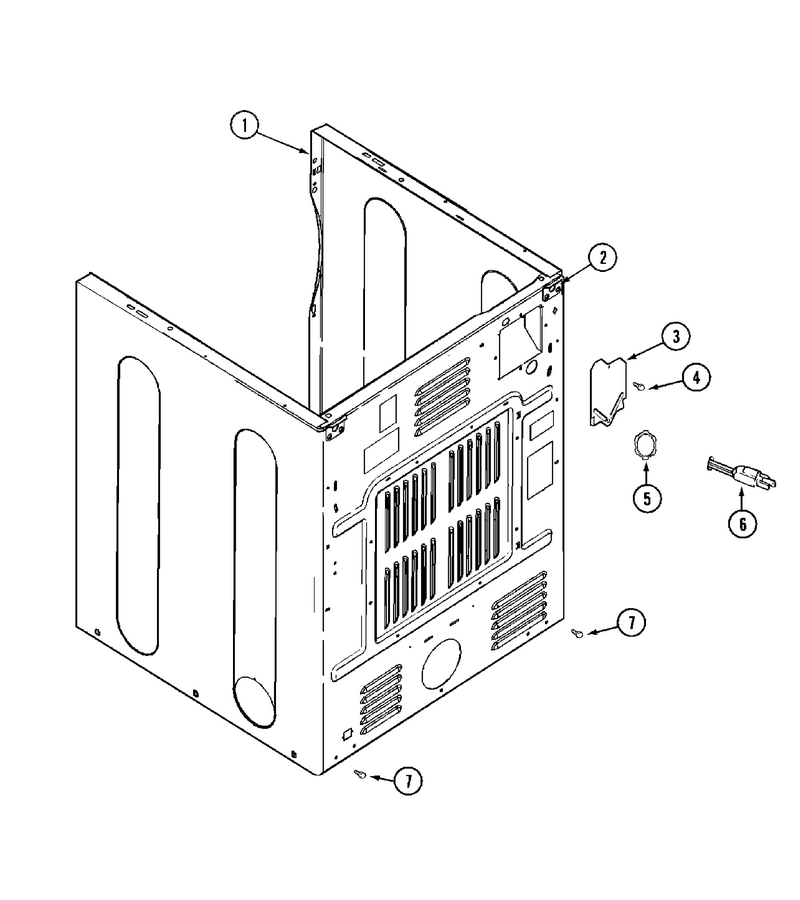

05 - Cabinet-Rear

...
...
001
Cabinet Assy (wht-As Pk) WPL-NLA
...
002
Screw WPL-W11573574
...
003
Cover, Terminal Block WPL-33001795
...
004
Screw WPL-W11573574
...
005
Grommet, Cord WPL-216183
...
006
Cord, Power (export) WPL-22003540
...
007
Screw WPL-W11573574

...
...
001
Lp Gas Con WPL-W10402145
...
002
Conversion Kit (lp To Nat.) WPL-Y308377
...
003
Screw, Igniter WPL-304971
...
004
Ignitor WPL-4391996
...
005
Burner Asy WPL-WP33002793
...
006
Gas Valve WPL-WP307927
...
007
Coil-Valve WPL-WPY307931
...
008
Coil-Valve WPL-WP307930
...
009
Screw WPL-WPY313561
...
010
Bracket, Gas Control WPL-33002710
...
011
Screw WPL-WP90767
...
012
Screw WPL-W11573574
...
013
Elbow Union Assembly WPL-3406051
...
014
Pipe & Bracket Assy. WPL-33001735
...
015
Screw WPL-WP90767
...
016
Inlet Duct WPL-33002952
...
017
Thermostat WPL-WP303395
...
018
Sensor WPL-WP338906
...
019
Cone Assy., Combustion WPL-33001946
...
020
Cone, Extension (combustion) WPL-NLA
...
021
Retainer, Heater Chamber WPL-Y312890
...
022
Cap, Gas Pipe WPL-33001693
...
023
Screw WPL-WP489128

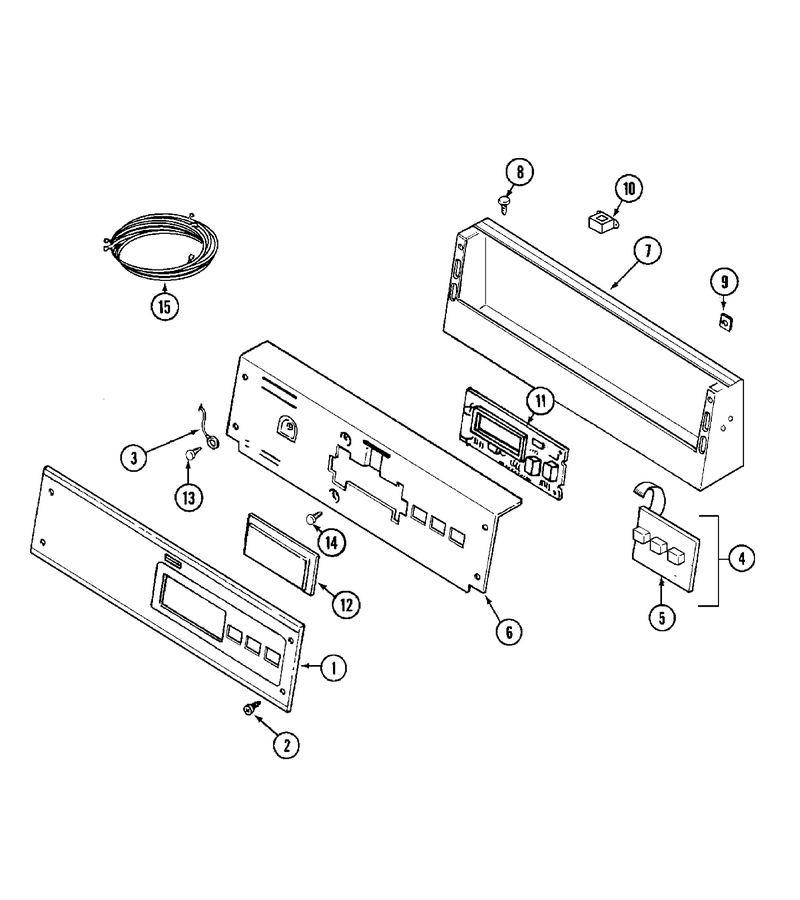

01 - Control Panel

...
...
001
Panel, Control WPL-33001784
...
002
Screw WPL-WPW10131119
...
003
Wire, Ground WPL-205810
...
004
Backup Plate W/switch Assy WPL-33002165
...
005
Pushbutton WPL-WPW10424308
...
006
Deflector, Water (w/adhesive) WPL-22002954
...
007
Console (wht) WPL-22003089
...
008
Screw WPL-WP489128
...
009
Clip, Screw WPL-215003
...
010
Nut, Lock (8-32) WPL-74005230
...
011
Standoff, Circuit Board WPL-33001204
...
012
Cover WPL-WPW10131114
...
013
Screw WPL-WP489399
...
014
Screw, Control Board WPL-215526
...
015
Wire Harness, Main WPL-33001973

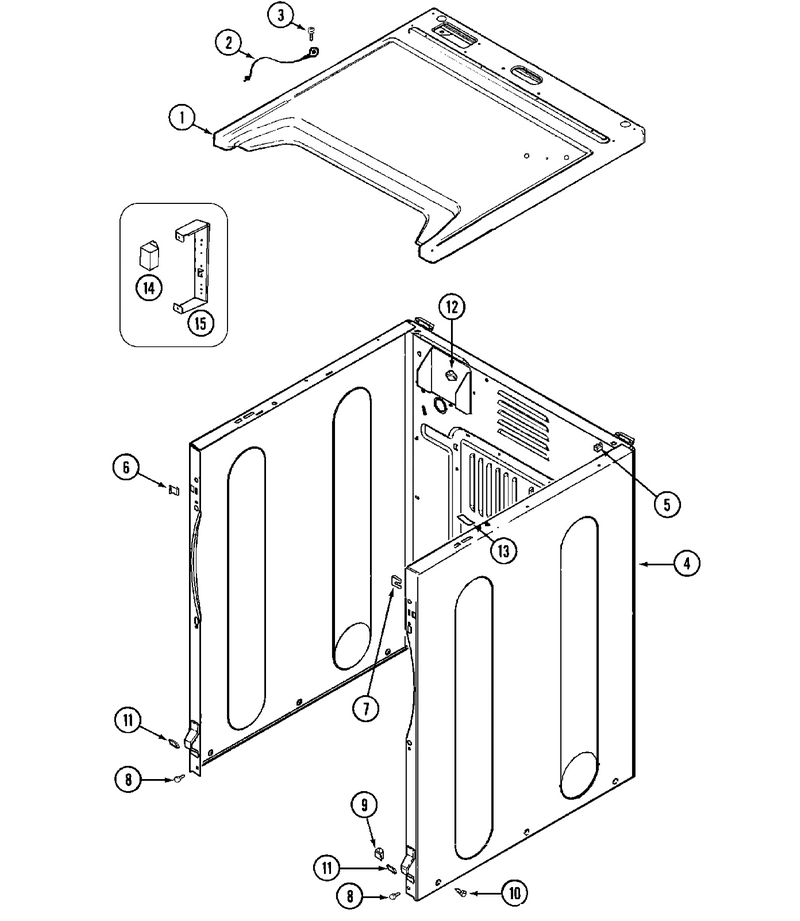

03 - Cabinet-Front

...
...
001
Cover, Top (wht-As Pk) WPL-33002633
...
002
Wire, Ground WPL-22001959
...
003
Screw WPL-WP489128
...
004
Cabinet Assy (wht-As Pk) WPL-NLA
...
005
Fastener WPL-310933
...
006
Clip WPL-WP22002049
...
007
Retainer, Shroud WPL-213280
...
008
Screw WPL-W11573574
...
009
Retainer WPL-WP22003298
...
010
Screw, Cabinet WPL-213007
...
011
Clip- Lowe WPL-WP22002239
...
012
Clip, Cable WPL-Y310376
...
013
Strap, Top Cover Support WPL-33001836
...
014
Relay, Heater (spst) WPL-206824
...
015
Bracket, Relay WPL-NLA

...
...
001
Harness, Sensor Switch WPL-22001966
...
002
Wire Harness, Main WPL-33001973
...
003
Use & Care Manual WPL-33002671
...
004
Manual, Owners WPL-33002712

...
...
001
Wiring Information WPL-NLA

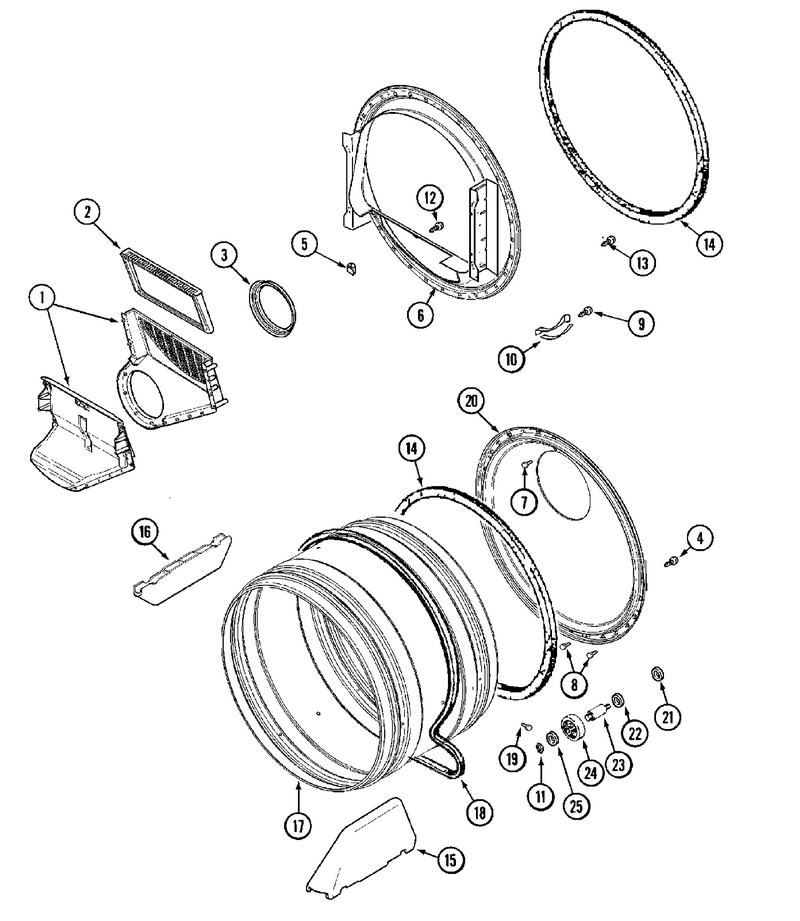

06 - Tumbler

...
...
001
Outlet Duct Assembly WPL-33001799
...
002
Lint Filte WPL-WP33002790
...
003
Seal, Blower WPL-33002560
...
004
Screw WPL-WP1163839
...
005
Clip, Wire Harness WPL-Y310376
...
006
Front, Tumbler (w/seal) (incl. Sensor/ Light Assy) WPL-33001802
...
007
Screw, Inlet Duct WPL-210932
...
008
Screw WPL-WP489128
...
009
Rivet WPL-WP210720
...
010
Tumbler Bearing Kit ----W WPL-306508
...
011
Ring-Retnr WPL-WP9703438
...
012
Screw, Outlet Duct (phillips) WPL-NLA
...
013
Screw WPL-WP33002917
...
014
Seal WPL-WP33001807
...
015
Baffle-Drm WPL-WP33002032
...
016
Baffle-Drm WPL-WP33001755
...
017
Tumbler WPL-33001889
...
018
Belt WPL-WP33002535
...
019
Screw, Baffle WPL-33001788
...
020
Back, Tumbler (w/seal) WPL-33001801
...
021
Nut- Hex WPL-WP33001443
...
022
Washer WPL-WP312535
...
023
Shaft WPL-WP6-3129480
...
024
Drum Roller/washer Assy. WPL-12001541
...
025
Washer WPL-WP312535
