Makita XSF01Z Cordless Screwdriver

Model: XSF01Z

Save Part Not Listed?
product name

Makita XSF01Z

...
...
D01
+Pan Head Screw M3.5X5 MK-652045-0
...
A04
Magnetic Bit Holder 6.35-7 MK-784801-1
...
A03
+Bit 2-25 MK-784211-B
...
A02
Hook MK-346449-3
...
A01
+ Truss Head Screw M4X12 MK-266622-8
...
xxx
Caution Label MK-802Y67-2
...
xxx
Rubber Pin 6 MK-263005-3
...
001-1
Lock Ring MK-455591-0
...
002
Seal Ring 30 MK-424235-3
...
003
Locator L Complete MK-158876-0
...
004
Dust Seal Sleeve MK-424163-2
...
005
Ring Spring 33 MK-234266-2
...
006
Leaf Spring MK-232245-4
...
007
Locator Base Complete MK-141100-8
...
008
Leaf Spring MK-232050-9
...
009
Steel Ball 3.5 MK-216001-0
...
010
Spindle 125S Complete MK-140771-8
...
011
Flat Washer 25 MK-267331-2
...
012
Compresseion Spring 25 MK-234017-3
...
013
Flat Washer 26 MK-267332-0
...
014
Clutch Cam 125S MK-223170-0
...
015
Steel Ball 4 MK-216008-6
...
016
X-Ring 14 MK-213184-7
...
017
Bearing Complete MK-142306-1
...
018
Gear Complete MK-140772-6
...
019-1
Ball Bearing 608Zz MK-210029-0
...
020
Flat Washer 14 MK-253192-6
...
021
Xsf01 Name Plate MK-815G47-1
...
022
Rubber Plate MK-423413-2
...
023
Tapping Screw 4X18 MK-265995-6
...
024
Housing Set MK-187854-3
...
025
Carbon Brush Cb-440 MK-195021-6
...
026
Brush Holder Complete MK-638748-0
...
027
Yoke Unit MK-638426-2
...
028-1
Armature MK-619351-6
...
029
Pan Head Screw M3X8 MK-911006-2
...
030
Heat Sink MK-689150-0
...
031
F/R Change Lever MK-452516-5
...
032
Switch Tg553Fsb-9B MK-650657-3
...
033
Light Circuit MK-620030-1
...
034
Terminal MK-643852-2
...
035
Housing Set MK-187854-3
...
035
Rubber Pin 6 MK-263005-3
...
036
Clear Label MK-892812-3
...
037
Flat Washer 12 MK-267104-3

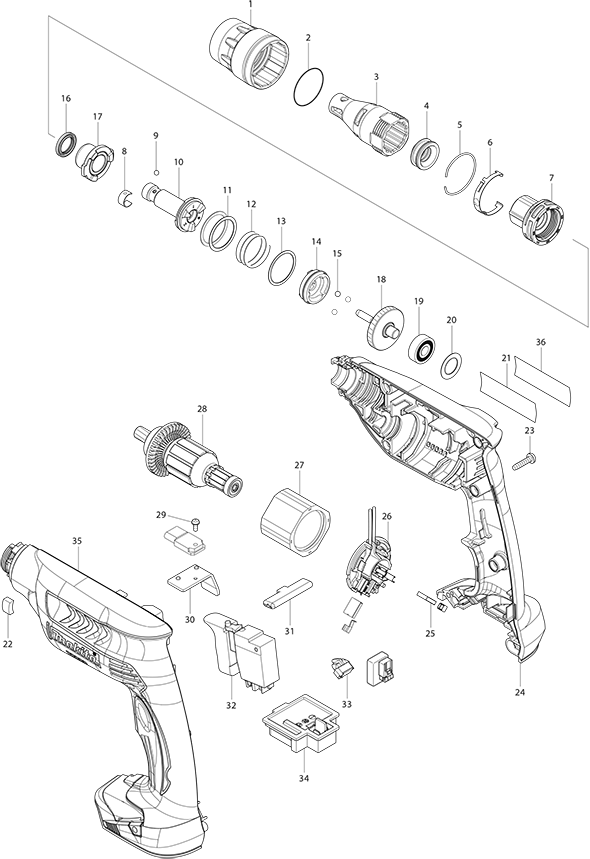

Schematic Image Zoomed
