product name

Makita 6845 Type 2 Electric Screwdriver

Model: 6845 Type 2

Save Part Not Listed?
product name

Makita 6845 Type 2

...
...
A05
Extension Handle MK-194500-1
...
A04
Plastic Carrying Case MK-824813-3
...
A03
+ Bit 2-122 MK-784241-3
...
A02
Hook MK-345831-3
...
A01
Screw M5X13 MK-265734-4
...
xxx
Indication Label MK-802108-4
...
1
Cap MK-421617-0
...
2
Stopper Base MK-344628-7
...
3
Dust Cover MK-450515-1
...
4
Lever MK-344625-3
...
5
Compression Spring 2 MK-233211-4
...
6
Tension Spring 2 MK-231853-8
...
7
Stop Ring E-2.0 MK-257926-9
...
8
Slide Plate MK-345904-2
...
9
Stopper MK-345903-4
...
10
Shoulder Pin 6 MK-412089-0
...
11
Crow B Complete MK-158640-9
...
12
Tension Spring 3B MK-231852-0
...
13
Release Lever Complete MK-158648-3
...
14
Collared Sleeve 4 MK-257767-3
...
15
Feeder Box Ts-M103-1 MK-TK0TSM1031
...
16
Collar Hd. Pin 3A MK-268206-8
...
17
Sleeve 5 MK-257685-5
...
18
Lever Complete MK-158641-7
...
19
Box Cover Complete Ts-M104 MK-TK00TSM104
...
20
Flat Washer 4 MK-941052-1
...
21
Tapping Screw Bt 4X16 MK-265871-4
...
22
Compression Spring 21 MK-233209-1
...
23
Tapping Screw 4X20 MK-266045-0
...
24
Casing R MK-TK00TSM101
...
25
Tapping Screw 4X12 MK-266020-6
...
26
Hex. Nut M4 MK-931102-0
...
27
Shifter Pin MK-310091-6
...
28
Sleeve 8 MK-257686-3
...
29
Dial 42 MK-417056-0
...
30
O Ring 12 MK-213107-5
...
31
Flat Washer 6 MK-267201-5
...
32
Countersunk Head Screw M4X12 MK-912117-6
...
33
Label Ts-M147 MK-TK00TSM147
...
34
Thumb Screw M4X28 MK-265779-2
...
35
Casing L W/Label MK-TK00TSM061
...
36
Torsion Spring 3 MK-233526-9
...
37
Release Lever MK-345899-9
...
38
Stopper Base Complete MK-152676-0
...
39
Feeder Box Ass'Y Ts-M050-1 MK-TK0TSM0501
...
40
Casing Ass'Y MK-125537-7
...
42
Tapping Screw 4X20 MK-266045-0
...
43
Housing Set MK-188305-9
...
45
Dust Cover MK-421467-3
...
46
Plane Bearing 14 MK-214172-7
...
47
O Ring 18 MK-213262-3
...
48
Sleeve 20 MK-421927-5
...
49
Steel Ball 3.5 MK-216001-0
...
50
Spindle A MK-324807-3
...
51
Flat Washer 26 MK-267332-0
...
52
Clutch Cam C MK-223169-5
...
53
Flat Washer 25 MK-267331-2
...
54
Flat Washer 25 MK-267331-2
...
55
Compresseion Spring 25 MK-234017-3
...
56
Steel Ball 4 MK-216008-6
...
57
Helical Gear 57 MK-226658-9
...
58
Ball Bearing 608 MK-211034-0
...
59
Ball Bearing 606 MK-211014-6
...
60
Spiral Bevel Gear 22 MK-227528-5
...
61
Helical Gear 13 MK-226668-6
...
62
Ball Bearing 606 MK-211014-6
...
63
F/R Change Lever MK-419304-3
...
64
Switch Sgel206Cr-1 MK-650590-9
...
65
Square Nut M5 MK-252045-6
...
67
Tapping Screw 4X14 MK-266192-7
...
68
Strain Relief MK-687169-3
...
69
Cord Guard 8 MK-682559-5
...
70
Cord W/Plug 2P-18-2.5M, Sj MK-664064-4
...
71
Retaining Ring S-6 MK-961002-0
...
72
Spiral Bevel Gear 15 MK-227527-7
...
73
O Ring 24 MK-213380-7
...
74
Ball Bearing 6000Llb MK-211061-7
...
75
Fan 55 MK-241869-5
...
76
Armature Ass'Y 115V MK-515711-9
...
77
Insulation Washer MK-681652-2
...
78
Ball Bearing 607Llb MK-211021-9
...
79
Tapping Screw 4X45 MK-266069-6
...
80
Field 115V MK-633651-0
...
81
Endbell Complete MK-158380-9
...
82
Thumb Screw M4X28 MK-265779-2
...
86
Carbon Brush Cb-408 2Pc/Set (W/ Origin) MK-195008-8
...
87
Brush Holder Cap MK-643928-5
...
91
Lock Pin MK-324417-6
...
92
Compression Spring 8 MK-233394-0
...
93
Lock Lever MK-417584-5
...
94
Hex. Socket Head Bolt M5X8 MK-265480-9
...
95
Magazine MK-450284-4
...
96
Magazine Cap Complete MK-158583-5
...
97
Pan Head Screw M4X30 MK-911158-9
...
98
Urethane Ring 3 MK-262054-7
...
99
Pin 4 MK-268110-1

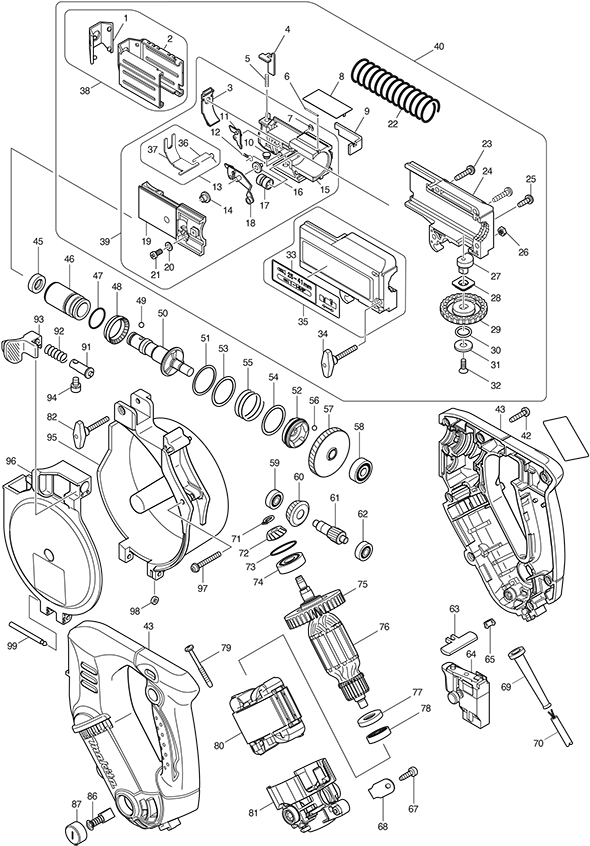

Schematic Image Zoomed
