MTD 31A-050-706 (2013) Snow Thrower

Model: 31A-050-706 (2013)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
Key MTD-731-06684B
...
xx
Paddle Auger, Rubber MTD-735-04273
...
xx
AUGER SHAFT ASSEMBLY MTD-684-04396
...
xx
Shave Plate/Blade MTD-731-07640
...
xx
Auger Drive Belt MTD-754-04281A
...
xx
BELT-5MM PITCH x 280MM MTD-754-04279A
...
xx
ROLLER WHEEL MTD-731-07636

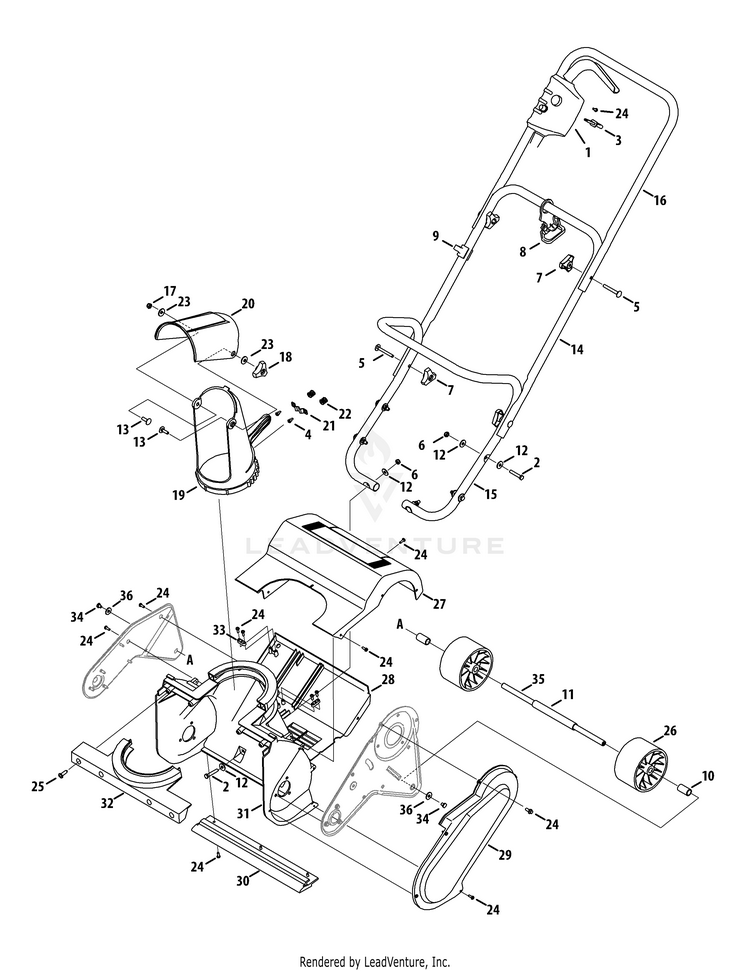

Frame, Handle & Chute

...
...
1
SWITCH W/KEY MTD-725-05152
...
2
SCREW M6-1X35 MTD-710-04197
...
3
Key MTD-731-06684B
...
4
SHOULDER SCREW MTD-738-04507
...
5
SCREW M6-1 x 45 GR8.8 MTD-710-05122
...
6
HEX NUT MTD-712-0691
...
7
KNOB MTD-720-04153
...
8
CORD RETAINER MTD-731-07757
...
9
CABLE GUIDE MTD-731-07761
...
10
SPACER MTD-750-05403A
...
11
SPACER MTD-750-05405
...
12
FLAT WASHER MTD-736-0685
...
13
Screw, Carriage, M6-1, 20.00 MTD-710-1687
...
14
MID HANDLE MTD-749-04691-0637
...
15
LOWER LIFT HANDLE MTD-749-04699A
...
16
UPPER HANDLE MTD-749-04690
...
17
HEX NUT MTD-712-0691
...
18
KNOB MTD-720-04153
...
19
LOWER CHUTE MTD-731-07627
...
20
UPPER CHUTE MTD-731-07628A
...
21
CHUTE BRACKET MTD-790-00466
...
22
COMPRESSION SPRING MTD-732-04874
...
23
SPRING WASHER BELL MTD-736-0270
...
24
SCREW M4.2 x 1.4 x 13 MTD-710-05137
...
25
SCREW M6.3 x 1.8 x 20 MTD-710-05148
...
26
ROLLER WHEEL MTD-731-07636
...
27
TOP COVER MTD-731-07629A
...
28
LOWER MOTOR COVER MTD-731-07630A
...
29
BELT COVER MTD-731-07634A
...
30
Blade, Scraper MTD-731-07640
...
31
AUGER HOUSING MTD-731-07625A
...
32
FRONT COVER MTD-731-07637
...
33
CORD HOLDER BRACKET MTD-731-07722
...
34
Screw, Hex Screw, M6 x 8mm MTD-710-05132
...
35
ROLLER WHEEL SHAFT MTD-911-05381
...
36
FLAT WASHER MTD-736-0685

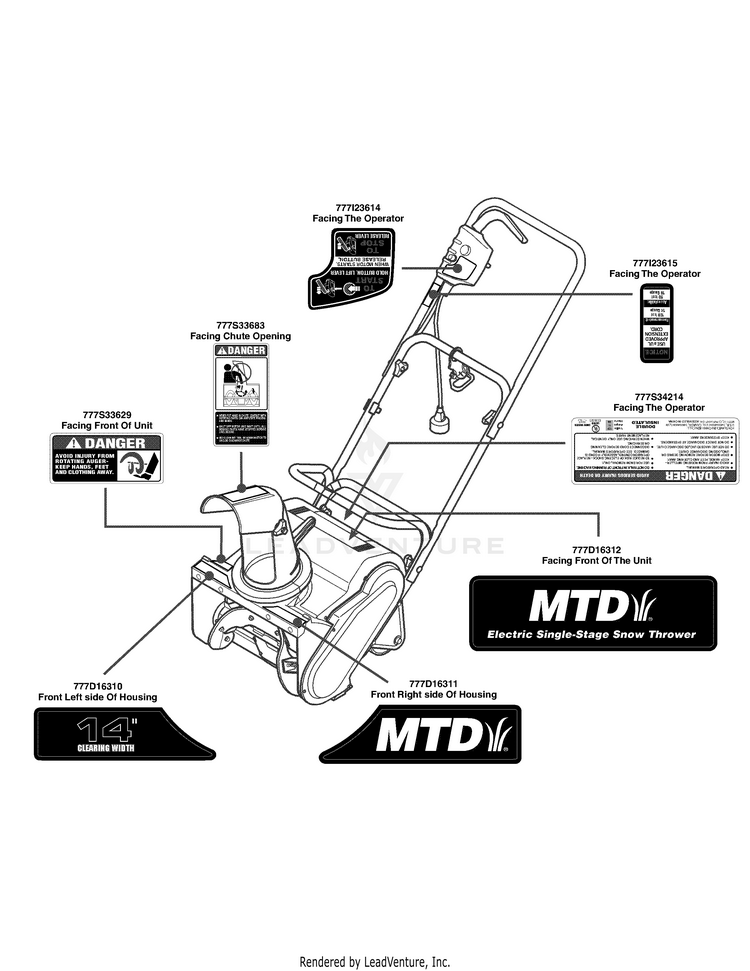

Label Map 31A-050-706

...
...
777D16310
LABEL-SNOW AUGER (LH) MTD-777D16310
...
777D16311
LABEL-SNOW AUGER (RH) MTD-777D16311
...
777D16312
LABEL-SNOW SHROUD MTD-777D16312
...
777I23615
LABEL-SNOW HANDLE MTD-777I23615
...
777S33629
LABEL-SNOW DANGER MTD-777S33629
...
777S33683
LABEL-SNOW CHUTE DANGER MTD-777S33683
...
777S34214
LABEL-SNOW DANGER MTD-777S33628
...
777I23614
LABEL-SNOW SWITCH MTD-777I23614

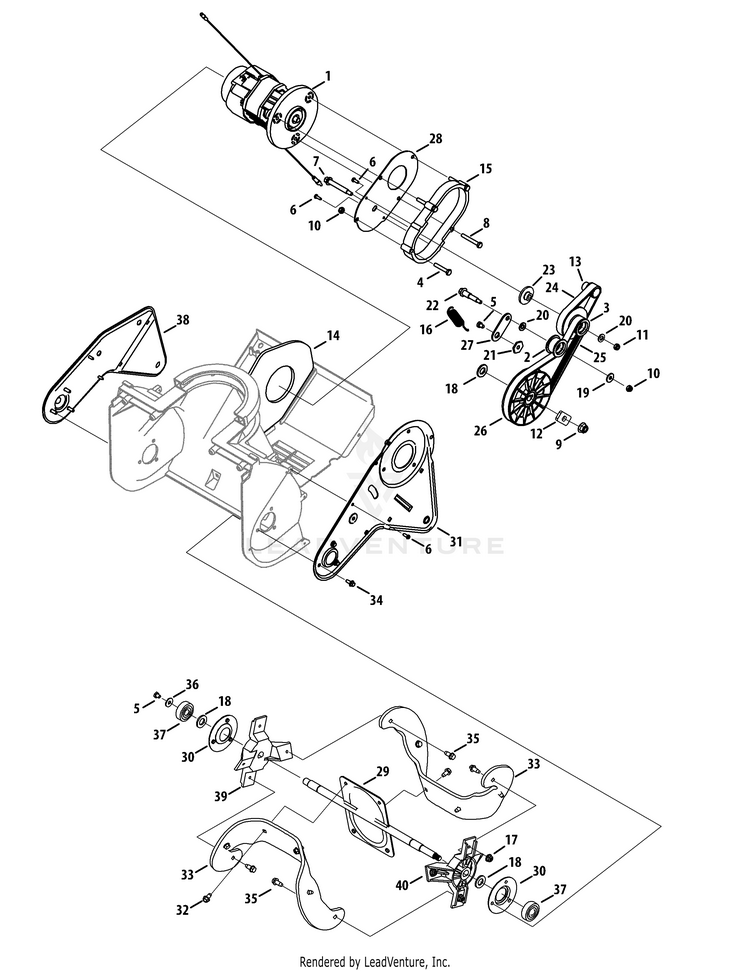

Motor & Auger

...
...
1
MOTOR ASSEMBLY MTD-924-04037
...
2
Pulley Assembly, Idler MTD-931-04505
...
3
BEARING PULLEY ASSEMBLY MTD-656-04060P
...
4
SCREW M6-1X35 MTD-710-04197
...
5
Screw, Hex Screw, M6 x 8mm MTD-710-05132
...
6
SCREW M4.2 x 1.4 x 13 MTD-710-05137
...
7
SCREW M8-1.25 x 62MM MTD-710-05187A
...
8
SCREW M6-1 x 45 MTD-710-1391
...
9
Nut, Flange Lock, 3/8-16, Nylon MTD-712-04065
...
10
HEX NUT MTD-712-0691
...
11
Nut, Hex Lock, M8-1.25, Nylon MTD-712-0692
...
12
DRIVE PULLEY PLATE MTD-790-00472
...
13
PULLEY-5MM 15 TOOTH MTD-756-04455A
...
14
FOAM GASKET MTD-723-04076
...
15
MOTOR SPACER MTD-731-07772
...
16
IDLER SPRING MTD-732-04770
...
17
Nut, Flange Lock, 1/4-20, Nylon MTD-712-04064
...
18
Washer, Flat, M12 MTD-736-04502A
...
19
FLAT WASHER MTD-736-0685
...
20
Washer, Flat, .320 x .600 x .060 MTD-736-3081
...
21
SPACER-SHOULDER HEX NLAUD MTD-738-04446
...
22
SHOULDER SCREW MTD-738-04449
...
23
SPACER MTD-750-05435
...
24
BELT-5MM PITCH x 280MM MTD-754-04279A
...
25
Belt, Poly, 6 Rib MTD-754-04281A
...
26
Pulley, Auger, 6 Rib MTD-756-04481
...
27
IDLER BRACKET MTD-790-00418
...
28
MOTOR PLATE MTD-790-00425-0637
...
29
AUGER SHAFT ASSEMBLY MTD-684-04396
...
30
BEARING COVER MTD-790-00446-0637
...
31
FRAME (LH) MTD-790-00447-0637
...
32
Screw, Self-tapping, 1/4-20, 0.625 MTD-710-05419
...
33
Paddle Auger, Rubber MTD-735-04273
...
34
SCREW 1/4-20 x .500 MTD-710-05413
...
35
Screw, 1/4-10 x .75 MTD-710-04666
...
36
FLAT WASHER MTD-736-0685
...
37
BALL BEARING MTD-741-04466
...
38
OUTER FRAME (RH) MTD-790-00397A-0637
...
40
Bracket, Paddle, Mount, LH MTD-731-09027
...
39
Bracket, Paddle, Mount, RH MTD-731-09028
Schematic Image Zoomed
