MTD 129-442R051 Self Propelled Mower

Model: 129-442R051

Save Part Not Listed?
product name

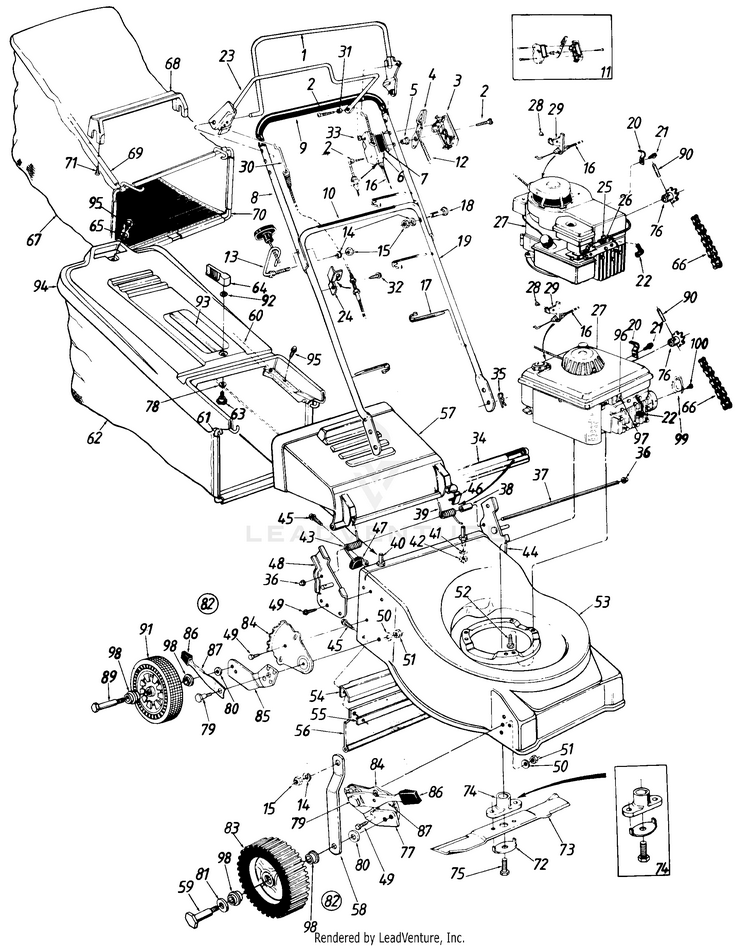

Parts

...
...
1
CONTROL HANDIE ASS'Y.-L.H. MTD-14321
...
2
Truss Mach. B-Tap Scr. #12 x 1.5" Lg. MTD-710-0796
...
3
PANEL MTD-731-0817
...
4
Throttle Control Lever MTD-931-0972
...
5
CONROL DISC PIN MTD-731-0524
...
6
CIUTCH PANEL HALF MTD-731-0816
...
7
Control Label-Throttle MTD-777-5774
...
8
UPPER HANDLE MTD-749-0438D-0637
...
xx
UPPER HANDLE MTD-749-0438D-0637
...
9
Grip (Optional) MTD-718-0145
...
10
LABEL MTD-777-5776
...
11
CONTROL HOUSING COMP. MTD-753-0430
...
12
Throttle Wire-58" Lg. (B&S) MTD-946-0674A
...
xx
Throttle Cable (Tec.) MTD-946-1115
...
13
SCREW-RECOIL HANDLE GUIDE MTD-710-0842B
...
14
Lock Wash. 5/16" I.D. MTD-936-0119
...
15
HEX NUT 5/16-18 MTD-712-3010
...
16
CONTROL CABLE (B&S) MTD-946-0477A
...
xx
CONTROL CABLE 55" (Tec.) MTD-946-0479A
...
17
Cable Tie MTD-725-0157
...
18
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
19
Lower Handle MTD-749-0907B
...
xx
Lower Handle MTD-749-0907B
...
20
CASING CLAMP MTD-12894A
...
21
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
22
INSULATOR-SPARK PLUG (Optional) MTD-735-0639
...
23
HANDLE ASSEMBLY MTD-16391
...
24
CABLE BRACKET MOUNTING MTD-16309A
...
25
CLAMP-CONDUIT (442R, 452R) MTD-751-0369
...
26
Hex AB-Tap Scr. #8 x .5" Lg. (442R, 452R) MTD-710-0227
...
27
Engine MTD-NA
...
28
RIVET MTD-728-0171
...
29
BRACKET-CA MTD-14924
...
30
CLUTCH CABLE 47.0 YELLOW MTD-746-0627
...
31
SPACER MTD-750-0649
...
32
Hex Wash. AB-Tap Scr. 5/16" x .75" Lg. MTD-710-0726
...
33
SPRING WASHER MTD-736-0370
...
34
EXTRUSION SEAL MTD-731-0858
...
35
Int. Cotter Pin 5/16" Dia. MTD-714-0104
...
36
PUSH NUT MTD-726-0106
...
37
HINGE PIN MTD-747-0698B
...
38
Spacer, .260 x .372 x 1.030 MTD-750-0566A
...
39
TORSION SPRING MTD-732-0577A
...
40
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
41
L-Wash. 3/8" I.D. MTD-736-0169
...
42
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
43
TORSION SPRING (RH) MTD-732-0578A
...
44
BRACKET ASSEMBLY MTD-12297A
...
45
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
46
DEFLECTOR PLUG MTD-731-0970B
...
47
PLUG-CORNER MTD-731-0931
...
48
BRACKET ASSEMBLY MTD-12296B-0637
...
49
SCREW 1/4-14 x .625 MTD-710-0892
...
50
BELL WASHER MTD-936-0356
...
51
Hex Nut 3/8-16 Thd. MTD-712-0798
...
52
Hex TT-Tap Scr. 3/8-16 x 1" MTD-710-0654A
...
53
DECK ASSEMBLY MTD-16998
...
54
BAFFLE-CHU MTD-17014
...
55
RETAINING STRIP MTD-17003
...
56
Rear Flap 17.30" Lg. MTD-731-0669
...
57
CHUTE DEFLECTOR MTD-931-0859A
...
58
LINK-5.3 LG MTD-16532A
...
59
SHOULDER SCREW .498 MTD-738-0144
...
60
REAR CATCHER FRAME (Models 441R, 442R, 446R & 449R Only) MTD-749-0736B
...
61
CATCHER FRAME (Models 441R, 442R, 446R & 449R Only) MTD-764-0411-0637
...
62
Grass Bag (Models 441R, 442R, 446R & 449R Only) MTD-964-0252
...
63
BOLT, SHOULDER, 1/4-20 x 2.65 LG (Models 441R, 442R, 446R & 449R Only) MTD-738-0137
...
64
LOCKING KNOB (Models 441R, 442R, 446R & 449R Only) MTD-920-0224
...
65
Fl-Wash. .281" I.D. (Models 441R, 442R, 446R & 449R Only) MTD-736-0463
...
66
#48 CHAIN 1/2 PITCH x 50 LINKS MTD-913-0311
...
67
GRASSBAG (Models 451R, 452R, 456R & 459R Only) MTD-764-0246
...
68
BAG HANDLE BLACK (Models 451R, 452R, 456R & 459R Only) MTD-731-0801
...
69
Rear Grass Catcher Frame (Models 451R, 452R, 456R & 459R Only) MTD-749-0764A-0637
...
70
Front Catcher Frame (Models 451R, 452R, 456R & 459R Only) MTD-747-0700A
...
71
SCREW #12 x 14 x 1.250 (Models 451R, 452R, 456R & 459R Only) MTD-710-1025
...
72
KIT-BLADE MOUNTING MTD-753-0525
...
73
21" Blade MTD-942-0621
...
74
KIT-BLADE MTD-753-0462
...
75
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
76
SPROCKET-10T MTD-713-0308
...
77
BAR-PIVOT (LH) *ON MTD-14766
...
78
Bowed Washer MTD-936-0286
...
79
Shld. Bolt .50" Dia. x .357" MTD-738-0507B
...
80
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
81
Fl-Wash. .531 " I.D. MTD-736-0192
...
82
ADJUSTER-H MTD-16107
...
xx
ADJUSTER-H MTD-16106
...
83
ASS'Y. COMP. (GEAR TREAD) MTD-734-0538
...
84
Index Plate MTD-14764C
...
85
BAR-PIVOT (RH) *ON MTD-14765
...
86
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
87
SPRING LEVER MTD-732-0417A
...
89
Rear Axle Bolt MTD-738-0102
...
90
SPRING PIN MTD-715-0247
...
91
8" REAR WHEEL ASS'Y. (STEEL WHEEL) MTD-734-0894
...
92
Internal L-Wash. 1/4" I.D. MTD-736-0498
...
93
HARDTOP BAG COVER (Models 441R, 442R, 446R & 449R Only) MTD-631-0003
...
94
HARDTOP BAG COVER (Models 441R, 442R, 446R & 449R Only) MTD-631-0003
...
95
SCREW 1/4-14 x .625 (Models 441R, 442R, 446R & 449R Only) MTD-710-0892
...
96
CLIP-CASING (446R, 449R, 456R, 459R) MTD-751-0463
...
97
Hex Wash. Hd. Self-Tap Scr. (446R, 449R, 456R, 459R) MTD-710-0651
...
98
Flanged Brg. .50" I.D. MTD-741-0262
...
99
MUFFLER DEFLECTOR (B&S) MTD-BS-393756
...
xx
Muffler Deflector (Tec.) MTD-751-0534
...
100
Hex Wash. AB-Tap Scr. #8 x .5" Lg. MTD-710-0227

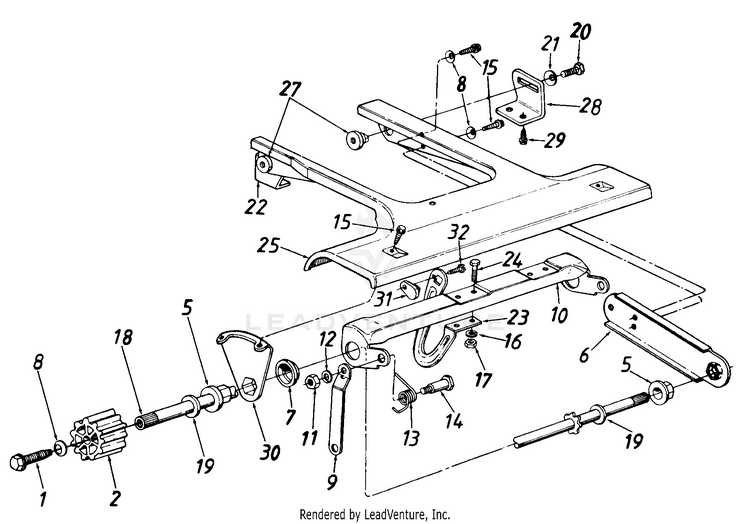

Parts

...
...
1
Hex Wash. Hd. Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
2
DRIVE PINION MTD-931-0908
...
5
Hex Flange Brg. .504" I.D. MTD-741-0503
...
6
SUPPORT-BEARING MTD-17018
...
7
FLANGE BEARING MTD-741-0504
...
8
SPRING WASHER BELL MTD-736-0270
...
9
LINK-5.3 LG MTD-16532A
...
10
DRIVE ENGAGEMENT CAM MTD-16832
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
TORSION SPRING (RH) MTD-732-0569
...
xx
TORSION SPRING (LH) (Not Shown) MTD-732-0570A
...
14
Shoulder Bolt .437" Dia. MTD-738-0754
...
15
SCREW 1/4-14 x .625 MTD-710-0892
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
HEX NUT 1/4-20 MTD-912-0287
...
18
DRIVE SHAFT ASSEMBLY MTD-738-0732
...
19
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
20
SCREW 5/16-18 x .625 GR5 MTD-710-0759
...
21
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
22
PIVOT BRACKET-R.H. MTD-16531B
...
23
ARM-ENGAGEMENT MTD-17185
...
24
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
25
COVER-FRON MTD-17021
...
27
NUT-SHLD MTD-738-0739
...
28
BRACKET-PIVOT (LH) MTD-14759B
...
29
SCREW 1/4-14 x .625 MTD-710-0892
...
30
BRACKET-AXLE BEARI MTD-17017
...
31
HOLD DOWN-BARREL (RH) MTD-746-0606
...
32
Hex B-Tap Scr. #10 x .44" Lg. MTD-710-0919
