product name

MTD M155-34 17AXNAMU058 (2018) Z-Series

Model: M155-34 17AXNAMU058 (2018)

Back To Assemblies
Save
 Part Not Listed?Part Not Listed?
product name

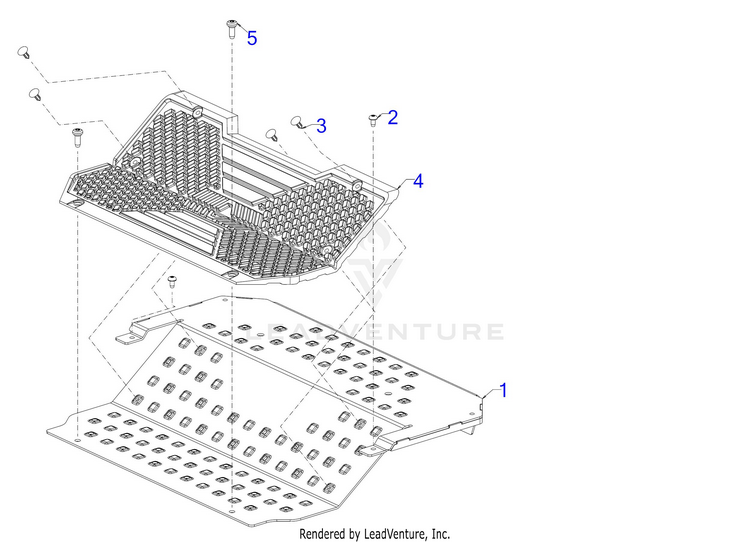

Floorboard

...
...
1
LO PRO FAB FLOORBOARD *CHOOSE COLOR WHEN ORDERING* MTD-603-05347B
...
2
SCREW M6-1x .625 MTD-710-06133
...
3
RATCHET CLIP .250 MTD-726-3046
...
4
FLOORBOARD PAD MTD-735-05220A
...
5
SHOULDER SCREW 5/16-18X.75 MTD-738-04532A
...
...
...
