LG LVN360HV4.ENWBEUS

Model: LVN360HV4.ENWBEUS

Save Part Not Listed?

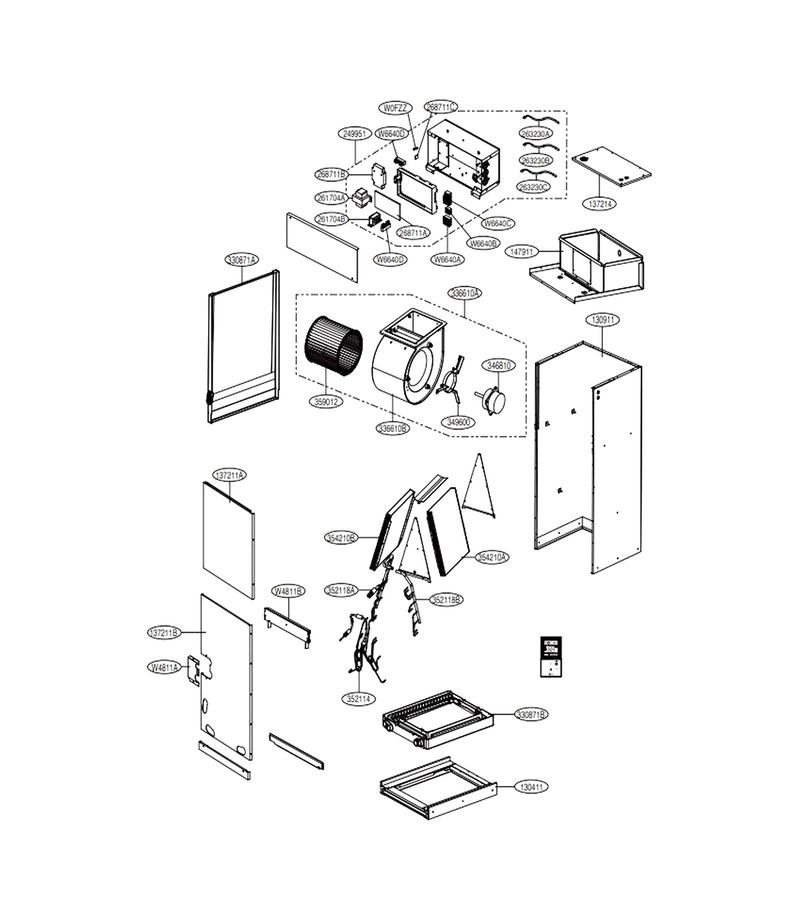

product name

Main

...
...
W0FZZ
Fuse,time Delay L-G-6900AQ9028D
...
W6640C
Connector,terminal Block L-G-EAG38884403
...
W6640B
Connector,terminal Block L-G-EAG63452302
...
W6640A
Connector,terminal Block L-G-EAG38884401
...
W4811B
Bracket Assembly L-G-ABA73809414
...
W4811A
Bracket Assembly L-G-ABA73488301
...
130411
Base Assembly,indoor L-G-AAN73350805
...
130911
Cabinet Assembly,indoor L-G-ABJ73227108
...
137211A
Panel Assembly,front(indoor) L-G-AGL73252604
...
137211B
Panel Assembly,front(indoor) L-G-AGL73252704
...
137214
Panel Assembly,upper L-G-AGL73252803
...
147911
Barrier Assembly,indoor L-G-AAM73111204
...
249951
Case Assembly,control(indoor) L-G-ABQ74407106
...
261704A
Transformer,linear L-G-6170A20007A
...
261704B
Transformer,reactor L-G-5874FR2112G
...
263230C
Thermistor Assembly,ntc L-G-EBG61325811
...
263230B
Thermistor Assembly,ntc L-G-EBG61287713
...
263230A
Thermistor Assembly,ntc L-G-EBG61106837
...
268711A
Pcb Assembly,main L-G-EBR81117110
...
268711B
Pcb Assembly,sub L-G-EBR86480002
...
268711C
Pcb Assembly,sub L-G-EBR82249612
...
330871A
Pan Assembly,drain L-G-AGK73050503
...
330871B
Pan Assembly,drain L-G-AGK73050602
...
336610A
Housing Assembly L-G-AEN55797602
...
336610B
Housing Assembly L-G-3661AP1139L
...
346810
Motor, Dc Indoor L-G-EAU50642902
...
349600
Bracket,motor L-G-MAZ48060502
...
352114
Tube Assembly,distributor L-G-AJR74266005
...
352118A
Tube Assembly,manifold(indoor) L-G-AJR73327007
...
352118B
Tube Assembly,manifold(indoor) L-G-AJR73342803
...
354210A
Evaporator Assembly,first L-G-ADL73180901
...
354210B
Evaporator Assembly,first L-G-ADL73180902
...
359012
Fan Assembly,blower L-G-2A00578F
