LG LUU367HV.EWGBEUS

Model: LUU367HV.EWGBEUS

Save Part Not Listed?
product name

Main

...
...
EBG14BL
Thermistor Assembly,ntc L-G-EBG61106509
...
EBG24RD
Thermistor Assembly,ntc L-G-EBG61107101
...
EBG24WH
Thermistor Assembly,ntc L-G-EBG61107014
...
W0FZZ
Fuse,time Delay L-G-6900AQ9028D
...
W4810
Bracket L-G-MAZ63726401
...
W4986A
Sound Proof L-G-MMC00280307
...
W4986B
Sound Proof L-G-MMC00280407
...
W52240A
Strainer L-G-3H03659M
...
W52240B
Strainer L-G-3H03659C
...
W6200A
Pcb Assembly,filter L-G-EBR81792401
...
W6200B
Filter,line Noise L-G-EAM60751501
...
W6631
Harness,multi L-G-EAD63768930
...
55211G
Tube Assembly,expansion L-G-AJR36388606
...
135500
Cover L-G-MCK39626220
...
137213
Panel Assembly,side L-G-AGL76513013
...
148000
Supporter L-G-MJH39544901
...
152503
Nipple,drain L-G-4H01010A
...
165000
Sensor,pressure L-G-EBD62165602
...
237202
Panel,front L-G-MGC39426114
...
237204
Panel,side L-G-MGC39426015
...
237205
Panel,rear L-G-MGC39613728
...
249950
Case Assembly,control Box L-G-ABQ75744307
...
268711B
Pcb Assembly,main L-G-EBR76110511
...
349480
Orifice L-G-4948A20011G
...
352111
Tube Assembly,connector L-G-5211A20349Z
...
430410
Base Assembly,outdoor L-G-AAN74512204
...
435300
Grille,rear L-G-MDX40922509
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131820
...
435513
Cover Assembly,tubing L-G-ACQ34583416
...
437211
Panel Assembly,front(outdoor) L-G-AGL34578711
...
437212
Panel Assembly,rear(outdoor) L-G-AGL76512811
...
447910
Barrier Assembly,outdoor L-G-AAM35646423
...
546810A
Motor Assembly,dc,outdoor L-G-4681A20172Q
...
546810B
Motor Assembly,dc L-G-4681A20172R
...
548490
Accumulator Assembly L-G-AAB73250401
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA34168813
...
550140
Damper,rubber L-G-MCQ68888201
...
552111
Tube Assembly,capillary L-G-AJR73326705
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR73326605
...
552116
Tube Assembly,reverse L-G-AJR73944509
...
552117
Tube Assembly,suction(outdoor) L-G-AJR36388509
...
552200
Valve,expansion Body L-G-5220A90013B
...
552202
Valve,reverse L-G-3A02080B
...
552203A
Valve,service L-G-MJX42581602
...
552203B
Valve,service L-G-MJX42581402
...
552560
Muffler L-G-MFS62323001
...
554031A
Condenser Assembly,bending L-G-ACG73905102
...
554160
Compressor Set,korea L-G-TBZ37955101
...
559010
Fan,propeller L-G-MDG62002901
...
561410

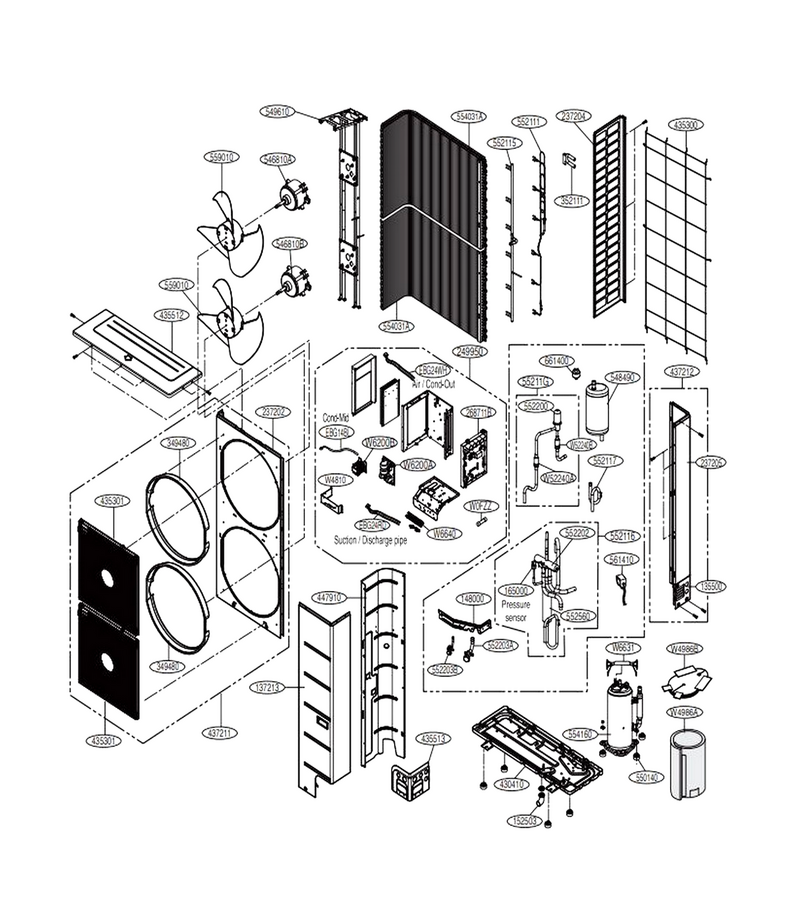

Drawing,assembly L-G-EAD62115301
...
661400
Coil,expansion L-G-EAP30616906
