LG LMU369HV.AWGBEUS

Model: LMU369HV.AWGBEUS

Save Part Not Listed?

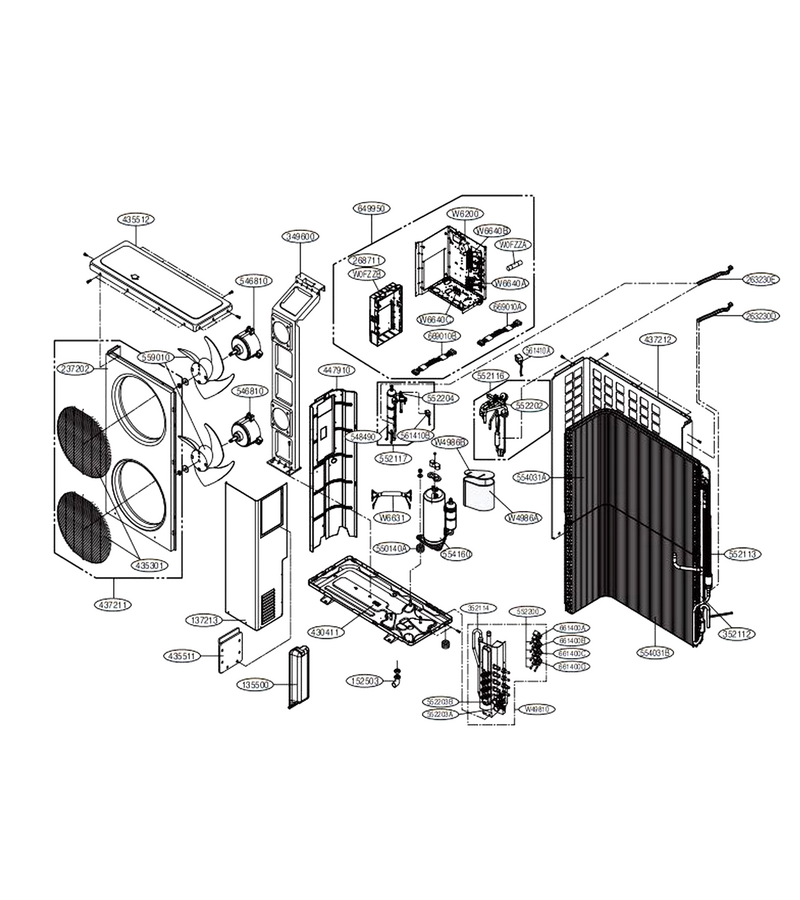

product name

Main

...
...
W0FZZB
Fuse, Time Delay L-G-0FZZA90002A
...
W6640B
Connector,terminal Block L-G-6640A30001B
...
W6640A
Connector,terminal Block L-G-EAG41846702
...
W6631
Harness,multi L-G-EAD62227508
...
W4986B
Sound Proof L-G-3096AP3476V
...
W4986A
Sound Proof L-G-3096AR3836S
...
W49810
Supporter Assembly L-G-AJJ36809008
...
W6200
Filter,line Noise L-G-EAM38878003
...
135500
Cover L-G-MCK47277901
...
137213
Panel Assembly,side L-G-AGL32212729
...
152503
Nipple,drain L-G-5212AP3173A
...
237202
Panel,front L-G-MGC61723602
...
263230D
Thermistor Assembly,ntc L-G-EBG61107014
...
263230E
Thermistor Assembly,ntc L-G-EBG61107109
...
268711
Pcb Assembly,main L-G-EBR68349111
...
349600
Bracket,motor L-G-4960AP1214F
...
352112
Tube Assembly,coupling L-G-5211A10433J
...
352114
Tube Assembly,distributor L-G-AJR36809204
...
430411
Base Assembly,weld(outdoor) L-G-AAN32562210
...
435301
Grille,discharge L-G-MDX61846301
...
435511
Cover Assembly,control(outdoor) L-G-ACQ33125306
...
435512
Cover Assembly,top(outdoor) L-G-ACQ32490309
...
437211
Panel Assembly,front(outdoor) L-G-AGL32571805
...
437212
Panel Assembly,rear(outdoor) L-G-AGL72930718
...
447910
Barrier Assembly,outdoor L-G-4791A20012L
...
546810
Motor Assembly,dc,outdoor L-G-4681A20172K
...
548490
Accumulator L-G-4848A20007A
...
550140A
Room Air Conditioner Compressor Grommet L-G-4022U-L005A
...
552113
Tube Assembly,condenser(out) L-G-AJR36766502
...
552116
Tube Assembly,suction(outdoor) L-G-AJR74206901
...
552117
Tube Assembly,discharge(outdoor) L-G-AJR74206802
...
552200
Valve,expansion Body L-G-MJX62711401
...
552202
Valve,reverse L-G-3A02080B
...
552203A
Valve,service L-G-5220A20029P
...
552203B
Valve,service L-G-5220A20035C
...
552204
Valve,solenoid L-G-5220A90008K
...
554031B
Condenser Assembly,bending L-G-ACG72922005
...
554031A
Condenser Assembly,bending L-G-ACG72922006
...
554160
Compressor Set,korea L-G-TBZ34636501
...
559010
Fan,propeller L-G-MDG37706506
...
561410A
Drawing,assembly L-G-EAD62115301
...
561410B
Solenoid L-G-EBE60659004
...
649950
Case Assembly,control(outdoor) L-G-ABQ37031706
...
661400A
Coil,expansion L-G-EAP30616909
...
661400B
Solenoid,expansion,valve L-G-EBE43125106
...
661400C
Coil,expansion L-G-EAP62228713
...
661400D
Coil,expansion L-G-EAP62228704
...
669010A
Fuse Assembly L-G-EAF61131502
...
669010B
Fuse Assembly L-G-EAF61131503
