LG LMU240HHV.AWGBEUS

Model: LMU240HHV.AWGBEUS

Save Part Not Listed?
product name

Main

...
...
EBG13BK
Thermistor Assembly,ntc L-G-EBG61406003
...
W6640A
Connector,terminal Block L-G-EAG38884408
...
W6631
Harness,multi L-G-EAD63768919
...
W6200
Filter,line Noise L-G-EAM62950002
...
W4986A
Sound Proof L-G-MDS63978801
...
W49810
Supporter Assembly L-G-AJJ73640312
...
EBG13GR
Thermistor Assembly,ntc L-G-EBG61405904
...
W4986B
Sound Proof L-G-MDS63978811
...
137213A
Panel Assembly,side L-G-AGL72909449
...
137213B
Panel Assembly,side L-G-AGL72341007
...
137213C
Panel Assembly,side L-G-AGL72909307
...
165000
Sensor,pressure L-G-EBD62165604
...
237202
Panel,front L-G-MGC53382919
...
263230C
Thermistor Assembly,ntc L-G-EBG61445805
...
263230D
Thermistor Assembly,ntc L-G-EBG61445905
...
263230A
Thermistor Assembly,ntc L-G-EBG61446002
...
268711B
Pcb Assembly,inverter L-G-EBR83831202
...
349480
Orifice L-G-4948A20011F
...
430410
Base Assembly,outdoor L-G-AAN75870701
...
435300
Grille,rear L-G-MDX61843709
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131820
...
437211
Panel Assembly,front(outdoor) L-G-AGL72770319
...
437212
Panel Assembly,rear(outdoor) L-G-AGL72341109
...
447910
Barrier Assembly,outdoor L-G-AAM72909130
...
546810
Motor Assembly,dc,outdoor L-G-4681A20172Q
...
548490
Accumulator L-G-4848A20007Q
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA71610517
...
550140
Damper,rubber L-G-MCQ68888201
...
552113
Tube Assembly,condenser(out) L-G-AJR75786801
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR75786701
...
552116
Tube Assembly,reverse L-G-AJR75786901
...
552117
Tube Assembly,suction(outdoor) L-G-AJR75765601
...
552120
Tube Assembly L-G-AJR76122301
...
552200B
Valve,expansion Body L-G-MJX63991801
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203A
Valve,service L-G-5220A20035C
...
552203B
Valve,service L-G-5220A20029P
...
552204
Valve,solenoid L-G-MJX61841306
...
554031
Condenser Assembly,bending L-G-ACG75285003
...
554160
Compressor Set,korea L-G-TBZ36856701
...
559010
Fan,propeller L-G-MDG62002904
...
561410A
Drawing,assembly L-G-EAD62115301
...
561410B
Solenoid L-G-EBE61441605
...
649950
Case Assembly,control Box L-G-ABQ77201630
...
661400A
Coil,expansion L-G-EAP63107115
...
661400B
Coil,expansion L-G-EAP63107105
...
661400C
Coil,expansion L-G-EAP63107110

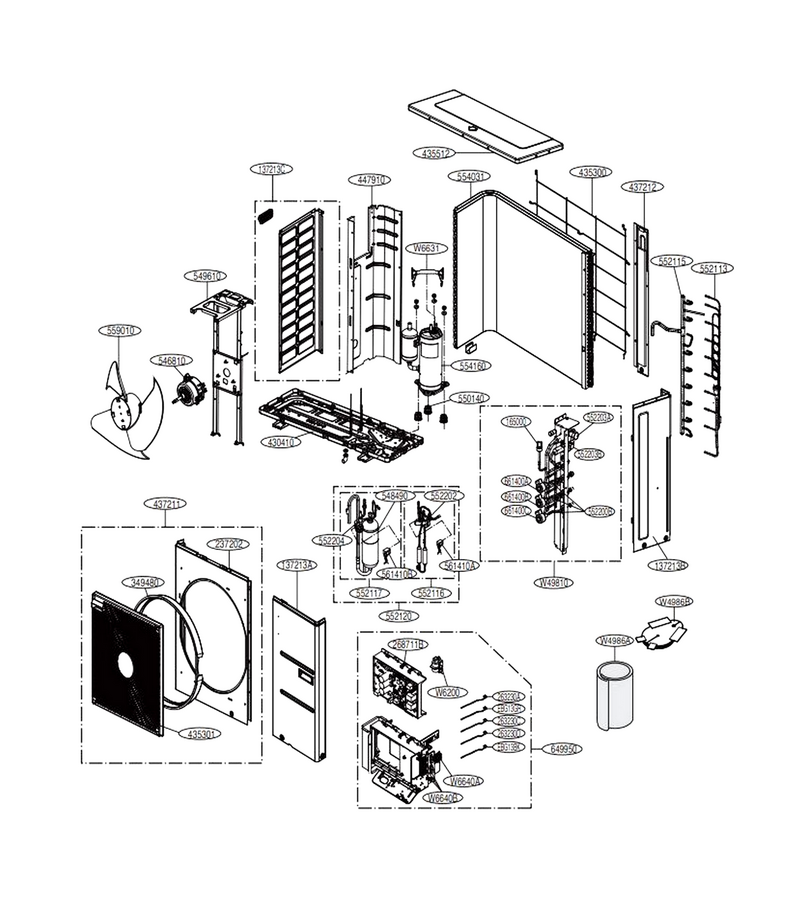

Schematic Image Zoomed
