LG LAU120HYV.AWHBEUS

Model: LAU120HYV.AWHBEUS

Save Part Not Listed?
product name

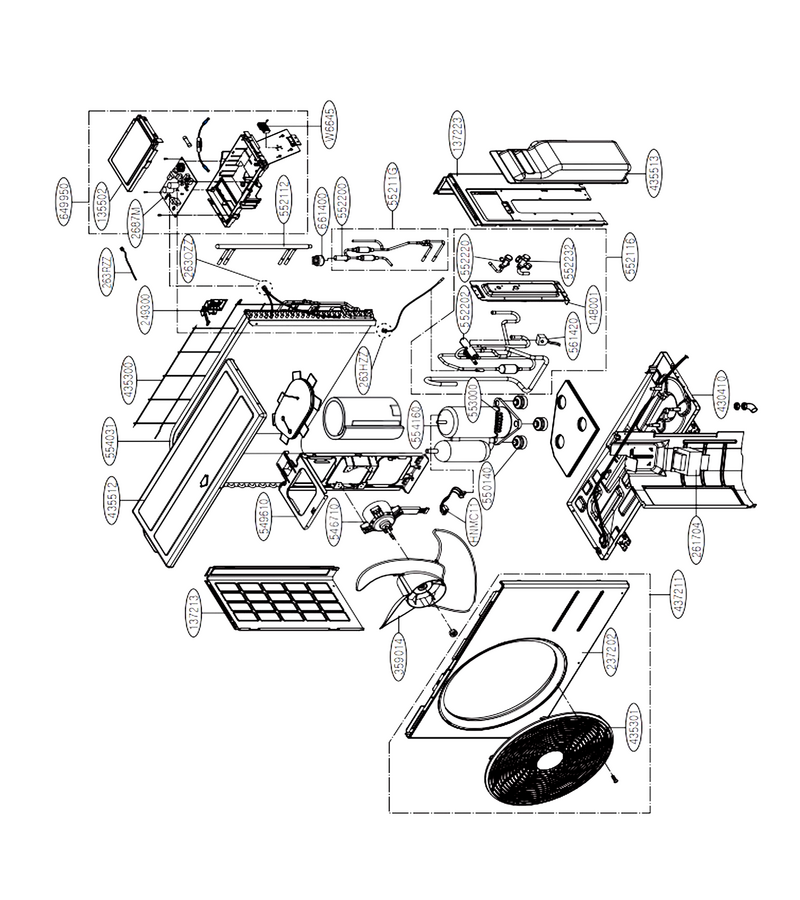

Outdoor Unit

...
...
W0FZZ
Fuse,time Delay L-G-6900AQ9028D
...
W4986A
Sound Proof L-G-MDS63972502
...
W4986B
Sound Proof L-G-MDS62061804
...
W4986C
Sound Proof L-G-MDS62061806
...
W6631
Harness,multi L-G-EAD63894010
...
55211G
Tube Assembly,expansion L-G-AJR69405502
...
135500
Cover L-G-MCK62818001
...
137213A
Panel Assembly,side L-G-AGL71499505
...
137213B
Panel Assembly,side L-G-AGL68979405
...
148000
Supporter L-G-MJH56985703
...
152503
Nipple,drain L-G-4H01010A
...
237202
Panel,front L-G-MGC56983306
...
249300
Holder,sensor L-G-MEG63259001
...
261704
Transformer,reactor L-G-EBJ61450101
...
263230A
Thermistor Assembly,ntc L-G-EBG61325812
...
263230B
Thermistor Assembly,ntc L-G-EBG61285804
...
263230C
Thermistor Assembly,ntc L-G-EBG61106852
...
268711F
Pcb Assembly,main L-G-EBR74631905
...
430410
Base Assembly,outdoor L-G-AAN68977820
...
435300
Grille,rear L-G-MDX61893203
...
435301
Grille,discharge L-G-MDX63452301
...
435512
Cover Assembly,top(outdoor) L-G-ACQ68979308
...
435513
Cover Assembly,tubing L-G-ACQ68981119
...
437211
Panel Assembly,front(outdoor) L-G-AGL74875105
...
447910
Barrier Assembly,outdoor L-G-AAM68980809
...
546810
Motor Assembly,dc,outdoor L-G-EAU57945710
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA71499601
...
552112
Tube Assembly,condenser(in) L-G-AJR69388501
...
552116
Tube Assembly,reverse L-G-AJR73942707
...
552200B
Valve, Expansion Body L-G-5220A90001R
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203B
308 Valve L-G-2H02479N
...
552203A
Valve,service L-G-MJX42581405
...
553000A
Heater,sump L-G-MEE62466501
...
553000B
Heater,sump L-G-MEE31224805
...
554031
Condenser Assembly,bending L-G-ACG69396013
...
554160
Compressor L-G-5416A90029K
...
559010
Fan Assembly,propeller L-G-ADP67804501
...
561410
Solenoid L-G-6141A20017E
...
649950
Case Assembly,control(outdoor) L-G-ABQ74308303
...
661400
Coil,expansion L-G-EAP61086224
...
669010
Fuse Assembly L-G-EAF58158301
