LG ARUB168DTE4.AWGBLUS

Model: ARUB168DTE4.AWGBLUS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

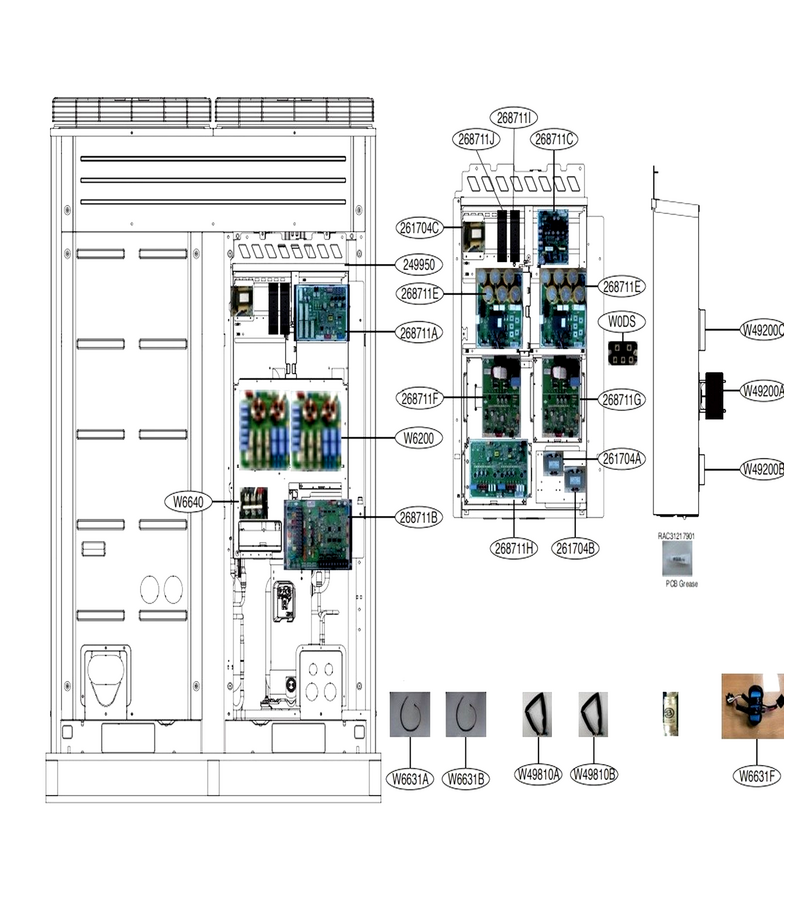

Main I

...
...
W0DS
Diode,bridge L-G-EAH61772601
...
W49200A
Heat Sink L-G-MED62551202
...
W49200B
Heat Sink L-G-MED37293707
...
W49200C
Heat Sink L-G-MED37293706
...
W49810A
Supporter Assembly L-G-AJJ73639901
...
W49810B
Supporter Assembly L-G-AJJ73639902
...
W6631A
Harness,multi L-G-EAD63769004
...
W6631B
Harness,multi L-G-EAD63769003
...
261704B
Transformer,reactor L-G-EBJ62950403
...
261704A
Transformer,reactor L-G-EBJ62950402
...
268711B
Pcb Assembly,main L-G-EBR74363401
...
268711C
Pcb Assembly,power L-G-EBR76886201
...
268711E
Pcb Assembly,main L-G-EBR76546001
...
268711F
Pcb Assembly,inv(onboarding) L-G-EBR79838702
...
268711G
Pcb Assembly,fan(onboarding) L-G-EBR79839001
...
268711H
Pcb Assembly,fan(onboarding) L-G-EBR79839001
...
268711I
Pcb Assembly,sub L-G-EBR74374302
...
268711J
Pcb Assembly,sub L-G-EBR74801101

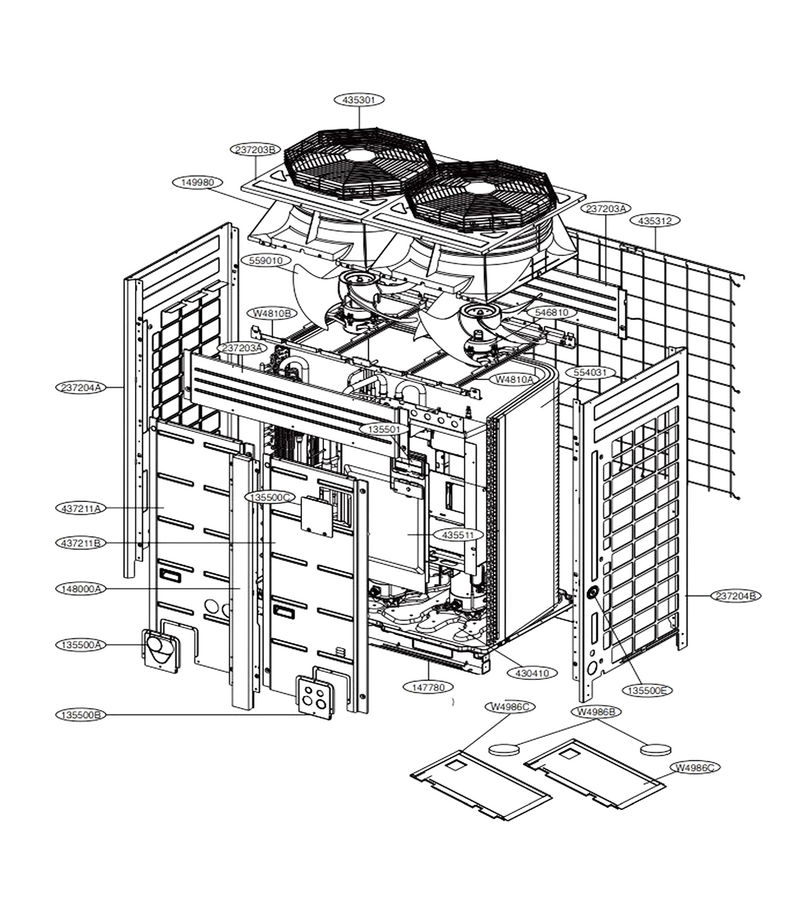

Main Ii

...
...
W4986C
Gasket L-G-MDS64990301
...
W4986B
Sound Proof L-G-MDS42399720
...
W4810A
Bracket L-G-MAZ40016203
...
W4810B
Bracket L-G-MAZ40016101
...
135500A
Cover L-G-MCK40004902
...
135500B
Cover L-G-MCK40005006
...
135500C
Cover L-G-MCK40005902
...
135500E
Cover L-G-3550A30339H
...
135501
Cover Assembly L-G-ACQ33787701
...
147780
Leg L-G-MFA40133102
...
148000A
Supporter L-G-MJH40032806
...
237203A
Panel,upper L-G-MGC62760602
...
237203B
Panel,upper L-G-MGC40015602
...
237204A
Panel Assembly,side L-G-AGL72947304
...
237204B
Panel Assembly,side L-G-AGL72947302
...
430410
Base Assembly,outdoor L-G-AAN34559110
...
435301
Grille,discharge L-G-MDX40360902
...
435312
Grille Assembly,rear(outdoor) L-G-AEB73704904
...
435511
Cover Assembly,control(outdoor) L-G-ACQ85917027
...
437211A
Panel Assembly,front(outdoor) L-G-AGL34759615
...
437211B
Panel Assembly,front(outdoor) L-G-AGL34759614
...
546810
Motor Assembly,dc,outdoor L-G-EAU43080010
...
554031
Condenser Assembly,bending L-G-ACG35866011
...
559010
Fan Assembly,propeller L-G-ADP74093301

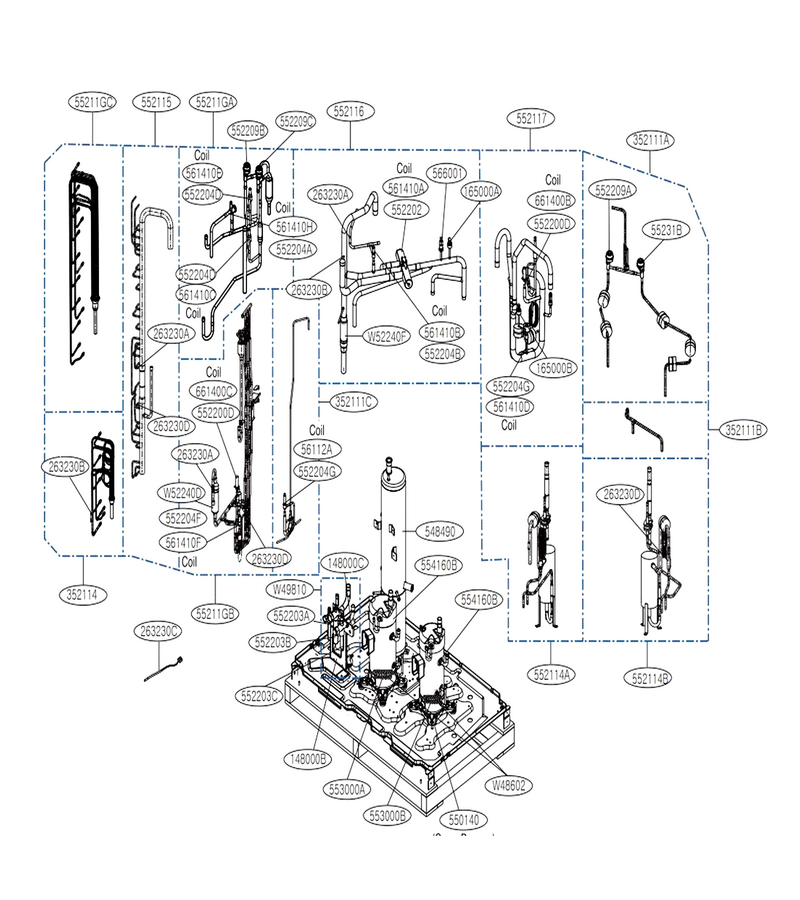

Main Iii

...
...
W52240F
Strainer L-G-5224A20005A
...
W52240D
Strainer L-G-5224A20005D
...
W48602
Clamp,spring L-G-4H01930A
...
W49810
Supporter Assembly L-G-AJJ73799910
...
55211GC
Tube Assembly,expansion L-G-AJR73904504
...
55211GB
Tube Assembly,expansion L-G-AJR73767511
...
55211GA
Tube Assembly,expansion L-G-AJR74182301
...
55231B
Valve Assembly L-G-AJU73472415
...
56112A
Solenoid L-G-EBE61083201
...
165000A
Sensor,pressure L-G-EBD60663824
...
165000B
Sensor,pressure L-G-EBD60663823
...
263230D
Thermistor Assembly,ntc L-G-EBG61107407
...
263230A
Thermistor Assembly,ntc L-G-EBG61107301
...
263230B
Thermistor Assembly,ntc L-G-EBG61107406
...
263230C
Thermistor Assembly,ntc L-G-EBG61486301
...
352111C
Tube Assembly,connector L-G-AJR73767209
...
352111B
Tube Assembly,connector L-G-AJR74423901
...
352111A
Tube Assembly,connector L-G-AJR73767417
...
352114
Tube Assembly,distributor L-G-AJR73969004
...
548490
Accumulator L-G-MAA62384416
...
550140
Damper,compressor L-G-MCQ62569601
...
552114A
Tube Assembly,discharge(outdoor) L-G-AJR73767704
...
552114B
Tube Assembly,discharge(outdoor) L-G-AJR73964607
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR73882504
...
552116
Tube Assembly,reverse L-G-AJR74107301
...
552117
Tube Assembly,suction(outdoor) L-G-AJR74385607
...
552200D
Valve,expansion Body L-G-MJX62751401
...
552202
Valve,reverse L-G-5220A20039A
...
552203A
Valve,service L-G-MJX62253801
...
552203C
Valve,service L-G-MJX62253901
...
552203B
Valve,service L-G-MJX62254001
...
552204B
Valve,solenoid L-G-MJX61841301
...
552204D
Valve,solenoid L-G-MJX61537801
...
552204F
Valve,solenoid L-G-5220A90008K
...
552204G
Valve,solenoid L-G-5220A90008H
...
552204A
Valve,solenoid L-G-MJX61537802
...
552209A
Valve Assembly L-G-AJU73472414
...
552209B
Valve Assembly L-G-AJU73472406
...
552209C
Valve Assembly L-G-AJU73472405
...
553000A
Heater,sump L-G-MEE61984909
...
553000B
Heater,sump L-G-MEE61984910
...
554160B
Compressor Set,korea L-G-TBZ37955201
...
561410A
Solenoid L-G-6141A20010W
...
561410B
Solenoid L-G-EBE60661407
...
561410C
Solenoid L-G-EBE60661408
...
561410D
Solenoid L-G-6141A20050Y
...
561410E
Solenoid L-G-EBE60661409
...
561410F
Solenoid L-G-EBE61083202
...
561410H
Solenoid L-G-EBE61083203
...
566001
Switch,pressure L-G-EBF40271407
...
661400B
Coil,expansion L-G-EAP62126401
...
661400C
Coil,expansion L-G-EAP30616912
