LG ARUB096DTE4.AWGBLUS

Model: ARUB096DTE4.AWGBLUS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

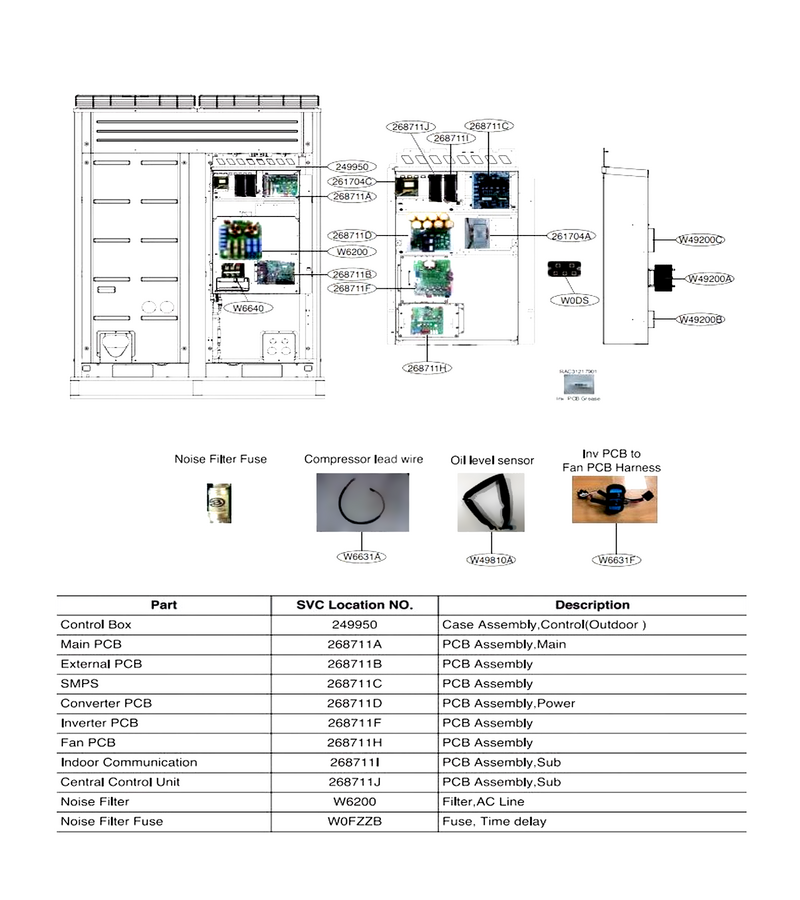

Main (i)

...
...
W49200A
Heat Sink L-G-MED62551202
...
W6631A
Harness,multi L-G-EAD63769005
...
W6200
Filter,ac Line L-G-EAM62632202
...
W49200C
Heat Sink L-G-MED37293706
...
W49200B
Heat Sink L-G-MED37293707
...
W49810A
Supporter Assembly L-G-AJJ73639901
...
249950
Case Assembly,control Box L-G-ABQ74380409
...
261704A
Transformer,reactor L-G-EBJ62950501
...
261704C
Transformer,linear L-G-EBJ61631001
...
268711A
Pcb Assembly,cycle(onboarding) L-G-EBR79795809
...
268711B
Pcb Assembly,main L-G-EBR74363401
...
268711C
Pcb Assembly,main L-G-EBR74365001
...
268711D
Pcb Assembly,power L-G-EBR76981301
...
268711F
Pcb Assembly,inv(onboarding) L-G-EBR79838802
...
268711H
Pcb Assembly,fan(onboarding) L-G-EBR79839001
...
268711I
Pcb Assembly,sub L-G-EBR74374302
...
268711J
Pcb Assembly,sub L-G-EBR74801101

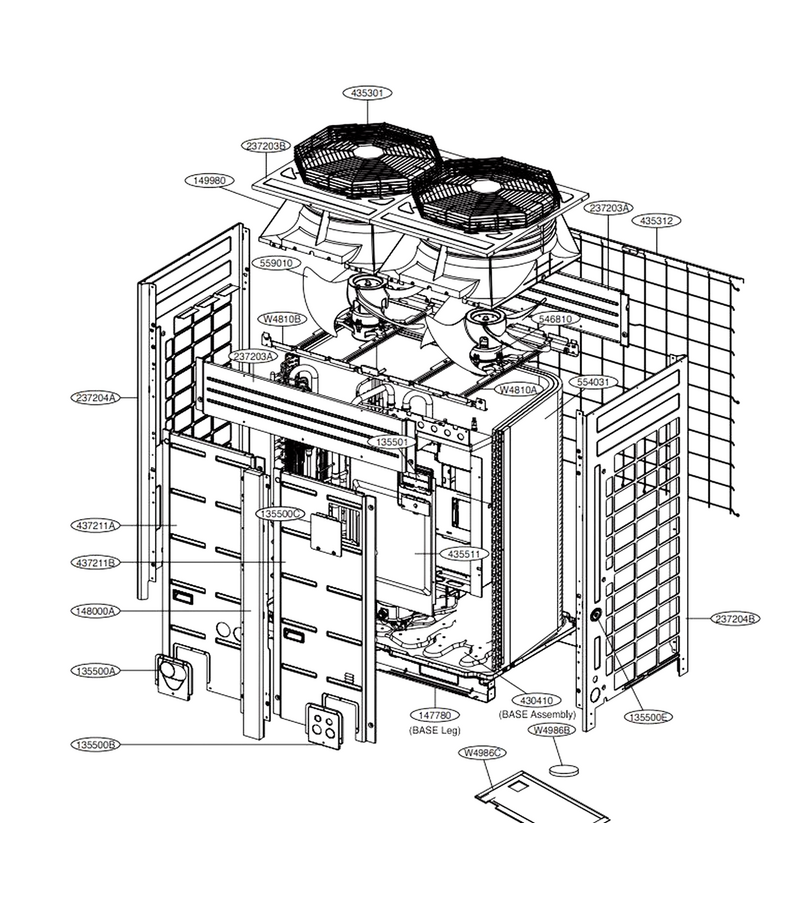

Main (ii)

...
...
W4986B
Sound Proof L-G-MDS42399720
...
W4986C
Gasket L-G-MDS64990302
...
135501
Cover Assembly L-G-ACQ33787701
...
147780
Leg L-G-MFA40133102
...
148000A
Supporter L-G-MJH40032806
...
149980
Shroud L-G-MHN62382001
...
430410
Base Assembly,outdoor L-G-AAN34559110
...
435301
Grille,discharge L-G-MDX40360902
...
435312
Grille Assembly,rear(outdoor) L-G-AEB73704904
...
435511
Cover Assembly,control(outdoor) L-G-ACQ85917027
...
437211A
Panel Assembly,front(outdoor) L-G-AGL34759615
...
437211B
Panel Assembly,front(outdoor) L-G-AGL34759614
...
546810
Motor Assembly,dc,outdoor L-G-EAU43080007

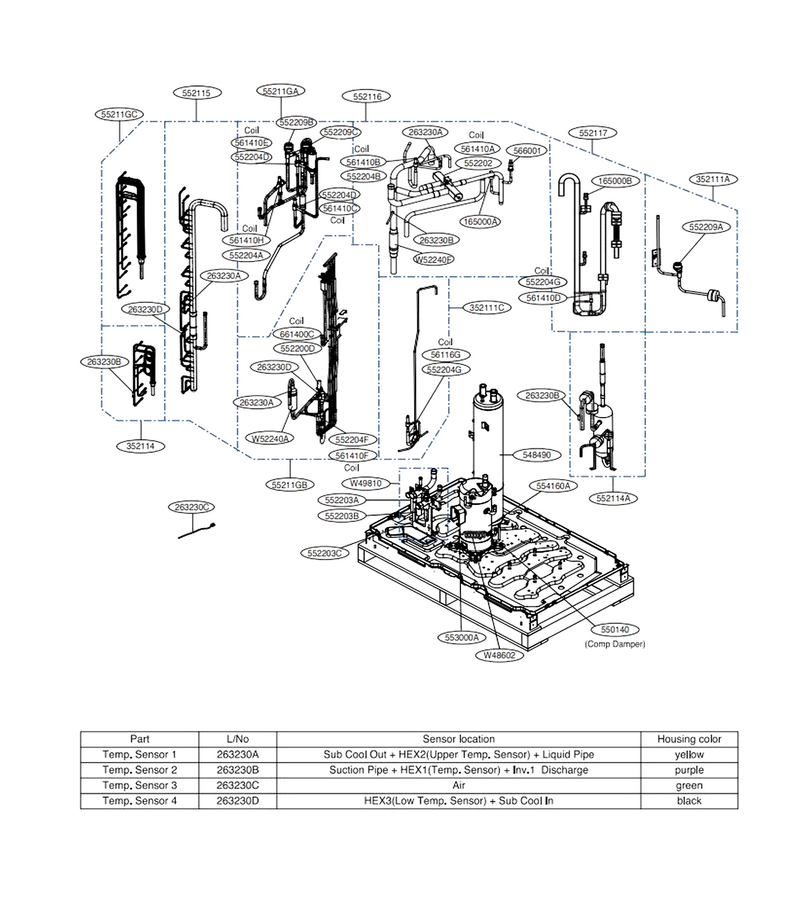

Main (iii)

...
...
W52240F
Strainer L-G-5224A20005A
...
W52240A
Strainer L-G-5224A20005L
...
W48602
Clamp,spring L-G-4H01930A
...
55211GA
Tube Assembly,expansion L-G-AJR74182301
...
55211GB
Tube Assembly,expansion L-G-AJR73767514
...
55211GC
Tube Assembly,expansion L-G-AJR73904504
...
56116G
Solenoid L-G-EBE61083201
...
165000A
Sensor,pressure L-G-EBD62165601
...
165000B
Sensor,pressure L-G-EBD60663823
...
352111A
Tube Assembly,connector L-G-AJR73915711
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR73882504
...
552116
Tube Assembly,reverse L-G-AJR74107305
...
552117
Tube Assembly,suction(outdoor) L-G-AJR73915612
...
552202
Valve,reverse L-G-5220A20039A
...
552203A
Valve,service L-G-5220A20029M
...
552203B
Valve,service L-G-MJX62254101
...
552203C
Valve,service L-G-MJX62253901
...
552204G
Valve,solenoid L-G-5220A90008H
...
552204D
Valve,solenoid L-G-MJX61537801
...
552204F
Valve,solenoid L-G-5220A90008K
...
552204B
Valve,solenoid L-G-MJX61841301
...
552204A
Valve,solenoid L-G-MJX61537802
...
552209A
Valve Assembly L-G-AJU73472403
...
552209B
Valve Assembly L-G-AJU73472406
...
552209C
Valve Assembly L-G-AJU73472405
...
553000A
Heater,sump L-G-MEE61984911
...
554160A
Compressor Set,korea L-G-TBZ35837701
...
561410A
Solenoid L-G-6141A20010W
...
561410B
Solenoid L-G-EBE60661407
...
561410C
Solenoid L-G-EBE60661408
...
561410D
Solenoid L-G-6141A20050Y
...
561410E
Solenoid L-G-EBE60661409
...
561410F
Solenoid L-G-EBE61083202
...
561410H
Solenoid L-G-EBE61083203
...
566001
Switch,pressure L-G-EBF40271407
