product name

Kohler XT650-3025 Basic Engine

Model: XT650-3025 Basic

Back To Assemblies

Save Part Not Listed?
product name

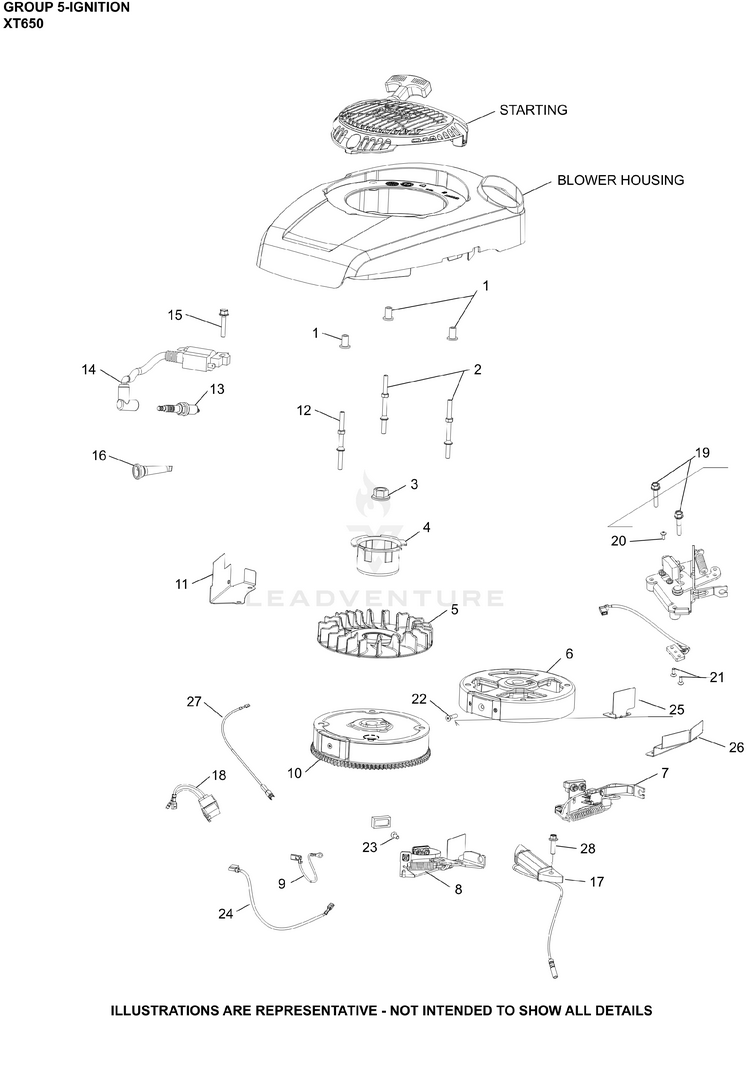

05 Ignition/Charging

...
...
1
SPACER KOH-14 112 07-S
...
2
STUD, BLOWER HOUSING (IGNITION) KOH-14 072 26-S
...
3
NUT, FLYWHEEL (W/SERRATIONS) KOH-14 100 10-S
...
4
CUP, STARTER DRIVE KOH-14 109 04-S
...
5
FAN, FLYWHEEL KOH-17 157 06-S
...
6
FLYWHEEL ASSEMBLY KOH-14 025 12-S
...
9
LEAD, KILL (BRAKE TO IGN. MODULE) KOH-14 518 29-S
...
11
GUARD, FINGER KOH-14 314 25-S
...
12
STUD, BLOWER HOUSING (IGNITION) KOH-14 072 25-S
...
13
PLUG SPARK 12MM RFI KOH-14 132 11-S
...
14
MODULE IGNITION CAST IRON FLYWHEEL KOH-14 584 16-S
...
15
SCREW, HEX FLANGE (M6) KOH-25 086 436-S
...
25
GUARD, BRAKE (FINGER PROTECTION)-DISC. KOH-14 314 30-S
Schematic Image Zoomed
