Kohler XT650-3025 Basic Engine

Model: XT650-3025 Basic

Save Part Not Listed?

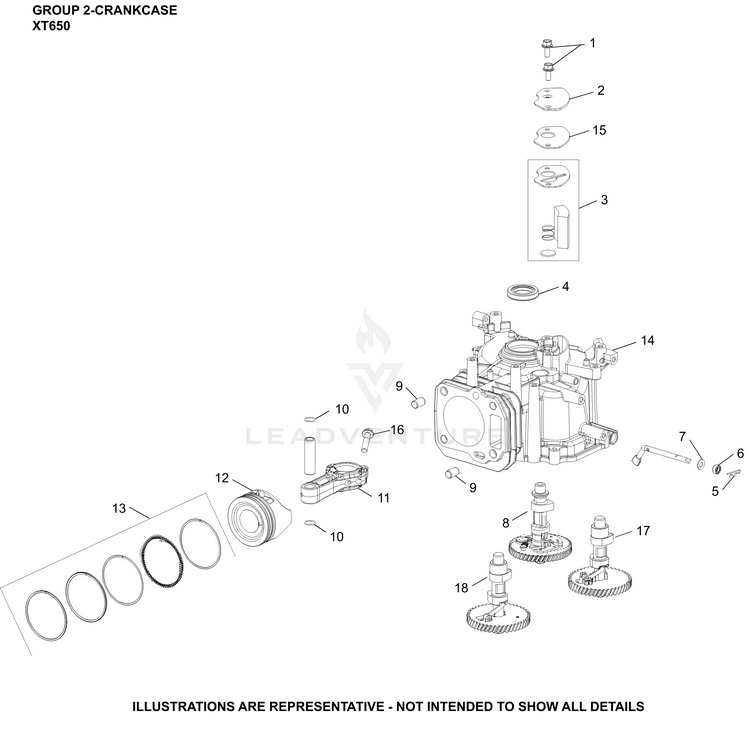

02 CrankCase

SCREW, HEX FLANGE (M6)-USE 25 086 159-S KOH-25 086 433-S

COVER, BREATHER KOH-14 096 125-S

KIT, BREATHER FILTER KOH-14 050 01-S

SEAL, CCASE/FLYWHEEL KOH-14 032 02-S

CLIP, GOVERNOR SHAFT KOH-14 154 01-S

WASHER, FLAT (DIA 13mm O.D.) KOH-14 468 30-S

CAMSHAFT ASSEMBLY KOH-14 010 09-S

RETAINER, PISTON PIN KOH-14 018 11-S

ROD, CONNECTING ASSEMBLY KOH-14 067 02-S

KIT PISTON KOH-14 874 05-S

RING SETS KOH-14 108 03-S

CRANKCASE KOH-14 561 14-S

GASKET, BREATHER COVER KOH-14 041 30-S

SCREW, HEX FLANGE (M7) KOH-25 086 150-S

Model: 1AHF08390

$16.00

In Stock
