Jonsered ST2376EP Snow Thrower (96191009300)

Model: ST2376EP

Save Part Not Listed?
product name

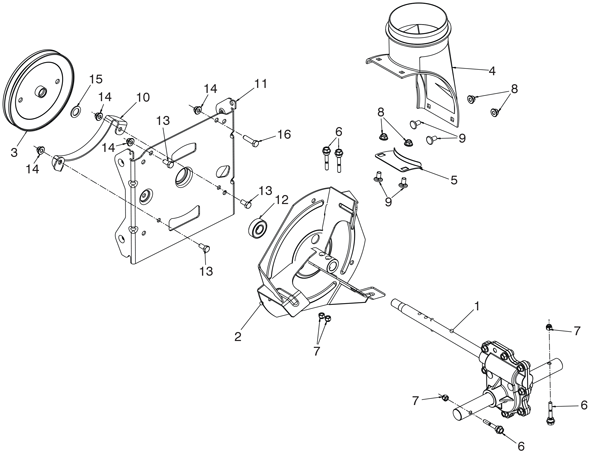

Jonsered ST2376EP

...
...
1
Gearbox Auger HUS-586714801
...
2
Impeller Steel HUS-586607202
...
3
Pulley Impeller Screw On HUS-586715201
...
4
Chute Discharge Base HUS-585056901
...
5
Bracket Corner Discharge Base HUS-532184095
...
6
Bolt Shear 1/4-20 HUS-585511801
...
7
Nut Nylock 1/4-20 HUS-873800400
...
8
Nut Flange Nylock 5/16-18 - Black HUS-585691301
...
9
Bolt Carriage Wafer Head 5/16-18 X 5/8 Black HUS-585691201
...
10
Bracket Belt Keeper Lower HUS-581632002
...
11
Bracket Interface HUS-581592502
...
12
Bearing Ball HUS-532198791
...
13
Screw Hex Head 5/16-18 X 5/8 HUS-532163183
...
14
Nut Flange Nylock 5/16-18 HUS-532427942
...
15
Washer Impeller Pulley 1.00D X .641Id X .075Thk HUS-587392701
...
16
Screw Hex Head 5/16-18 X 1.25 HUS-874520520

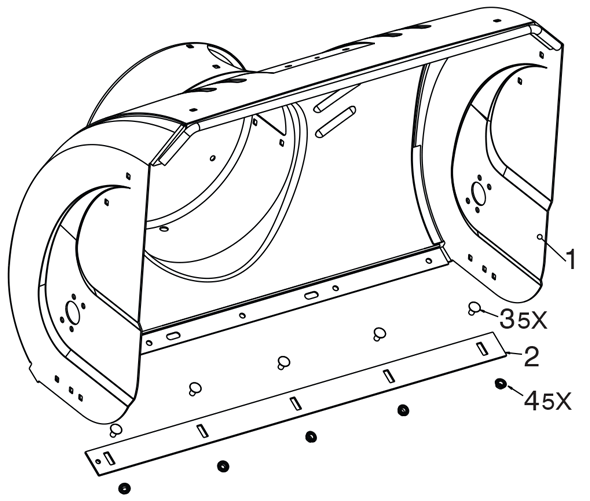

Jonsered ST2376EP

...
...
1
Auger Housing HUS-586184107
...
2
Scraper Bar HUS-532416270
...
3
Carriage Bolt 5/16-18 X .625 Gr5 HUS-872270505
...
4
Nut 5/16-18 HUS-532155377

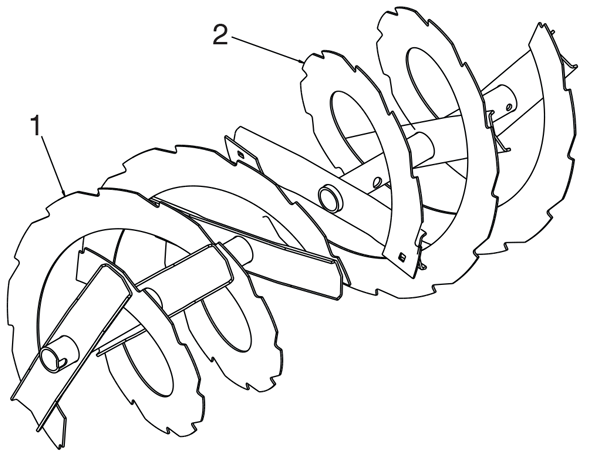

Jonsered ST2376EP

...
...
1
Auger Assembly 30 Lh HUS-532421124
...
2
Auger Assembly 30 Rh HUS-532421125

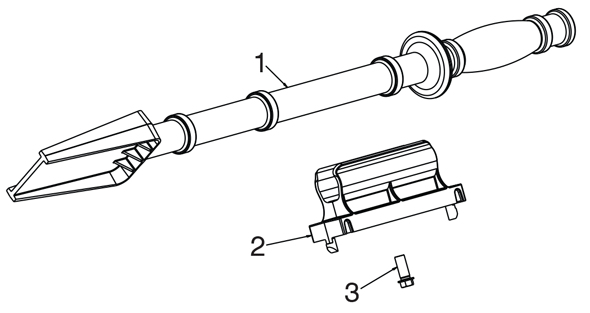

Jonsered ST2376EP

...
...
1
Tool Cleanout HUS-532192199
...
2
Clip Cleanout Tool HUS-532405400
...
3
Screw Hex Washer 13-16 X 5/8 HUS-532194189

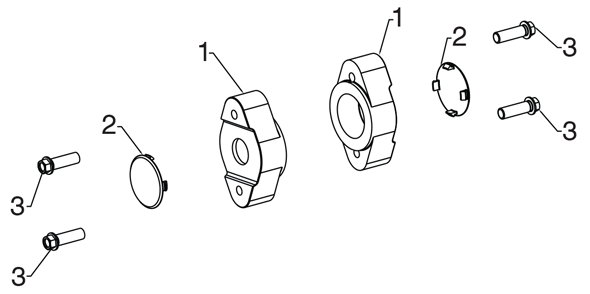

Jonsered ST2376EP

...
...
1
Auger Bearing HUS-532420478
...
2
Bearing Plug HUS-532411939
...
3
Screw Hi-Lo Washd 5/16-14 X 1.00 HUS-584299401

Jonsered ST2376EP

...
...

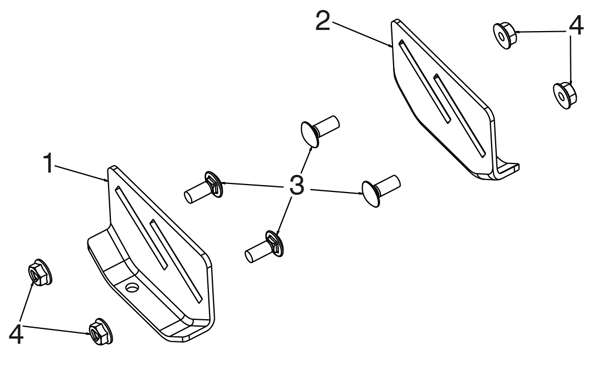

1
Skid Plate Lh HUS-532184093
...
2
Skid Plate Rh HUS-532184094
...
3
Bolt Carriage Black 5/16-18 X .75 HUS-585691701
...
4
Nut Black 5/16-18 HUS-585691301

Jonsered ST2376EP

...
...

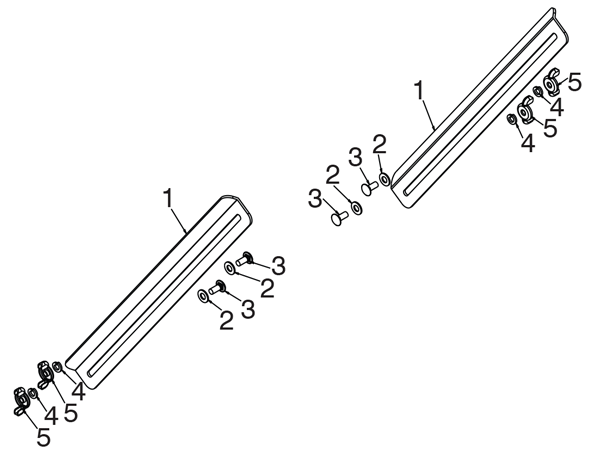

1
Drift Bar Cutter HUS-532184747
...
2
Washer Friction Nylon HUS-532179246
...
3
Carriage Bolt 5/16-18 X .75 Gr5 HUS-872270506
...
4
Lockwasher 5/16 Split HUS-810040500
...
5
Wing Nut 5/16-18 Zinc HUS-532128638

Jonsered ST2376EP

...
...

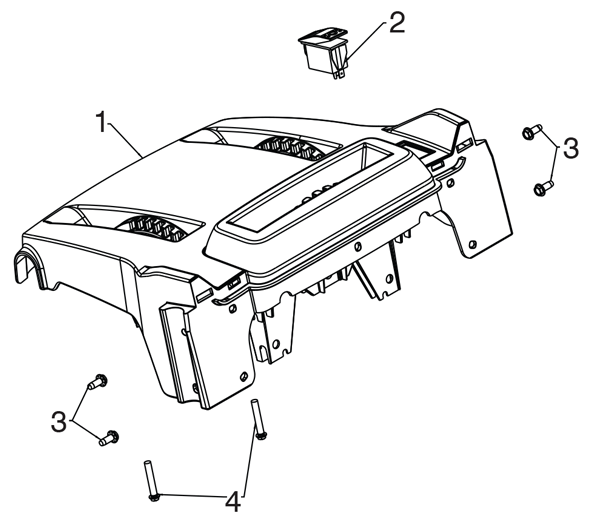

1
Console Base Multicont W/Switch HUS-581131203
...
2
Switch Grip Heated Black HUS-585805001
...
3
Screw Ta Semi Gimle 1/4-20 X .62 HUS-817060410
...
4
Screw Hex Washer 13-16 X 1.50 HUS-581329501

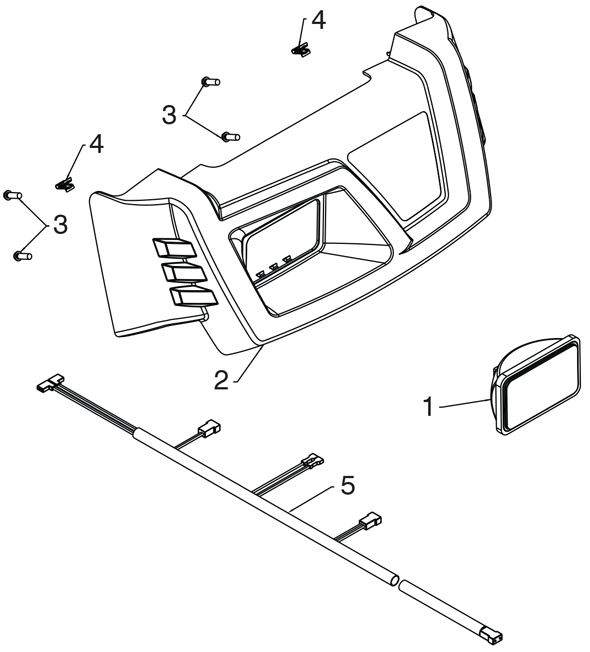

Jonsered ST2376EP

...
...
xx
Bulb HUS-532183784
...
1
Flood Headlight HUS-586181001
...
2
Console Cover Jonsered HUS-581128107
...
3
Screw Hi-Lo 13-16 X 5/8 HUS-532194189
...
4
Panel Clip HUS-581928701
...
5
Wire Harness Light & Grip HUS-587535701

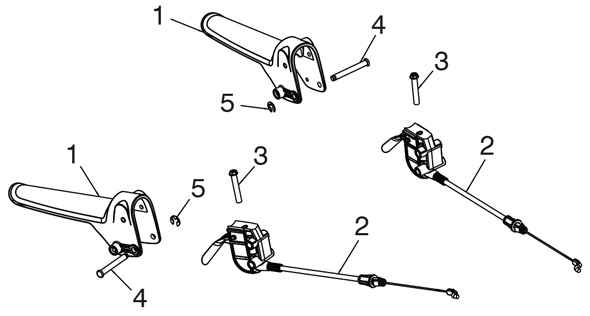

Jonsered ST2376EP

...
...
1
Lever Control Dssst HUS-587463001
...
2
Control Unit Assembly Lever Pivot HUS-581208201
...
3
Screw Hexhd 10-24 X 1.50 HUS-585690701
...
4
Grooved Pin HUS-532431762
...
5
E-Ring External HUS-812000014

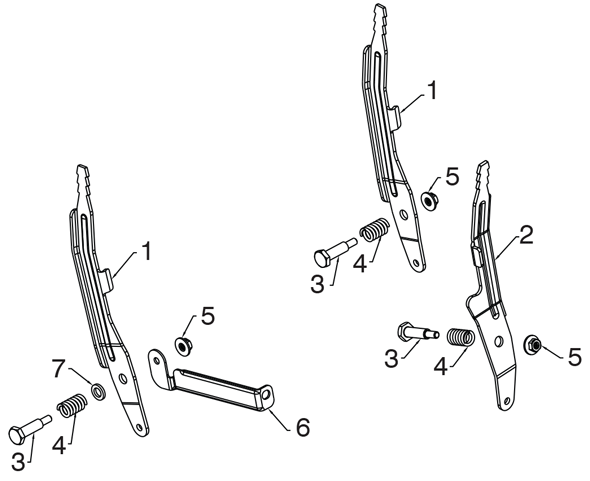

Jonsered ST2376EP

...
...
1
Lever Control Speed/Defl HUS-581123902
...
2
Lever Control Chute Rot HUS-581241602
...
3
Bolt Shoulder 1/4-20 HUS-581329701
...
4
Spring Compression HUS-581329601
...
5
Nut Fl Lock 1/4-20 HUS-586668901
...
6
Brace Support Speed HUS-584468402
...
7
Washer .625 X .375 X .094 Nylon 6/6 HUS-587031301

Jonsered ST2376EP

...
...

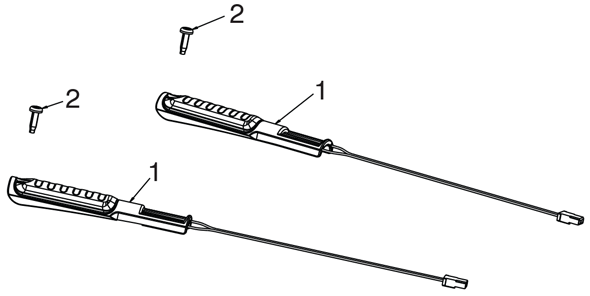

1
Grip Handle Heated HUS-581146301
...
2
Screw Pan Hd Torx 1/4-20 X .75 HUS-532442250

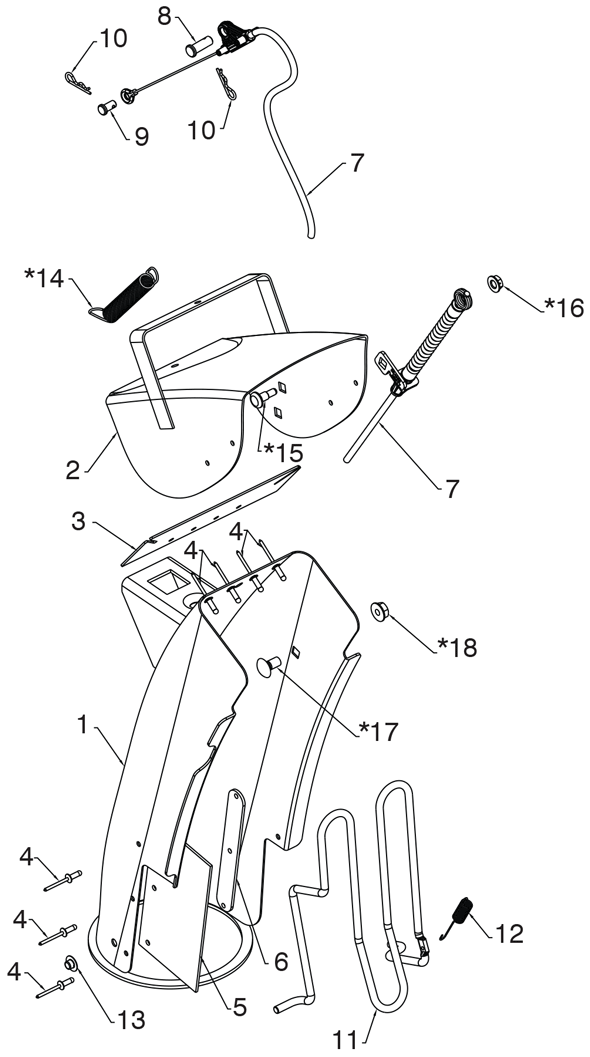

Jonsered ST2376EP

...
...
1
Chute Weldment HUS-532443680
...
2
Delfector Weldment HUS-532184534
...
3
Deflector Seal HUS-532420325
...
4
Pop Rivet HUS-532128415
...
5
Chute Snow Shield HUS-532430324
...
6
Shield Strap Retainer HUS-532421728
...
7
Cable Assembly Deflector HUS-586961501
...
8
Pin Clevis 5/16 X .875 HUS-581329401
...
9
Pin Clevis 1/4 X .312 HUS-585808301
...
10
Hairpin Retainer HUS-532423303
...
11
Chute Guard HUS-532435582
...
12
Guard Return Spring HUS-532435616
...
13
Push Nut HUS-532059349
...
14
Deflector Spring HUS-532184505
...
15
Shoulder Bolt 1/4-20 X .375 HUS-585832201
...
16
Nut 1/4-20 HUS-585691401
...
17
Carriage Bolt 3/8-16 X .625 HUS-585832001
...
18
Nut 5/16-18 HUS-873970500

Jonsered ST2376EP

...
...

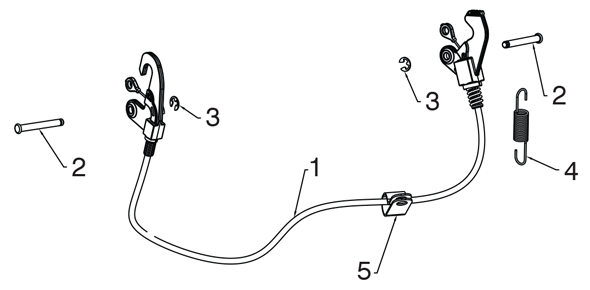

1
Cable Interlock HUS-580664701
...
2
Pin Grooved HUS-532431762
...
3
E-Ring HUS-812000014
...
4
Spring Return HUS-581151201
...
5
Clip Cable Black HUS-532197991

Jonsered ST2376EP

...
...

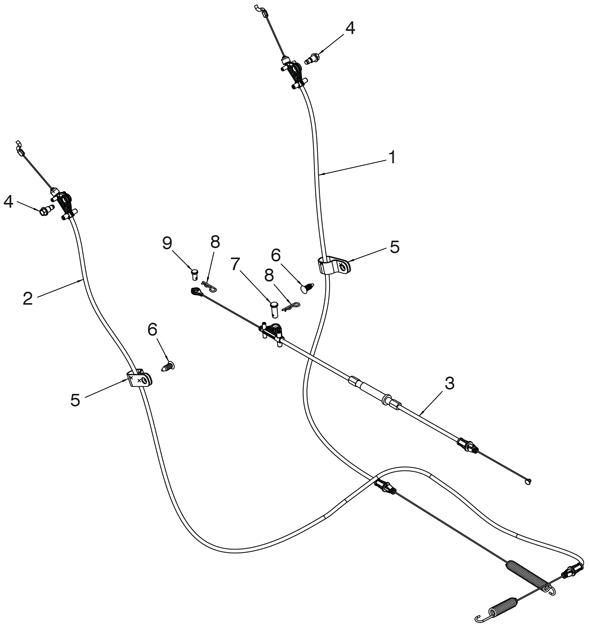

1
Cable Control Drive HUS-581128301
...
2
Cable Control Auger HUS-587428701
...
3
Cable Control Speed HUS-587622801
...
4
Bolt Shoulder 1/4 HUS-581726101
...
5
Clip Cable HUS-532197991
...
6
Fastener Push .250 HUS-532428124
...
7
Pin Clevis 5/16 HUS-581329401
...
8
Hairpin HUS-532423303
...
9
Pin Clevis 1/4 HUS-585808301

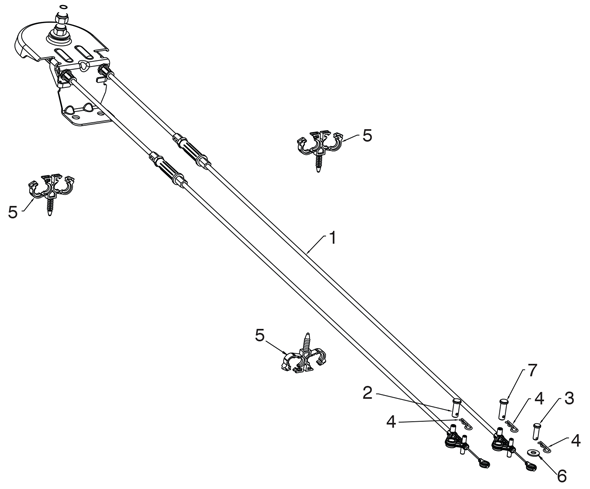

Jonsered ST2376EP

...
...
1
Cable Rotator Assembly HUS-581680301
...
2
Pin Clevis 5/16 X 7/8 HUS-581329401
...
3
Pin Clevis 1/4 X 3/4 HUS-877100812
...
4
Hairpin Soft Zinc HUS-532423303
...
5
Clip Conduit Double HUS-584652201
...
6
Washer HUS-586682101
...
7
Pin Clevis 5/16 X 1 HUS-587130801

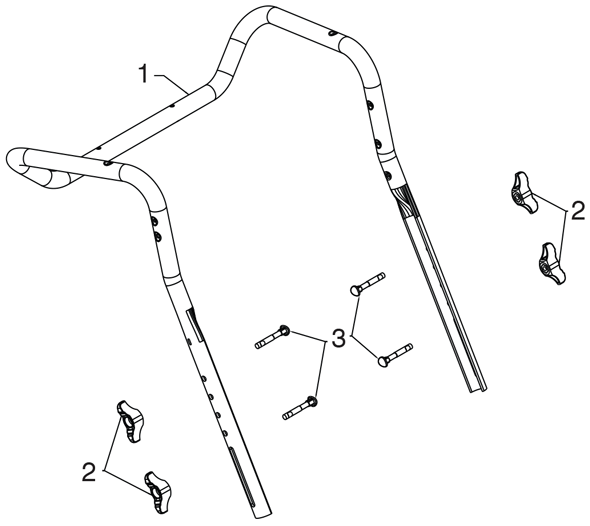

Jonsered ST2376EP

...
...
1
Upper Handle HUS-581123604
...
2
Handle Knob Std Black HUS-532191938
...
3
Bolt 5/16-18 X 1.75 Concave HUS-587359001

Jonsered ST2376EP

...
...
1
Lower Handle HUS-581123504
...
2
Screw Hex Wash Hd 3/8-16 X .75 HUS-817000612
...
3
Chute Rotator Support HUS-581622002
...
4
Bolt Hex 5/16-18 HUS-817000510

Jonsered ST2376EP

...
...

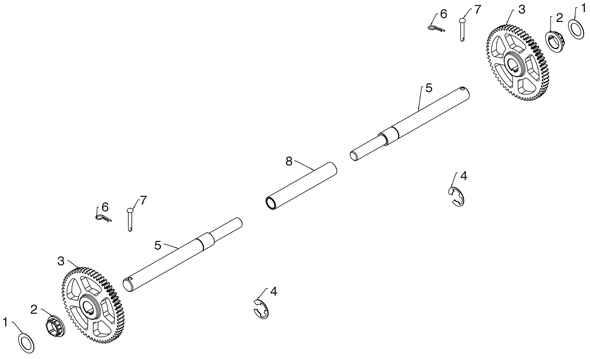

1
Washer 1.00 HUS-532444949
...
2
Bushing Hex 1 Shaft HUS-581122301
...
3
Gear 59T Driven HUS-580757301
...
4
Retaining Ring HUS-812000053
...
5
Axle Shaft Split HUS-580752601
...
6
Retainer Spring 1 Zinc HUS-532124788
...
7
Rivet Rd Hd Drilled 1/4 Dia HUS-532171271
...
8
Axle Sleeve HUS-580752501

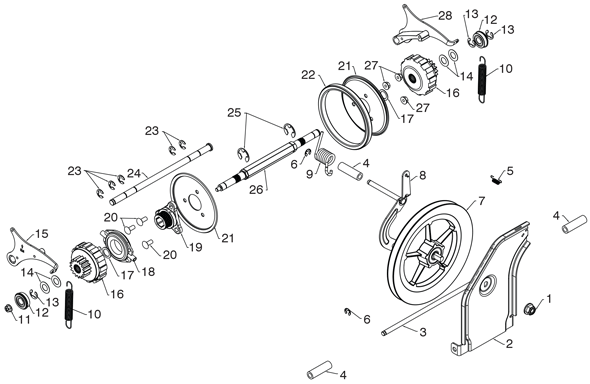

Jonsered ST2376EP

...
...
1
Nut Hex Flange Lk 1/2-13 HUS-521991101
...
2
Swing Plate Friction Pull HUS-581446903
...
3
Rod Tip Plate HUS-581123001
...
4
Spacer Drive HUS-581732701
...
5
Latch Spring HUS-532193885
...
6
E-Ring Retainer HUS-812000007
...
7
Friction Disc Combo Pulley HUS-581328401
...
8
Bracket Yoke Weldment HUS-581454203
...
9
Spring Torsion Drive HUS-581315301
...
10
Extension Spring HUS-585263801
...
11
Nut Hex Flange Lock 5/16-18 HUS-585691501
...
12
Bearing 9/16 I.D. 1622-2Rsnr HUS-580756201
...
13
Retainer Ring 1622-2Rsnr HUS-580756101
...
14
Washer Flat .59 I.D. X 1.065 X 25 Ga HUS-580751301
...
15
Pawl Assembly Rh HUS-580756601
...
16
Gear Assembly Planetary HUS-580756001
...
17
Washer Flat .6875 I.D. X 1.00 X 21 Ga HUS-580756301
...
18
Trunnion Bearing Assembly HUS-532175344
...
19
Hub Rubber Wheel HUS-581090901
...
20
Bolt Carriage 5/16-18 X .75 HUS-872110506
...
21
Plate Rubber Wheel HUS-581091002
...
22
Ring Rubber Wheel HUS-581091101
...
23
E-Ring HUS-586644301
...
24
Rod Pawl HUS-580755101
...
25
E-Ring HUS-812000022
...
26
Shaft Reduction Pwr Str HUS-580752401
...
27
Nut Hex Flange Lk 5/16-18 HUS-532751153
...
28
Pawl Assembly Lh HUS-580756701

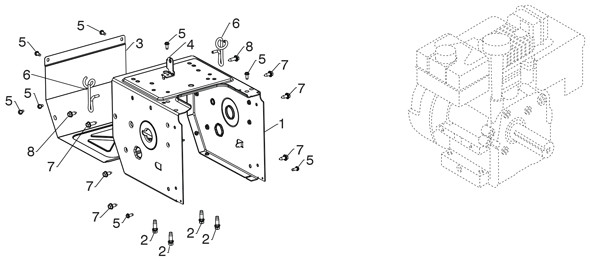

Jonsered ST2376EP

...
...
xx
Complete Lct Engine-Pw2Hk18850781Dy HUS-580426105
...
1
Frame HUS-580839407
...
2
Engine Bolt 3/8-16 X 1.208 Dogpoint HUS-532150406
...
3
Frame Cover HUS-580839507
...
4
Shifter Bracket HUS-581122402
...
5
Screw Hex Washer 1/4-20 X 5/8 HUS-817060410
...
6
Wireform Support Cable HUS-585206001
...
7
Bolt Hexhd Washer 5/16-18 X .75 HUS-532428867
...
8
Bolt Hexhd Washer 5/16-18 X 1.00 HUS-585217501

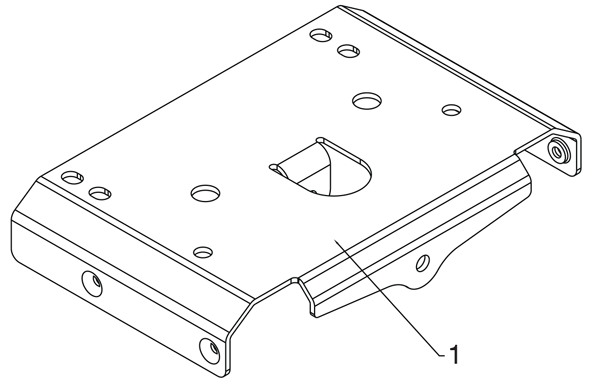

Jonsered ST2376EP

...
...
1
Large Mounting Plate HUS-585546002

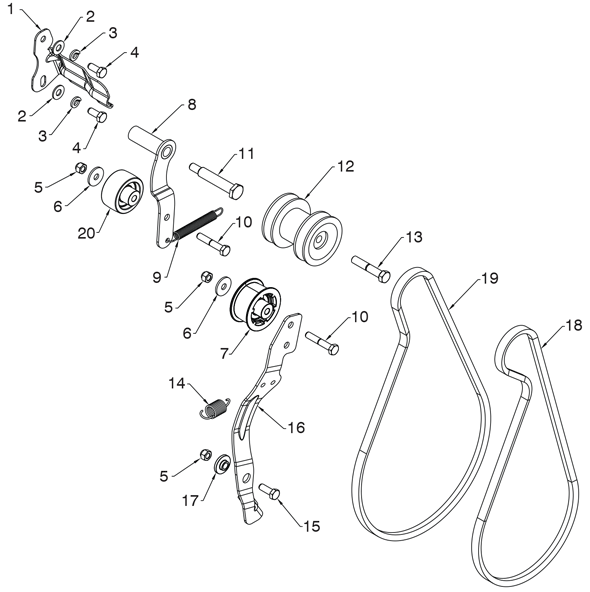

Jonsered ST2376EP

...
...
1
Belt Keeper Bracket HUS-581623702
...
2
Washer 11/32 X 3/4 X 16 Ga HUS-819111216
...
3
Lock Washer 5/16 Split Hvy HUS-810040500
...
4
Capscrew Hexhd 5/16-24 X .75 Gr5 HUS-874610512
...
5
Nut Nylock 5/16-18 Unc HUS-873800500
...
6
Washer Flat .328 X 1.00 X .097 HUS-532059289
...
7
Pulley Idler 2.0 With Spacer HUS-581141401
...
8
Idler Arm Weldment Drive HUS-581338202
...
9
Return Spring Idler Arm Drive HUS-580753001
...
10
Bolt Hexhd 5/16-18 X 1.75 HUS-874760528
...
11
Shoulder Bolt 5/16-24 X 2.15 HUS-581413801
...
12
Impeller/Drive Pulley Assembly HUS-587462901
...
13
Bolt Hexhd 3/8-24 Gr8 HUS-532179617
...
14
Return Spring Idler Arm HUS-587031201
...
15
Bolt Hexhd 5/16-18 X .875 HUS-874760514
...
16
Idler Arm HUS-580831104
...
17
Idler Bushing Pivot HUS-532175331
...
18
Auger Belt Hi Crank HUS-585829801
...
19
Drive Belt Hi Crank HUS-585829901
...
20
Pulley HUS-586880201

Jonsered ST2376EP

...
...

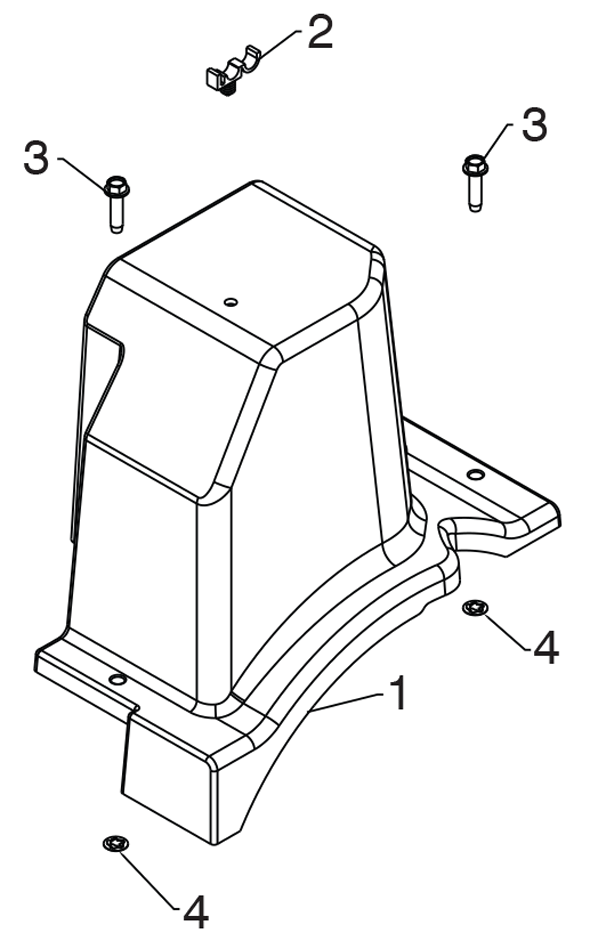

1
Belt Cover Hi Crank HUS-587105501
...
2
Cable Guide HUS-532145006
...
3
Bolt Hex Wsh Thdrl 1/4-20 X 1 HUS-585691101
...
4
Palnut 1/4 In HUS-532423062

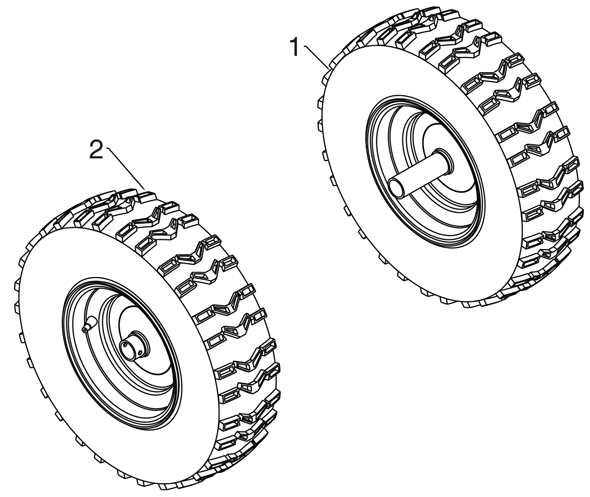

Jonsered ST2376EP

...
...
1
Wheel 16X4.80 Nps Lh 1.00 K478 HUS-532435786
...
2
Wheel 16X4.80 Nps Rh 1.00 K478 HUS-532435788

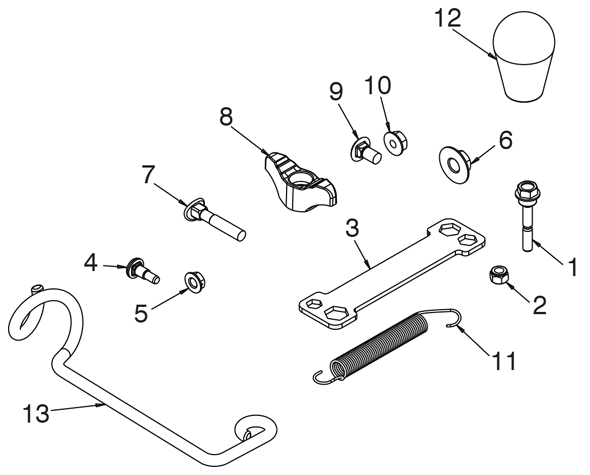

Jonsered ST2376EP

...
...
xx
Kit Replacement Bag Of Parts HUS-587421004
...
1
Bolt 1/4- 20 X 1.81 HUS-585511801
...
2
Nut Nylock 1/4-20 HUS-873800400
...
3
Wrench HUS-532429112
...
4
Bolt Shoulder HUS-585832201
...
5
Nut Hex Fl 1/4-20 Ctr HUS-585691401
...
6
Nut Nylock 3/8-16 HUS-585691001
...
7
Bolt 5/16-18 X 2.25 Concave HUS-587359001
...
8
Knob 5/16-18 Two Wing HUS-532191938
...
9
Bolt 5/16-18 X .625 HUS-585832001
...
10
Nut Serr Fl Lock 5/16-18 HUS-873970500
...
11
Spring Deflect Chute HUS-532184505
...
12
Knob Soft Touch Slotted HUS-581697501
...
13
Support Rotation Cable HUS-581897301

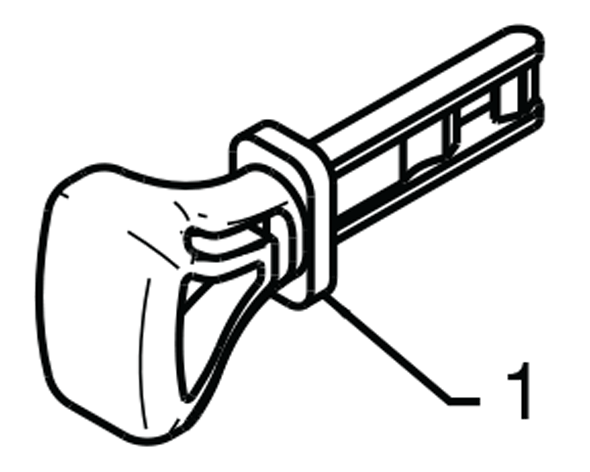

Jonsered ST2376EP

...
...
1
Safety Ignitionition Key Kit HUS-532443059

Jonsered ST2376EP

...
...
1
Decal Auger HUS-532184045
...
2
Decal Chute HUS-532199682
...
3
Decal Auger Safety HUS-532199683
...
4
Decal Belt Guide HUS-532184028
...
5
Decal Noise Level HUS-532180433

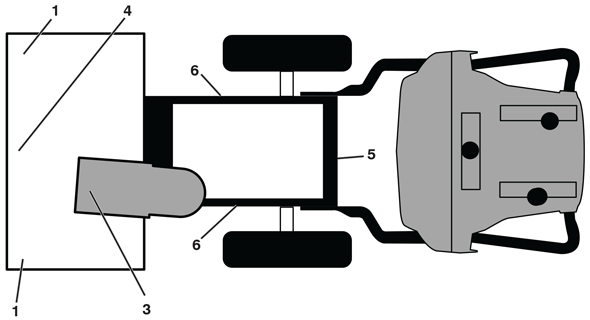

Jonsered ST2376EP

...
...
xx
Operator'sManual, Euro HUS-115685520
...
xx
Operator'sManual, Scan HUS-115685510
...
xx
Operator'sManual, Ebloc HUS-115685550
...
xx
Operator'sManual, Baltic HUS-115685540
...
1
Decal, Danger HUS-532199683
...
3
Decal, Danger, Deflector HUS-532199682
...
4
Decal, Auger HUS-532184045
...
5
Decal, Belt Guard HUS-532184028
...
6
Decal, Noise Level HUS-532180433

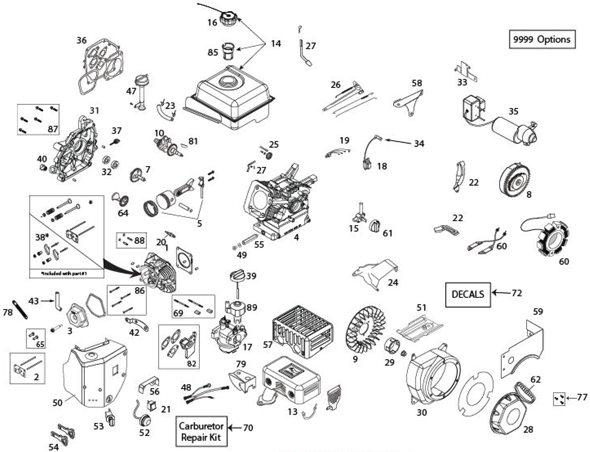

Jonsered ST2376EP

...
...
1
Cylinder Head Assembly - 291Cc (Incl. Gasket) HUS-532429254
...
2
Push Rod & Plate Kit (291Cc) (Incl. Valve Cover Gskt) HUS-532429613
...
3
Valve Cover (291/414Cc) (Incl. Gasket) HUS-532429303
...
4
Cylinder Assembly-Snow HUS-587142501
...
5
Piston & Rod Assembly (291Cc) HUS-532429258
...
6
Connecting Rod Assembly (291Cc) HUS-587142601
...
7
Camshaft - Mcr (291Cc) HUS-532429253
...
8
Flywheel - Electric Start (5-Charging Magnets)(291Cc) HUS-532443895
...
9
Coollng Fan - Flywheel (Plastic - 291Cc) HUS-532429238
...
10
Crankshaft (18 Keyed 291Cc Snow) HUS-871244501
...
13
Muffler Assembly-Snow HUS-587124701
...
14
Fuel Tank (291Cc-Snow)(3.6L Black W/Plastic Cap) HUS-532434889
...
15
Fuel Tank On/Off Valve -Gen Ii Snow HUS-532429234
...
16
Fuel Tank Cap - Black Plastic (Vented) (Same As Sksn0301.1) HUS-532429211
...
17
Carburetor (L11) 291Cc Snow) (W/Gskts & Spacer) HUS-587104601
...
18
Ignitionition Coil (Cdi) (291-414Cc)(Hi-Temp) HUS-532443897
...
20
Spark Plug (Same As Sk2083810.1) HUS-532429255
...
21
On/Off Switch - Rocker (Same As Sksn0403.1) HUS-532429223
...
22
Shield - Flywheel (414Cc Snow) HUS-532429232
...
23
Fuel Hose Kit (229Mm) HUS-532432146
...
24
Speed Control Bracket (Fixed) HUS-532435579
...
25
Governor Gear Assembly HUS-532429292
...
26
Governor Arm & Link Kit (291Cc Snow) HUS-532429248
...
27
Governor Arm Paddle HUS-532429250
...
28
Recoil Starter - Black 291Cc Snow HUS-532429226
...
29
Starter Cup - 291Cc Snow HUS-532429227
...
30
Blower Housing - Black Es (291Cc Snow) HUS-587142701
...
31
Crankcase Cover Assembly (Hoft & 2-Low Fills) HUS-532429241
...
32
Oil Seal Kit (291Cc) HUS-532429283
...
33
Electric Starter Switch Box Bracket - 291Cc Snow HUS-587142801
...
34
Spark Plug Boot - With Metal Shield (Snow) HUS-532436966
...
35
230V Electric Starter (291Cc) HUS-532437463
...
36
Engine Gasket Kit (291Cc) HUS-532429615
...
37
Small Black Oil Dipstick (Plastic) HUS-532435534
...
38
Rocker Arm Kit (291/414Cc)(Incl. Gasket) HUS-532429612
...
39
Choke Control Knob (Gen Ii Red) HUS-532429224
...
40
Non-Removable Plastic Plug (291/414Cc) HUS-532429242
...
42
Cdi Box Bracket-Snow HUS-532429257
...
43
Breather Tube (291/414Cc) HUS-580353801
...
47
High Oil-Fill Tube & Cap (No Dipstick) HUS-587139801
...
48
Wire Harness (414Cc Snow) HUS-532429284
...
49
Oil Drain Plug W/Washer (291/414Cc) HUS-532435494
...
50
Heater Box Kit (291Cc Snow) HUS-532429206
...
51
Shield - Cylinder (291/414Cc Snow) HUS-532429231
...
52
Primer Bulb With Hose-Snow (Same As Sksn0304.1) HUS-532429218
...
53
Safety Key Switch W/Keys (Same As Sksn0401.1) HUS-532429221
...
54
Key Set - Red (2) (Snow) HUS-532443059
...
55
Oil Drain Tube-Snow (291/414Cc) HUS-587139901
...
56
Carburetor Vapor Shield - 414Cc Snow HUS-532429213
...
57
Ce Compllant Muffler Shield (291Cc) HUS-532437464
...
58
Shield - Governor Linkage -Snow HUS-532429225
...
59
Fuel Tank Skirt (291Cc Snow) HUS-532429287
...
60
Charging Coil (60-Watt Ac) (291/414Cc) HUS-532443896
...
61
Fuel Control Knob (Gen Ii Snow - Red) HUS-532432752
...
62
Starter Grip-Snow (Deluxe) HUS-532443899
...
65
Tappet Kit (291/414Cc) (Set Of 2) HUS-581372901
...
69
Carburetor Mtg Stud Kit (2) (291Cc Snow) HUS-586326601
...
70
Carburetor Repair Kit (291/414Cc) HUS-580353701
...
77
Recoil Bolt Kit (Incl. (3) Mtg Bolts) HUS-532432688
...
81
Woodruff Flywheel Key (5-Pack) (4X6X18Mm) HUS-585297202
...
82
Carburetor Spacer (291Cc) HUS-585020502
...
85
Fuel Tank Strainer HUS-586325601
...
86
Cylinder Head Bolt Kit (4) (291-414Cc) HUS-586327401
...
87
Cc Cover Bolt Kit (7)(291Cc) HUS-586327201
...
88
Muffler Mtg Stud Kit (2) HUS-586326801
...
89
Idle Speed Control Knob HUS-587124801
...
9999
High Altitude Jet (>5,000Feet)(291Cc L11 Carburetor) HUS-586326401
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
