Jonsered 96191002106 Snow Thrower ST2109E

Model: 96191002106

Save Part Not Listed?
product name

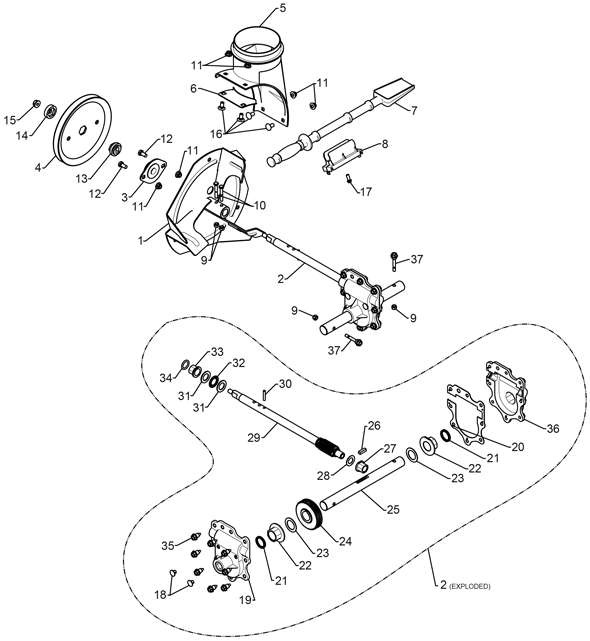

Jonsered 96191002106

...
...
1
Impeller HUS-532184105
...
2
Gearbox Assembly HUS-532427148
...
3
Bearing HUS-532188909
...
4
Impeller Pulley HUS-532427146
...
5
Discharge Base HUS-532175322
...
6
Corner Bracket HUS-532178675
...
7
Clean Out Tool HUS-532192199
...
8
Tool Clip HUS-532405400
...
9
Nut 1/4-20 HUS-873800400
...
10
Screw 1/4-20 X .625 HUS-874780426
...
11
Nut 5/16-18 HUS-532427942
...
12
Screw 5/16-18 X .625 HUS-532163183
...
13
Impeller Hub HUS-532427145
...
14
Impeller Sleeve HUS-532427154
...
15
Nut 3/8-16 HUS-873900600
...
16
Carriage Bolt HUS-532180355
...
17
Screw 13-16 X .625 HUS-532194189
...
18
Plug HUS-532407760
...
19
Gearbox Cover Rh HUS-532427302
...
20
Gasket HUS-532427345
...
21
Seal HUS-532407770
...
22
Bearing HUS-532407762
...
23
Thrust Washer 1.00 HUS-532174697
...
24
Worm Gear HUS-532407763
...
25
Auger Shaft HUS-532407764
...
26
Square Key HUS-532189282
...
27
Bearing HUS-532407758
...
28
Thrust Washer HUS-532174683
...
29
Impeller Shaft HUS-532427147
...
30
Roll Pin HUS-532184205
...
31
Thrust Washer HUS-532174681
...
32
Thrust Bearing HUS-532174684
...
33
Bearing HUS-532407769
...
34
O-Ring HUS-532407768
...
35
Screw 5/16-18 X .750 HUS-532407767
...
36
Gearbox Cover Lh HUS-532427317
...
37
Shear Bolts HUS-532192090

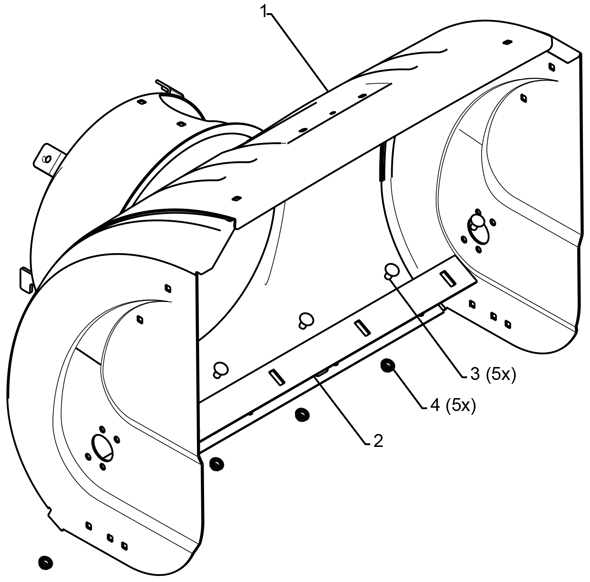

Jonsered 96191002106

...
...
1
Auger Housing 27 HUS-532415605
...
2
Scraper Bar HUS-532407727
...
3
Carriage Bolt 5/16?18 X .625 HUS-872270505
...
4
Nut 5/16?18 HUS-532155377

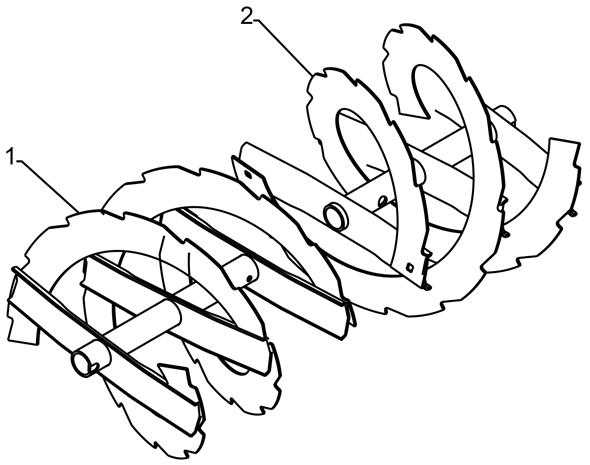

Jonsered 96191002106

...
...
1
Auger 27 Lh HUS-532421135
...
2
Auger 27 Rh HUS-532421123

Jonsered 96191002106

...
...
1
Plastic Retainer HUS-532424020
...
2
Auger Ball Bearing HUS-532427762
...
3
Screw 5/16-18 X 1.00 HUS-532179582
...
4
Screw 1/4-20 X .625 HUS-874780426
...
5
Nut 1/4-20 HUS-873800400

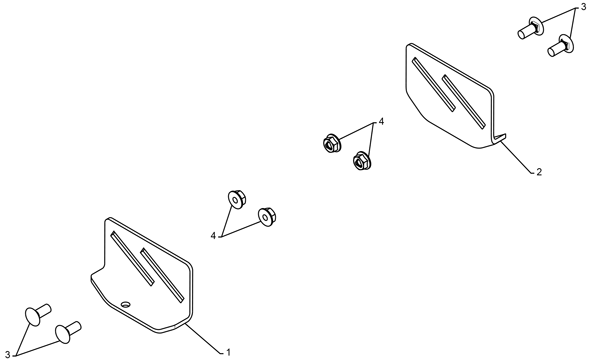

Jonsered 96191002106

...
...
1
Skid Plate Lh HUS-532184093
...
2
Skid Plate Rh HUS-532184094
...
3
Carriage Bolt 5/16?18 X .75 HUS-872270506
...
4
Nut 5/16?18 HUS-532751153

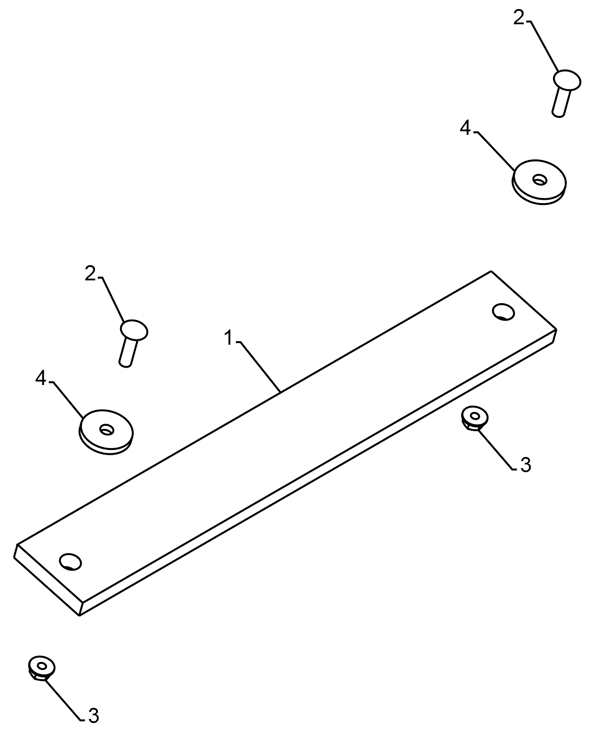

Jonsered 96191002106

...
...
1
Weight Bar HUS-532182515
...
2
Carriage Bolt 5/16?18 X 1.25 HUS-872110510
...
3
Nut 5/16?18 HUS-532751153
...
4
Washer HUS-819112206

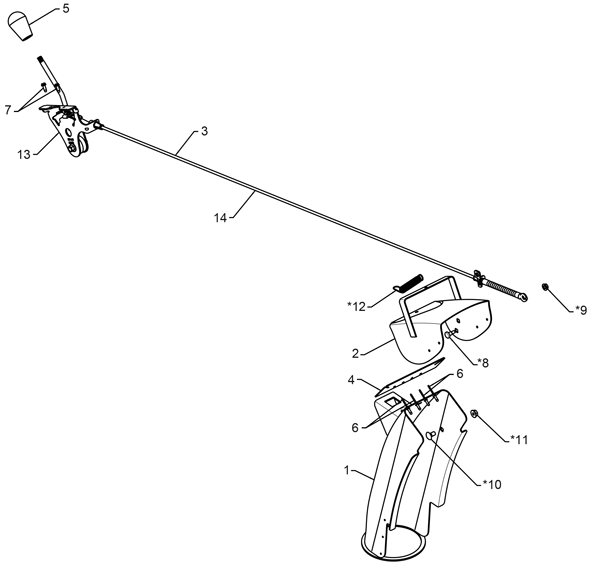

Jonsered 96191002106

...
...
1
Chute Weldment HUS-532430000
...
2
Deflector Weldment HUS-532184534
...
3
Deflector Control Assembly HUS-532420673
...
4
Deflector Seal HUS-532420325
...
5
Knob Black HUS-532414280
...
6
Pop Rivet HUS-532128415
...
7
Screw 10-24 X .625 HUS-817501010
...
8
Shoulder Screw HUS-532179829
...
9
Nut 1/4-20 HUS-532191730
...
10
Carriage Bolt 5/16-18 X .50 HUS-872250505
...
11
Nut 5/16-18 HUS-532751153
...
12
Deflector Spring HUS-532184505
...
13
Deflector Control Head HUS-532420679
...
14
Deflector Control Cable HUS-532420672

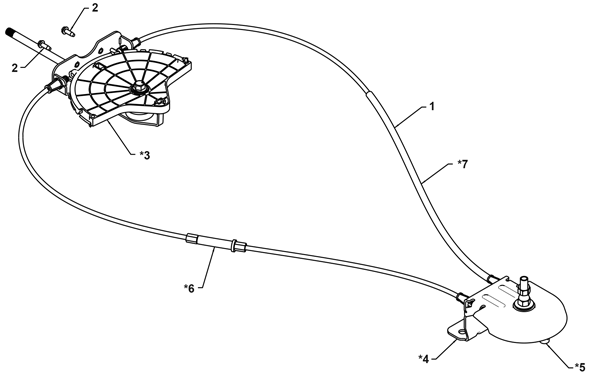

Jonsered 96191002106

...
...
1
Lever/Cable Rotator Assembly HUS-532428272
...
2
Screw 10-24 X .625 HUS-817501010
...
3
Rotator Head HUS-532420678
...
4
Rotator Pivot Bracket HUS-532405932
...
5
Pulley Pivot HUS-532420675
...
6
Cable Assembly Adjustable HUS-532428273
...
7
Cable Assembly Heat Shield HUS-532428310

Jonsered 96191002106

...
...
1
Steer Cable HUS-532188303
...
2
Screw 10?24 X 1.50 HUS-874041024

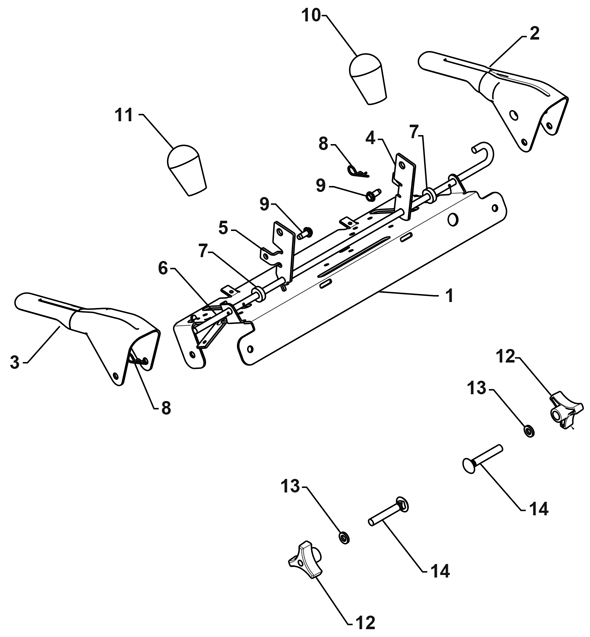

Jonsered 96191002106

...
...
1
Control Panel HUS-532415539
...
2
Control Lever Lh HUS-532428859
...
3
Control Lever Rh HUS-532428860
...
4
Traction Rod Arm HUS-532429097
...
5
Impeller Rod Arm HUS-532429098
...
6
Interlock Rod HUS-532412677
...
7
Spacer HUS-532421613
...
8
Retainer HUS-532169675
...
9
Screw 1/4-20 X .62 HUS-817060410
...
10
Knob Black HUS-532414280
...
11
Knob Red HUS-532414281
...
12
Handle Knob HUS-532178899
...
13
Washer 3/8 HUS-819131316
...
14
Carriage Bolt 3/8-16 X 2.25 HUS-872120618

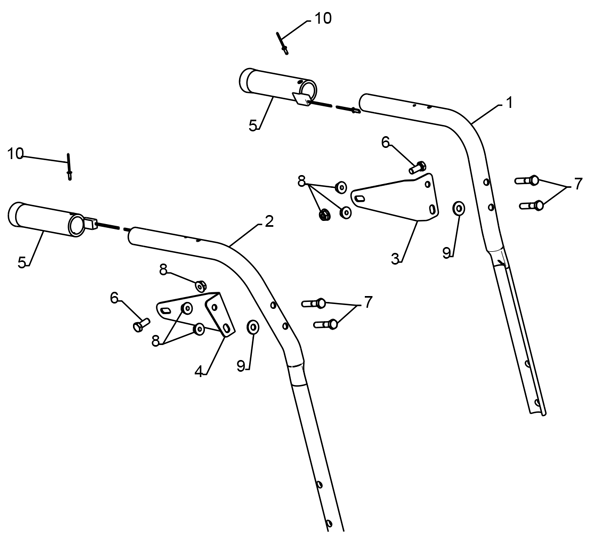

Jonsered 96191002106

...
...
1
Plow Handle Lh HUS-532421069
...
2
Plow Handle Rh HUS-532421070
...
3
Panel Bracket Lh HUS-532196944
...
4
Panel Bracket Rh HUS-532196943
...
5
Heated Handle Grip HUS-532414515
...
6
Crew 5/16?18 X .750 HUS-874780512
...
7
Screw 5/16?18 X 1.50 HUS-874780524
...
8
Nut 5/16?18 HUS-532751153
...
9
Washer HUS-532155415
...
10
Pop Rivet 1/8 HUS-532178775

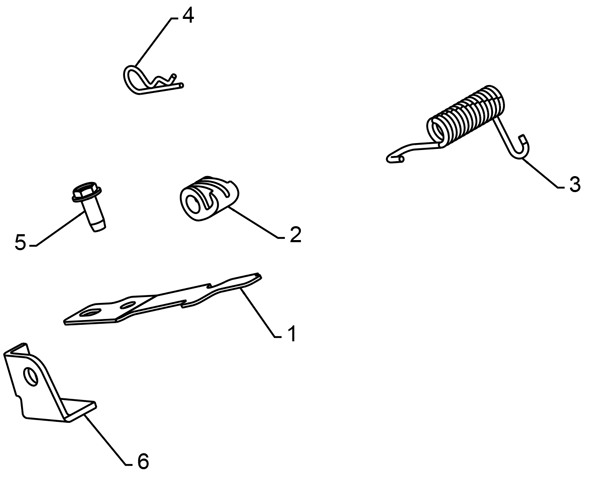

Jonsered 96191002106

...
...
1
Interlock Spring HUS-532416288
...
2
Interlock Cam HUS-532414572
...
3
Torsion Spring HUS-532178831
...
4
Retainer HUS-532169675
...
5
Screw 1/4?20 X .625 HUS-817060410
...
6
Interlock Stop HUS-532421814

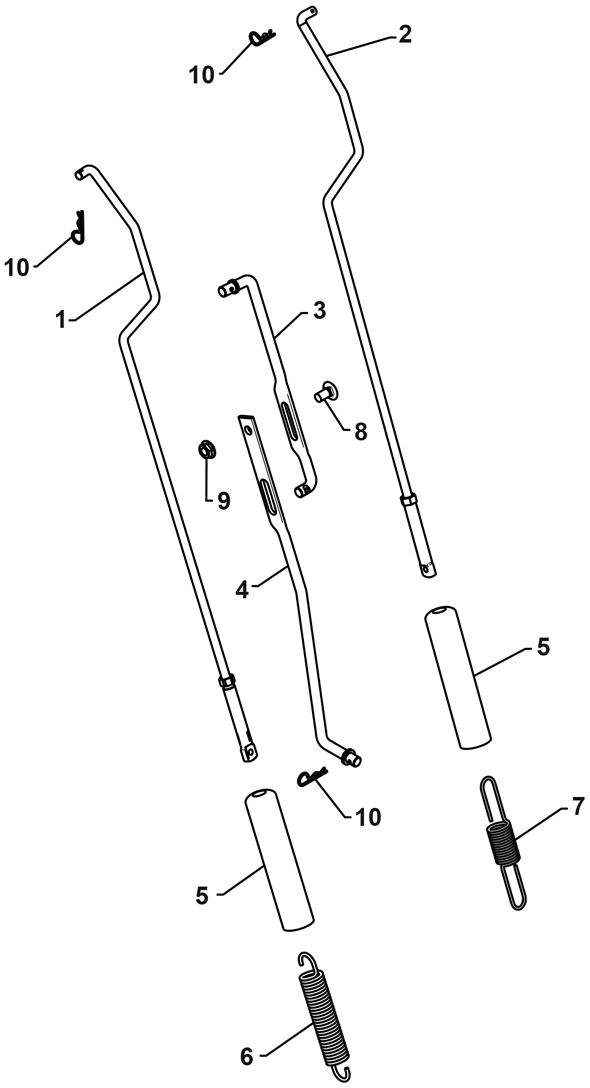

Jonsered 96191002106

...
...
1
Impeller Rod Assembly HUS-532180480
...
2
Traction Rod Assembly HUS-532405740
...
3
Shifter Rod Top HUS-532180445
...
4
Shifter Rod Bottom HUS-532187716
...
5
Spring Sleeve HUS-532180447
...
6
Impeller Spring HUS-532178669
...
7
Traction Spring HUS-532180926
...
8
Carriage Bolt 5/16-18 X .75 HUS-872270505
...
9
Nut 5/16-18 HUS-532155377
...
10
Retainer HUS-532169675

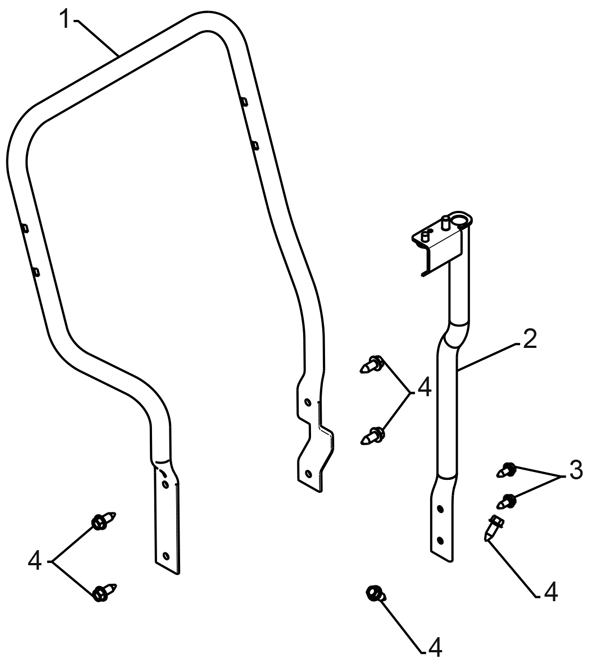

Jonsered 96191002106

...
...
1
Lower Tube HUS-532421059
...
2
Pivot Support HUS-532422117
...
3
Bolt 5/16-18 X .750 HUS-532428867
...
4
Screw 3/8-16 X 1.00 HUS-817000616

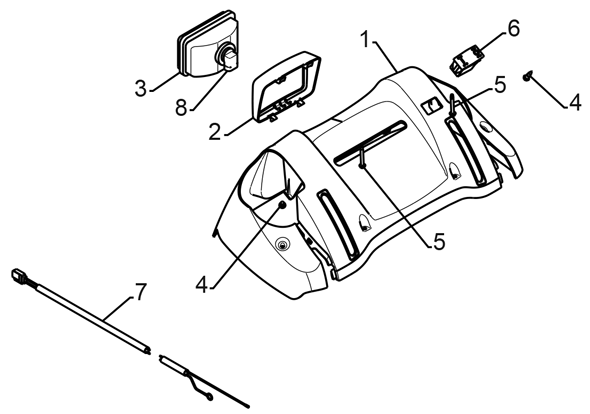

Jonsered 96191002106

...
...
1
Console Panel Black HUS-532413927
...
2
Headlight Bezel HUS-532178668
...
3
Halogen Headlight HUS-532178666
...
4
Shoulder Screw 10-24 X .625 HUS-532184471
...
5
Screw 10-24 X 1.25 HUS-532175262
...
6
Grip Switch HUS-532417760
...
7
Wire Harness HUS-532405699
...
8
Bulb HUS-532401620

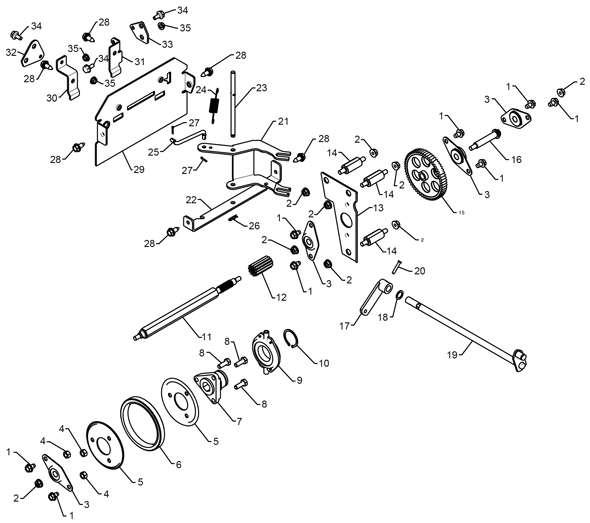

Jonsered 96191002106

...
...
1
Bolt 5/16-18 X .500 HUS-817490508
...
2
Nut 5/16-18 HUS-532751153
...
3
Flange Bearing HUS-532180017
...
4
Nut 5/16-18 HUS-873930500
...
5
Rubber Wheel Plate HUS-532199509
...
6
Rubber Wheel Ring HUS-532179831
...
7
Rubber Wheel Hub HUS-532178613
...
8
Bolt 5/16-18 X .875 HUS-874760514
...
9
Trunnion Bearing Assembly HUS-532175344
...
10
Retainer HUS-812000012
...
11
Hex Shaft HUS-532180066
...
12
Pinion Gear HUS-532180065
...
13
Auxiliary Plate HUS-532192907
...
14
Spacer Plate HUS-532179270
...
15
Intermediate Gear HUS-532180082
...
16
Auxiliary Shaft HUS-532180134
...
17
Control Arm HUS-532405485
...
18
Washer HUS-532057079
...
19
Control Shaft Assembly HUS-532427542
...
20
Clevis Pin HUS-532198580
...
21
Shifter Lever HUS-532184080
...
22
Pivot Bracket HUS-532187857
...
23
Pivot Pin HUS-532178807
...
24
Spring HUS-532180135
...
25
Shifter Link HUS-532187101
...
26
Retainer HUS-532085179
...
27
Clip HUS-532700279
...
28
Screw 5/16-18 X .750 HUS-532428867
...
29
Rear Plate HUS-532417539
...
30
Shifter Plate Bracket HUS-532415433
...
31
Clutch Plate Bracket HUS-532416864
...
32
Shifter Plate HUS-532415450
...
33
Clutch Plate HUS-532415435
...
34
Shoulder Bolt 1/4-20 X .500 HUS-532402881
...
35
Nut 1/4-20 HUS-532191730

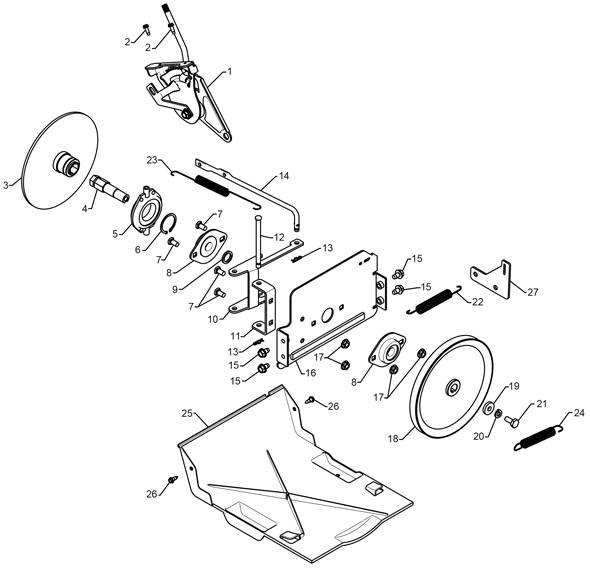

Jonsered 96191002106

...
...
1
Speed Selector Head Assembly HUS-532198875
...
2
Screw 10-24 X .625 HUS-817501010
...
3
Drive Plate Weldment HUS-532197763
...
4
Hex Shaft HUS-532197764
...
5
Trunnion Bearing Assembly HUS-532175344
...
6
Retainer HUS-812000012
...
7
Carriage Bolt 5/16-18 X .625 HUS-872270505
...
8
Flange Bearing HUS-532188909
...
9
Spacer HUS-532182504
...
10
Lever Shifter Plate HUS-532184077
...
11
Shifter Support Bracket HUS-532184076
...
12
Pin HUS-532178695
...
13
Retainer HUS-532085179
...
14
Clutch Rod HUS-532403300
...
15
Bolt 5/16-18 X .500 HUS-817490508
...
16
Drive Mount Plate HUS-532184075
...
17
Nut 5/16-18 HUS-532155377
...
18
Traction Pulley HUS-532191080
...
19
Washer HUS-819111507
...
20
Lockwasher 5/16 HUS-810040500
...
21
Screw 5/16-18 X .750 HUS-874950512
...
22
Traction Spring HUS-532414557
...
23
Return Spring HUS-532179095
...
24
Brake Spring HUS-532178828
...
25
Bottom Pan HUS-532410877
...
26
Screw 10-24 X .625 HUS-532184471
...
27
Traction Spring Bracket HUS-532416682

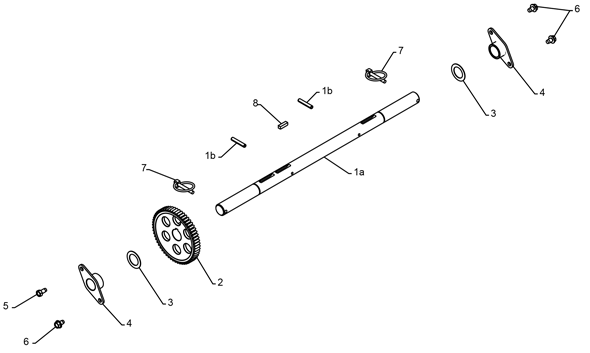

Jonsered 96191002106

...
...
1
(Assembly Of 1A,1B) Axle Assembly HUS-532404923
...
1a
Axle Shaft HUS-532404307
...
1b
Roll Pin 3/16 HUS-532184206
...
2
Gear HUS-532180081
...
3
Thrust Washer HUS-532174697
...
4
Axle Bearing HUS-532179830
...
5
Screw 5/16?18 X .625 HUS-532146315
...
6
Bolt 5/16?18 X .500 HUS-817490508
...
7
Clik Pin HUS-532155443
...
8
Square Key HUS-532189282

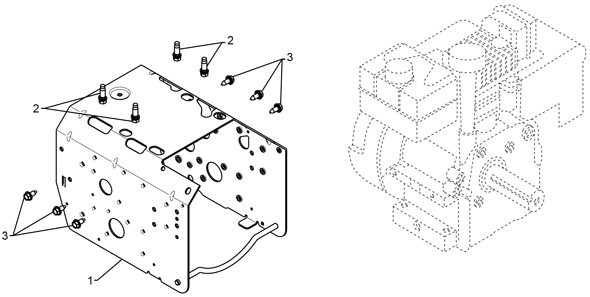

Jonsered 96191002106

...
...
1
Frame HUS-532429096
...
2
Bolt 3/8-16 HUS-532150406
...
3
Screw 5/16-18 X .750 HUS-532428867

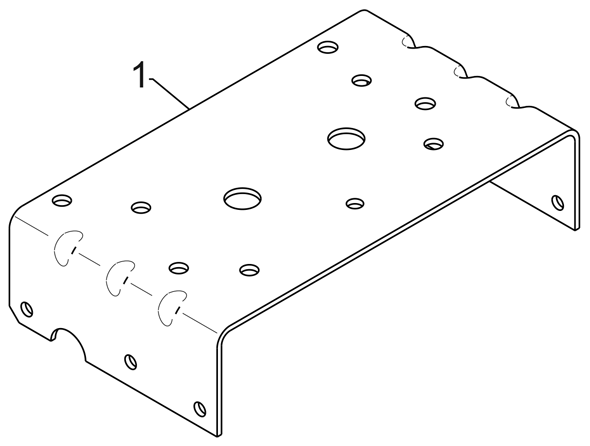

Jonsered 96191002106

...
...
1
Engine Mounting Plate HUS-532423873

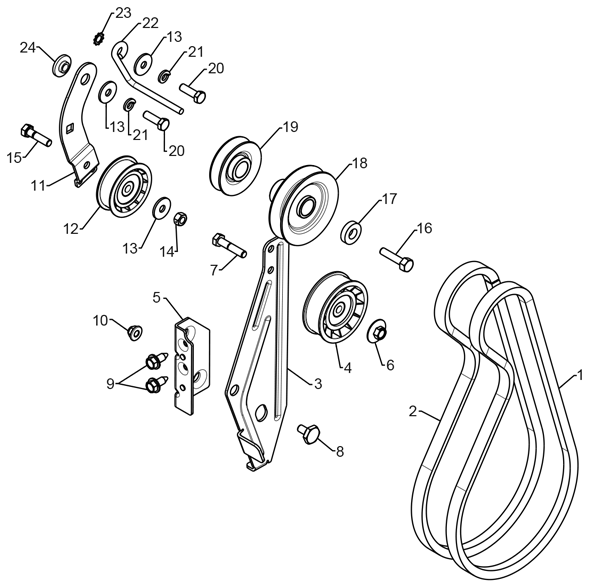

Jonsered 96191002106

...
...
1
Impeller Belt HUS-532408019
...
2
Traction Belt HUS-532419744
...
3
Idler Arm Bracket HUS-532423723
...
4
Idler Pulley HUS-532430846
...
5
Idler Arm Bracket HUS-532423990
...
6
Nut 5/16-18 HUS-532426589
...
7
Screw 5/16-18 X 1.50 HUS-874780524
...
8
Shoulder Bolt 5/16-18 X .50 HUS-532424297
...
9
Screw 5/16-18 X .625 HUS-532428867
...
10
Nut 5/16-18 Nylock HUS-532427942
...
11
Traction Idler Bracket HUS-532187786
...
12
Traction Pulley HUS-532180522
...
13
Washer HUS-532059289
...
14
Nut 5/16-18 HUS-873800500
...
15
Screw 5/16-18 X 1.25 HUS-874780520
...
16
Screw 3/8-24 X 1.375 HUS-532851084
...
17
Washer HUS-532400026
...
18
Pulley Eng Impeller HUS-532426492
...
19
Pulley Eng Traction HUS-532426490
...
20
Screw 5/16-24 X 1.00 HUS-874610516
...
21
Lockwasher 5/16 HUS-810040500
...
22
Belt Guide HUS-532155452
...
23
Lockwasher 5/16 HUS-811050500
...
24
Idler Bushing HUS-532175331

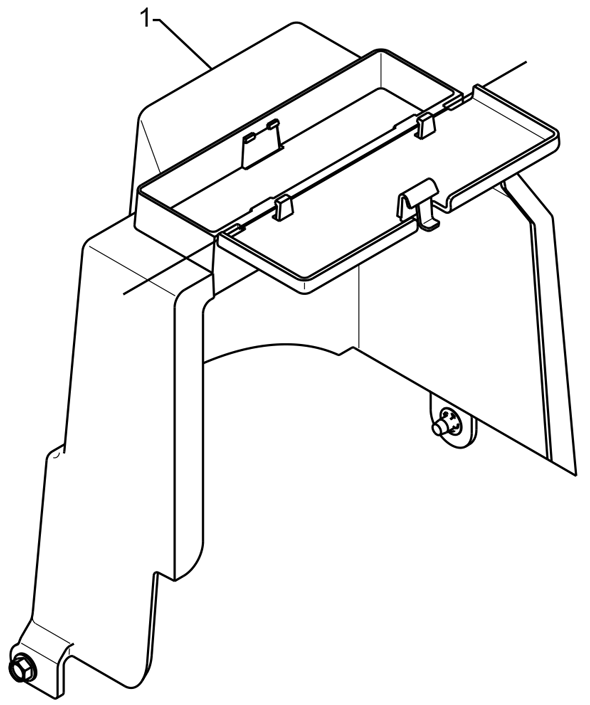

Jonsered 96191002106

...
...
1
Cover Assembly HUS-532428684

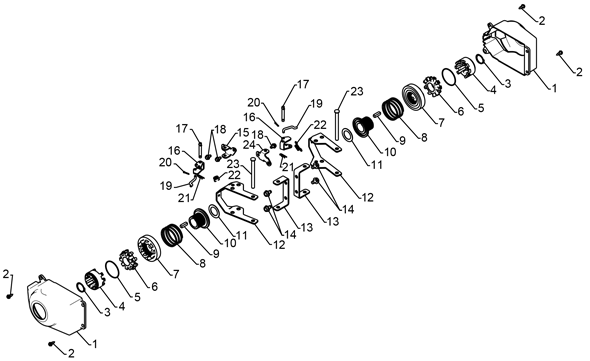

Jonsered 96191002106

...
...
1
Cover HUS-532405161
...
2
Shoulder Screw HUS-532184471
...
3
Retainer Ring HUS-812000045
...
4
Wheel Driver HUS-532192126
...
5
Retainer Ring HUS-532182466
...
6
Wheel Lobe HUS-532187622
...
7
Clutch Slide HUS-532194941
...
8
Spring HUS-532179139
...
9
Square Key HUS-532189282
...
10
Axle Lobe HUS-532194940
...
11
Thrust Washer HUS-532174697
...
12
Steering Yoke HUS-532199519
...
13
Steering Bracket HUS-532184197
...
14
Screw 5/16?18 X .50 HUS-817490508
...
15
Pivot Bracket HUS-532199511
...
16
Bellcrank HUS-532199518
...
17
Bellcrank Pin HUS-532181847
...
18
Screw 1/4?20 X .375 HUS-817600406
...
19
Steering Link HUS-532405077
...
20
Retainer HUS-532700279
...
21
Retainer HUS-532085179
...
22
Spring HUS-532193885
...
23
Lever Pin HUS-532182015
...
24
Pivot Bracket HUS-532199512

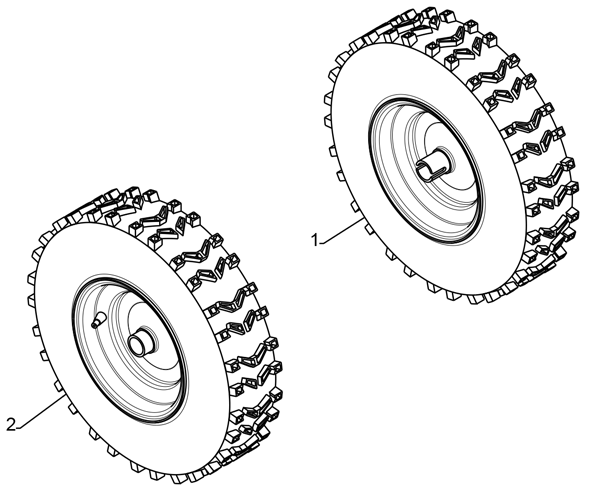

Jonsered 96191002106

...
...
1
Wheel 16 X 4.80 X Lh HUS-532199501
...
2
Wheel 16 X 4.80 X Rh HUS-532199502

Jonsered 96191002106

...
...
1
Steer Cable Bracket Lh HUS-532415263
...
2
Steer Cable Bracket Rh HUS-532187859

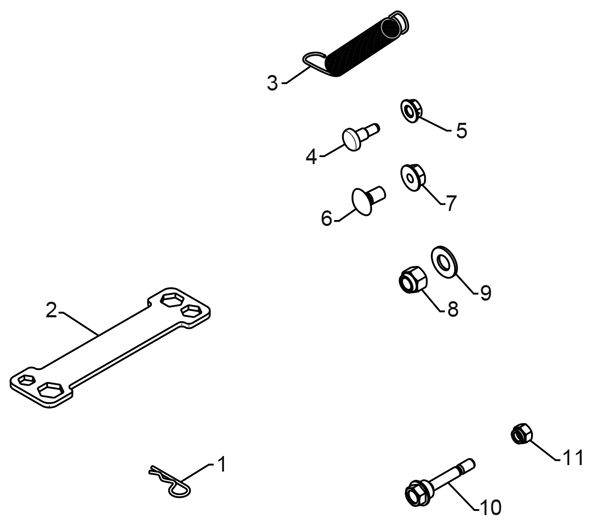

Jonsered 96191002106

...
...
1
Retainer Pin HUS-532169675
...
2
Wrench HUS-532429112
...
3
Remote Spring HUS-532184505
...
4
Shoulder Bolt 1/4?20 HUS-532179829
...
5
Locknut 1/4?20 HUS-532191730
...
6
Carriage Bolt 5/16?18 X 5/8 HUS-872250505
...
7
Locknut 5/16?18 HUS-532751153
...
8
Locknut 3/8?16 HUS-873800600
...
9
Washer 3/8 HUS-819131316
...
10
Shear Bolt 1/4?20 X 1?3/4 HUS-532192090
...
11
Locknut 1/4?20 HUS-873800400

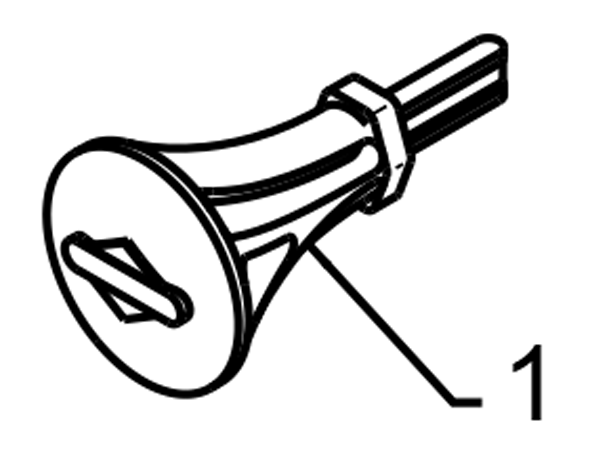

Jonsered 96191002106

...
...
1
Safety Ignitionition Key HUS-532193071

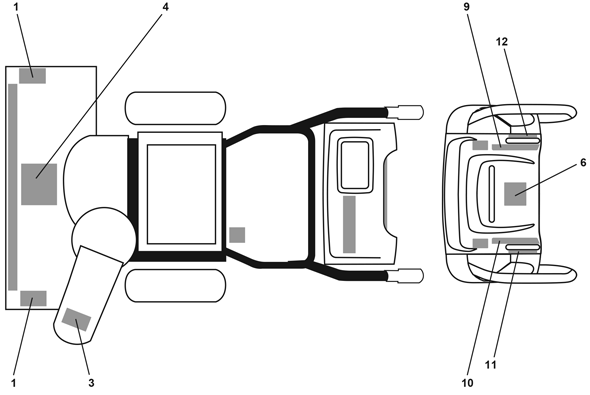

Jonsered 96191002106

...
...
xx
Operator'sManual, European HUS-532406035
...
xx
Operator'sManual, Scandinavian HUS-532406037
...
xx
Operator'sManual, East Bloc HUS-532406033
...
xx
Operator'sManual, Baltic HUS-532414568
...
1
Decal, Aug Safety Eu/Sc HUS-532199683
...
3
Decal, Danger, Deflector HUS-532199682
...
4
Decal, Danger HUS-532184045
...
6
Decal, Instruction HUS-532184030
...
9
Decal, Speed Control HUS-532415477
...
10
Decal, Remote Deflector HUS-532184031
...
11
Decal, Lh Trigger HUS-532415459
...
12
Decal, Rh Trigger HUS-532415460
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
