Husqvarna Rider 155 (2003-01) Ride Mower

Model: Rider 155 (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

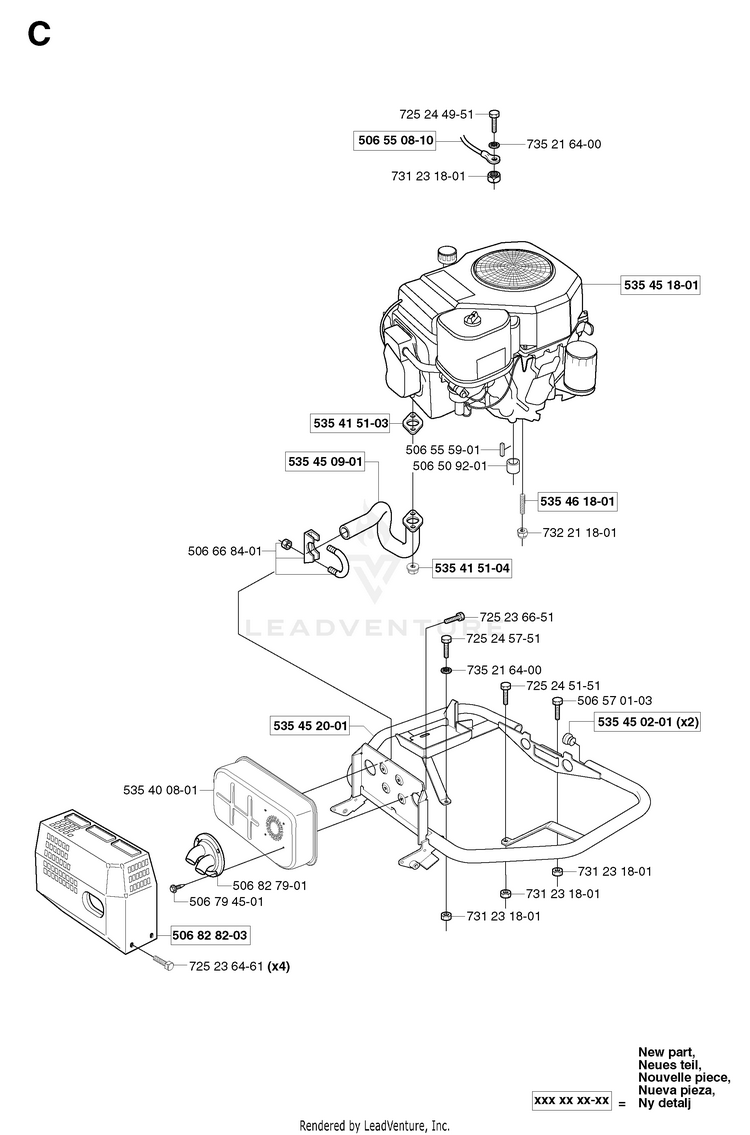

ENGINE

...
...
535 45 20-01
HAND GUARD HUS-535452001
...
506 66 84-01
CLAMP ASSY EXHAUST HUS-501152201
...
535 45 18-01
HUS-535451801
...
731 23 18-01
NUT HUS-731231801
...
506 55 59-01
KEY HUS-506555901
...
725 24 49-51
BOLT - M8X16 HUS-725244951
...
535 45 09-01
PIPE HUS-535450901
...
735 21 64-00
Washer HUS-735216400
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 50 92-01
SPACER HUS-506509201
...
725 24 57-51
SCREW HUS-725245751
...
535 45 02-01
PLUG HUS-535450201
...
535 46 18-01
STUD HUS-535461801
...
506 55 08-10
HUS-506550810
...
506 82 79-01
PIPE HUS-506827901
...
535 41 51-04
NUT HUS-535415104
...
535 41 51-03
EXHAUST GASKET HUS-535415103
...
506 57 01-03
BOLT HUS-506570103
...
725 23 66-51
SCREW HUS-725236651
...
506 79 45-01
SCREW HUS-506794501
...
725 24 51-51
SCREW 8X20 HUS-725245151
...
506 82 82-03
HUS-506828203
...
535 40 08-01
MUFFLER WITH DEFLECTOR HUS-584617401
...
725 23 64-61
SCREW HUS-725236461
