Husqvarna RIDER 15V2 AWD - 965200801 (2008-01) Riding Mower

Model: RIDER 15V2 AWD - 965200801 (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

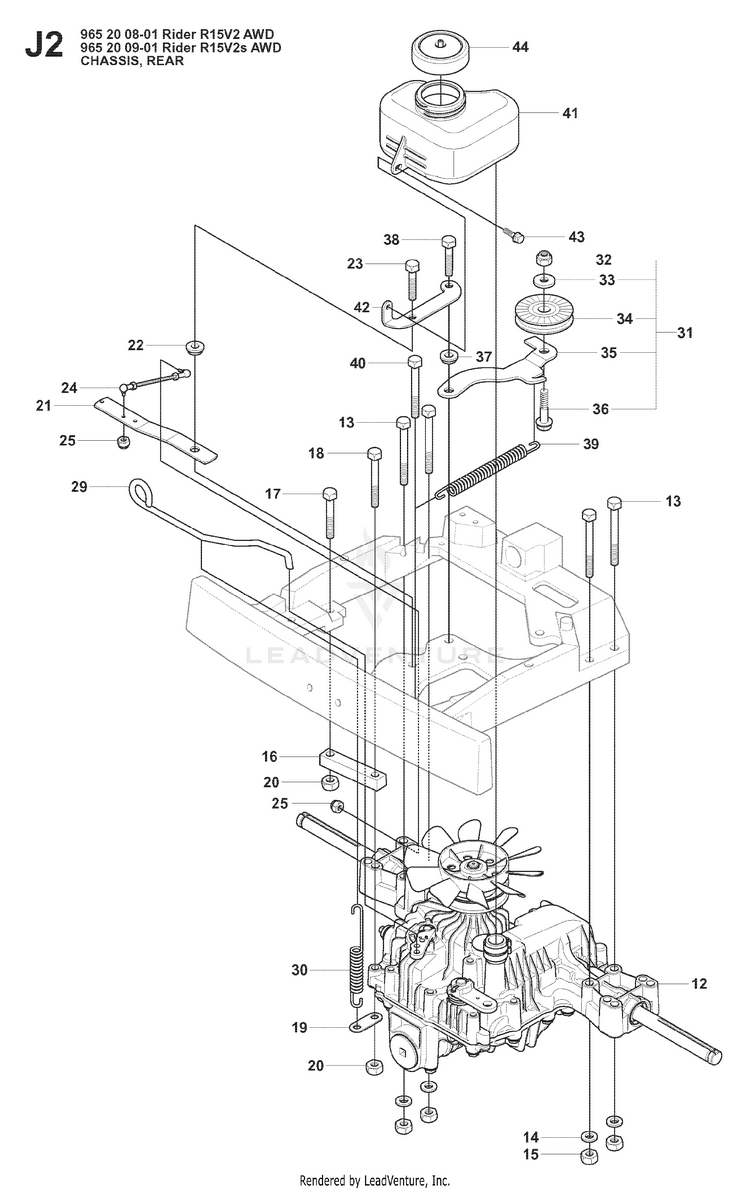

CHASSIS & ENCLOSURES 2

...
...
16
BRACKET HUS-506987201
...
22
Washers HUS-584288604
...
44
FUEL CAP HUS-506673301
...
19
CONNECTOR HUS-506599301
...
25
LOCKNUT M5 HUS-732211401
...
33
PULLEY HUS-506946901
...
15
NUT HUS-731231801
...
38
SCREW 8X20 HUS-725245151
...
17
SCREW HUS-725245951
...
12
NEEDS DESCRIPTION HUS-502633201
...
37
Washers HUS-584288604
...
34
SCREW HUS-725245551
...
24
ROD HUS-506987501
...
13
Hex Bolt HUS-725246751
...
23
SCREW 8X20 HUS-725245151
...
43
SCREW HUS-725236461
...
29
Rod HUS-506988201
...
40
SCREW HUS-725246451
...
41
EXPANSION TANK RIDER EXTENDED HUS-544100102
...
32
BELT TENSIONER ARM HUS-588740401
...
14
WASHER BRB 8.4X17 HUS-734116401
...
31
TENSIONER HUS-506988401
...
35
SPACER HUS-734116441
...
39
Springs HUS-594924101
...
36
LOCKNUT M8 HUS-732211801
...
12
TRANSMISSION K574A HUS-590716801
...
30
SPRING HUS-506834301
...
21
ARM HUS-506987403
...
42
BRACKET HUS-544121701
...
20
NUT HUS-731231801
...
18
SCREW HUS-725246251
