product name

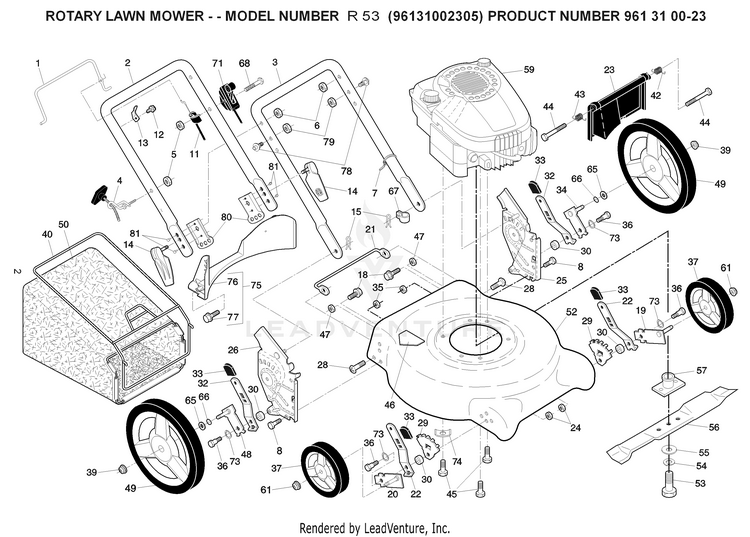

Husqvarna R53 - 96131002306 (2009-04) Walk Behind Mower

Model: R53 - 96131002306 (2009-04)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
29
BRACKET.ADJ.5POS.ADS HUS-532407494
...
43
SPRING.RH.22.REAR.DOOR.EZ. HUS-532405423
...
44
BOLT HUS-532184193
...
3
HANDLE.LOWER.ECON.PNT HUS-532417031
...
21
NEEDS DESCRIPTION HUS-532413543
...
55
WASHER,HARDEN HUS-532851074
...
68
SCREW HUS-532183365
...
18
SCREW 1/4X20 HUS-817600406
...
37
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
13
BRACKET.UPSTOP.RT HUS-532430034
...
67
CLIP.CABLE.BLK HUS-532197991
...
20
ARM.ASM.AXLE.5/9.POS.BZP HUS-532401175
...
57
ADAPTER.BLADE.W/KEY.25MM.CE HUS-532418373
...
40
FRAME.BAG.21.REAR.DOMED.PUSH HUS-532411949
...
59
B&S 122T02-1154-B1 FOR SERVICE & PARTS 1-800-233-3723 HUS-000000000
...
39
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
33
KNOB HUS-532087877
...
78
STUD.QUICK.ADJUST HUS-532199255
...
46
DECAL.CUTFINGER.CE.02 HUS-581579101
...
71
NEEDS DESCRIPTION HUS-532420612
...
15
HAIRPIN COTTER HUS-532051793
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
34
ARM.ASM.AXLE..LR.5/9.POS.BZP HUS-532401176
...
26
RP BRACKET.ASM.HAND.HW.21.RT.O HUS-532446562
...
49
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
53
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
80
BRACKET.ADJ.3POS.GREY HUS-532413534
...
12
SCREW HUS-532750634
...
19
ARM.ASM.AXLE.5/9.POS. HUS-532401174
...
77
SCREW.HX.13X.750 HUS-817411312
...
24
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
28
SCREW HUS-532054583
...
25
BRACKET.ASM.HAND.HW.21.LT.ORNG HUS-580915605
...
1
BAIL.MZR.STD.ORANGE HUS-532402949
...
66
O-RING..070X.487.NEOPRENE HUS-532197480
...
14
HANDLE KNOB ASM,QUICK REL BLK HUS-532432018
...
8
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
75
KIT.BAFFLE.REAR.PLASTIC.21.RD HUS-532413693
...
73
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
2
HUS-532420829
...
22
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
81
RIVET HUS-532199697
...
36
Hardware HUS-596203801
...
54
Washers HUS-596238701
...
23
DOOR.REAR.21.DOMED.498 HUS-581425601
...
-
DECAL.INTERN.4.SYMBOL.CURVED HUS-532182191
...
35
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
50
NEEDS DESCRIPTION HUS-532400070
...
6
NUT.HEX.FLANGE.1/4 HUS-532191730
...
45
BOLT 3/8-16X1-1/8 HUS-532150406
...
56
BLADE.21.PUSH HUS-532199377
...
42
SPRING.LH.22.REAR.DOOR.EZ.EMPT HUS-532405421
...
74
WASHER.ENGINE.BZP HUS-532125078
...
65
WASHER.FLAT.1/2 HUS-532088348
...
61
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
47
HUS-873751153
...
7
WIRE TIE HUS-532007192
...
11
CABLE.MZR.B&S.45.LT.PUSH HUS-532131994
...
52
KIT.HSG.21.PUSH.ORANGE.CE HUS-583344301
...
32
SPRING.SEL.EXT.21.DOMED.12/14 HUS-532401624
...
76
BAFFLE.REAR.PLASTIC.21.RD.ECON HUS-532410589
...
48
ARM.ASM.AXLE..RR.5/9.POS.BZP HUS-532401177
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
79
NUT.LOCK.5/16-18 HUS-532751153
...
30
SPACER.HEIGHT.ADJUSTER HUS-532401629
