Husqvarna P524 Riding Mower

Model: P524

Back To Assemblies

Save Part Not Listed?
product name

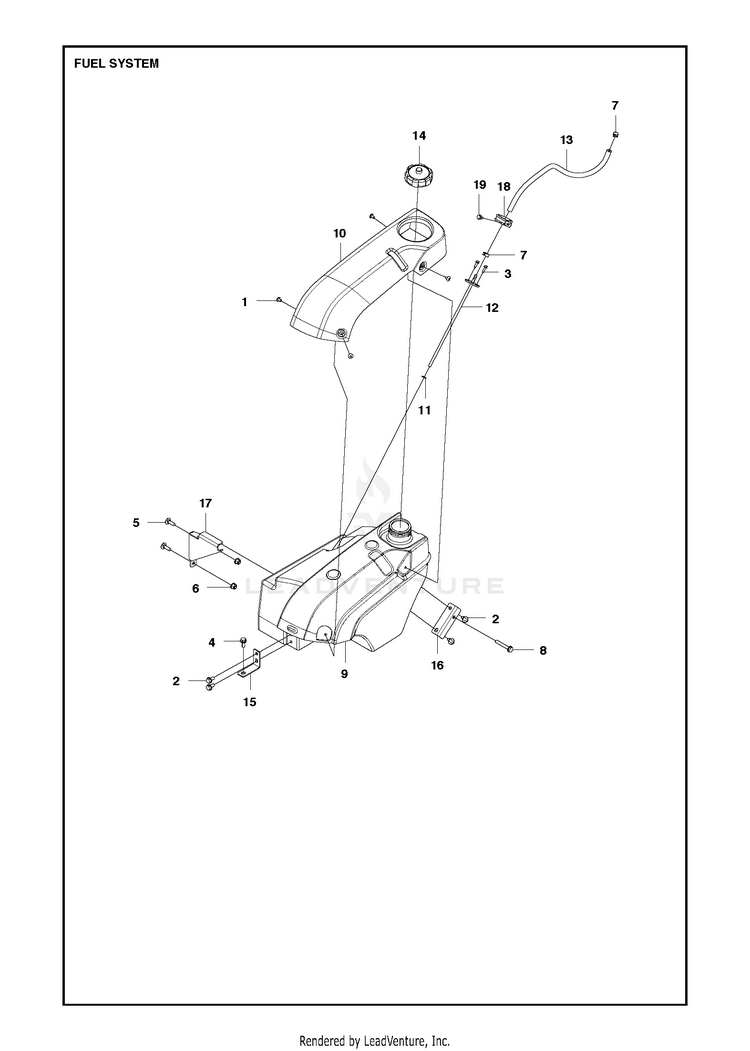

FUEL SYSTEM

...
...
12
NEEDS DESCRIPTION HUS-577008401
...
3
SCREW HUS-535415619
...
13
NEEDS DESCRIPTION HUS-504800004
...
18
HOSE CLAMP HUS-574531203
...
15
NEEDS DESCRIPTION HUS-576989801
...
11
HUS-740481202
...
7
CLAMP HUS-535469701
...
4
BOLT HUS-506570104
...
10
NEEDS DESCRIPTION HUS-577014301
...
9
NEEDS DESCRIPTION HUS-577000401
...
17
NEEDS DESCRIPTION HUS-576989701
...
6
NUT FLANGE HUS-576645704
...
19
SCREW EHHFM HUS-535475212
...
14
FUEL CAP HUS-506673301
...
16
NEEDS DESCRIPTION HUS-576989501
...
8
SCREW EHHFM HUS-506570107
...
1
NEEDS DESCRIPTION HUS-535425801
...
5
BOLT HUS-535423801
...
2
BOLT HUS-506570103
