Husqvarna CTH180 XP - HAUCT18H42A (2003-01) Riding Tractor

Model: CTH180 XP - HAUCT18H42A (2003-01)

Back To Assemblies
Save
 Part Not Listed?Part Not Listed?
product name

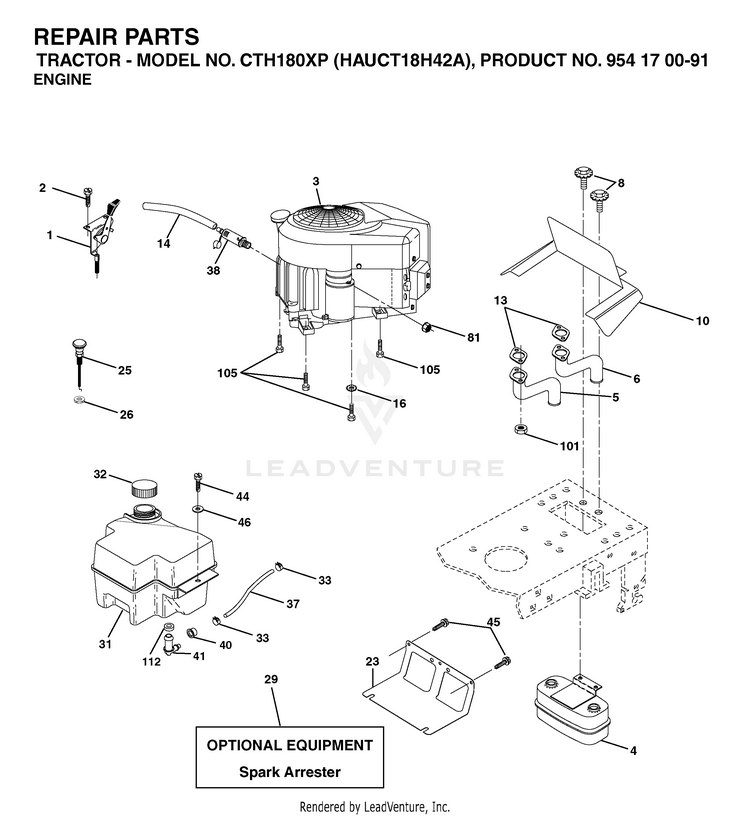

ENGINE & CUTTING EQUIPMENT

...
...
5
EXHAUST.TUBE.LH.KAWASAKI. HUS-532176067
...
101
Nuts HUS-596433401
...
105
SCREW 3/8-16X1 HUS-817120616
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
25
CHOKE CONTROL HUS-532132781
...
6
NEEDS DESCRIPTION HUS-532177068
...
33
HOSE CLAMP HUS-532123487
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
13
GASKET.MUFFLER HUS-532165391
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
44
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
112
BUSHING OUTLET T HUS-532003645
...
40
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
26
Nut Keps 3/8 - 24 UNF HUS-873920600
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
31
GAS TANK 2GAL HUS-532180645
...
1
CONTROL, THROTTLE HUS-532170803
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
46
Washers HUS-596135301
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
2
Screws HUS-596437001
...
16
Washers HUS-596238701
...
41
STEM FUEL TANK HUS-532139277
...
...
...
