product name

Husqvarna 325iLK Trimmer/Edger

Model: 325iLK

Save
 Don't See Your Part Listed?
product name

ACCESSORIES

...
...
8
NEEDS DESCRIPTION 50 pcs, plastic bag of 501330401 HUS-501330403
...
13
LOCKING PIN HUS-502285901
...
5
HOUSING T35 HUS-537185501
...
11
DIAGNOSTIC TOOL KIT HUS-583897101
...
1
Trimmer Guard HUS-597016201
...
9
SPRING T35 HUS-537186001
...
2
BLADE HUS-503798802
...
12
WIRING ASSY HUS-579621301
...
4
T35 TRIMMER HEAD IN BAG T35 HUS-531300194
...
6
ADAPTER M10 X 1.25L T35 HUS-537186101
...
7
SPOOL T35 HUS-537185701
...
10
KNOB.T35 T35 HUS-537185801
...
8
EYELET T35 HUS-501330401
...
3
SCREW ITXSCFT PW4.8X16 T27 CH HUS-576275601
...
10
NEEDS DESCRIPTION 30 pcs. box of 537185801 HUS-537185802
...
14
L-SPANNER HUS-503558601

BEVEL GEAR

...
...
9
BALL BEARING 24X9X1/609ZR HUS-738219900
...
1
GEARHEAD HUS-537333801
...
13
SCREW IHSCM M6X22 10.9 ZN/FE HUS-503202007
...
6
BALL BEARING 8X22X7/608Z HUS-738219800
...
8
SCREW HUS-503200725
...
4
RETAINING RING SGH 28 HUS-735312810
...
3
DRIVE DISC HUS-537234901
...
2
DRIVE DISC HUS-537234901
...
10
BEARING HUS-738219902
...
16
DECALS HUS-544843301
...
14
SCREW HUS-503201412
...
15
CLAMP HUS-574306904
...
5
HOLDER BALL BEARING HUS-525831801
...
11
RETAINING RING HUS-735311100
...
12
RETAINING RING HUS-735312510
...
7
PLUG HUS-503201501

ELECTRICAL

...
...
8
Brackets HUS-592933501
...
5
Wires Digital HUS-593712001
...
1
CONTROL UNIT Digital HUS-599126401
...
2
MOTOR ASSY ADAPTER For s/n “up to 214800120” also replace HOUSING Left to 591 44 46-02. HUS-595010703
...
5
Wires Mechanical HUS-593711901
...
9
SCREW HUS-525755101
...
10
SCREW ITXSCM M5X25 T27 12.9 T HUS-525824903
...
3
Controls Digital HUS-593841201
...
7
SUPPORT HUS-503911001
...
4
TRIGGER SWITCH IPX4 Mechanical HUS-582050701
...
6
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901
...
11
SCREW ITXSCM HUS-525755108
...
1
CONTROL UNIT KIT 325ILK MECH Mechanical HUS-599126501

HANDLE

...
...
4
Triggers Digital HUS-593275901
...
6
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901
...
2
Handles Right HUS-591462501
...
4
Triggers Mechanical HUS-593645301
...
8
Holders HUS-594027001
...
1
Handles Left HUS-591462301
...
3
Springs Digital HUS-593652801
...
5
Throttles HUS-598721501
...
7
Controls Mechanical HUS-593170901

HOUSING

...
...
8
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901
...
3
Skid Plates HUS-591461901
...
2
Housings Right HUS-591444901
...
1
Housings Left HUS-591444601
...
9
Decals HUS-594095101
...
5
Holders HUS-594027101
...
6
PUSH BUTTON HUS-577996601
...
10
Decals US HUS-594095001
...
4
Covers HUS-591461801
...
7
SPRING PUSH OUT HUS-585480001

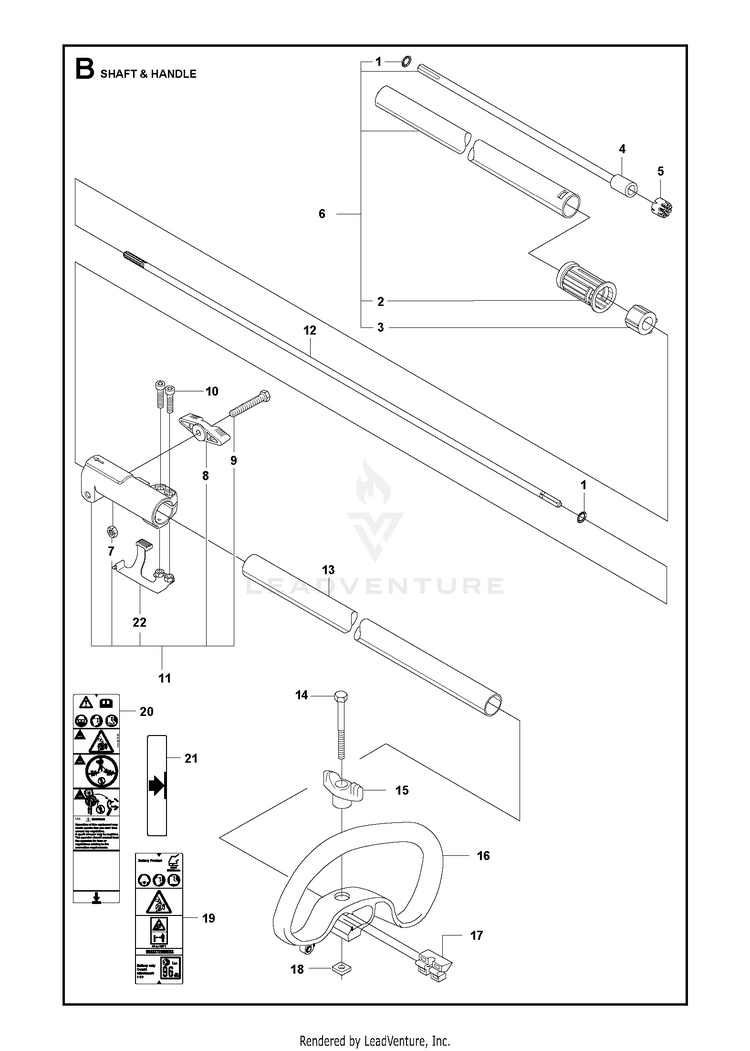

SHAFT & HANDLE

...
...
4
SHAFT HUS-587411701
...
17
SPACER PLASTIC HUS-503940301
...
2
PLUG HUS-587414601
...
1
WASHER HUS-735580810
...
10
SCREW HUS-525755104
...
6
TUBE Lower HUS-587988101
...
12
Drive Shafts HUS-537234807
...
11
CLAMPING SLEEVE ASSY HUS-576282601
...
22
LOCKING PLATE ASSY CLAMPING SL HUS-576282301
...
14
SCREW M6X50 HUS-725238051
...
16
HANDLE HUS-503871906
...
18
NUT HUS-502197101
...
13
Tubes HUS-597864301
...
21
DECAL ARROW HUS-503692601
...
9
BOLT FLANGE HUS-725237651
...
19
Decals HUS-503709701
...
8
KNOB CLAMPING SLEEVE HUS-576282401
...
3
BUSHING HUS-503785202
...
15
KNOB HUS-503879001
...
7
NUT HUS-731231601
...
20
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
5
CLIP HUS-583938301
...
...
...
...
