Husqvarna 3120 XP - 3120 XP EPA (20180900001-20182200000) Chain Saw

Model: 3120 XP / EPA (20180900001-20182200000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

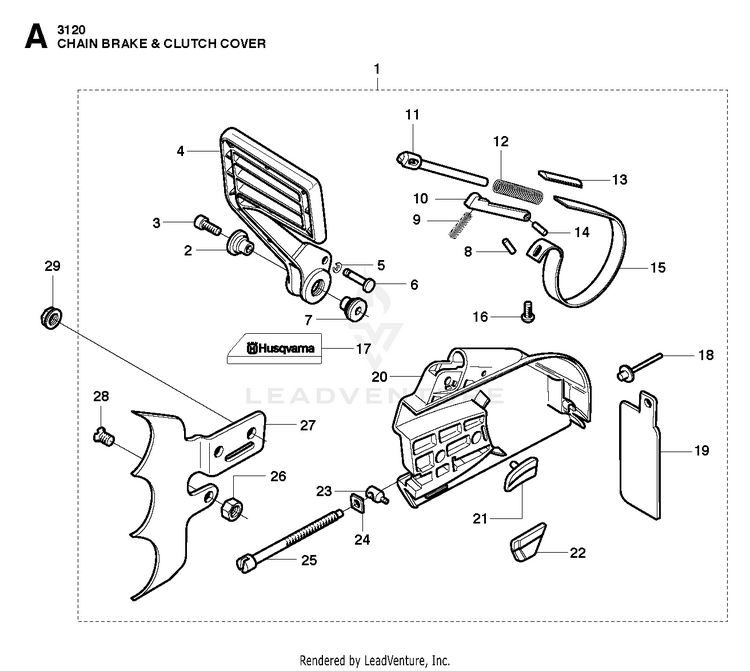

CHAIN BRAKE & CLUTCH COVER

...
...
26
NUT HUS-503222402
...
18
RIVET HUS-722782902
...
1
CHAIN BRAKE HUS-503135503
...
7
PIVOT SLEEVE R HUS-501768001
...
25
SCREW HUS-503135701
...
3
SCREW HUS-503202620
...
5
E-RING 4 HUS-735310820
...
29
NUT M8 FLANGE HUS-503220001
...
11
ROD HUS-503136801
...
17
DECAL HUS-503624201
...
28
SCREW MF6S 6X14 HUS-725636755
...
21
CHAIN GUIDE HUS-503141201
...
2
PIVOT SLEEVE L HUS-503520801
...
13
GUIDE HUS-503138001
...
16
SCREW HUS-586813201
...
4
HANDGUARD HUS-503136703
...
23
PULLER UNIT HUS-505267650
...
12
SPRING HUS-503137901
...
19
DUST GUARD HUS-503138101
...
14
SPIRAL PIN 4X12 HUS-721425250
...
8
PIN HUS-721425650
...
15
BRAKE BAND HUS-503137802
...
10
PAWL HUS-503136901
...
6
PIVOT PIN HUS-503802701
...
20
CLUTCH COVER HUS-503135601
...
9
SPRING HUS-501480901
...
27
FELLING DOG HUS-503140401
...
22
CHAIN GUIDE HUS-503141301
...
24
COUPLING HUS-501248101
...
...
...
...
...
