Husqvarna 3120 XP - 3120 XP EPA (20180900001-20182200000) Chain Saw

Model: 3120 XP / EPA (20180900001-20182200000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

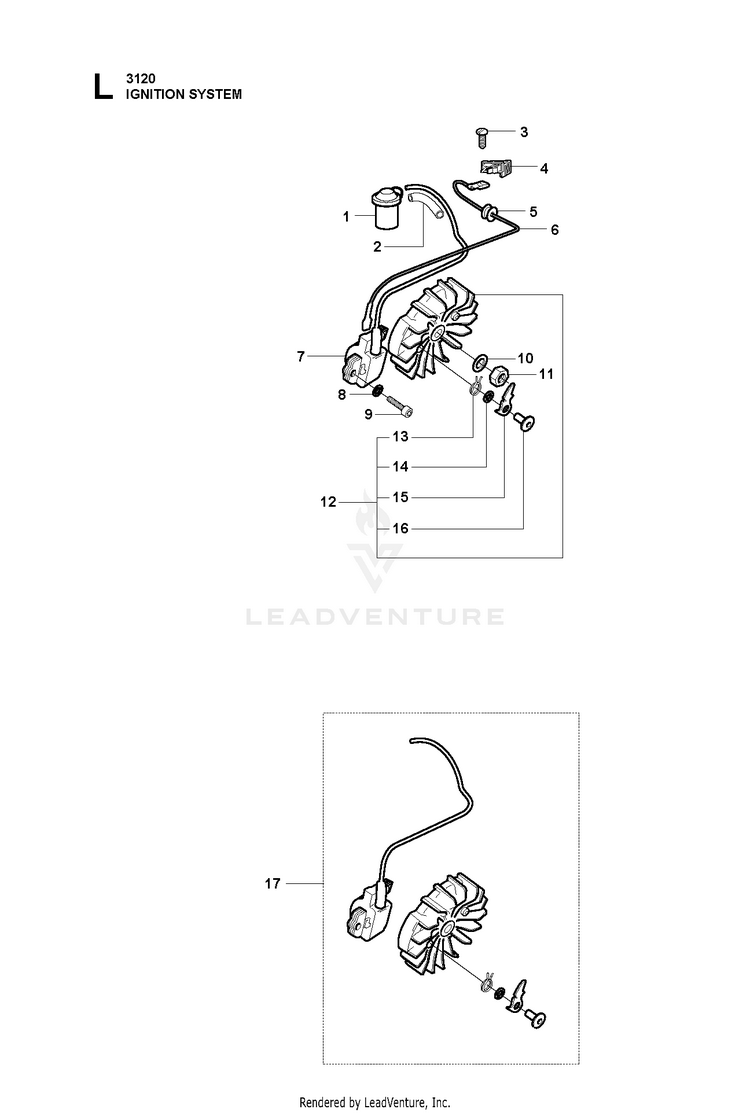

IGNITION SYSTEM

...
...
12
FLYWHEEL CPL Up to s/n 20172700017 (cut-out11000 rpm) HUS-522892001
...
15
PAWL HUS-501673201
...
8
WASHER 4.2X9 HUS-503230001
...
9
SCREW HUS-503202520
...
10
SPRING WASHER 10.5X18 HUS-735117350
...
2
HOSE HUS-501527406
...
16
SCREW M5X14 HUS-501819901
...
17
Ignition Module Replaces 503 13 85-01 s/n up to 20172700017 (cut-out 9800 rpm) HUS-595312601
...
3
SCREW 4X5 HUS-723228485
...
5
GROMMET HUS-503132401
...
14
WASHER HUS-503230042
...
1
SPARK PLUG CONN. KIT HUS-501485402
...
13
SPRING HUS-501673501
...
6
LEAD HUS-501839803
...
12
FLYWHEEL (cut-out 9800 rpm) HUS-522892002
...
7
IGNITION MODULE HDS3 (cut-out 9800 rpm) HUS-587329402
...
4
SWITCH ON/OFF HUS-503717901
...
11
NUT M10X1 HUS-503221003
...
...
...
...
...
