Husqvarna 3120 XP - 3120 XP EPA (20180900001-20182200000) Chain Saw

Model: 3120 XP / EPA (20180900001-20182200000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

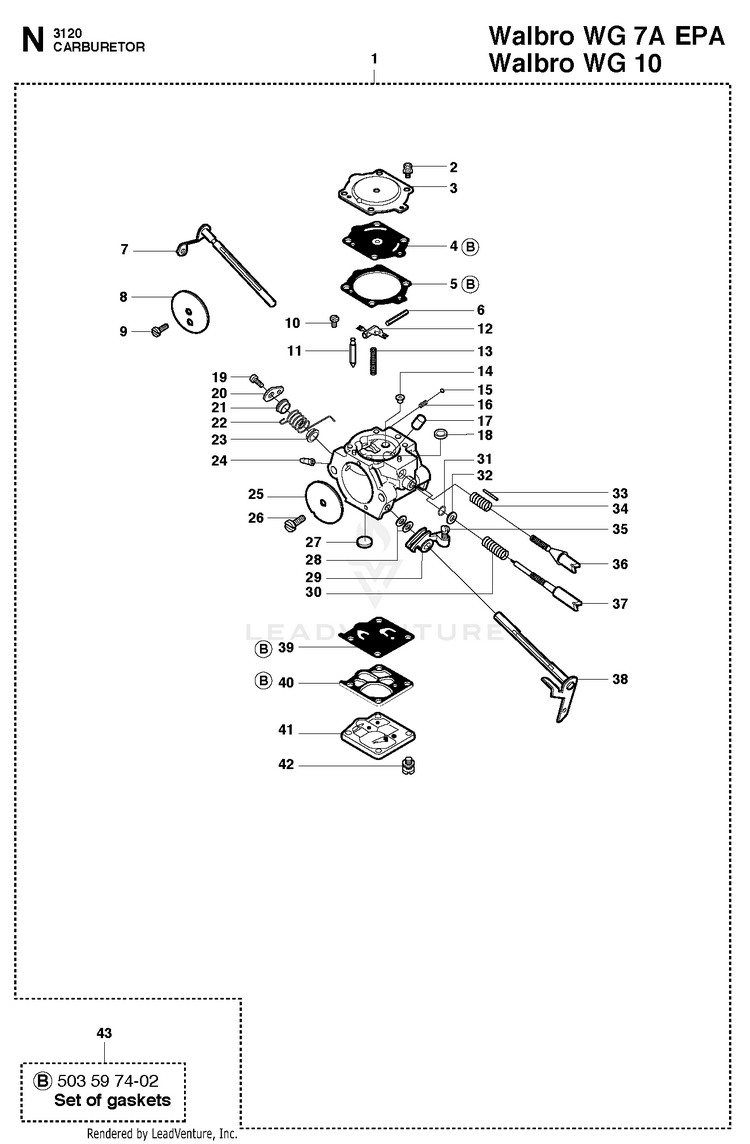

CARBURETOR

...
...
9
SCREW SHUTTERS HUS-530035015
...
26
SCREW SHUTTERS HUS-530035015
...
22
SPRING,THROTTLE RETURN HUS-503525901
...
12
LEVER HUS-505316734
...
40
GASKET HUS-503117201
...
14
NOZZLE ASSY CH.VALVE HUS-537218501
...
30
PRESSURE SPRING HUS-505316737
...
35
SCREW HUS-503596501
...
28
WASHER HUS-506028301
...
27
FUEL INLET SCREEN HUS-501666101
...
15
BALL HUS-501468501
...
1
CARBURETOR WG10 HUS-503282001
...
20
LEVER HUS-503595601
...
31
O-RING HUS-503595501
...
13
LEVER SPRING HUS-505316723
...
29
LEVER HUS-503595701
...
4
METERING DIAPHRAGM GSKT HUS-503632801
...
42
SCREW W/ WASHER HUS-503117501
...
37
HI-NEEDLE,CARB HUS-503633201
...
8
CHOKE SHUTTER HUS-503525801
...
18
WELCH PLUG HUS-503574201
...
1
CARBURETOR WG7 EPA WG 7A EPA HUS-503281216
...
24
FUEL NIPPLE-CARB HUS-503598401
...
23
BUSHING HUS-502103101
...
16
SPRING HUS-501468401
...
14
MAIN JET EPA HUS-503976705
...
39
DIAPHRAGM/PUMP HUS-503117301
...
3
COVER DIAPH HUS-501692801
...
7
CHOKE SHAFT HUS-503525701
...
33
ADJ NEEDLE-LO,CARB HUS-503526001
...
5
GASKET HUS-501467501
...
43
DIAPHRAM SET Set of gaskets HUS-503597402
...
6
PIN HUS-505316731
...
17
JET HUS-503976601
...
25
SHUTTER-THROTTLE HUS-503632401
...
21
BUSHING HUS-502103101
...
38
THROTTLE SHAFT HUS-503595901
...
34
SPRING-MIX NEEDLE HUS-503633101
...
11
INLET NEEDLE HUS-503563401
...
36
ADJ SCREW-LO,CARB HUS-503632901
...
41
COVER HUS-503595801
...
19
SCREW HUS-501468701
...
32
Washer HUS-503597201
...
2
SCREW HUS-503584601
...
10
SCREW HUS-505316717
...
...
...
...
...
