product name

Husqvarna 26 RLC (1988-01) Line Trimmer

Model: 26 RLC (1988-01)

Save
 Don't See Your Part Listed?
product name

Carburetor Assembly

...
...
1
DIAPHRAGM Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60 HUS-503896701
...
2
GASKET-METER DIAP Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60 HUS-530035151
...
3
GASKET Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60 HUS-501781301
...
4
H-NEEDLE HUS-501782201
...
5
Hi Speed Needle Spring HUS-530035036
...
6
NEEDLE - IDLE HUS-530035141
...
7
SPRING-NEEDLE FUEL MIX HUS-530035023
...
8
SCREW-IDLE SPEED HUS-530035203
...
9
IDLE SCREW SPRING HUS-530035121
...
10
FULCRUM PIN Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60 HUS-505520125
...
11
LEVER Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60 HUS-505520127
...
12
Metering Lever Spring Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60 HUS-530036188
...
13
VALVE/INLET. Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60 HUS-503117001
...
14
SCREEN-DUTCH TWILL INLE Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60 HUS-530035178
...
15
PUMP DIAPHRAGM Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60 HUS-504130807
...
16
GASKET Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60 HUS-504130906
...
17
REPAIR KIT (Includes Ref. No's 1 - 3, 10 - 16) HUS-530035260
...
18
KIT-KWIK REPAIR (Includes Ref. No's 1 - 3, 15 & 16) HUS-530035185

Complete Trimmer Assembly

...
...
1
SCREW-10-24 X 13/16 HUS-530015773
...
2
COVER-FILTER HUS-530027529
...
3
AIR FILTER HUS-530027530
...
4
SCREW HUS-530015849
...
5
CHOKE SPACER HUS-530015852
...
6
WASHER HUS-530015254
...
7
SHUTTER-CHOKE HUS-530027526
...
8
PLATE-AIR FILTER MTG. HUS-530027527
...
9
HOSE. FUEL HUS-530069247
...
10
FUEL PICK-UP ASSY HUS-530095646
...
11
CARBURETOR (WA-199) HUS-530035259
...
12
GASKET-CARBURETOR Included in "Engine Gasket Kit" P/N 530 06 92-76 HUS-530019156
...
13
CAP ASSY W/ RETAINER HUS-530014347
...
14
SCREW 8-16 X 9/16 (PLAS HUS-530015775
...
15
THROTTLE CABLE. HUS-530037497
...
16
Shroud & Tank Ass'y. HUS-530029188
...
17
GASKET-C'CASE/SHROUD Included in "Engine Gasket Kit" P/N 5300692-76 HUS-530019154
...
18
VALVE-REED HUS-530027593
...
19
REED STOP HUS-530027594
...
20
ASS'Y-CONNECTING ROD (Incl. Bearings) HUS-530010960
...
21
ASSY-CRANKSHAFT HUS-530010934
...
22
KEY-FLYWHEEL HUS-530015126
...
23
SCREW-10-24 X 1" (TAP.) HUS-530015772
...
24
SCREW 6-19X5/8 PLAS.PAN HUS-530015780
...
25
INSULATOR-KILL SWITCH HUS-530027546
...
26
LEAD WIRE-KILL SWITCH HUS-530027547
...
27
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
28
Crankcase Ass'y. (Incl. #39, 40, 41, & 42) HUS-530014016
...
29
KILL SWITCH RAMP HUS-530027545
...
30
KILL SWITCH COVER HUS-530038309
...
31
SPRING-KILL SWITCH HUS-530027959
...
32
CRANKCASE/CRANKSHAFT, (#38, 39, 40, 41, 42, & 43) HUS-530071705
...
33
SCREW-6-19X5/16PLAST PA HUS-530015241
...
34
WRIST PIN RET. HUS-530015162
...
35
RING-PISTON (26.2CC) HUS-530027369
...
36
GASKET-CYLINDER Included in "Engine Gasket Kit" P/N 530 06 92-76 HUS-530019161
...
37
Piston Kit (Incl. #34, 35, & pin) HUS-530069240
...
38
SPACER-BEARING HUS-530015788
...
39
Inner Bearing HUS-530032103
...
40
RING-RETAINING HUS-530015787
...
41
SEAL-CRANKSHAFT HUS-530019158
...
42
BEARING-R8 (OUTER) HUS-530032102
...
43
RING-RETAINING (SHAFT) HUS-530015789
...
44
SCREW-10-16X9/16SLTD.PH HUS-530015717
...
45
GUARD-MUFFLER HUS-530027781
...
46
KIT-MUFFLER HUS-530069310
...
47
SPRING-MUFFLER HUS-530036409
...
48
CYLINDER (26CC) (SERVIC HUS-530012247
...
49
Spark Plug HUS-530030077
...
50
SCREW-1/4-20 X 13/16 HUS-530015239
...
51
MODULE-IGNITION HUS-530039134
...
52
SCREW 8-32 X 1-9/32 HUS-530015776
...
53
FLYWHEEL HUS-530039189
...
54
COUNTERWEIGHT FLYWL 26RLC HUS-530027572
...
55
HOUSING-FAN (ORANGE) HUS-530029189
...
56
STARTER PULLEY (Incl. #75) HUS-530071387
...
57
SPRING STARTER HUS-545008015
...
58
HANDLE-STARTER HUS-530027569
...
59
KIT-ROPE HUS-530069232
...
60
ASM-PULLEY HSG(GREEN ONLY) HUS-530014009
...
61
WASHER-CLUTCH HUS-530094189
...
62
KIT-CLUTCH ASS'Y HUS-530069254
...
63
WASHER-BELLEVILLE HUS-530015796
...
64
NUT HUS-530001733
...
65
ASM CLUTCH HSG GREEN ONLY HUS-530014017
...
66
SCREW-10-24 X 1-3/8 (UN HUS-530015767
...
67
SPACER-CLUTCH HUS-530027511
...
68
Screw HUS-530015770
...
69
SCREW-10-24X1-3/8-TAPTI HUS-530015769
...
70
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
71
RETAINER HUS-530027523
...
72
LOCKNUT-HEX 10-24 HUS-530015768
...
73
KIT-GASKET (Includes Ref No's 12, 17 & 36) HUS-530069276
...
74
Spark Arrestor Kit HUS-952701612
...
75
SCREW HUS-530016080
...
xx
Instruction Decal HUS-530029190
...
xx
Shroud Decal HUS-530029267

Cutting Head Assembly

...
...
1
Cutting Head Ass'y. HUS-952701604
...
2
Hub Ass'y. HUS-530094562
...
3
SPRING-COMPRESSION HUS-530094956
...
4
KIT-LOCKING PLATE HUS-530069312
...
5
Screw HUS-530015542
...
6
Spool w/Line HUS-952708510
...
7
Release Button HUS-530094522
...
8
COVER,TRIMMY HEAD-26RLC HUS-530094521

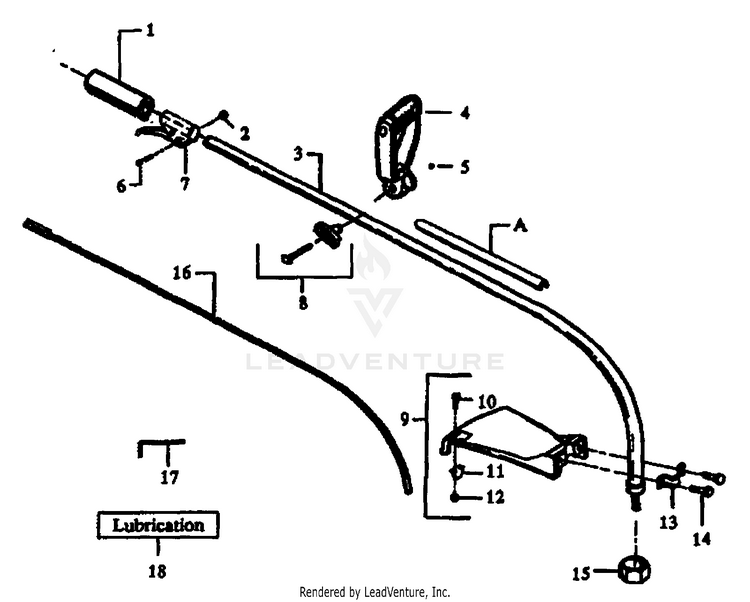

Handle Assembly

...
...
1
DRIVE SHAFT GRIP HUS-530029445
...
2
LOCKNUT-HEX 10-24 HUS-530015768
...
3
ASSY-DRIVE SHAFT HSG(48 HUS-530094641
...
4
Handle Ass'y. HUS-530010957
...
5
NUT HUS-530015197
...
6
SCREW-10-24 X 1" (UNC) HUS-530015774
...
7
ASSY-THROTTLE HOUSING HUS-530010959
...
8
HANDLE KIT HUS-530069347
...
9
KIT-SHIELD (SERVICE) BLACK (Incl. #10, 11,12 & 14) HUS-530069249
...
10
SCREW HUS-530015337
...
11
LIMITER-LINE HUS-530094570
...
12
NUT HEX LOCK 10-24 HUS-530403094
...
13
BRACKET-SHIELD HUS-530093653
...
14
SCREW - SHIELD HUS-530016107
...
15
DUST CUP HUS-530094543
...
16
SHAFT-FLEX (48") HUS-530094551
...
17
HEX WRENCH 5/32 HUS-530031159
...
18
HUS-952708514
...
A
DECAL-SHAFT WARNING HUS-530029159
...
xx
Operators Manual. Not Shown HUS-530067516
...
...
...
...
