Husqvarna 24 C (20040100001-20050600000) Trimmer/Edger

Model: 24 C (20040100001-20050600000)

Save
 Don't See Your Part Listed?
product name

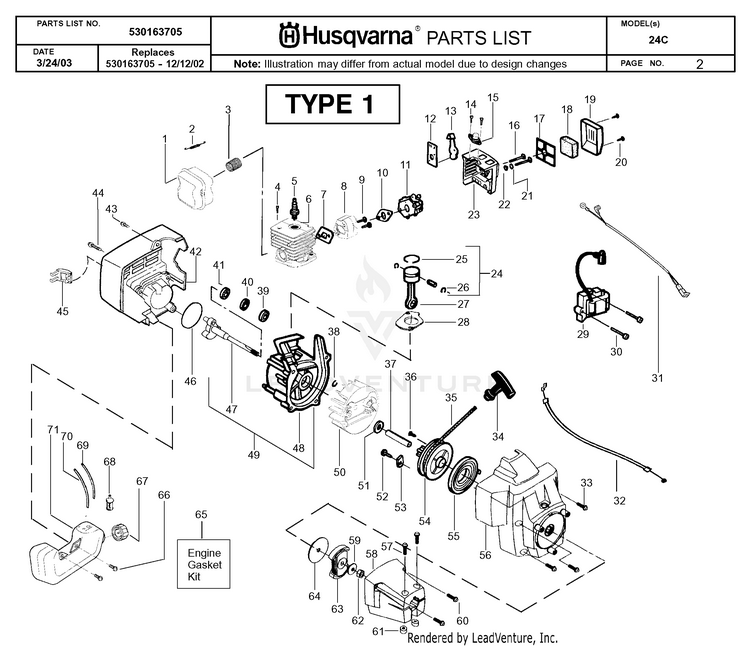

ENGINE

...
...
49
KIT ASSY C'CASE/C'SHAFT HUS-530071625
...
37
SPACER HUS-530037414
...
3
SCREEN HUS-530071391
...
63
CLUTCH ASSEMBLY KIT HUS-530069491
...
38
RETAINING RING HUS-530015941
...
31
LEAD WIRE ASSEMBLY HUS-530047278
...
50
FLYWHEEL ASSY HUS-545221701
...
34
HANDLE-STARTER HUS-530027569
...
19
AIR FILTER COVER HUS-530037292
...
41
BEARING HUS-530032125
...
51
WASHER HUS-530015149
...
71
TANK HUS-530057045
...
47
KIT ASSY C'CASE/C'SHAFT HUS-530071625
...
65
GASKET KIT HUS-530071363
...
53
RETAINER HUS-530027523
...
60
SCREW-10-14 X 13/16 (PL HUS-530015886
...
7
GASKET KIT HUS-530071363
...
64
FRICTION DISC,CLUTCH 36/41 HUS-530015611
...
48
KIT ASSY CRANKCASE HUS-530071627
...
4
SCREW HUS-530015953
...
5
NEEDS DESCRIPTION HUS-CHAMPION
...
40
KIT-CRANKCASE SEAL HUS-530071615
...
10
GASKET KIT HUS-530071363
...
12
CHOKE PLATE HUS-530037326
...
62
NUT HUS-530626605
...
56
HOUSING HUS-530057427
...
15
AIR PURGE BUBBLE HUS-530038874
...
44
SCREW HUS-530016386
...
61
LOCKNUT-HEX 10-24 HUS-530015768
...
45
PROTECTOR HUS-530054536
...
35
KIT-ROPE HUS-530069232
...
58
ASSY CLUTCH HSG (BLACK) HUS-530071697
...
26
WRIST PIN RET. HUS-530015162
...
54
STARTER PULLEY KIT HUS-530071786
...
43
SCREW HUS-530015934
...
8
ADAPTER HUS-545030403
...
13
CHOKE SHUTTER HUS-530038102
...
57
SCREW-10-24 X 1-3/8 (UN HUS-530015767
...
16
SCREW HUS-530016353
...
1
KIT-MUFFLER HUS-530071396
...
9
SCREW - CARB. ADAPTOR HUS-530016014
...
59
WASHER FLAT HUS-530015828
...
70
HOSE. FUEL HUS-530069247
...
36
SCREW HUS-530016080
...
52
SCREW 8-16 X 9/16 (PLAS HUS-530015775
...
27
CONNECTING ROD ASSY HUS-530049817
...
46
GASKET KIT HUS-530071363
...
28
GASKET KIT HUS-530071363
...
24
PISTON KIT HUS-530071833
...
33
SCREW HUS-530016386
...
67
CAP HUS-530057390
...
68
FUEL PICK-UP ASSY HUS-530095646
...
20
SCREW FILTER PLATE HUS-530016349
...
66
RETAINER HUS-530016379
...
17
FILTER PLATE HUS-530037413
...
21
CHOKE SPACER HUS-530015852
...
6
CYLINDER NEW PART NUMBER FOR THIS IPL HUS-530012481
...
69
KIT.LINE TANK/PURGE HUS-530069216
...
22
WASHER HUS-530015254
...
42
SHROUD HUSQ ORANGE HUS-530057389
...
25
RING PISTON HUS-545154001
...
23
FILTER HOLDER HUS-530037970
...
2
SPRING-MUFFLER (NEW STYLE) HUS-530042088
...
14
SCREW 6-19X5/8 PLAS.PAN HUS-530015780
...
30
SCREW HUS-530016357
...
55
STARTER SPRING HUS-545008010
...
32
THROTTLE WIRE HUS-530056241
...
11
CARBURETOR HUS-530071639
...
18
AIR FILTER FOAM HUS-530037331
...
29
IGNITION MODULE HUS-530039163
...
39
OUTER BEARING HUS-530055728

ENGINE 2

...
...
64
FRICTION DISC,CLUTCH 36/41 HUS-530015611
...
44
SCREW HUS-530016386
...
25
RING PISTON HUS-545154001
...
21
CHOKE SPACER HUS-530015852
...
55
STARTER SPRING HUS-545008010
...
3
SCREEN HUS-530071391
...
7
GASKET KIT HUS-530071363
...
63
CLUTCH ASSEMBLY KIT HUS-530069491
...
9
SCREW - CARB. ADAPTOR HUS-530016014
...
14
SCREW 6-19X5/8 PLAS.PAN HUS-530015780
...
32
THROTTLE WIRE HUS-530056241
...
49
KIT ASSY C'CASE/C'SHAFT HUS-530071625
...
27
CONNECTING ROD ASSY HUS-530049817
...
60
SCREW-10-14 X 13/16 (PL HUS-530015886
...
28
GASKET KIT HUS-530071363
...
71
TANK HUS-530057045
...
1
KIT-MUFFLER HUS-530071396
...
68
FUEL PICK-UP ASSY HUS-530095646
...
19
AIR FILTER COVER HUS-530037292
...
48
KIT ASSY CRANKCASE HUS-530071627
...
61
LOCKNUT-HEX 10-24 HUS-530015768
...
26
WRIST PIN RET. HUS-530015162
...
33
SCREW HUS-530016386
...
30
SCREW HUS-530016357
...
62
NUT HUS-530626605
...
18
AIR FILTER FOAM HUS-530037331
...
13
CHOKE SHUTTER HUS-530038102
...
5
NEEDS DESCRIPTION HUS-CHAMPION
...
41
BEARING HUS-530032125
...
12
CHOKE PLATE HUS-530037326
...
35
KIT-ROPE HUS-530069232
...
69
KIT.LINE TANK/PURGE HUS-530069216
...
59
WASHER FLAT HUS-530015828
...
22
WASHER HUS-530015254
...
15
AIR PURGE BUBBLE HUS-530038874
...
20
SCREW FILTER PLATE HUS-530016349
...
70
HOSE. FUEL HUS-530069247
...
23
FILTER HOLDER HUS-530037970
...
50
FLYWHEEL ASSY HUS-545221701
...
11
CARBURETOR HUS-530071639
...
53
RETAINER HUS-530027523
...
46
GASKET KIT HUS-530071363
...
17
FILTER PLATE HUS-530037413
...
37
SPACER HUS-530037414
...
43
SCREW HUS-530015934
...
52
SCREW 8-16 X 9/16 (PLAS HUS-530015775
...
56
HOUSING HUS-530057427
...
51
WASHER HUS-530015149
...
6
CYLINDER HUS-530012481
...
10
GASKET KIT HUS-530071363
...
38
RETAINING RING HUS-530015941
...
67
CAP HUS-530057390
...
65
GASKET KIT HUS-530071363
...
36
SCREW HUS-530016080
...
42
SHROUD HUSQ ORANGE HUS-530057389
...
31
LEAD WIRE ASSEMBLY HUS-530047278
...
45
PROTECTOR HUS-530054536
...
29
IGNITION MODULE HUS-530039163
...
58
ASSY CLUTCH HSG (BLACK) HUS-530071697
...
16
SCREW 10-10 X 2.150 TC NEW PART NUMBER FOR THIS IPL HUS-530016393
...
66
RETAINER HUS-530016379
...
2
SPRING-MUFFLER (NEW STYLE) HUS-530042088
...
8
ADAPTER NEW PART NUMBER FOR THIS IPL HUS-530057635
...
54
STARTER PULLEY KIT HUS-530071786
...
24
PISTON KIT HUS-530071833
...
47
KIT ASSY C'CASE/C'SHAFT HUS-530071625
...
34
HANDLE-STARTER HUS-530027569
...
39
OUTER BEARING HUS-530055728
...
57
SCREW-10-24 X 1-3/8 (UN HUS-530015767
...
4
SCREW HUS-530015953
...
40
KIT-CRANKCASE SEAL HUS-530071615

SHAFT & HANDLE

...
...
7
SPRING-LEVER RETURN HUS-530027597
...
530163627
MANUAL OPERATORS SCAN HUS-530163627
...
19
SCREW HUS-530015814
...
2
THROTTLE HSG RH GRAY HUS-530057393
...
530163628
MANUAL OPERATORS EURO HUS-530163628
...
22
NUT HUS-530015197
...
25
SPRING HUS-530053241
...
6
SHAFT-FLEX (48") HUS-530094551
...
530054766
DECAL HUS-530054766
...
4
THROTTLE HSG LEFT GRAY HUS-530057392
...
20
BOLT, TYPE 2 HUS-530015820
...
12
ANTIVIBE HANDLE HUS-530095034
...
530163630
MANUAL OPERATORS EURO III HUS-530163630
...
13
NUT HUS-530015197
...
14
HANDLE KIT HUS-530069347
...
16
HEX WRENCH 5/32 HUS-530031159
...
5
SCREW-10-14 X 13/16 (PL HUS-530015886
...
17
PROTECTOR HUS-530071674
...
10
SCREW-12-24 X 4-11/16 P HUS-530015784
...
27
WOUND SPOOL ASSY .080 x 2 HUS-530095845
...
9
ASSY D'SHAFT 51" HUS-530096092
...
21
DUST PROTECTION HUS-530095574
...
24
KIT ASSY HUB W/ARBOR HUS-530071306
...
8
THROTTLE TRIGGER HUS-530057394
...
11
NUT-12-24 (HEX) HUS-530015785
...
23
C/HEAD HUS-530095846
...
530163924
MANUAL OPERATORS N.AMERICAN NEW PART NUMBER FOR THIS IPL HUS-530163924
...
15
WRENCH HUS-530056401
...
3
SWITCH HUS-530069572
...
1
CABLE HUS-530047307
...
26
RETAINER HUS-530401957
...
18
Limiter - Line HUS-530052286
...
...
...
...
