Husqvarna 136 LiL Trimmer/Edger

Model: 136 LiL

Save
 Don't See Your Part Listed?
product name

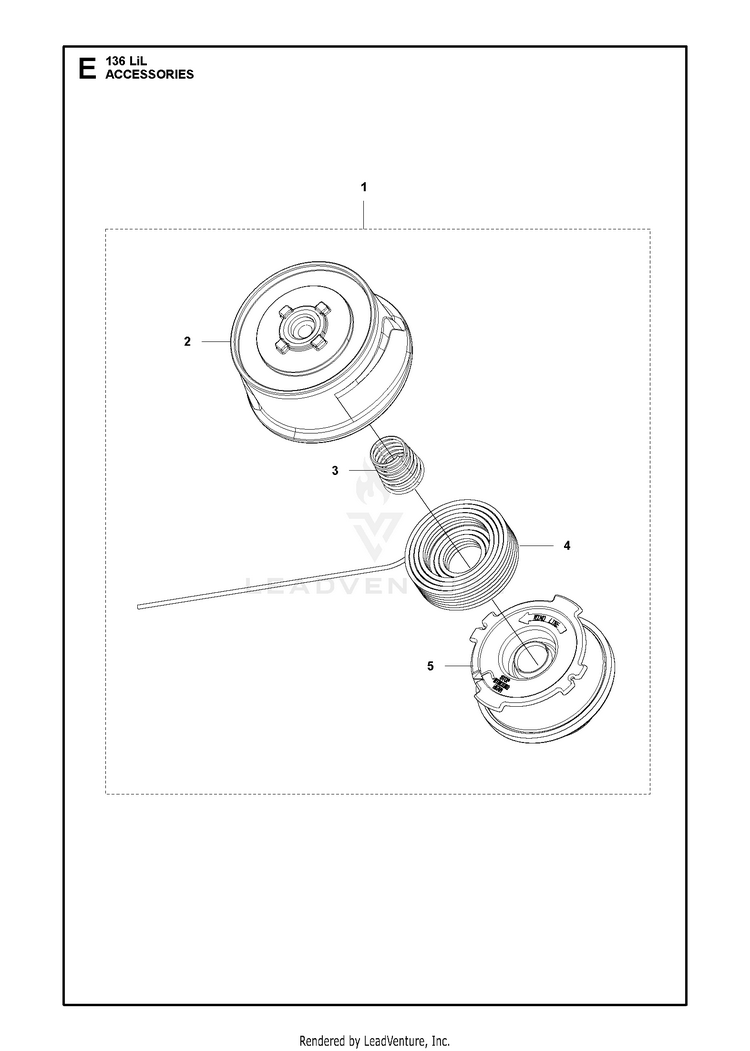

ACCESSORIES

...
...
2
HUB HUB ASSEMBLY HUS-588728201
...
4
TRIMMER LINE TYST 2.0 HUS-503979501
...
1
HEAD CUTTING ASSEMBLY HUS-585347901
...
5
SPOOL SPOOL ASSEMBLY HUS-588728401
...
3
SPRING HUS-574472101

CUTTING EQUIPMENT

...
...
6
PAD SHOCK HUS-585870701
...
10
SCREW ST4X16 ST ¯ 4*16 HUS-585819002
...
1
HOUSING MOTOR HOUSING L Left HUS-585328201
...
9
BLADE 330MM HUS-585340901
...
3
COVER MOTOR HOUSING HUS-585339101
...
11
SCREW ST4*16 ST ¯ 4*16,(Hexagon Sock) HUS-586030401
...
8
GUARD FOR CUTTING HEAD HUS-585339201
...
4
RING PLANT GUARD HUS-586480101
...
7
SCREW ST4X16 ST ¯ 4*16 HUS-585819002
...
5
GEAR GEAR BOX ASSEMBLY HUS-588728301
...
2
HOUSING MOTOR HOUSING R Right HUS-585328101

ELECTRICAL

...
...
3
MICRO SWITCH HUS-590808501
...
1
KEYPAD TRIMMER HUS-585592102
...
5
SCREW ST3X8 ST ¯ 3*8 HUS-585818901
...
2
UNIT ,TRIMER CONTROL HUS-585342501
...
6
CABLE SPIRAL HUS-585342901
...
4
TERMINAL BLOCK ASSEMBLY HUS-585342301

HOUSING

...
...
1
COVER BATTERY GREY HUS-585325201
...
2
HOUSING LEFT - HOT FOIL Left HUS-588146101
...
5
SUPPORT KEYPAD PANEL HUS-585861601
...
11
SCREW ST4X12 ST ¯ 4*12 HUS-585819001
...
8
COVER REAR HANDLE GREY Rear HUS-585327201
...
4
PANEL KEYPAD HUS-585327301
...
6
SPRING POP UP HUS-585342401
...
9
SCREW ST4X16 ST ¯ 4*16 HUS-585819002
...
3
HOUSING RIGHT - HOT FOIL Right HUS-588146001
...
10
PLATE BACK GREY Back HUS-585325301
...
7
TRIGGER ,TRIGGER ASSY HUS-588755201

TUBE

...
...
2
LEVER COUPLING HUS-585327901
...
9
LABEL ,WARNING TEXT US HUS-587129501
...
8
LABEL ,RATING HUS-587129301
...
4
FRONT HANDLE HUS-588755001
...
5
TUBE BIG HUS-585341101
...
1
COUPLING ,FRONT HANDLE ASSY HUS-588754901
...
7
TUBE SMALL TUBE ASSEMBLY HUS-585370301
...
6
COUPLING ,TUBE COUPLING ASSY HUS-588755101
...
3
SPACER FRONT HANDLE HUS-586452301
...
10
NEEDS DESCRIPTION EU HUS-587129401
...
...
...
...
