product name

Husqvarna 125 LD (20064900001-20082200000) Trimmer/Edger

Model: 125 LD (20064900001-20082200000)

Save
 Don't See Your Part Listed?
product name

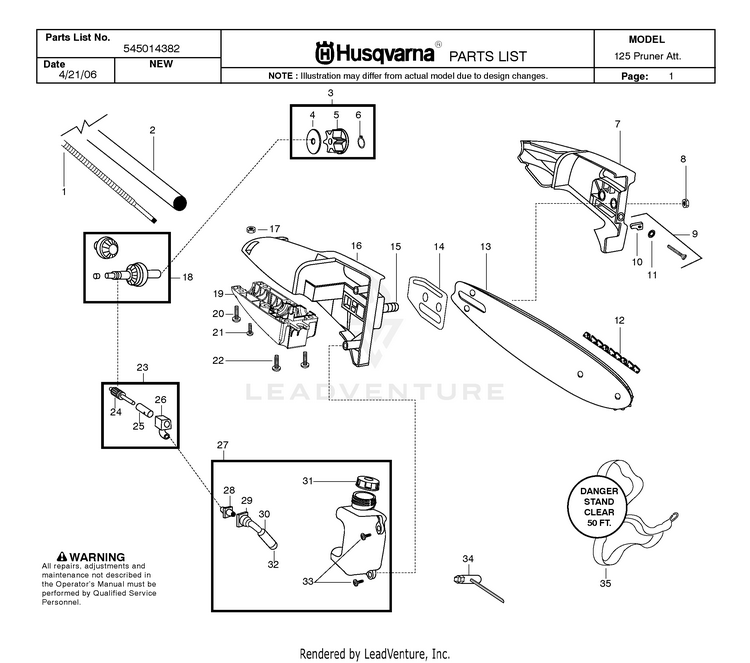

ATTACHMENTS

...
...
13
WASHER HUS-530092062
...
6
WASHER HUS-530092062
...
8
WHEEL-4"(FRONT)(RUBBER) HUS-530095125
...
9
BOLT-SHOULDER AXLE HUS-530015981
...
10
WHEEL BRKT ADJ HUS-530053009
...
11
KIT MUD FLAP HUS-530071251
...
18
BLADE HUS-530053007
...
14
LOCKNUT HUS-530015515
...
3
SCREW - CARB. ADAPTOR HUS-530016014
...
16
WASHER BELLVILLE HUS-530016240
...
15
NUT-FLANGE (LH) HUS-530015793
...
7
LOCKNUT HUS-530015515
...
22
SCR 10-24 MS LDK PAN PH HUS-530016312
...
19
DUST CUP HUS-530054623
...
20
KIT - EDGER GUARD HUS-545044101
...
17
WASHER-FLAT. HUS-530015792
...
545074501
DECAL WARNING GUARD HUS-545074501
...
2
FLEX-LOWER HUS-530096218
...
12
FASTENER MUD FLAP HUS-530053012
...
530031159
HEX WRENCH 5/32 HUS-530031159
...
5
KNOB HUS-530092059
...
530150031
HANGER,ATTACHMENT HUS-530150031
...
21
KIT GEARBOX EDGER HUSQ HUS-545006005
...
4
SCREW 8-16 X 9/16 (PLAS HUS-530015775

ATTACHMENTS 2

...
...
13
Bar - 8" HUS-545089501
...
29
LINE OIL INTAKE HUS-530021160
...
530055392
KIT HARNESS CLAMP HUS-530071605
...
24
ASSY GEAR PLUNGER HUS-530053764
...
15
BOLT HUS-530016133
...
30
SCREEN/FILTER HUS-530056533
...
23
OILER HUS-530071645
...
32
SCREEN/FILTER HUS-530056533
...
530031159
HEX WRENCH 5/32 HUS-530031159
...
11
RETAINER HUS-530038593
...
25
BARREL HUS-530053765
...
1
FLEX SHAFT HUS-530056570
...
8
BAR NUT HUS-530015917
...
14
PAD BAR PLATE HUS-530056523
...
6
RING SPROCKET RETAINER HUS-530056563
...
35
STRAP-SHOULD.W/WARNING HUS-530094417
...
20
SCR 10-24 MS LDK PAN PH HUS-530016312
...
22
SCREW-10-14 X 13/16 (PL HUS-530015886
...
12
KIT CHAIN 8" 90PX HUS-585889919
...
3
SPROCKET HUS-530071647
...
18
KIT GEAR ASSY HUS-530071646
...
34
WRENCH-BAR HUS-530031163
...
530150031
HANGER,ATTACHMENT HUS-530150031
...
4
WASHER HUS-530056521
...
17
NUT,HEX HUS-530016284
...
530055395
KIT HARNESS CLAMP HUS-530071605
...
26
OIL BLOCK HUS-530056522
...
33
SCREW HUS-530015843
...
530016406
SCREW #10 PLASTITE 1.362 HUS-530016406
...
21
SCREW-10-14 X 1/2 PLASTITE HUS-530015805
...
10
ADJUST PIN,BAR 36/41 HUS-530015826
...
9
KIT.RETAINER.BAR ADJUSTMENT HUS-530069611
...
5
SPROCKET HUS-530056520
...
28
OIL PUMP FITTING HUS-530056524

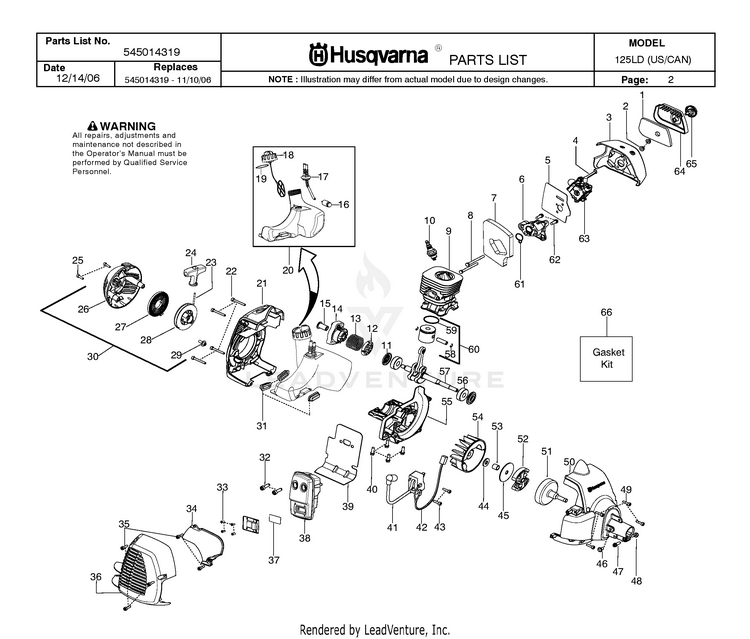

PRODUCT COMPLETE

...
...
50
FAN HSG ASSY HUS-545017501
...
21
REAR SHROUD ORANGE HUS-576153201
...
19
O RING NITRILE HUS-530019293
...
31
ISOLATOR FUEL TANK HUS-530059780
...
46
SCREW HUS-530016469
...
14
ASSY STARTER CUP HUS-545102303
...
43
SCREW M4 X .70 TT 16MM HUS-530016456
...
530058709
PURGE BULB ZAMA HUS-530058709
...
36
KIT MUFFLER GUARD HVA HUS-576215001
...
12
WASHER STARTER HUS-530016475
...
56
BEARING RADIAL BALL (6201) HUS-545013401
...
22
SCREW HUS-530016448
...
64
COVER-AIR BOX HUS-530057846
...
41
IGNITION MODULE MBU-7 HUS-545046701
...
13
SPRING STARTER CUP HUS-545160301
...
63
CARBURETOR HUS-545006060
...
55
CRANKCASE CASTING HUS-545054601
...
33
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
58
WRIST PIN RET. HUS-530015162
...
27
SPRING STARTER HUS-545008015
...
15
KIT STARTER HUS-545180844
...
23
KIT ROPE HUS-545029901
...
11
KIT SEAL CRANKSHAFT HUS-545050403
...
25
SCREW M5-0.8X30MM HUS-530016426
...
4
CHOKE LEVER HUS-530057844
...
47
SCREW HUS-530016470
...
66
KIT GASKET 28CC HUS-545008084
...
53
SPACER FLYWHEEL HUS-530057852
...
5
KIT GASKET CARB HUS-545050402
...
1
FILTER AIRBOX HUS-530150253
...
48
NUT HEX LOCK 10-24 HUS-530403094
...
62
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
20
ASSY FUEL TANK FL HUS-545105102
...
18
FUEL CAP ASSY HUS-578931503
...
42
ASSY MODULE LEAD WIRE HUS-530039227
...
44
WASHER HUS-530016030
...
54
FLYWHEEL HUS-530039242
...
40
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
37
KIT SPARK ARRESTOR SCREEN HUS-545030501
...
17
KIT FUEL LINE HUS-545081897
...
60
KIT PISTON 28CC TRIMMER HUS-545030301
...
28
KIT STARTER PULLEY HUS-545029701
...
16
FUEL PICK-UP ASSY HUS-530095646
...
32
BOLT MUFFLER HUS-530058982
...
9
KIT CYL PISTON & CRANKCASE HUS-545003378
...
10
BPMR6A NGK SPARK PLUG HUS-503235112
...
8
BOLT CARB ADAPTOR HUS-530016400
...
49
SCREW M4 X .70 TT 16MM HUS-530016456
...
52
KIT CLUTCH ASSY HUS-525472901
...
65
KNOB ASSY AIRBOX COVER HUS-530059796
...
30
ASSY-STARTER HSG. HUS-545106301
...
6
CARB ADAPTOR HUS-530035596
...
34
SHIELD HEAT HUS-530150440
...
57
KIT CRANKSHAFT ASSY HUS-545030001
...
61
KIT GASKET 28CC HUS-545008084
...
26
STARTER HOUSING HUS-545029603
...
45
WASHER-CLUTCH HUS-530094189
...
35
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
29
SCREW HUS-530016468
...
38
KIT MUFFLER W/CATALYST HUS-574031502
...
59
RING PISTON HUS-575227901
...
7
KIT GASKET 28CC HUS-545008084
...
24
STARTER HANDLE GRAY HUS-530150318
...
39
GASKET PAPER METAL HUS-530057848
...
2
NUT HUS-530016101

PRODUCT COMPLETE 2

...
...
13
KIT-DRIVESHAFT UPPER INC DECAL HUS-545006003
...
6
SPRING TRIGGER HUS-530016454
...
16
SCREW HUS-530016344
...
7
THROTTLE LOCKOUT HUS-530059804
...
26
ASSY GEARBOX HUS-530096295
...
19
KIT COBI SHIELD HUS-545030901
...
15
NUT-"D" HANDLE HUS-530091373
...
9
HSG THROTTLE LH HUS-545067001
...
17
FLEX-LOWER HUS-530096218
...
14
CLAMP ASSIST HANDLE HUS-530059185
...
20
Limiter - Line HUS-530052286
...
18
HSG DRIVESHAFT LOWER HUS-545081006
...
8
SPRING LOCKOUT HUS-545045601
...
545096701
DECAL SHAFT WARN LOWER ROW HUS-545096701
...
3
HOUSING-THROTTLE RH HUS-545062001
...
11
BOLT, TYPE 2 HUS-530015820
...
4
SCREW HUS-530016448
...
24
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
25
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
23
SCREW HUS-530016301
...
28
TRIMMER HEAD T25 HUS-537338310
...
27
DRIVE DISC HUS-537234901
...
545096901
DECAL SHAFT WARNING UPPER US HUS-545096901
...
21
SCREW HUS-530015814
...
22
SCREW - CARB. ADAPTOR HUS-530016014
...
12
HANDLE HUS-545042201
...
10
KIT SWITCH HUS-545049301
...
5
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
2
TRIGGER THROTTLE HUS-545066001
...
...
...
...
