HPP1612-1 Briggs and Stratton Generator BSW200AC

Model: HPP1612-1

Save Part Not Listed?
product name

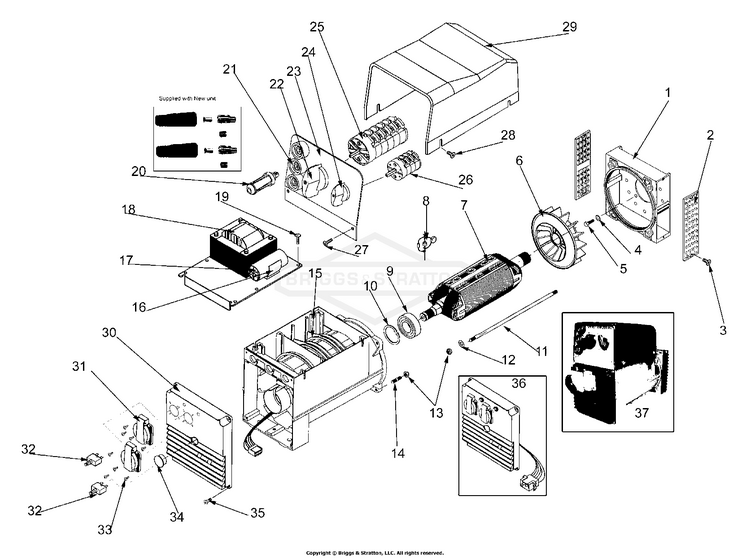

Alternator & Outlet Panel

...
...
1
FLANGE PLATE BS-102271GS
...
2
SIDE GRILL (PLASTIC) BS-102139GS
...
3
SCREW MC PPHD M5*10MM BS-~NSP
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
5
SCREW CAP 3/8 UNC * 1 1/4" BS-102279GS
...
6
ROTOR FAN SINCRO (30MM) BS-102073GS
...
7
ROTOR EW200 AC WELDER BS-102383GS
...
8
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
9
BEARING ASSY SINCRO BS-102283GS
...
10
BEARING CIRCLIP BS-~NSP
...
11
ROTOR BOLT 325MM BS-102285GS
...
12
WASHER FLAT M8 & 5/16" BS-~NSP
...
13
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
14
STUD M8*30MM BS-102131GS
...
15
STATOR EW AC 200 WELDER BS-102385GS
...
16
CAPACITOR CLIP BS-102386GS
...
17
CAPACITOR 50UF BS-102387GS
...
18
IMPEDENCE WELDER 200AC BS-102388GS
...
19
SCREW MC PPHD M6*10MM BS-~NSP
...
20
CONNECTOR FEMALE AC WELDER BS-102389GS
...
21
CONNECTOR MALE AC WELDER BS-102390GS
...
22
KNOB SWITCH 2 POSITION BS-102374GS
...
23
PANEL ALUMINIUM BLANK BS-102392GS
...
24
KNOB SWITCH 7 POSITION BS-102391GS
...
25
SWITCH 2 POSITION WELD/GEN BS-102375GS
...
26
SWITCH 7 POSITION AC WELDER BS-102393GS
...
27
SCREW MACHINE M5*8MM BS-~NSP
...
28
SCREW M6 * 15MM BS-~NSP
...
29
COVER TOP BOX BS-102287GS
...
30
OUTLET PANEL BLANK BS-102075GS
...
31
SOCKET OUTLET BS-102030GS
...
32
CIRCUIT BREAKER 15A BS-102133GS
...
33
SCREW PLASTITE PPHD NO6 * 3/8" BS-~NSP
...
34
END CAP PLASTIC (OUTLET PANEL) BS-102085GS
...
35
SCREW MC PPHD M5*10MM BS-~NSP
...
36
OUTLET PANEL COMPLETE BS-102263GS
...
37
ALT/WELDER SINCRO EW200AC F/G/S BS-102394GS

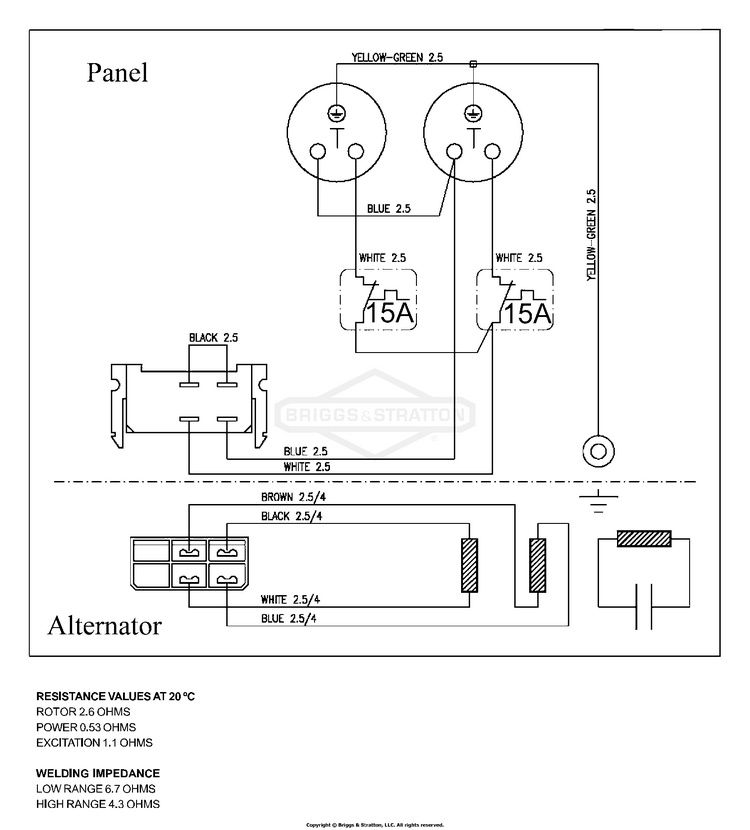

Alternator Wiring Diagram

...

No Parts Available for this Schematic

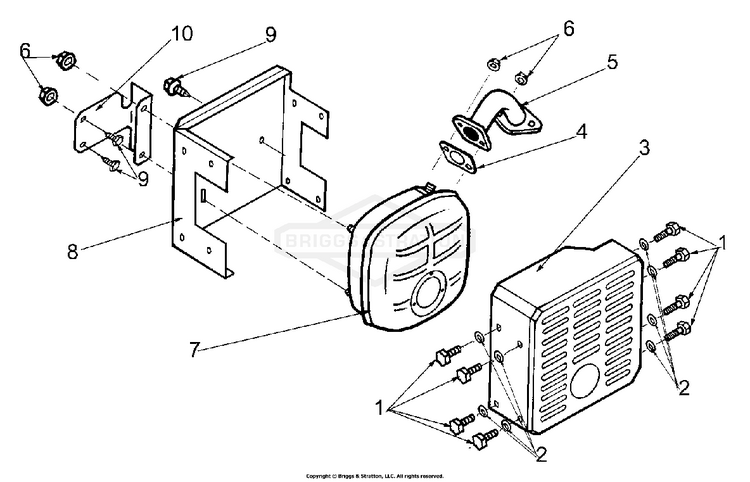

Exhaust And Fittings

...
...
1
SCREW SET HHD M6-1.0*12MM BS-~NSP
...
2
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
3
GUARD QGS MUFFLER BS-102530GS
...
4
GASKET BS-710250
...
5
MANIFOLD BS-715601
...
6
NUT FLANGE M8-1.25 BS-~NSP
...
7
MUFFLER BS-715600
...
8
BRACKET EXHAUST GUARD MOUNT BS-102531GS
...
9
SCREW SELF DRILL 5.5*1.8*20MM BS-~NSP
...
10
BRACKET EXHAUST MOUNTING BS-102668GS

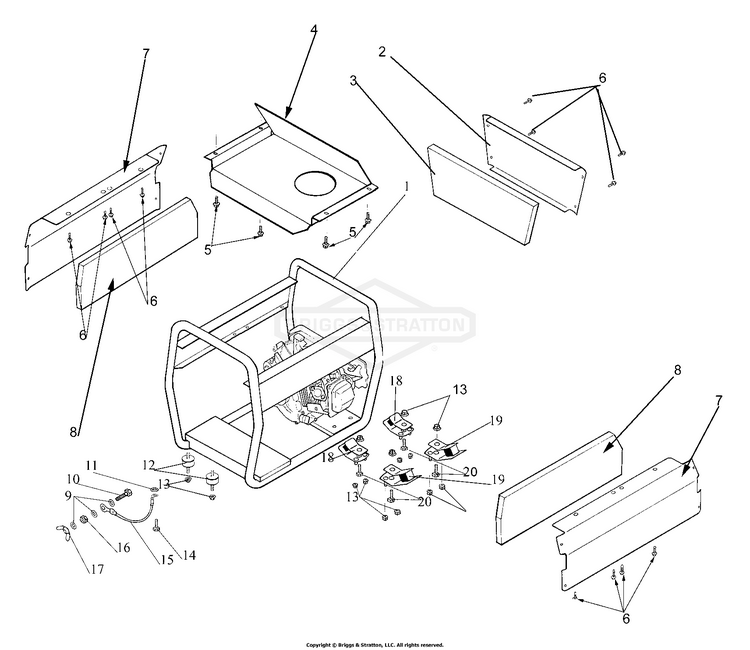

Frame And Fittings

...
...
1
CRADLE RED BS-102297GS
...
2
PANEL ACOUSTIC (END PANEL) BS-102298GS
...
3
ACOUSTIC FOAM 25MM (FOR PANEL BA04) BS-102299GS
...
4
HEATSHIELD 7500L BS-102300GS
...
5
SCREW SELF TAP 5.5*1.8*13MM BS-~NSP
...
6
SCREW SELF DRILL #8*12.7 PPHD BS-~NSP
...
7
PANEL ACOUSTIC BS-102301GS
...
8
ACOUSTIC FOAM 25MM SELF ADHESIVE (FOR AK13 PAN BS-102302GS
...
9
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
10
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
11
WASHER SHAKEPROOF M8 INT BS-~NSP
...
12
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
13
NUT FLANGE M8-1.25 BS-~NSP
...
14
SCREW SET M6*25MM BS-~NSP
...
15
LEAD EARTH ASSY 145MM BS-102378GS
...
16
NUT FULL M6-1.0 BS-~NSP
...
17
NUT WING M6-1.0 BS-102036GS
...
18
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
19
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
20
BOLT M8-1.25 X40 BS-102264GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL FUEL SHUT OFF (Not Illustrated) BS-102672GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL BSW200-B&S 650*90 (Not Illustrated) BS-102379GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL AC YELLOW TRIANGLE (Not Illustrated) BS-102395GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
MANUAL OWNERS BS2012 (Not Illustrated) BS-102065GS

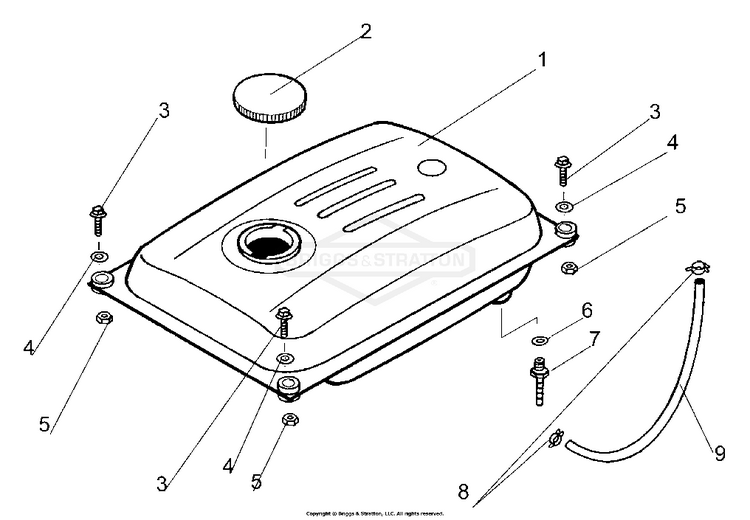

Fuel Tank

...
...
1
TANK FUEL METAL BS-102044GS
...
2
FUEL CAP BS-102090GS
...
3
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
4
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
5
NUT LOCKING FLANGE M6-1.0MM BS-~NSP
...
6
WASHER FIBRE M10 BS-102435GS
...
7
HOSE TAIL CONNECTOR BS-102225GS
...
8
CLAMP HOSE 1/4" ID BS-102047GS
...
9
HOSE FUEL 1/4"ID SAE 30R7 BS-102025GS

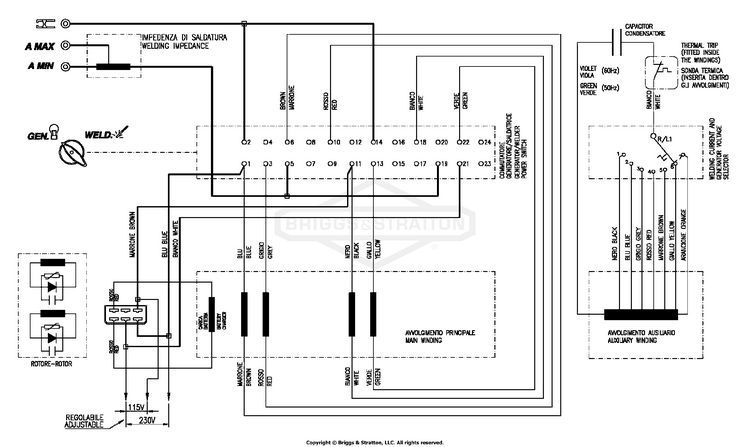

Panel Wiring Diagram

...

No Parts Available for this Schematic

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
