Greenworks LMF319 Lawn Mower

Model: LMF319

Save Part Not Listed?
product name

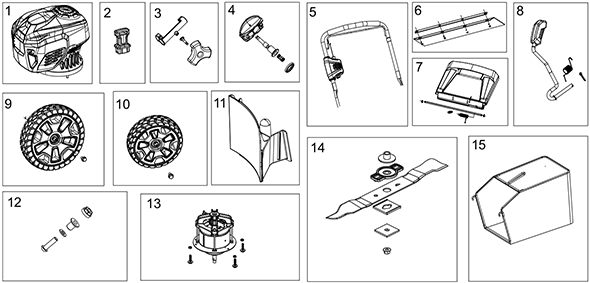

Greenworks LMF319

...
...
1
Power Head GWK-R0202170-00
...
2
Safety Key GWK-R0201860-00
...
3
Upper Handle Knob / Bolt GWK-RB341291179A
...
4
Lower Handle Knob GWK-RB332071179C
...
5
Upper Control Assembly GWK-R0202171-00
...
6
Rear Shield GWK-R0202172-00
...
7
Rear Cover Assembly GWK-R0202178-00
...
8
Height Adjustment Lever GWK-R0202173-00
...
9
Rear Wheel Assembly GWK-RB341271179A
...
10
Front Wheel Assembly GWK-R0200662-00
...
11
Mulch Plug GWK-R0202174-00
...
12
Lower Handle Connection Assembly GWK-RB332101179C
...
13
Motor GWK-R0202175-00
...
14
Blade Assembly GWK-R0202176-00
...
15
Grass Catcher GWK-R0202177-00
